Welcome to the cutting edge of plastic manufacturing, where precision isn't just a goal—it's an absolute necessity. We're talking about injection molding at tolerances of ±0.005mm (5 microns, or 0.0002 inches), a specification that pushes the boundaries of what's possible with polymer materials.
To put this in perspective:
10 times finer than a human hair (typically 70-100 microns)
Comparable to the positioning accuracy of semiconductor lithography equipment
The realm where material science meets nanotechnology
This isn't standard injection molding. This is Micro Molding or Ultra-Precision Molding—a specialized discipline serving industries where failure isn't an option.
The most demanding applications reside here. Any dimensional deviation causes light path miscalculation, image distortion, or signal loss.
Real-World Applications:
Fiber optic ferrule sleeves: The ceramic (often zirconia) components that align optical fibers require bore concentricity and diameter control within ±1 micron to minimize signal loss at connections.
Lens arrays for LiDAR and optical communications: Surface profile accuracy and pitch uniformity directly determine system performance.
Smartphone camera lenses: Multi-element, aspherical lenses where surface finish reaches nanometer-level smoothness.
Where microns separate success from complication in medical interventions.
Real-World Applications:
Microfluidic chips for point-of-care diagnostics: Channel width and depth tolerances control fluid dynamics for precise biological assays.
Components for minimally invasive surgical tools: Parts for cardiovascular stent delivery systems or ophthalmic instruments where size and precision are critical.
Insulin pump mechanisms: Miniature gears and leadscrews that deliver precise medication doses.
As devices shrink, their internal components must follow suit with extreme precision.
Real-World Applications:
IC test sockets and connectors: Coplanarity and pin positioning at micron levels ensure reliable contact with nanoscale circuit features.
Board-to-board connectors in mobile devices: With pitches down to 0.2mm, housing dimensions must be perfect to prevent short circuits.
Hard disk drive components: Suspension assemblies for read/write heads.
Micro-gears for watch movements and micro-robotics: Module sizes below 0.1 require tooth profile accuracy that rivals metal gears.
Metrology instrument components: Parts for micrometers, gauges, and sensor assemblies.
Achieving this level of precision requires perfect alignment of three critical elements:
Standard resins won't cut it. The materials of choice are:
Liquid Crystal Polymers (LCP): Extremely low, predictable shrinkage
Polyphenylene Sulfide (PPS): Excellent dimensional stability at high temperatures
High-glass-filled compounds (50-65%): Minimal, isotropic shrinkage
PEEK and PEI: For medical and high-temperature applications
These materials must have batch-to-batch consistency that would make a Swiss watchmaker nod in approval.

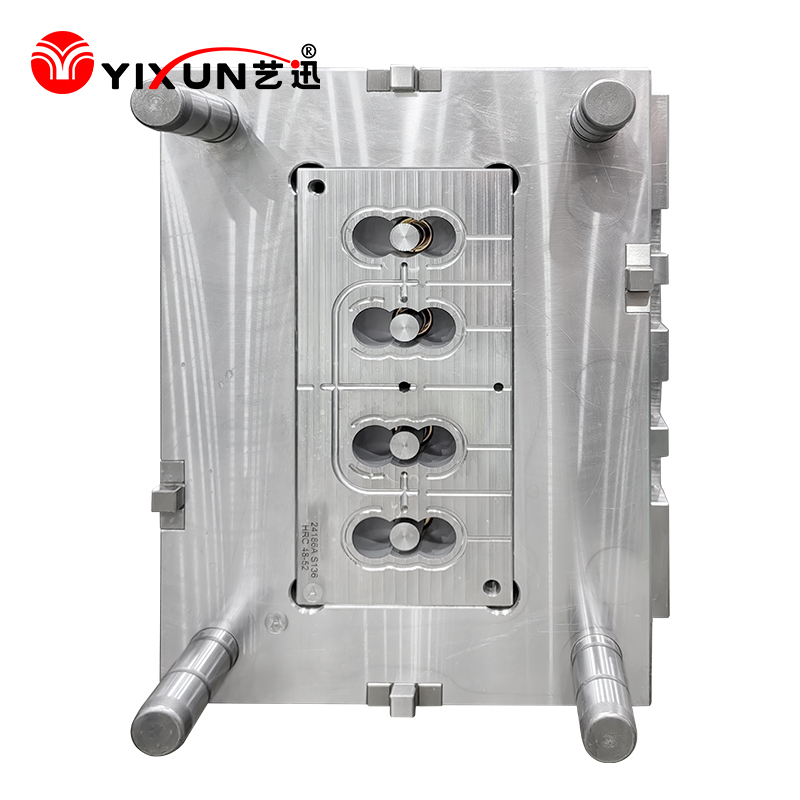

The mold isn't just a tool—it's a precision instrument costing 5-20 times more than conventional molds.
Key features:
Materials: Premium mold steels (S136, NAK80) with exceptional polishability and thermal stability
Manufacturing: Ultra-precision machining using micro-EDM, laser ablation, and diamond turning
Temperature control: Multi-zone, high-response systems maintaining ±0.5°C uniformity
Surface treatments: DLC coatings or nickel plating for wear resistance and release properties
Machines: All-electric or hybrid presses with closed-loop control on every axis
Environment: Production in cleanrooms with ±1°C temperature and ±5% humidity control
Monitoring: Cavity pressure sensors, infrared thermography, and real-time SPC
Post-processing: Stress-relief annealing in precisely controlled ovens
Verifying such tolerances requires its own technological investment:
Coordinate Measuring Machines (CMMs) with sub-micron probes
Optical comparators and white-light interferometers
Micro-CT scanners for internal feature inspection
Climate-controlled metrology labs separate from production
Before specifying such tolerances, ask these critical questions:
Is it functionally necessary? Does this dimension truly drive performance, or can design cleverness (snap fits, compliant mechanisms) provide the needed function with looser tolerances?
Which features truly need it? Typically only 1-2 critical dimensions require this precision. Mark them clearly as "CRITICAL" on drawings.
What's the part size? For components under 10mm, this may be feasible. For parts over 50mm, it's often physically impossible due to cumulative material shrinkage.
What's the budget? Prepare for:
Tooling costs: $50,000 - $500,000+
Part costs: 10-100x conventional injection molding
Lead times: 3-6 months for development
Minimum quantities: Often in the thousands to justify setup
We're seeing exciting developments:
In-mold sensing and AI-driven process adaptation for real-time correction
Multi-material micro-molding combining rigid and flexible polymers
Biodegradable polymers meeting medical precision requirements
Additive manufacturing for mold inserts with conformal cooling for better thermal control
Injection molding at ±0.005mm tolerance represents the pinnacle of polymer processing—a convergence of materials science, precision engineering, and meticulous process control. While not for every project, it enables technologies that are reshaping our world: faster communications, minimally invasive medicine, and ever-more-powerful microelectronics.
For those venturing into this realm, success comes from early collaboration with specialists, realistic expectations, and respect for the immense technical challenges involved. In the world of ultra-precision molding, there's no room for approximation—only perfection will do.
