Internal or external threads create what's known as an undercut. A part with an undercut cannot be ejected with a simple straight-pull motion; it would get stuck, destroying either the part or the mold itself. The solution requires a combination of rotational and linear movements, perfectly synchronized.
Mold engineers have three primary tools for this job, each with varying levels of complexity:
Hoffman (or Split) Molds: Used for external threads. The mold cavity is split into two or more "halves" that separate sideways to release the thread. It's relatively straightforward but leaves a parting line on the thread.
Manual Unscrewing (Collapsible Cores): An operator must manually turn a mechanism (like a wrench on a worm gear) to retract the threaded core after the mold opens. It's simple and low-cost but painfully slow and labor-intensive.
Fully Automatic Unscrewing Molds: This is the champion of high-volume production and the focus of our complexity discussion.
This system is a masterpiece of mechanical integration. Its goal is to automatically rotate the threaded core inserts out of the plastic part before ejection, all within the machine's cycle time.
Why is it so complex?
1. It's a Machine Within a Machine
An unscrewing mold isn't just a mold; it's a compact, self-contained transmission system. The primary components include:
Power Source: A long rack (gear rod) driven by the mold's opening movement, or an external hydraulic motor or servo motor.
Transmission System: A network of gears (spur gears, bevel gears) and drive shafts that transfer and distribute the rotational force.
Actors: The threaded core pins themselves, which must rotate in perfect sync.
Control System: Mechanical or electronic switches to ensure the rotation completes before the ejector plate moves.
2. Surgical Precision in Design and Calculation
Travel Calculation: Engineers must calculate the exact number of rotations needed to fully disengage the thread. This determines the precise length of the rack or the programming of the servo motor.
Gear Design: The module, number of teeth, and gear ratios must be meticulously designed to provide sufficient torque and smooth, synchronized motion without backlash.
Timing Sequence: The sequence is critical: Mold Opens → Cores Rotate and Retract → Ejector Plate Advances. A failure in this sequence can cause a catastrophic mold crash.
3. A Spatial and Manufacturing Puzzle
Space Constraints: Fitting an entire gearbox into the already cramped confines of a mold base is a monumental challenge. It requires an ingenious layout to accommodate all components without compromising mold strength or cooling.
Micro-Level Precision: Every gear, shaft, and bearing must be machined to micron-level tolerances. Any imperfection leads to vibration, misalignment, and failed parts.
Material Science: The gears and core pins are subjected to immense stress and wear. They are made from the highest-grade tool steels and undergo specialized heat treatments to ensure longevity.
4. High Stakes in Debugging and Maintenance
Multiple Points of Failure: A single broken tooth on a tiny gear can bring the entire production line to a halt.
Complex Debugging: Troubleshooting requires dismantling complex assemblies. Technicians need expertise in both mold making and mechanical transmissions.
Costly Downtime: Repairs are time-consuming and expensive, making reliability the paramount design goal.
While a manual Hoffman mold or a hand-unscrewing mold might be simpler, they cannot match the speed, consistency, and labor savings of a fully automatic unscrewing mold.

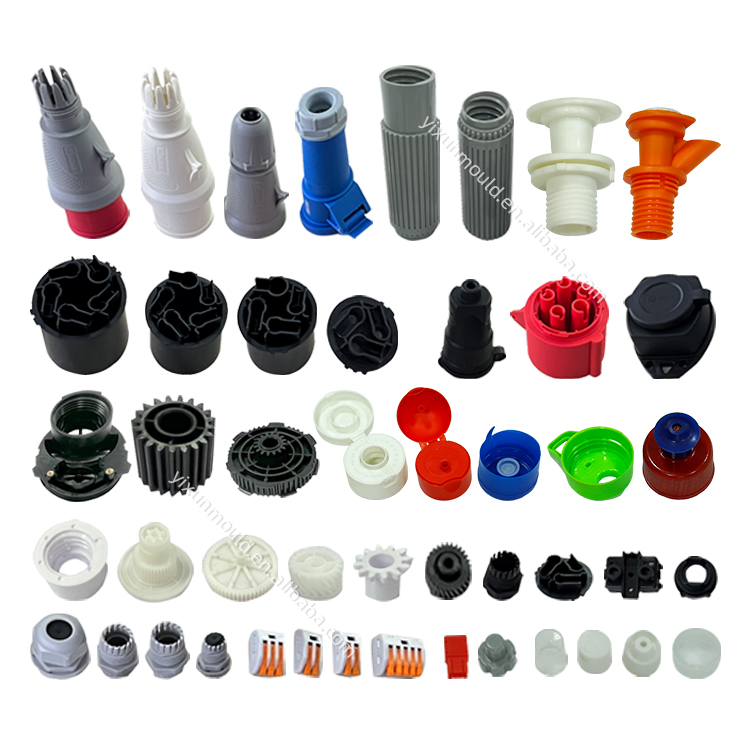

This complexity is not for its own sake; it is a necessary investment to achieve unparalleled manufacturing efficiency. It is the definitive solution for mass-producing threaded components like bottle caps, medical devices, and cosmetic containers at the blistering pace the modern market demands.
