Your injection molding machine is the primary driver. Its capabilities set the stage for how quickly the mold can move.
Clamping Type: Is it a toggle (mechanical) clamp or a full hydraulic or electric clamp? Toggle clamps are powerful but have more inertia, often requiring slower acceleration and deceleration. Electric and full hydraulic machines offer smoother, faster, and more precise movements, typically allowing for quicker open/close times.
Hydraulic & Drive Systems: The responsiveness of hydraulic pumps and valves, or the acceleration of servo motors in all-electric machines, directly determines how fast the platen can move. A high-performance system translates to faster cycle times.
Machine Tonnage: Larger machines have heavier platens. Moving more mass simply takes more time and energy to accelerate and decelerate safely.
The mold itself is often the biggest variable. Its design and condition dictate what the machine can and should do.
Size and Weight: A massive, heavy mold has immense inertia. Trying to move it too quickly creates destructive shock forces. A slower, more controlled motion is necessary to preserve the mold and the machine.
Complexity and Actions: This is a major time factor. Does the mold have:

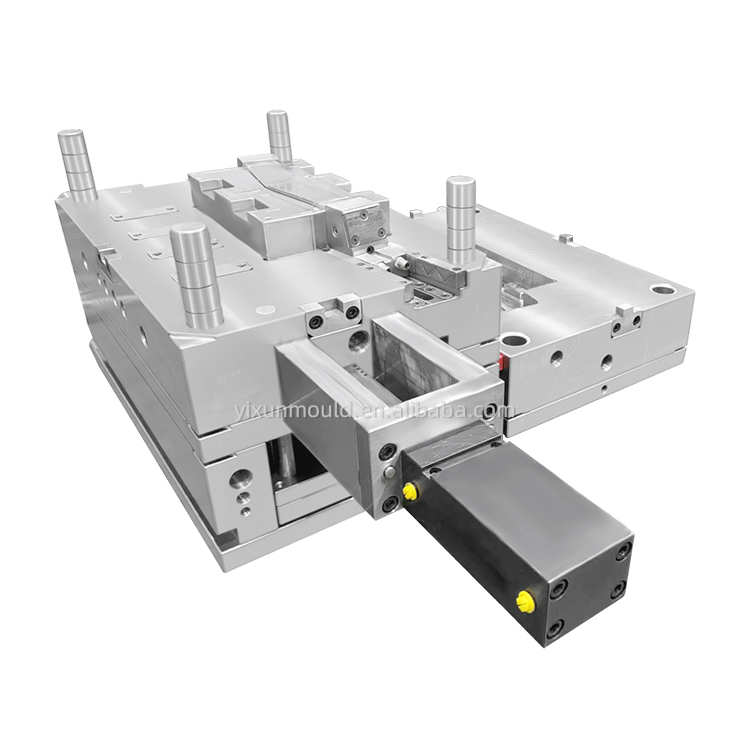

Slides/Cores: These require time to actuate (via hydraulic cylinders or angled pins) after the mold opens and before it can close again.
Unscrewing Mechanisms: Rotating a threaded core out of a part is significantly slower than a simple linear opening.
Complex Ejection: Multi-stage or sequenced ejection systems add time to the cycle before the mold can close for the next shot.
Guidance and Lubrication: Worn-out guide pins and bushings, or poor lubrication, create friction and resistance. This not only slows down the movement but also risks galling and severe damage to the mold.
Finally, the part you're making and how you make it set the ultimate limits.
Material Cooling Time: This is the most crucial indirect factor. The mold cannot open until the part is solid enough to be ejected. The cooling time often dominates the entire cycle. No matter how fast you open and close the mold, you are always waiting for the gate to freeze and the part to solidify.
Part Design: Thick-walled parts require longer cooling. Deep-draw parts or those with delicate features may require a slower initial opening speed to prevent vacuum formation or tearing.
Automation Integration: The open time is often dictated by your robot. The mold must stay open long enough for the robot to safely enter, grasp the part(s) and runner, and retract completely. An inefficient robot path directly increases the mold open time.
So, how do you reduce open/close time without causing havoc?
Optimize Machine Settings: Use a multi-speed profile ("slow-fast-slow"). Maximize the high-speed portion of the travel while using slow speeds at the start and end to cushion the impact.
Minimize Stroke: Reduce the mold opening distance to the absolute minimum required for safe part and runner ejection by the robot.
Prioritize Mold Maintenance: Regularly clean and lubricate guide pins, bushings, and moving components to ensure smooth, low-friction movement.
Design for Efficiency: When designing a new mold, consider how every action—ejection, sliding, etc.—impacts the overall cycle time.
A mold's open and close time is far more than just a setting on a machine. It's a symphony of machine capability, mold design, and process requirements. Finding the perfect balance between raw speed and stable, reliable production is the true path to maximizing your profitability.
