Liquid Silicone Rubber (LSR) in Medical Applications: A Deep Dive into Injection Molding

1. Key Medical Applications of LSR

A. Implantable Devices

• Breast implants – Soft, durable, and biocompatible.

• Facial prosthetics (e.g., artificial ears/noses) – Mimics natural tissue.

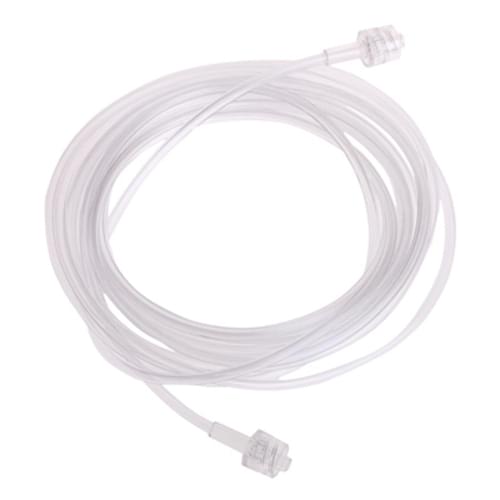

B. Catheters & Tubing

• Urinary catheters – Flexible, kink-resistant, and biocompatible.

• Vascular & respiratory tubes – Resistant to bodily fluids.

C. Seals & Valves

• IV components – Ensures leak-proof connections.

• Respiratory mask valves – Must endure repeated compression.

D. Wearable Medical Products

• Wound dressings & scar sheets – Breathable and skin-friendly.

• ECG electrodes – Conductive yet gentle on skin.

E. Surgical & Dental Tools

• Endoscope parts – Withstands autoclaving (high-temperature sterilization).

• Dental impression materials – Fast-curing with high accuracy.

2. Injection Molding Challenges for LSR Medical Products

LSR molding differs significantly from traditional plastic injection molding. Key considerations include:

A. Mold Design

• Cold runner systems – Prevents premature curing (LSR vulcanizes at 120–200°C).

• Precision venting – Prevents air traps (micron-level vents required).

• Tight parting lines – LSR’s low viscosity can cause flash if sealing is imperfect.

B. Material Handling

• Two-part mixing (A+B) – Requires precise metering and dispensing.

• Low viscosity – Flows like water, demanding leak-proof molds.

C. Automation & Efficiency

• Needle-valve nozzles – Prevents drooling.

• Fast curing cycles – Optimized heating/cooling channels reduce production time.

D. Surface Finishing

• Mirror polishing or nickel-PTFE coating – Ensures easy demolding and smooth surfaces.

3. Industry Trends & Future Outlook

• Micro-molding – For ultra-small medical components (e.g., catheter tips).

• Multi-material molding – Combining LSR with rigid plastics (e.g., ergonomic grips).

• 3D-printed prototype molds – Accelerates development for custom medical parts.

4. Real-World Examples

• Contact lenses – Ultra-high-precision LSR molds with nanoscale finishes.

• Insulin pump seals – Long-term durability under dynamic stress.

Conclusion

The growing demand for high-performance medical devices is driving innovation in LSR injection molding. Mold manufacturers must adapt to LSR’s unique properties—low viscosity, heat-curing chemistry, and strict biocompatibility requirements. As medical technology advances, expect smarter molds, faster cycles, and miniaturized components to dominate the future of LSR medical manufacturing.
