What is it?
Insert Molding is a manufacturing process. It involves placing a pre-fabricated component—called an "insert"—into a mold, then injecting molten plastic around it. The plastic cools and solidifies, permanently encapsulating the insert to form a single, multi-material integrated part.
Think of it as baking a fruitcake: you first place the nuts and fruits (inserts) into the pan, and then pour in the batter (plastic) to create a unified final product.
The Insert Mold Process:
Prepare the Insert: Common inserts include metal threads (nuts, screws), pins, electrical terminals, or even pre-formed parts.
Place the Insert: The insert is placed, manually or robotically, into the mold cavity.
Inject Plastic: The mold closes, and plastic is injected under high pressure.
Eject the Part: The finished part, now a solid combination of plastic and insert, is ejected.
Why Use Insert Molding?
Functional Integration: Combines multiple parts into one, simplifying assembly. No need for post-molding installation of nuts or contacts.
Structural Enhancement: Metal inserts drastically improve the strength, durability, and load-bearing capacity of plastic parts.
Space Saving: Enables more compact and sophisticated product designs.
Improved Reliability: Protects sensitive components (like electronics) from moisture, vibration, and corrosion.
Common Applications:
Automotive: Sensor housings, interior panels with built-in threaded nuts.
Electronics: Electrical connectors (USB, terminals), switches, and sensor bodies.
Consumer Goods: Power tool housings, faucet handles, and reinforced gears.
Now, let's address the other half of the confusion. When engineers talk about "mold inserts" or "mold镶件," they are referring to the tooling structure of the mold itself, not the part being produced.
What are they?

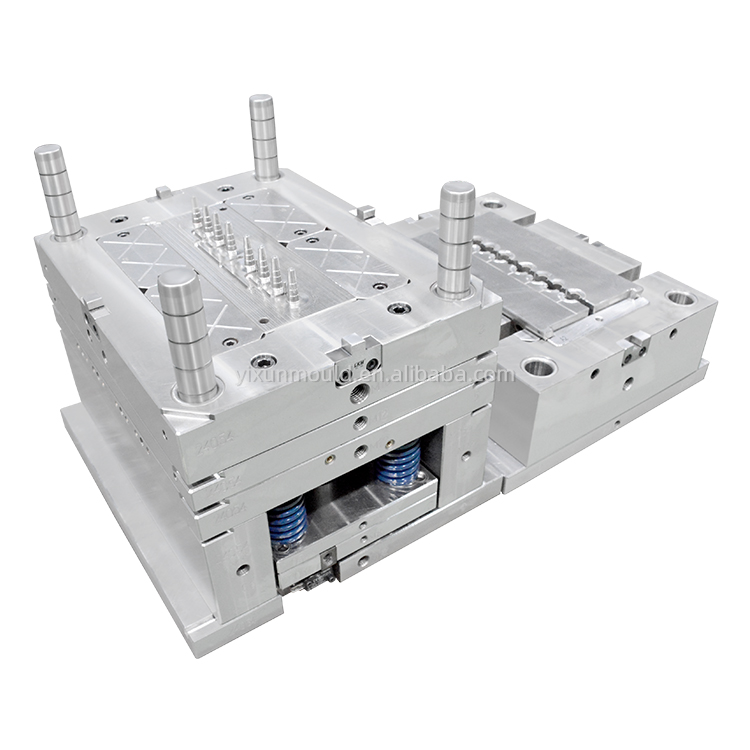

Mold Inserts are modular, replaceable blocks of hardened steel that are fitted into the main body of a mold. They form specific sections of the mold cavity, such as delicate features, complex geometries, or high-wear areas.
Why Are Mold Inserts So Universal?
The short answer: for easier mold modification and maintenance. While not every single mold has them, they are an industry standard for any complex, production-grade tool. Here’s why:
Easier Modifications & Repairs: Instead of re-machining the entire mold base, engineers can simply replace or modify a single, small insert. This saves immense time and cost during design changes or if a section of the mold gets damaged.
Superior Material Use: Inserts can be made from premium, wear-resistant steel, while the main mold body uses a tougher, less expensive grade. This optimizes performance and cost.
Simplified Manufacturing: Complex geometries are easier to machine on a small insert than deep within a large block of steel.
Enhanced Cooling & Venting: Inserts can be designed with dedicated cooling channels to improve cycle times and part quality.
Are There Molds Without Inserts?
Yes, these are called "Unit Molds" or "Monobloc Molds." They are machined from a single block of steel. However, they are typically only used for:
Extremely simple parts (e.g., flat panels).
Very low-volume production or prototyping.
Situations where a perfectly seamless surface (no witness lines) is critical.
For most industrial applications, the flexibility and cost-effectiveness of a mold with inserts make it the undisputed choice.
| Feature | Insert Molding (Process) | Mold Inserts (Tooling) |
|---|---|---|
| What it is | A manufacturing process for making a part. | A modular component of the mold tool itself. |
| Purpose | To create a multi-material final product. | To make the mold more durable, repairable, and flexible. |
| End Result | A plastic part with metal/other material inside it. | A better, longer-lasting mold that produces plastic parts. |
| Analogy | Baking a fruitcake (inserts become part of the cake). | Building a PC with swappable components (CPU, RAM). |
Understanding the distinction between Insert Molding and Mold Inserts is more than semantics—it's fundamental to effective design and communication.
Use Insert Molding when your product needs to integrate strength, conductivity, or other materials.
Use Mold Inserts in your tooling to ensure your manufacturing process is adaptable, maintainable, and cost-effective in the long run.
By leveraging both of these powerful concepts, manufacturers can create smarter, more robust, and more innovative products efficiently. The next time you design a part, consider not just what goes into your product, but also how the tool that makes it is built to adapt.
