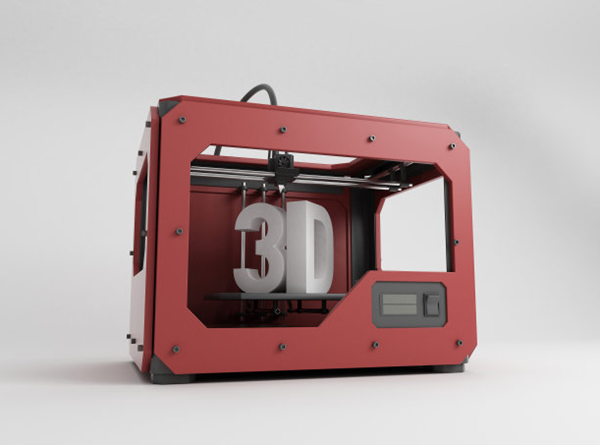

Process: Builds objects layer by layer from digital models (CAD files).
No Mold Needed: Directly prints parts, making it ideal for prototypes and custom designs.
Common Technologies:
FDM (Fused Deposition Modeling) – Melts plastic filament.
SLA/DLP (Stereolithography) – Uses UV light to cure resin.
SLS/SLM (Selective Laser Sintering/Melting) – Fuses metal or nylon powder.
Process: Heats plastic pellets and injects them into a steel/aluminum mold under high pressure.
High Initial Cost: Requires expensive molds but is cost-effective for mass production.
Speed: Produces thousands of identical parts quickly (cycle time: seconds to minutes).
| Factor | 3D Printing | Injection Molding |
|---|---|---|
| Production Speed | Slow (hours to days for complex parts). | Extremely fast (seconds per part). |
| Cost Efficiency | Low setup cost, high per-part cost. | High mold cost, low per-part cost. |
| Material Options | Limited (PLA, ABS, resin, some metals). | Wide range (PP, PC, nylon, etc.). |
| Surface Finish | Visible layer lines (needs post-processing). | Smooth, high-quality finish. |
| Design Freedom | Excellent (complex geometries possible). | Limited by mold design. |
✅ You need prototypes or custom parts.
✅ Your design has complex internal structures (e.g., lattices, hollow parts).
✅ Production volume is low (1–1,000 units).
✅ You want to avoid high mold costs.
✅ You’re producing high volumes (10,000+ units).
✅ You need strong, consistent parts (e.g., consumer products).
✅ Smooth surface finish is critical.
✅ Material properties (e.g., flexibility, heat resistance) are a priority.
Hybrid Manufacturing: 3D-printed molds for injection molding.
Mass Customization: 3D printing enables personalized products.
Sustainable Materials: Bio-based plastics and recyclable powders.
3D printing excels in flexibility and customization, while injection molding dominates mass production. Your choice depends on budget, volume, and design needs. As technology evolves, both methods will continue to shape the future of manufacturing!
