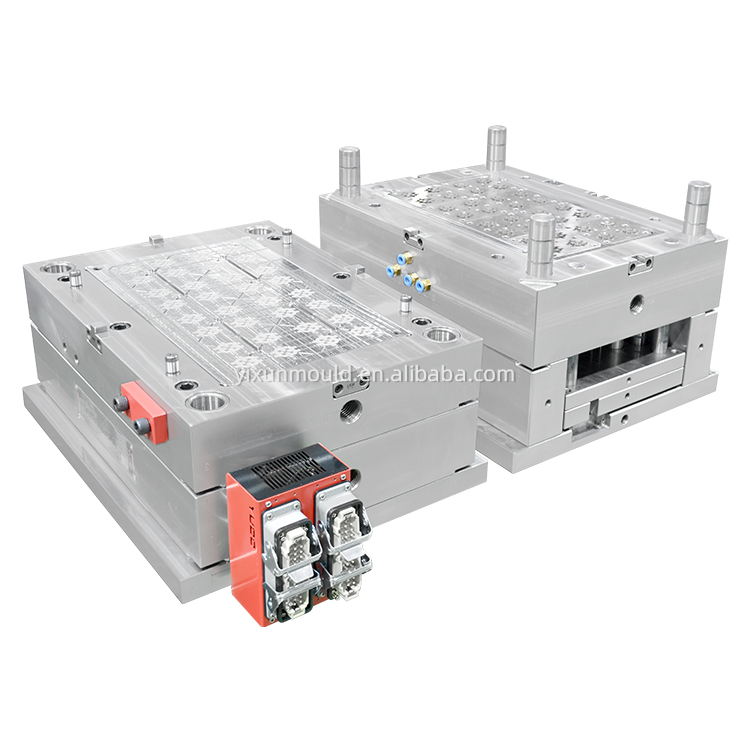

An injection mold can have multiple cavities—think of it as a multi-chambered cookie cutter. A "1+1" mold produces two different parts, while a "1x8" mold produces eight identical parts in a single cycle.
A cavity number is a unique identifier engraved onto the mold for each of these chambers. The part formed in that chamber carries that number, creating a direct link back to its specific origin point inside the mold.
The single most important reason for cavity numbering is traceability. It transforms guesswork into precise, data-driven action. Here’s how:
1. Pinpoint Problem Solving & Mold Repair
The Scenario: During production, an inspector finds that one part in every shot has a cosmetic defect, like a blemish or a flow line.
Without Cavity Numbers: The maintenance technician has to inspect all cavities, a time-consuming and frustrating process of elimination. They might run multiple test shots, wasting material and machine time.
With Cavity Numbers: The report states, "Defect consistently found on cavity B3." The technician goes straight to the B3 cavity to check for damage, issues with polish, or clogged vents. Repair is fast, targeted, and efficient.
2. Superior Statistical Process Control (SPC)
The Scenario: You are molding a critical component with tight dimensional tolerances and are tracking key measurements.
Without Cavity Numbers: Your measurement data is a jumbled mix. Is the variation due to the process cycle, or is one specific cavity consistently producing oversized parts? You can't tell.
With Cavity Numbers: You can plot data for each cavity individually. The charts will immediately reveal the truth:
If only Cavity D is trending out of spec, the problem is likely a worn or damaged mold component in that specific cavity.
If all cavities are shifting together, the problem is in the molding process (e.g., temperature, pressure). This insight is invaluable for root cause analysis.
3. Streamlined Maintenance & Historical Records
Molds are valuable assets that require meticulous care. Cavity numbers create a clear maintenance history.
A technician can log: "Replaced the ejector pin in Cavity A2."
If a specific cavity is prone to damage, its history is tracked. This enables predictive maintenance and helps manage the mold's lifecycle effectively.
4. Informed Production Planning
If one cavity is damaged and needs repair, the mold can often still run in a "short shot" mode using the remaining cavities. The production order can be planned with this in mind, and the parts can be labeled accordingly, ensuring everyone knows the output capacity.
The systems used are straightforward but effective:
Numerical: 1, 2, 3, 4...
Alphabetical: A, B, C, D...
Coordinate Grid: For high-cavity molds (e.g., 1x64), a system like A1, A2, B1, B2... is used, similar to a map grid.
Imagine a hospital nursery with several identical-looking newborns. The nurses place an ID band on each baby. This allows them to:
Track each baby's individual vitals and feeding schedule.
Administer the correct medicine to the right baby.
Maintain an accurate medical record for each child.
Without the ID bands, it would be chaos. A multi-cavity mold without numbering is the same kind of chaos.
Cavity numbering is a perfect example of a "small investment, massive return" practice. The cost of adding these numbers during mold manufacturing is minimal, but the benefits in saved time, reduced scrap, faster repairs, and superior quality control are enormous.
It is the hallmark of a professional, data-driven, and quality-focused manufacturing operation. Never underestimate the power of a simple birthmark.
