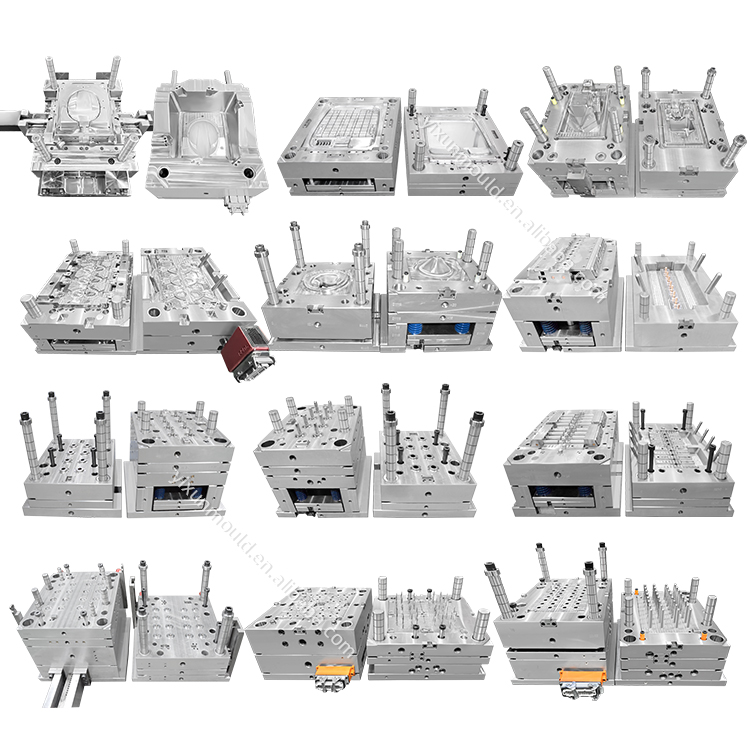

In large-scale manufacturing, part warpage presents a severe commercial risk. It leads directly to assembly failures, unacceptable scrap rates, and compromised structural integrity. We know warpage is fundamentally a thermal and pressure management issue. Uneven cooling and differential shrinkage pull these large components completely out of tolerance. Mitigating these specific risks requires precise, upfront investments in tooling architecture. The cheapest mold often yields the highest cost-per-part because it lacks inherent dimensional stability. Predictable manufacturing demands rigorous precision at the engineering phase. You cannot simply tweak machine settings to fix a poorly designed tool. Instead, you must engineer stability directly into the steel. In this article, you will discover exactly how specific tooling features eliminate warpage. We will explore advanced thermal management, strategic gate positioning, and material-specific designs. You will learn how to properly evaluate partners and protect your production lines from costly dimensional defects.
Cooling dictates stability: Advanced thermal management, such as conformal cooling channels, is the primary defense against differential shrinkage in large parts.
Pressure must be uniform: Strategic gate placement and hot runner systems ensure uniform packing pressure, reducing molded-in stress.
Material behavior matters: Mold designs must be uniquely calibrated for the specific resin, as amorphous and semi-crystalline polymers shrink differently.
Tooling ROI: Evaluating a mold builder based on their structural design capabilities and simulation accuracy prevents costly post-production tool modifications.
You must define warpage as a critical failure in functional tolerances, rather than a mere visual defect. When large parts warp, they fail to mate correctly during downstream assembly. This fundamental misalignment causes immediate production line bottlenecks. In industrial plastic injection molding, warped components compromise the structural integrity of the final product. A warped chassis or housing cannot safely protect internal electronics or support mechanical loads.
The financial impact cascades rapidly through your entire operation. Production teams often attempt to fix warpage by drastically increasing cycle times. They leave the part in the mold longer to cool the warp out. These extended cycles destroy your profit margins and limit production capacity. Furthermore, warped parts frequently demand costly post-molding fixturing. Operators must manually clamp warm parts into physical jigs while they cool. This manual intervention ruins manufacturing efficiency and inflates labor expenses.
A truly successful tooling project balances dimensional predictability alongside optimized cycle times. You achieve predictable unit economics when the tool produces flat, stable parts at high speeds. This stability ensures long-term production scalability. Proper upfront engineering completely eliminates these hidden manufacturing penalties.
Multi-point gating becomes strictly necessary for large surface areas. We rely heavily on valve gates to reduce the overall flow length of the molten polymer. Shorter flow lengths minimize internal pressure drops across the cavity. This strategy maintains a uniform packing pressure from the center of the part out to the edges. Gate positioning also directly dictates fiber orientation in composite resins. Strategic placement minimizes residual mechanical stress. You prevent uneven shrinkage during the cooling phase by controlling exactly how the plastic fills the space.
Inadequate ejection forces induce massive mechanical stress. Parts remain warm and highly malleable during the ejection sequence. Standard small ejector pins punch directly into the soft plastic. They distort the geometry and cause severe localized warpage. You need highly optimized ejection systems to prevent this physical distortion. We recommend utilizing larger ejector pins, full stripper plates, and synchronized ejection mechanisms. These systems push the part out perfectly evenly. They distribute the mechanical force across a much wider surface area.
Large molds require exceptional structural rigidity. High injection pressures easily cause lateral core shift. Core shift creates uneven wall thicknesses throughout the final part. Uneven walls cool at vastly different rates and inevitably warp. Robust guide pins and heavy-duty locking mechanisms prevent this dangerous lateral movement. Tapered interlocks keep the core and cavity perfectly aligned under immense clamping tonnage. They represent a hidden but vital defense against dimensional instability.
Traditional cooling methods rely on straight-drilled water lines. These standard lines struggle immensely to cool complex geometries uniformly. They cannot physically reach deep cores, tall ribs, or intricate internal features. The resulting uneven heat extraction causes differential shrinkage across the component. Differential shrinkage directly leads to severe warpage. You cannot achieve dimensional stability if one side of the part cools faster than the other.
The conformal solution solves this exact thermal problem. Engineers utilize 3D-printed metal mold inserts created via Direct Metal Laser Sintering (DMLS). These specialized inserts feature internal conformal cooling channels. The channels closely follow the exact geometric contour of your specific part. They wrap around deep cores and navigate complex curves. Water flows uniformly at an equal distance from the molding surface.
A direct correlation exists between uniform heat extraction and reduced warpage. You experience significantly lower dimensional risks when you control the thermal dynamics. This advanced cooling strategy also yields much faster cycle times. The tool removes heat rapidly and evenly, allowing you to eject the part sooner without risking deformation.
We routinely introduce gas assisted injection molding for thick and challenging geometries. This technology provides a highly effective approach for large handles, equipment covers, and thick structural panels. Standard injection molding struggles with thick cross-sections because the inner core cools very slowly. This slow cooling pulls the outer skin inward, creating sink marks and severe warp.
Nitrogen gas solves this by hollowing out the thick sections. High-pressure gas enters the molten plastic and pushes it outward against the cavity walls. It applies uniform internal outward pressure during the entire cooling phase. This outward pressure compensates perfectly for volumetric shrinkage. It entirely eliminates sink marks and prevents warpage. You no longer need massive mechanical packing pressures to force plastic into the cavity. Massive packing pressures usually induce heavy internal stress, which later releases as warp.
However, this technology requires highly careful implementation. You need specialized mold seals to prevent gas leakage. You must design precise gas channels to guide the nitrogen flow smoothly. Furthermore, your injection molding machines must support advanced gas control interfaces. The upfront complexity pays off by delivering perfectly straight, lightweight, and highly rigid components.
Mold dimensions must accurately accommodate specific polymer shrinkage rates. You cannot use the exact same tool design for different plastic resins. Doing so inevitably leads to immediate warpage and dimensional failure. The tool steel must be cut specifically for the unique thermal behavior of the chosen polymer.
Polymer Type | Structure | Shrinkage Rate | Primary Tooling Priority |
|---|---|---|---|
ABS | Amorphous | Low (0.4% - 0.7%) | Low-shear gating, generous venting |
Polypropylene (PP) | Semi-Crystalline | High (1.0% - 2.5%) | Aggressive cooling, strict uniform walls |
ABS is an amorphous polymer. It exhibits relatively low and highly predictable shrinkage. However, ABS remains highly susceptible to molded-in stress. Poor flow conditions easily trap mechanical stress inside the part matrix. A dedicated ABS plastic injection mold must prioritize low-shear gating to prevent material degradation. It also requires generous venting to prevent trapped gas from creating localized burn marks and short shots.
Polypropylene (PP) behaves entirely differently. It is a semi-crystalline material. It features a much higher and highly asymmetric shrink rate. The crystalline structures pack tightly together as they cool, causing significant dimensional reduction. A large PP plastic sleeve molding project requires extreme precision. Molds for large PP parts require aggressive, highly balanced cooling circuits. You must strictly adhere to uniform wall thickness transitions. Sudden thickness changes in PP parts cool at different speeds, which causes immediate and severe bowing.
You must shortlist tooling partners who demand evidence-based design. Excellent mold builders mandate Moldflow Computer-Aided Engineering (CAE) analysis before they cut any steel. You should request to see their thermal mapping reports. Ask for detailed warp prediction simulations. These digital tests reveal exactly where the part will bend before manufacturing begins.
Verify their steel selection for long-term durability. Large molds require high-grade tool steel like P20 or H13. These dense steels withstand massive clamping tonnage without undergoing any physical deflection. A soft steel mold will bend under pressure, causing flash and uneven wall thicknesses. Both defects lead directly to warpage.
Assess the vendor's trial and validation process closely. Look specifically at their T0 and T1 sample data. Ensure your tooling contract includes strict dimensional buy-off criteria. Do not accept contracts based simply on receiving "parts off the tool." The parts must meet strict flatness and tolerance specifications before you approve final payment.
As an actionable next step, recommend initiating a comprehensive Design for Manufacturability (DFM) review. Assess their specific approach to cooling layouts and gating strategies for your exact CAD model.
Preventing warpage in large parts remains a strict upfront engineering challenge. It is never a simple processing parameter you can fix on the production floor. Operators cannot out-process a bad tool design. Uneven cooling and poor pressure distribution guarantee dimensional failure.
Investing in high-quality plastic injection mold features acts as a robust insurance policy. Conformal cooling, optimized ejection, and strategic gating protect you against ongoing scrap rates. They eliminate unpredictable production delays and safeguard your unit economics.
Actionable next steps to ensure success include:
Mandate comprehensive CAE warp simulations before approving the mold design.
Audit the proposed cooling channel layouts to ensure thermal uniformity.
Lock in your exact resin grade early, and do not change materials after the tool is cut.
Establish clear dimensional tolerance buy-offs in your initial vendor contract.
A: Only marginally. While extending cooling time or adjusting pack pressure can help, severe warpage is a symptom of poor mold design or unoptimized part geometry. You cannot permanently solve differential shrinkage with machine tweaks. True stability requires fixing the underlying thermal unevenness inside the tool itself.
A: It increases initial CapEx by 10-30% depending on complexity, but typically pays for itself rapidly through cycle time reduction and lower scrap rates. The upfront investment eliminates downstream fixturing costs and guarantees a more predictable, scalable manufacturing process.
A: Uneven wall thickness is a primary culprit. Thick sections cool much slower than thin sections, pulling the part entirely out of alignment as it solidifies. Proper coring out in the mold design is essential to maintain consistent cooling rates across the entire component.
