If you have ever held a toothbrush with a soft rubber grip or used a high-end TV remote with integrated buttons, you have interacted with the brilliance of two-shot injection molding. This advanced manufacturing process allows engineers to combine two different Thermoplastic materials into a single, integrated part during one machine cycle. It eliminates the need for secondary assembly, which often introduces errors and extra costs.
Understanding what a 2 shot mold is requires looking past simple plastic shaping. It is about chemistry, mechanical bonding, and High precision engineering. By injecting a primary material and then over-molding it with a second substrate, we create products that are more durable, aesthetically pleasing, and ergonomically superior. This guide explores the mechanics, advantages, and expert insights behind this essential modern manufacturing technique.
The primary intent of two-shot injection molding (also known as multi-shot or double-shot molding) is to create a multi-material part in a single operation. Unlike traditional over-molding where a technician moves a part from one machine to another, a 2 shot mold stays within the same specialized press. This setup uses two separate injection units and a rotating platten or index plate.
First, the machine injects the "substrate"—usually a rigid Thermoplastic that forms the structural skeleton of the part. Once this first shot solidifies, the mold opens, and the internal plate rotates 180 degrees. The second injection unit then fires, covering specific areas of the first part with a second material, often a Medical grade silicone or a soft-touch TPE (Thermoplastic Elastomer).
By keeping the part inside the mold for both stages, we ensure High precision alignment. They never leave the controlled environment of the tool. This prevents the contamination or cooling issues that happen when parts are handled manually between shots. For high-volume Consumer electronics, this consistency is the difference between a premium feel and a cheap, loose-fitting product.
Why do leading manufacturers choose a 2 shot mold over cheaper, single-cavity alternatives? The answer lies in long-term ROI and product integrity. While the initial tooling cost is higher, the unit price and performance metrics often justify the investment.
In a two-shot injection molding process, the two materials bond at a molecular level. Because the second shot is injected while the first shot is still warm (but structurally sound), they fuse together. This creates a bond that is much stronger than using glue or mechanical fasteners. It makes the final product waterproof and resistant to peeling, which is vital for Medical grade devices that undergo frequent sterilization.

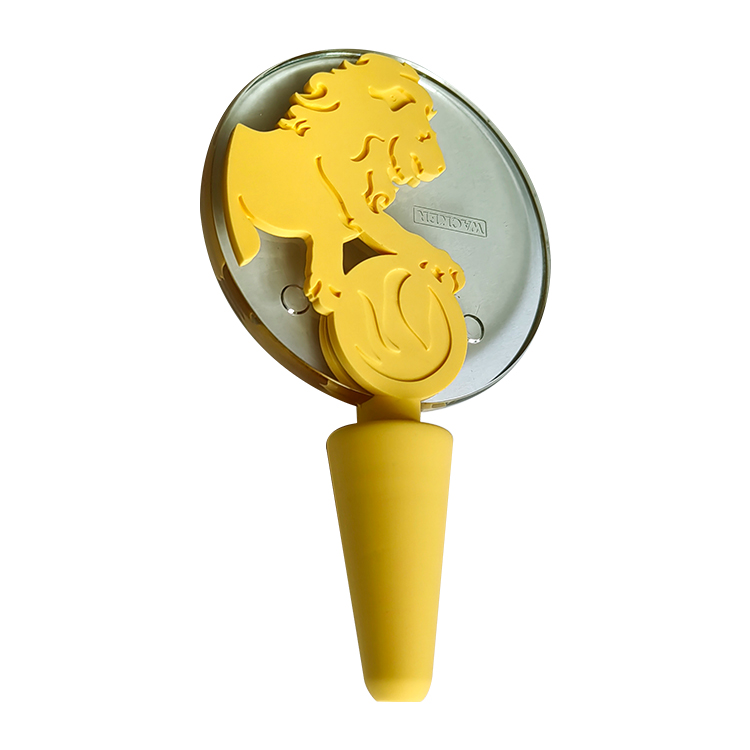

We use this technology to create clear windows in opaque housings, multi-colored logos that never wear off, and integrated gaskets that cannot be lost. It allows designers to experiment with Custom textures and colors without worrying about how pieces will fit together later. In the world of Rapid prototyping, this allows for complex parts that look and function like finished retail goods immediately.
For a successful two-shot injection molding run, both materials should have similar melting points or be sequenced so the higher-temperature material is injected first. Common pairings include ABS with TPU or Polycarbonate with Silicone. When we design for Consumer electronics, we prioritize materials that resist skin oils and provide a soft grip while maintaining a rigid frame.
Successful bonding happens when the polymer chains of the second shot intermingle with the surface of the first. We often use Custom resin blends to enhance this "stickiness." If the bond isn't perfect, the part may fail during thermal cycling (expanding and contracting in different weather).
When chemical bonding is impossible due to design constraints, we engineer "mechanical locks." We design small holes or undercuts in the first shot so the second Thermoplastic shot flows through them, effectively "riveting" itself to the base. This ensures a Durable connection even between non-compatible plastics.
The versatility of the 2 shot mold makes it a staple in industries where failure is not an option and user experience is everything.
In the medical field, cleanliness is king. A two-shot injection molding part eliminates the "parting lines" and gaps where bacteria could hide. We use it to create Medical grade surgical handles that are slip-resistant but can still withstand harsh chemical wipes. The High precision nature of the process ensures that dosage markings or integrated seals meet strict regulatory tolerances.
From smartphone cases to wearable fitness trackers, two-shot injection molding is everywhere. It allows us to integrate "living hinges" and waterproof buttons directly into the frame. For Consumer electronics, we focus on thin-wall molding techniques that keep devices light while providing the shock absorption of a soft outer shell.
As a procurement or engineering lead, you must decide if the upfront cost of a 2 shot mold is worth it. This decision usually hinges on production volume and part complexity.
While a two-shot injection molding tool might cost 30% to 50% more than two separate single-shot molds, you save significantly on secondary labor. You don't need a team to snap parts together, and you don't need a clean room for adhesive application.
If you are in the Rapid prototyping stage, you might start with over-molding to prove the concept. However, once you move to mass production, switching to a 2 shot mold reduces your scrap rate. Because the process is fully automated, the "human error" factor is removed, leading to a much higher yield of High precision parts.
High Volume: 50,000+ parts almost always favor 2-shot.
Complex Geometry: If assembly is difficult, 2-shot is the solution.
Tight Tolerances: 2-shot provides the best alignment.
No manufacturing process is without its hurdles. With two-shot injection molding, the challenges usually involve tool design and thermal management.
Since you are injecting hot plastic onto a part that has already partially cooled, you have to manage "warp." If the first shot isn't cooled enough, the second shot might deform it. If it’s too cold, the bond won't be as strong. Experts use sophisticated mold-flow analysis to predict these temperatures before the steel is even cut.
We choose the rotation method based on the part size. Rotating platen systems are standard for larger parts, while indexing cores are better for small, High precision components found in Consumer electronics. Choosing the wrong method can lead to slower cycle times and increased wear on the machine.
The "gate" is where the plastic enters the mold. In two-shot injection molding, gate placement is a fine art. You have to hide the gates so they don't ruin the look of a Custom consumer product while ensuring the plastic fills the cavity evenly. We often use valve gates to control the flow with extreme accuracy.
The world of two-shot injection molding is evolving. We are seeing a move toward using recycled Thermoplastic for the internal substrate and virgin material only for the outer "skin."
By using a 2 shot mold, we can sandwich regrind (recycled plastic) inside a beautiful exterior. This reduces the carbon footprint of Consumer electronics without sacrificing the "premium" feel. It also makes the parts easier to recycle at the end of their life because they are made of compatible polymer families that don't need to be separated.
We are now seeing 3-shot and 4-shot processes. Imagine a Medical grade device with a rigid body, a clear window, a soft grip, and a glow-in-the-dark safety strip—all made in one machine. This is the future of High precision manufacturing.
When you source a 2 shot mold, you aren't just buying a tool; you are buying a process. The quality of the steel, the accuracy of the CNC machining, and the skill of the mold designer all dictate your final part quality.
For Medical grade projects, the mold must be built in a facility that understands ISO 13485 standards. This ensures that every part is traceable and that the Thermoplastic materials used are bio-compatible.
A High-quality provider won't just ship the tool. They will provide a full T1 sample report, including CMM (Coordinate Measuring Machine) data to prove High precision. This is especially critical for Consumer electronics where a 0.1mm gap can be felt by the user's hand.
Two-shot injection molding is the gold standard for creating high-performance, multi-material parts. By investing in a 2 shot mold, you unlock a world of Custom design possibilities, superior bond strength, and long-term cost savings. Whether you are developing the next breakthrough in Medical grade equipment or a sleek piece of Consumer electronics, this process provides the High precision and durability that modern consumers demand. It turns a complex assembly problem into a streamlined, one-step manufacturing solution.
Q: Can I use two different colors of the same plastic in a 2 shot mold?A: Yes! This is a very common use case for creating permanent logos or clear "windows" in a housing without needing separate pieces.
Q: What is the lead time for a custom 2 shot mold?A: Typically, it takes 8-12 weeks. Because the tool has a rotating mechanism and two sets of cavities, it is more complex than a standard mold.
Q: Is two-shot injection molding suitable for small production runs?A: Usually, no. Due to the high cost of the specialized 2 shot mold and the machine setup, it is best for volumes where the labor savings can offset the initial investment.
