Have you ever wondered how the plastic housing of your smartphone, the dashboard of your car, or life-saving medical syringes are made? The answer is injection molding. It is the most common manufacturing process for producing plastic parts in large volumes. From a simple toy to a High tolerance Electronic component, this process allows for incredible consistency and speed.
At its heart, injection molding is about taking raw plastic pellets, melting them down, and forcing them under high pressure into a precision plastic injection mould. While the concept sounds simple, the execution requires a deep understanding of thermodynamics, material science, and mechanical engineering. In this guide, we will break down exactly how this process works, why a Custom precision plastic injection mould is the "soul" of the operation, and how industries achieve Medical grade quality in every cycle.
To understand how it works, we must first look at the machine. It is not just one tool but a collection of synchronized systems. Most machines consist of two main parts: the injection unit and the clamping unit.
The injection unit acts like a giant syringe. It heats the plastic and pushes it forward. The clamping unit holds the precision plastic injection mould shut against the immense pressure of the molten plastic. Without a powerful clamp, the two halves of the mould would fly apart, resulting in "flash"—excess plastic leaking out of the seams.
Experts categorize these machines by their "tonnage." This represents the amount of force the clamping unit can apply. For thin-walled Electronic parts, a High speed machine with precise pressure control is vital. If the machine is too small for the part, the quality fails; if it is too large, you waste energy and money.
How does a handful of plastic beads become a finished product? It happens in a repeatable cycle that usually takes between 10 seconds and 2 minutes.
Feeding and Melting: Raw plastic granules fall from a hopper into a heated barrel. Inside, a reciprocating screw rotates, grinding the pellets and moving them forward. The friction and external heaters turn the plastic into a viscous liquid.
Injection: Once enough molten plastic has accumulated at the front of the screw, it stops rotating. It acts as a piston and slams forward, forcing the liquid into the precision plastic injection mould at high pressure.
Packing and Cooling: The machine maintains pressure to ensure every corner of the Custom cavity is filled. Then, the part begins to cool and solidify.
Ejection: The clamp opens, and ejector pins push the finished piece out of the precision plastic injection mould. The cycle starts again immediately.
Efficiency in this cycle is often measured by "cycle time." In High speed production environments, even a one-second reduction in cooling time can save a manufacturer thousands of dollars over a large production run.

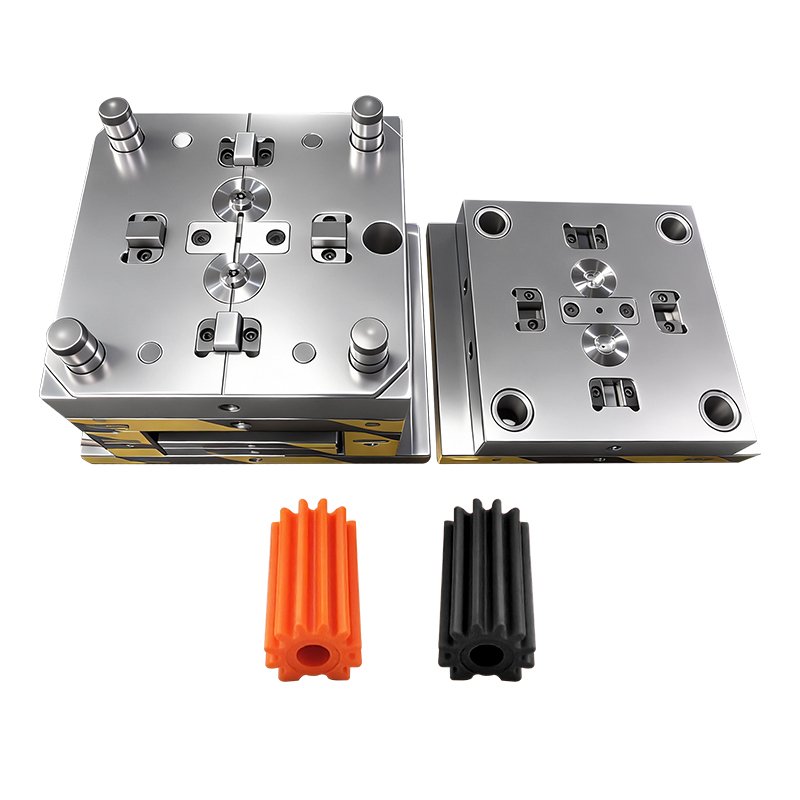

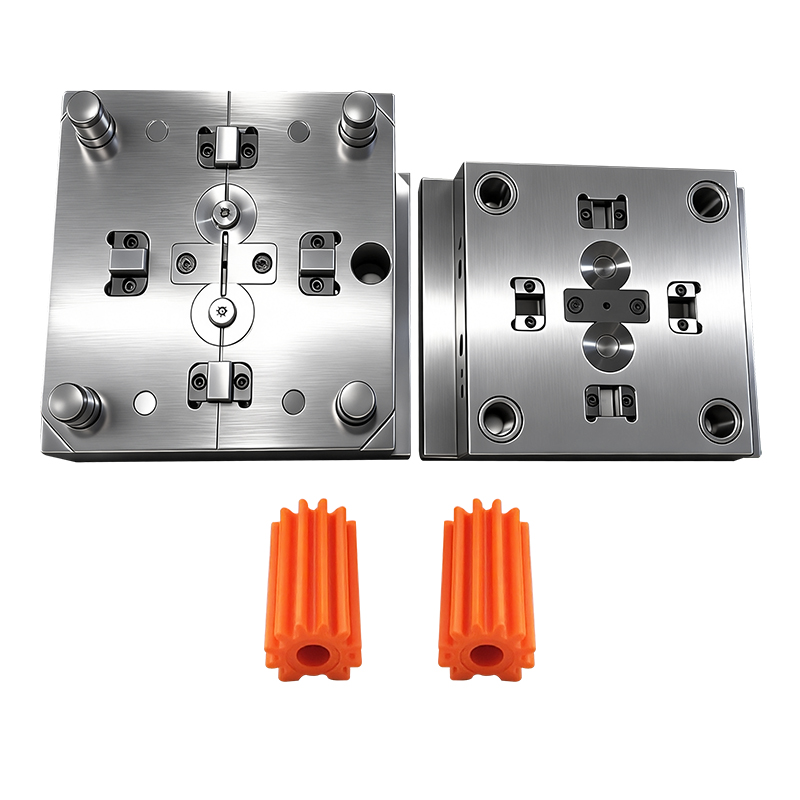

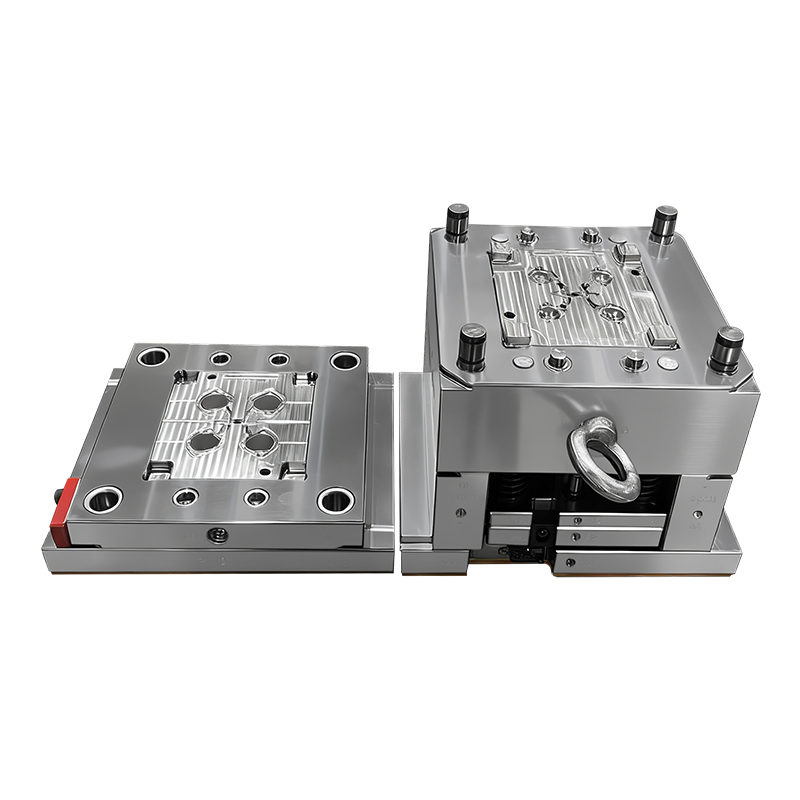

The mould is the most expensive and critical part of the entire setup. It is more than just a hollow shape; it is a complex piece of engineering made from hardened steel or aluminum.
When we talk about a precision plastic injection mould, we are referring to a tool built to High tolerance levels. Every millimeter matters. If the mould is off by the thickness of a human hair, the parts might not fit together in an assembly. This is especially true for Electronic housings where internal clips and ports must align perfectly.
A high-quality Custom mould features internal cooling channels. Water or oil flows through these channels to pull heat away from the plastic. This ensures the part cools evenly. If one side cools faster than the other, the plastic will warp or "sink," ruining the dimensions. Proper cooling design is what separates a standard tool from a High speed production masterpiece.
Not all molded parts are created equal. Some require a level of detail that standard machines cannot achieve. This is where High tolerance engineering comes into play.
Plastic shrinks as it cools. An expert designer accounts for this when building a precision plastic injection mould. They make the cavity slightly larger than the desired final part. However, different plastics shrink at different rates. Polyethylene shrinks differently than Polycarbonate. Therefore, the Custom mould must be designed with the specific material in mind.
In Electronic devices, manufacturers want parts that are light but strong. This requires thin walls supported by internal ribs. Injecting plastic into these tiny spaces requires massive pressure and a perfectly vented precision plastic injection mould. If air gets trapped in a deep rib, it will compress and heat up, causing "burn marks" on the plastic. High-precision venting is a hallmark of a professional-grade tool.
The choice of polymer dictates how the injection molding process is managed. We divide materials into two broad categories: Thermoplastics and Thermosets. Most modern production uses Thermoplastics because they can be melted and remelted, making them more Custom and recyclable.
When producing items like surgical tools or implants, we must use Medical grade polymers. These materials are tested for biocompatibility and must survive sterilization processes like autoclaving.
For Medical grade applications, the precision plastic injection mould must be operated in a cleanroom environment to prevent contamination. Even a speck of dust inside the barrel can compromise the safety of a medical device.
Time is money in manufacturing. High speed injection molding is the pinnacle of the industry, focusing on extremely short cycle times for high-volume goods like bottle caps or thin-walled containers.
Modern factories do not rely on humans to pick parts out of machines. High-speed robots are integrated with the precision plastic injection mould. As soon as the clamp opens, the robot grabs the part and places it on a conveyor or directly into a packaging line. This removes human error and allows the machine to run 24/7 without interruption.
To increase output, we don't just make one part at a time. A High speed precision plastic injection mould might have 16, 32, or even 128 cavities. This means one single "shot" of plastic produces 128 parts. Balancing the flow of plastic so every cavity fills at the exact same time is one of the hardest tasks in toolmaking. It requires a "Hot Runner" system, which keeps the plastic molten inside the mould's channels to eliminate waste.
How do we know if a part is "good"? In a world of High tolerance manufacturing, "looking okay" isn't enough. We use scientific molding principles to track data.
We monitor variables like "gate freeze time" and "viscosity." By using sensors inside the precision plastic injection mould, we can see the exact pressure the plastic feels as it enters the cavity. If the pressure drops, the machine knows the part might be "short" and automatically rejects it.
For Electronic components, parts are often measured using a CMM (Coordinate Measuring Machine) or an optical scanner. These tools compare the physical part to the original 3D CAD model. If the Custom part deviates by more than the allowed High tolerance (often ±0.01mm), the process is adjusted. This level of scrutiny ensures that every piece of a 100,000-unit run is identical.
Is injection molding bad for the environment? Not necessarily. The industry is moving toward more Custom and sustainable solutions to reduce its carbon footprint.
Many manufacturers now mix "regrind"—leftover plastic from previous runs—back into the raw material. Furthermore, we are seeing a rise in bio-plastics derived from corn or sugarcane. While these materials can be tricky to process in a precision plastic injection mould, they offer an Eco-friendly alternative to petroleum-based plastics.
Older hydraulic machines used a lot of power. Modern all-electric injection molding machines are much more energy-efficient. They provide better control for High tolerance parts and run much quieter. For a factory aiming for "Green" certifications, switching to electric machines and optimizing the High speed cycle to reduce waste is the way forward.
Injection molding is a fascinating blend of brute force and extreme delicacy. It requires tons of pressure to fill a precision plastic injection mould, yet it can produce parts with details so fine they are invisible to the naked eye. Whether you need a Medical grade catheter or a High tolerance Electronic connector, the success of your project depends on the quality of the tool and the expertise of the molder. By understanding the machine, the material, and the Custom nature of the mould, you can unlock the full potential of this manufacturing titan.
Q: Can injection molding handle complex shapes?A: Yes. By using "slides" and "lifters" in the Custom mould design, we can create holes, undercuts, and threads. If you can imagine it in 3D, we can likely mold it.
Q: What is the difference between injection molding and 3D printing?A: 3D printing is great for low-volume prototypes. Injection molding is for high-volume production. Once the precision plastic injection mould is built, the cost per part is much lower and the speed is much higher than 3D printing.
