Vacuum Forming Vs. Pressure Forming Vs. Injection Molding: Key Differences Explained

1. How They Work: Core Process Differences

Vacuum Forming

• Heats a plastic sheet until pliable

• Uses vacuum suction to pull material onto a single-sided mold

• Low-pressure process (<1 MPa)

• Ideal for simple, large, or shallow parts

Pressure Forming

• Similar to vacuum forming but adds compressed air (1-10 MPa)

• Allows sharper details and deeper draws

• Can use dual-sided molds for improved precision

• Balances cost and quality for mid-range applications

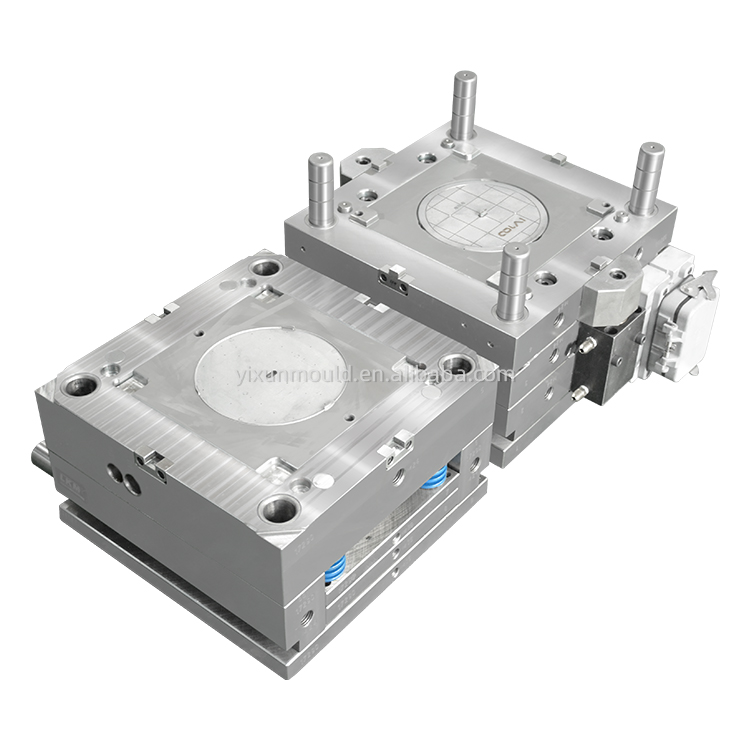

Injection Molding

• Melts plastic pellets into liquid

• Injects material under high pressure (50-200 MPa) into sealed molds

• Produces complex, high-tolerance parts

• Dominates mass production of small-to-medium components

2. Tooling & Cost Comparison

Key Insight: Vacuum forming offers the lowest entry cost, while injection molding becomes economical at scale.

3. Product Characteristics

Dimensional Capabilities

• Wall Thickness:
  Vacuum forming struggles with uniformity (thin edges), while injection molding delivers perfect consistency.

• Feature Detail:
  Only injection molding can reliably produce threads, undercuts, and micro-patterns.

• Surface Finish:
  Pressure forming achieves better cosmetics than vacuum forming; injection molding offers the highest precision.

Material Efficiency

• Vacuum/pressure forming: 60-85% utilization (trimming waste)

• Injection molding: >95% utilization (runners/recyclable)

4. Industry Applications

Vacuum Forming Dominates:

• Food packaging (clamshells, trays)

• Point-of-purchase displays

• Lightweight protective covers

Pressure Forming Excels At:

• Automotive interior trim

• Medical equipment housings

• Premium consumer packaging

Injection Molding Is Best For:

• Electronic components

• Precision mechanical parts

• High-volume consumer goods

5. Decision-Making Factors

Choose vacuum forming when:

• Budget is tight

• Part size is large but simple

• Production volumes are low

Opt for pressure forming when:

• You need better details than vacuum forming

• Cosmetic surfaces matter

• Quantities don't justify injection molding costs

Select injection molding for:

• Complex geometries

• Extreme precision requirements

• Projects exceeding 50,000 units

Conclusion: Complementary Technologies

While injection molding offers unparalleled precision, vacuum and pressure forming remain vital for:

• Large parts impractical for injection molding

• Low-to-medium volume production

• Rapid prototyping

Many products combine processes—for example, an injection-molded frame with pressure-formed cosmetic panels. Understanding these differences ensures optimal process selection for your specific application.
