First, a benchmark. The international standard ISO 286 (and its regional equivalents like GB/T 14486 in China or DIN 16742 in Europe) provides a framework. It defines tolerance classes based on a part's nominal size.
A common and economically sensible target for most industrial applications is a General Tolerance of MT4 or Medium Class. This is the "sweet spot" where functionality, cost, and manufacturability meet. Demanding a tighter tolerance (like MT2 or Fine Class) isn't impossible, but it exponentially increases the cost of tooling, processing, and quality control.
So, why can't every part hit that perfect number on the drawing? Here are the key players:
Material Behavior (The Biggest Culprit: Shrinkage)
Plastic shrinks as it cools from a molten state to a solid. This isn't a suggestion; it's a physical law. Each material has a defined shrinkage rate, but it's never a single, perfect number.
ABS: ~0.4-0.7%
Nylon (PA66): ~0.8-1.5% (and even more if it's unreinforced)
Polypropylene (PP): ~1.5-2.5%
The kicker? This shrinkage is anisotropic (direction-dependent), especially in glass-filled materials. It shrinks differently along the flow direction than across it. Material batch variations, moisture content, and regrind ratio can all cause slight shifts in shrinkage, making absolute precision a moving target.

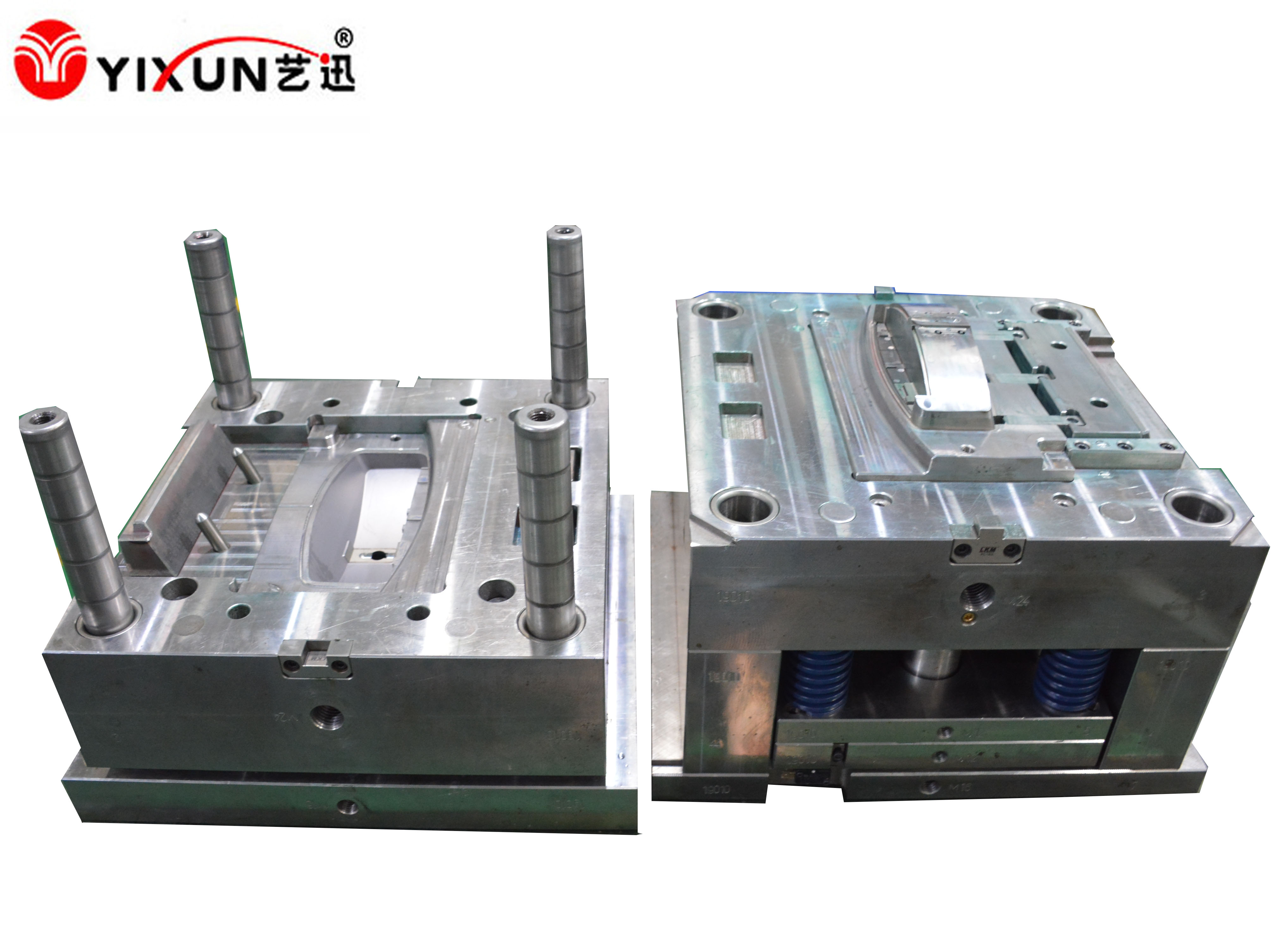

Mold Precision and Health
The mold is the master. Its precision is the absolute ceiling for your part's precision. A mold machined with high-end CNC and EDM equipment can achieve exquisite detail. However, wear and tear over thousands of cycles degrades this precision. Slides, lifters, and ejector pins develop microscopic play, which can introduce flash and dimensional variation.
The Injection Molding Process
This is where art meets science. The machine operator's settings directly control how the material behaves in the mold.
Holding Pressure and Time: This is the most critical parameter for controlling size. Insufficient holding pressure leads to excessive shrinkage (smaller parts). Too much pressure can over-pack the cavity (larger parts) and create damaging internal stresses.
Mold Temperature: A cold mold sets up quickly but can warp. An uneven mold temperature causes differential shrinkage. Consistent cooling is non-negotiable for stable dimensions.
Injection Speed, Cooling Time: Every variable influences how the molecule chains pack and crystallize, ultimately affecting the final size.
Part Design
The designer holds immense power. A part with uniform wall thickness will cool evenly and predictably. A part with thick ribs attached to thin walls will cool unevenly, warp, and create a nightmare for holding tolerances. Good Design for Manufacturability (DFM) is the first and best defense against tolerance issues.
The Aftermath: Post-Molding Effects
The part isn't stable the moment it's ejected. Some materials, like POM (Acetal) and PA (Nylon), continue to crystallize and shrink for hours or even days after molding (after-shrinkage). Hygroscopic materials like Nylon will absorb moisture from the air and expand. These factors must be anticipated and accounted for in the design.
Let's get concrete. For a well-designed part, a good mold, and a stable process, here’s what you can typically achieve on a 100mm dimension:
| Material Category | Example Materials | Typical Achievable Tolerance (on 100mm) | Why? |
|---|---|---|---|
| General Purpose | ABS, PC, PS | ±0.15 mm | Good balance of stability and processability. |
| Engineering Plastics | POM, Unfilled Nylon | ±0.20 mm | Higher and more unpredictable shrinkage. |
| Glass-Filled | PA66 + 30% GF, PBT | ±0.10 mm | Glass fibers suppress shrinkage, but anisotropy is a challenge. |
| Crystalline | PP, HDPE | ±0.30 mm | High shrinkage and lower inherent stability. |
A crucial note: Achieving tolerances tighter than ±0.05 mm moves from injection molding into the realm of precision injection molding. This requires specialized equipment, exotic materials, and relentless process control, and it comes with a premium price tag.
Tolerance with Purpose: Not every dimension is critical. Apply tight tolerances only to features that affect fit, form, or function (FFA). Use general tolerances for everything else.
Communicate Early: Engage with your molding partner during the design phase (DFM). Their experience is invaluable for setting realistic expectations.
Design for Manufacturability (DFM): Prioritize uniform wall thickness, adequate draft, and robust geometry. A manufacturable part is a dimensionally stable part.
Plan for Iteration: The first shots from a new mold are a learning process. Dimensions are often adjusted through fine-tuning the process parameters before any physical mold alteration is considered.
Understanding injection molding tolerances is about understanding the interplay of multiple variables. The numbers on your drawing are a goal, but the real-world result is a testament to the synergy between your design, the mold maker's skill, and the process engineer's expertise.
By respecting the science of the process and collaborating closely with your manufacturing team, you can set achievable tolerance targets that ensure reliability, performance, and cost-effectiveness for your product.
