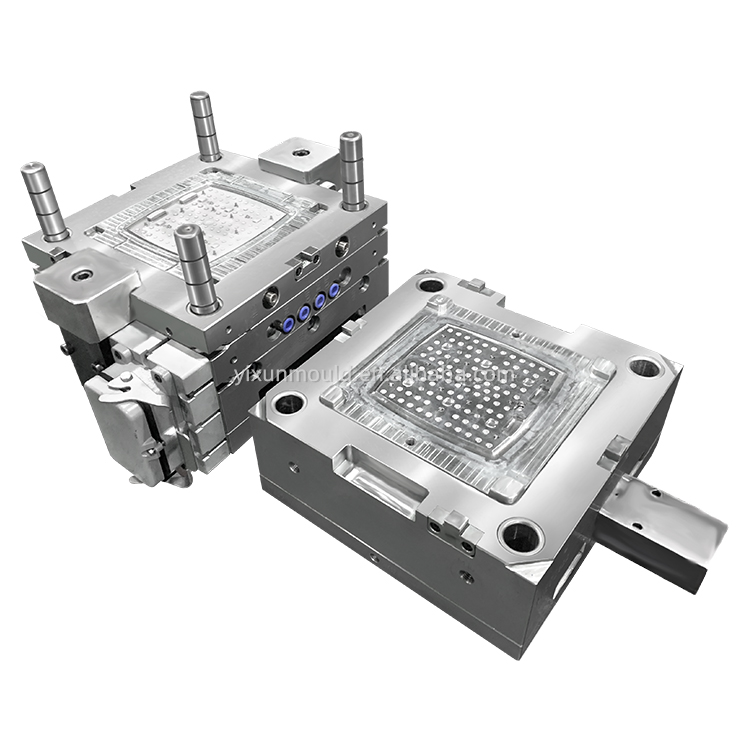

Copper electrodes are conductive tools used in EDM (Spark Erosion) to shape hardened steel mold components. Since traditional CNC cutting tools struggle with fine details, EDM allows for ultra-precise machining of:
Micro-textures (e.g., leather grain, matte finishes)
Deep ribs & narrow slots
Sharp internal corners
High-gloss surfaces (e.g., lenses, transparent parts)
✅ High Precision – Achieves tight tolerances (±0.01mm).
✅ Superior Surface Finish – Ideal for mirror polishing.
✅ Low Wear Rate – Longer lifespan compared to graphite.
| Material | Pros | Cons | Best For |
|---|---|---|---|
| Pure Copper | Excellent conductivity, fine finish | Expensive, soft (wears faster) | High-gloss molds, micro-details |
| Graphite | Fast machining, heat-resistant | Rougher surface, brittle | Large electrodes, deep cavities |
| Copper-Tungsten | Extremely durable, low wear | Very costly | Hardened steel, precision cores |
| Beryllium Copper | High strength, good heat dissipation | Toxic (requires safety measures) | Small, high-precision electrodes |
3D Modeling – Split electrode geometry from mold CAD (using UG, PowerMill).
CNC Machining – Precision milling to shape the copper block.
Hand Finishing – Polishing for mirror-like surfaces (critical for optical parts).
EDM Machining – Mounting in EDM machine to erode the steel mold.
Quality Check – Measure wear and recondition if needed.
Shrinkage Allowance – Compensate for EDM spark gap (~0.1–0.3mm per side).
Split Electrodes – Use separate roughing & finishing electrodes for efficiency.
Avoid Undercuts – Ensure proper clearance to prevent arcing errors.
| Factor | Copper Electrodes | Graphite Electrodes |
|---|---|---|
| Cost | Higher (material + machining) | Lower (faster to machine) |
| Surface Finish | Ultra-smooth (Ra < 0.8µm) | Requires post-polishing |
| Wear Resistance | Moderate (better for finishing) | High (better for roughing) |
| Applications | High-gloss, micro-details | Large molds, deep cavities |
Rule of Thumb:
Use copper for fine details & high polish.
Use graphite for fast roughing or large-scale molds.
Cause: High discharge current or long pulse duration.
Solution: Optimize EDM settings (lower amperage, shorter pulses).
Cause: Dirty electrode or improper polishing.
Solution: Use high-purity copper & polish before final EDM.
Cause: Loose fixture or incorrect zero positioning.
Solution: Use EDM probe calibration & secure clamping.
3D-Printed Copper Electrodes – Complex geometries with additive manufacturing.
Automated EDM Systems – Robotic electrode changers for faster production.
Copper electrodes are indispensable for high-precision injection molds, especially when dealing with intricate designs or ultra-smooth finishes. By selecting the right material, optimizing design, and fine-tuning EDM parameters, manufacturers can achieve flawless mold cavities with minimal defects.
