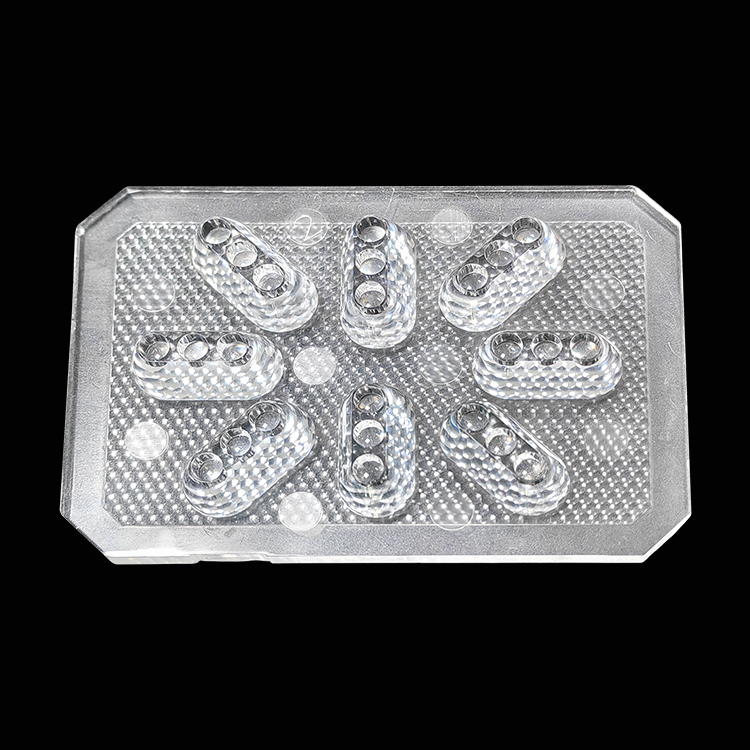

Creating a medical-grade lens isn't like molding a simple plastic toy. It's an endeavor where micron-level tolerances are standard and perfection is the goal. The process lives and dies by two phases:
1. Masterful Design & Mold Making (The "Brain")
The journey begins long before any plastic is melted. Using advanced optical design software like Zemax or Code V, engineers perfect the lens's geometry to meet exact optical performance criteria.
The real magic, however, is poured into the mold. This isn't just a block of steel; it's a masterpiece of precision engineering.
Material: Mold cores are crafted from superior-grade, hardened stainless steels (like S136H or ASSAB 8407) that can maintain a perfect polish and resist wear.
Machining: The mold's cavity is shaped using ultra-precise techniques like Single Point Diamond Turning (SPDT), which directly machines optical surfaces with nanometric surface finishes. This is essential for creating aspheric and complex lens shapes.
Polish & Coating: The mold surface is mirror-polished to an astonishing smoothness (often Ra < 0.01 µm) and typically coated with a protective layer like Nickel-Phosphorus (Ni-P) to ensure durability and perfect, consistent release of every lens.
2. The Injection Molding Process (The "Execution")
With the perfect mold ready, the focus shifts to the controlled environment of the injection molding floor, often a cleanroom.
Material: Medical-grade, high-purity polymers are essential. Common choices include:
PMMA: Excellent clarity and lower cost.
PC: High impact resistance.
COP/COC (The Gold Standard): Beloved for their low moisture absorption, incredible clarity, and most importantly, near-zero inherent stress birefringence, which is critical for clear imaging.
The Machine: High-precision, all-electric injection molding machines are used for their superior control, repeatability, and cleanliness compared to hydraulic counterparts.
The Parameters: The process is a delicate ballet of parameters:
High Mold Temperature: Reduces internal stresses and ensures perfect replication of the mold's surface.
Very High Injection Speed: Helps the plastic replicate the nanoscale finish of the mold before it starts to cool.
Precise Packing & Cooling: Carefully controlled to minimize shrinkage and warping without introducing new stresses.
Post-molding, lenses often undergo annealing (heat treatment) to relieve any residual stresses and are then coated with anti-reflective (AR) or other functional coatings.
The rigorous effort behind these lenses enables revolutions across healthcare:
Diagnostic & Imaging Equipment: This is where precision is paramount.
Endoscopes: Thousands of ultra-miniature lenses form the objective and image relay systems inside flexible and rigid scopes, enabling minimally invasive surgery.
Lab Instruments: Lenses in microscopes, flow cytometers, and biochemical analyzers focus light, collect fluorescence, and enable life-saving diagnostics.
Therapeutic & Surgical Devices:
Laser Surgery: In ophthalmology (LASIK) and dermatology, high-performance lenses focus powerful laser beams with absolute precision to reshape corneas or treat lesions. They must withstand high energy without degrading.
Life Sciences & IVD (In-Vitro Diagnostics):
Point-of-Care Testing: Glucose meters, portable blood analyzers, and rapid test readers use small, cost-effective lens modules to detect colorimetric or fluorescent signals, bringing lab-quality testing to the patient's side.
Wearable & Implantable Devices:
Contact Lenses: The ultimate example of high-volume medical lens production, with millions of units molded daily from biocompatible hydrogels.
Wearable Sensors: The small lenses in your smartwatch or fitness tracker that enable optical heart rate and blood oxygen monitoring.
Injection-molded medical lenses are a testament to how advanced manufacturing empowers innovation. They are the tiny, flawless eyes that allow us to see inside the human body, guide surgical tools, diagnose diseases faster, and manage health proactively. By mastering the trifecta of precision mold making, material science, and process control, this technology continues to be an invisible yet indispensable pillar of modern medicine, making healthcare more precise, accessible, and effective for everyone.
