A mold's life isn't measured in years, but in cycles (or shots). Its ultimate longevity is determined by five interconnected pillars:
Mold Steel & Heat Treatment (The Genetic Code): This is the foundation.
Steel Grade: Using standard P20 steel for a corrosive plastic like PVC is a recipe for disaster. High-wear materials (like glass-filled plastics) demand tough, abrasion-resistant steels like H13. The purity and uniformity of premium imported steels (e.g., from ASSAB or BÖHLER) far surpass cheaper alternatives.
Heat & Surface Treatment: Proper quenching and tempering give the steel its core hardness and toughness. Surface treatments like Nitriding, PVD, or TD Coating are game-changers. They create an ultra-hard surface layer, multiplying the mold's resistance to wear and corrosion by orders of magnitude.
Mold Design & Structure (The Blueprint): A brilliant design ensures longevity.
Cooling System: Uneven cooling causes thermal stress, leading to thermal fatigue cracks (the "crazing" or "cracking" you see on mold surfaces). A well-designed, balanced cooling system is essential for long life.
Runner & Gating: Poorly designed gates can cause excessive material shear and erosion.
Robustness: The mold must have sufficient rigidity to withstand immense injection pressures without flexing.
Precision Manufacturing & Finishing (The Craftsmanship): The best design and steel can be ruined by poor machining.
High-Precision Machining: CNC and EDM (Electrical Discharge Machining) accuracy ensures perfect part alignment, preventing premature wear.
Polishing & Texturing: A flawless surface finish improves part release and eliminates stress concentrators where cracks can start.
Production & Usage Conditions (The Hard Work): How the mold is used daily dictates its wear rate.
Plastic Material: Abrasive (e.g., with fiberglass) and corrosive (e.g., PVC) materials are the primary enemies of mold surfaces.
Process Parameters: Excessive injection speed, pressure, or temperature accelerates wear and thermal fatigue.
Maintenance & Care (The Lifespan Extension): "Three parts usage, seven parts maintenance" holds true. Regular cleaning, lubrication, and proper storage are non-negotiable for maximizing a mold's life.
Annual production volume has a profound, indirect impact on lifespan.
It Accelerates Wear: A high annual volume means more thermal cycles (heating/cooling) and more mechanical cycles (ejection, sliding) in a shorter time. This rapidly accumulates wear and tear, bringing forward the point of failure.
It Dictates Design Strategy: Your production volume is the most critical input when designing a mold. It determines the required "design life" in total cycles.
This is where cost and lifespan collide. As you demand a longer-life mold, the price increases not linearly, but exponentially. Every pillar we mentioned earlier gets upgraded, and each upgrade costs more.

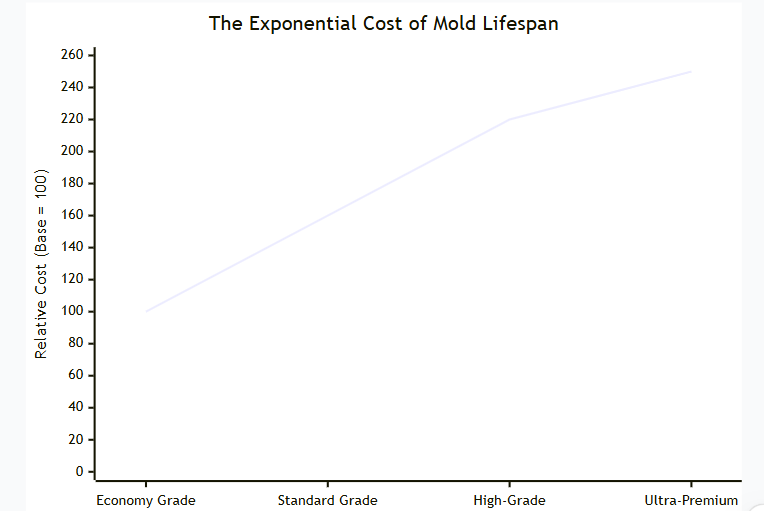

The following chart illustrates this powerful, exponential relationship between the target lifespan of a mold and its relative cost:
Here’s a practical guide to the price tiers:
| Lifespan Tier | Target Cycles | Price Multiplier | Key Characteristics |
|---|---|---|---|
| Economy Grade | < 500,000 | 1x | Domestic steel (P20). Standard design. Basic cooling. Simple nitriding. |
| Standard Industrial | 500K - 1M | 1.5x - 2x | Imported steel (e.g., 718H). Optimized cooling. Advanced heat treatment. |
| High-Grade / Durable | 1M - 2M | 2.5x - 4x | Premium steel (S136, Hardened Steel). Full insert design. Advanced coatings (TD/PVD). |
| Ultra-Premium | > 2M | 5x+ | Top-tier powder metallurgy steels. Complex conformal cooling. Maximum robustness. |
Choosing a mold is a strategic decision. The cheapest mold is never truly "cheap" if it fails prematurely during a high-volume production run, causing costly downtime and repairs.
For low-volume, prototype, or short-lifecycle products: An Economy Grade mold can be a cost-effective choice.
For high-volume, continuous production: Investing in a High-Grade or Ultra-Premium mold is the most economical decision in the long run. The higher initial cost is amortized over millions of parts, ensuring reliability and a lower cost-per-part.
Always provide your mold maker with your expected annual volume and total part requirement. This allows them to engineer the most cost-effective solution for your specific needs, balancing the initial investment against the total cost of ownership. Remember, in injection molding, you truly get what you pay for.
