Views: 0 Author: Site Editor Publish Time: 2026-06-12 Origin: Site
In the world of injection molding, size changes everything. But there is an even bigger leap: moving from standard molds to the extremes.

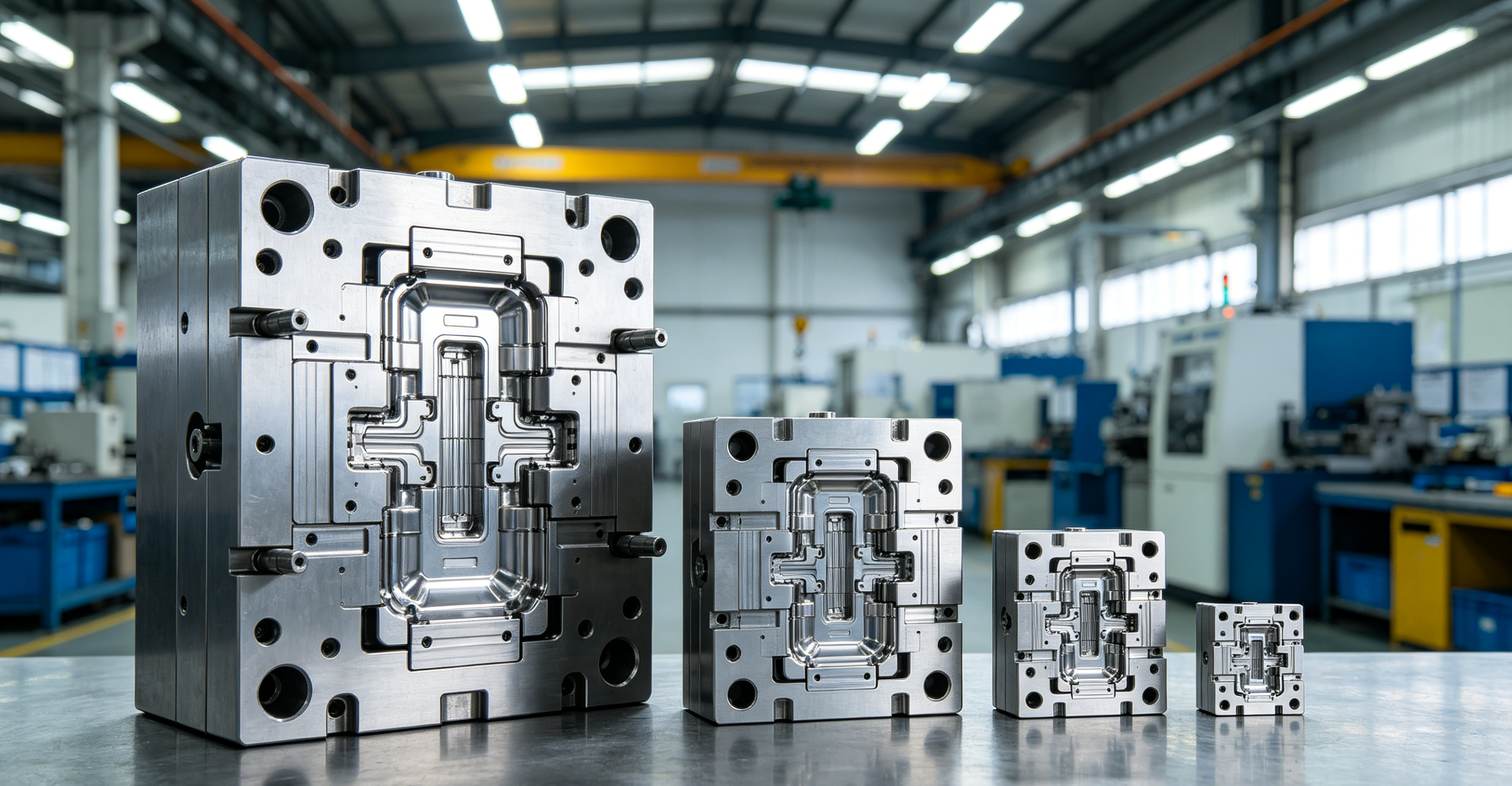

On one end, you have Large Molds—20-ton monsters that produce car bumpers and refrigerator liners. On the other end, you have High-Precision Micro Molds—tiny blocks of steel that produce medical catheters and watch gears, often smaller than a grain of rice.
Having looked at both extremes, one thing becomes clear: Large mold making is "civil engineering." Micro mold making is "micro-surgery." They share almost nothing except the name.
Here is a practical three-way comparison.
Category | Typical Products | Product Size |
|---|---|---|
Large Molds | Car bumpers, instrument panels, refrigerator liners, industrial pallets, garbage bins | > 0.6m (2ft), up to 2m+ |
Standard Molds | Chair seats, tool handles, small appliance housings, automotive interior clips | 0.1m – 0.6m (4in – 2ft) |
High-Precision Micro Molds | Medical catheters, microfluidic chips, watch gears, hearing aid shells, fiber optic connectors, micro-gears for drones | < 10mm (0.4in), often sub-millimeter features |
Every mold size fights a different battle.
Category | Primary Enemy | Secondary Enemy |
|---|---|---|
Large Molds | Gravity – The 20-ton blank sags under its own weight. The machine table deflects. | Heat – 8-hour finishing passes cause thermal expansion that drifts tolerances by 0.1mm+. |
Standard Molds | Vibration – Tool chatter ruins surface finish. | Tool life – Balancing speed vs. wear. |
Micro Molds | Scale – A 0.1mm end mill is thinner than a human hair. You cannot see the cut without a microscope. | Force – The cutting force can snap the tool instantly. The machine must "feel" the cut, not see it. |
You cannot use the same machine for a 20-ton mold and a micro mold.
Category | Machine Type | Key Specs |
|---|---|---|
Large Molds | Bridge Mill / Gantry – Massive cast iron beds, 5-10m+ travel | Low RPM (6-12k), high torque (500+ Nm), through-spindle coolant (30-70 bar) |
Standard Molds | Vertical 3/5-axis VMC – The workhorse of every tool room | Medium RPM (15-20k), good acceleration, 40/50 taper spindles |
Micro Molds | High-speed Micro Machining Center – Extremely precise, vibration-dampened | Ultra-high RPM (40k – 80k+), HSK-E25/32 taper, air-bearing spindles, sub-micron feedback (0.05μm resolution) |
Key insight: A large mold machine needs torque. A micro mold machine needs speed and zero friction. A standard mold machine sits in the middle.
The CAM programming mindset is completely different.
Category | Strategy | Analogy |
|---|---|---|
Large Molds | Smooth, continuous paths – You cannot stop a 20-ton gantry. No sharp corners. Use trochoidal milling to keep load constant. | Driving a cruise ship – Turns must be planned miles ahead. |
Standard Molds | High-speed machining – Lifting, plunging, constant acceleration/deceleration. | Driving a sports car – Agile, quick direction changes. |
Micro Molds | Extreme caution – Tool runout must be <1μm. Cut depths are measured in microns (0.005-0.02mm per pass). No climb milling on corners – tools snap instantly. | Performing eye surgery – One wrong move ruins everything. |
Category | Thermal Challenge | Solution |
|---|---|---|
Large Molds | Heat accumulation – An 8-hour finishing pass causes the mold and machine to "grow." | Climate-controlled workshop (22°C ±1°C). Machine must heat-soak for 1-2 hours before cutting. |
Standard Molds | Localized heating – The cut zone heats up, but the rest stays cool. | Standard coolant (air mist or flood). |
Micro Molds | No room for coolant – A 0.2mm end mill cannot have a coolant jet. The tool is smaller than the nozzle. | Minimum Quantity Lubrication (MQL) – an oil mist so fine it doesn't disturb the chip. Or cryogenic cooling for specific materials. |
Category | Method | Challenge |
|---|---|---|
Large Molds | On-machine probing – The CNC becomes the CMM. Infrared probes scan the surface while the part is still clamped. | You cannot lift a 20-ton mold. One shot to get it right. |
Standard Molds | Offline CMM – Remove the mold, walk it to the metrology lab. | Easy. Well-established process. |
Micro Molds | Optical / Vision systems – Non-contact measurement using microscopes, white light interferometry, or laser scanning. | A touch probe would damage the micro-features. Measurement is as hard as machining. |
Feature | Large Mold | Standard Mold | High-Precision Micro Mold |
|---|---|---|---|
Product Size | > 0.6m (2ft) | 0.1m – 0.6m | < 10mm (often < 1mm features) |
Mold Weight | 5 – 50+ tons | 50kg – 2 tons | < 5kg (often < 1kg) |
Primary Enemy | Gravity & Heat | Vibration | Scale & Force |
Machine Type | Bridge Mill / Gantry | Vertical 3/5-axis VMC | High-speed Micro Machining Center |
Spindle RPM | 6,000 – 12,000 | 15,000 – 20,000 | 40,000 – 80,000+ |
Tool Diameter | 20mm – 125mm | 6mm – 20mm | 0.1mm – 2mm |
Cooling | High-pressure through-spindle (30-70 bar) | Air mist / Flood | MQL or Cryogenic |
Cutting Analogy | Civil Engineering (heavy, slow, smooth) | Sports Car (agile, balanced) | Micro-surgery (invisible, fragile, precise) |
Inspection | On-machine probing (CNC as CMM) | Offline CMM | Optical / Vision (non-contact) |
If you move between these three worlds, you need a complete mental reset.
Large molds are about managing gravity and heat. You think like a structural engineer. Every decision considers deflection and thermal expansion.
Standard molds are about craftsmanship. Sharp tools, good finishes, reliable cycles. The sweet spot of the industry.
High-precision micro molds are about seeing the invisible. Your tools are thinner than hair. Your machine must feel the cut because you cannot see it. One micron of runout means a broken tool.
A simple rule of thumb:
If the product fits on your desk → Standard mold.
If the product is larger than your arm span → Large mold.
If the product fits on your fingertip → High-precision micro mold.
Each is a world of its own. Choose your battle.
