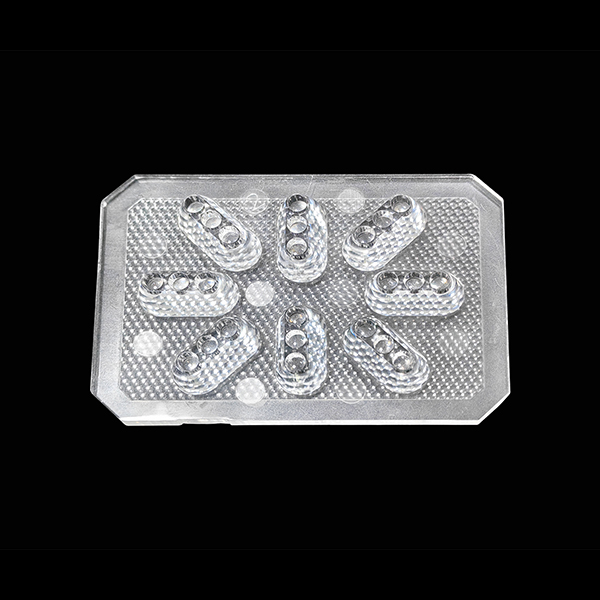

Injection molding has become a critical manufacturing method for plastic optical lenses used in lighting systems, sensors, imaging modules, medical devices, automotive assemblies, and compact electronics. Unlike ordinary plastic parts, optical lenses require controlled light transmission, accurate surface geometry, low internal stress, and consistent dimensional stability, so the performance of an optical lens mould directly influences the final optical result. In precision lens production, the optical lens mould is not only a forming tool but also the foundation for surface replication, process repeatability, defect control, and scalable lens plastic injection moulding.
● Optical injection molding enables scalable plastic lens production.
● A precision optical lens mould controls surface accuracy.
● Residual stress affects clarity, shape, and birefringence.
● Material selection changes transparency and thermal stability.
● Optical lens mould tooling requires precision machining and polishing.
● Stable process control reduces haze, warpage, bubbles, and flow marks.
● A capable lens mould supplier should understand optics, tooling, and molding.
Residual stress is one of the most important issues in optical lens production because uneven molecular orientation can create birefringence, image distortion, cracking, or unstable light transmission. A precision optical lens mould must be designed with proper gate position, balanced cooling, and controlled cavity geometry so that the resin can fill and cool with reduced stress concentration. In lens plastic injection moulding, melt temperature, mold temperature, injection speed, holding pressure, and cooling time must be aligned with the optical lens mould design to achieve repeatable optical performance.
Repeatability is a major reason injection molding is selected for plastic optical lenses, especially when thousands or millions of identical components are required. A validated optical lens mould can reproduce lens curvature, thickness, mounting features, and alignment structures with stable dimensional control across production batches. For lens mold manufacture, repeatability depends on steel accuracy, cavity balance, resin consistency, process stability, and the long-term maintenance condition of the optical lens mould.
Optical lenses often rely on curved, aspheric, Fresnel, or micro-structured surfaces that must be replicated accurately from the cavity surface. The optical lens mould must therefore achieve fine surface contour control through precision machining, grinding, polishing, and inspection of the functional optical area. Any tool mark, polishing variation, scratch, or cavity contamination in the optical lens mould can be transferred to the lens and reduce clarity, beam control, or imaging performance.
The cavity of an optical lens mould defines the optical surface, so cavity accuracy directly affects focal behavior, light distribution, and surface appearance. Precision optical lens mould tooling usually involves high-accuracy CNC machining, EDM, grinding, mirror polishing, and controlled inspection of surface form. In optical lens mould projects, the cavity finish must be treated as a functional optical requirement rather than a cosmetic requirement.
Gate position determines how molten resin enters the cavity, spreads across the lens area, and forms molecular orientation during filling. If the optical lens mould has poor gate placement, the molded lens may show weld lines, flow marks, jetting, air traps, or stress patterns in the optical zone. A balanced optical lens mould design places the gate where filling remains stable while the functional lens surface is protected from visible and optical defects.
Cooling design controls shrinkage, cycle stability, and final lens geometry, especially in thick optical sections or lenses with uneven wall thickness. A well-engineered optical lens mould uses balanced cooling channels and stable temperature control to reduce warpage, sink marks, and dimensional drift. In lens plastic injection moulding, poor cooling balance can turn a precise cavity into an unstable process, even when the optical lens mould surface quality is excellent.
Typical optical lens molding flow:
Process Stage | Technical Focus | Optical Lens Mould Influence |
Resin drying | Moisture reduction and clarity control | Venting and material flow support |
Plasticizing | Stable melt quality | Cavity filling consistency |
Injection filling | Flow balance and orientation control | Gate, runner, and cavity design |
Packing | Shrinkage compensation | Dimensional stability of the optical lens mould |
Cooling | Stress and warpage control | Cooling channel balance |
Demolding | Low mechanical stress | Ejection and release design |
Inspection | Geometry and surface verification | Validation of optical lens mould accuracy |
Polycarbonate is selected when an optical lens requires impact resistance, toughness, and higher operating temperature, but PC is sensitive to moisture, shear, and internal stress. PMMA provides high transparency, good gloss, and relatively low birefringence, making it suitable for LED lenses, light guides, and display-related optics formed by an optical lens mould. Polystyrene can be used for simpler transparent components, but its lower heat resistance and mechanical strength limit its role in demanding optical lens mould applications.
Cyclic-olefin polymers and cyclic-olefin copolymers are often used when low moisture absorption, dimensional stability, and low birefringence are required. These materials are suitable for medical lens mould projects, diagnostic optics, imaging systems, microfluidic optical parts, and precision sensor components. Because COP and COC have narrower processing windows, the optical lens mould must be designed with careful flow balance, shrinkage prediction, venting, and temperature control.
Material comparison for optical lens mould projects:
Material | Main Strength | Common Application | Molding Concern |
PC | Impact resistance and heat resistance | Automotive lenses, protective covers | Drying, stress, birefringence |
PMMA | High transparency and gloss | LED lenses, light guides | Brittleness, scratch sensitivity |
PS | Easy processing and transparency | Simple optical covers | Limited heat resistance |
COP | Low birefringence and low absorption | Medical and imaging optics | Precise temperature control |
COC | Dimensional stability and clarity | Diagnostics and micro-optics | Flow balance and shrinkage |
Thermal expansion affects lens dimensions, assembly fit, and focal stability when the component is exposed to changing service temperatures. During lens mold manufacture, the optical lens mould must account for resin shrinkage and thermal expansion so that molded dimensions remain within tolerance after cooling. If thermal behavior is ignored, even a polished optical lens mould may produce lenses that pass appearance inspection but fail optical alignment in the final assembly.
Operating temperature determines whether a lens material can remain stable in automotive lighting, LED modules, medical instruments, or industrial sensing equipment. PC generally provides stronger heat resistance than PMMA, while COP and COC may be selected for precision optics requiring stable optical properties. The optical lens mould must be matched to the selected material because mold temperature, cooling rate, and packing behavior change with each resin.
Water absorption influences dimensional stability, transparency, and long-term optical performance, especially in precision lenses used for sensing or diagnostics. PC and PMMA require strict drying before lens plastic injection moulding because moisture can create bubbles, silver streaks, haze, and material degradation. COP and COC usually offer lower water absorption, making them useful in medical lens mould and analytical optical applications where the optical lens mould must support stable replication.
Bubbles, haze, and silver streaks often come from poor resin drying, trapped air, overheating, resin degradation, or insufficient venting in the optical lens mould. These defects are critical in optical lenses because they reduce light transmission, create visible scattering, and weaken the consistency of optical measurement. A controlled optical lens mould process requires proper drying, melt stability, clean material handling, and venting design that allows gas to escape without marking the optical surface.
Warpage and shrinkage occur when cooling, packing, wall thickness, or resin flow is not balanced throughout the part. The optical lens mould must compensate for material shrinkage while maintaining lens curvature, edge geometry, and assembly features. In high-precision optical lens mould tooling, simulation, trial data, and cavity corrections may be required to stabilize lens dimensions before mass production.
Flow marks and weld lines can appear when resin fronts meet unevenly, when injection speed is poorly controlled, or when the gate and runner design create unstable filling. In ordinary plastic parts these may be treated as appearance issues, but in optical lenses they can disturb light propagation and reduce product reliability. A well-designed optical lens mould reduces these risks through balanced flow paths, suitable gate location, optimized injection parameters, and controlled cavity venting.
Common defect control reference:
Defect | Main Cause | Process Control | Optical Lens Mould Control |
Bubbles | Moisture or trapped gas | Resin drying and stable melt temperature | Venting design |
Haze | Degradation or contamination | Clean handling and temperature control | Clean cavity maintenance |
Warpage | Uneven cooling or shrinkage | Cooling time and packing control | Balanced cooling channels |
Weld lines | Poor flow balance | Injection speed adjustment | Gate and runner optimization |
Surface marks | Rough cavity or demolding stress | Stable release conditions | Mirror polishing and ejection design |
Dimensional inspection verifies whether lenses molded from an optical lens mould meet requirements for thickness, diameter, curvature, mounting features, and tolerance range. CMM, optical measuring systems, profile projectors, and customized fixtures can be used to evaluate both optical geometry and mechanical interfaces. Stable dimensional data across mold trials confirms that the optical lens mould, selected resin, and molding parameters are approaching production readiness.
Optical surface inspection focuses on scratches, flow marks, black spots, sink marks, haze, bubbles, and polishing transfer marks. Because an optical lens mould directly copies its cavity surface into the plastic lens, cavity cleanliness and polishing consistency must be checked throughout development and production. Controlled lighting, magnification, and defined defect standards are required before the optical lens mould moves into stable production.
Process stability verification determines whether the optical lens mould can repeatedly produce acceptable lenses under defined molding conditions. Key parameters include resin drying, melt temperature, mold temperature, injection speed, holding pressure, cooling time, and demolding behavior. A stable process window is essential because optical performance can shift before a major visual defect appears on the molded lens.
A qualified lens mould supplier should understand that optical lens mould tooling is more demanding than general plastic mold making. The supplier must be able to control cavity accuracy, parting line quality, mirror polishing, gate design, venting, cooling, and demolding without damaging the optical area. Experience in lens mold manufacture reduces the risk of late-stage corrections, unstable dimensions, surface defects, and repeated mold trials.
Different optical-grade materials behave differently inside an optical lens mould, especially in shrinkage, flow length, stress formation, and temperature sensitivity. A capable lens mould supplier should understand PC, PMMA, PS, COP, COC, and other optical polymers before finalizing the optical lens mould design. Material and process knowledge is especially important when the project involves tight tolerances, medical lens mould requirements, thick optical sections, or integrated mechanical structures.
An optical lens mould project usually moves through design review, DFM analysis, prototype validation, mold trial, optical inspection, and process optimization. Prototype and trial support allow engineers to confirm whether the lens surface, dimensions, assembly fit, and molding repeatability meet project requirements. When the optical lens mould is prepared for production, maintenance planning, process documentation, and inspection standards keep long-term lens quality more stable.
Injection molding plays a central role in crafting plastic optical lenses because it combines scalable production, complex geometry, light weight, and functional integration in one manufacturing route. The final lens quality depends on the interaction among material selection, residual stress control, cavity accuracy, gate design, cooling balance, polishing quality, and process verification, with the optical lens mould serving as the precision foundation of the entire system. For custom optical lens mould projects involving automotive, LED, medical, sensing, or electronic optical components, Dongguan YIXUN Industrial Co., Ltd. can support engineering evaluation, optical lens mould tooling, lens plastic injection moulding, and production-oriented lens mold manufacture.
An optical lens mould is a precision injection mold used to produce plastic lenses and optical components with controlled surface geometry and dimensional accuracy. It must reproduce optical surfaces smoothly and consistently while supporting stable resin flow, cooling, venting, and demolding. The quality of the optical lens mould directly affects clarity, beam control, surface finish, and long-term production repeatability.
Injection molding is used for optical lenses because it can produce complex plastic lens geometries at scale with consistent dimensions. A precision optical lens mould can integrate optical surfaces, mounting details, clips, ribs, and alignment features into one molded part. This makes lens plastic injection moulding suitable for LED optics, automotive lenses, medical optical parts, sensors, and electronic modules.
Common materials in optical lens mould projects include PC, PMMA, PS, COP, and COC. PC is selected for impact and heat resistance, PMMA for transparency and gloss, PS for simpler transparent parts, and COP or COC for advanced optical stability. The selected material must match the optical lens mould design, processing window, optical requirements, and operating environment.
