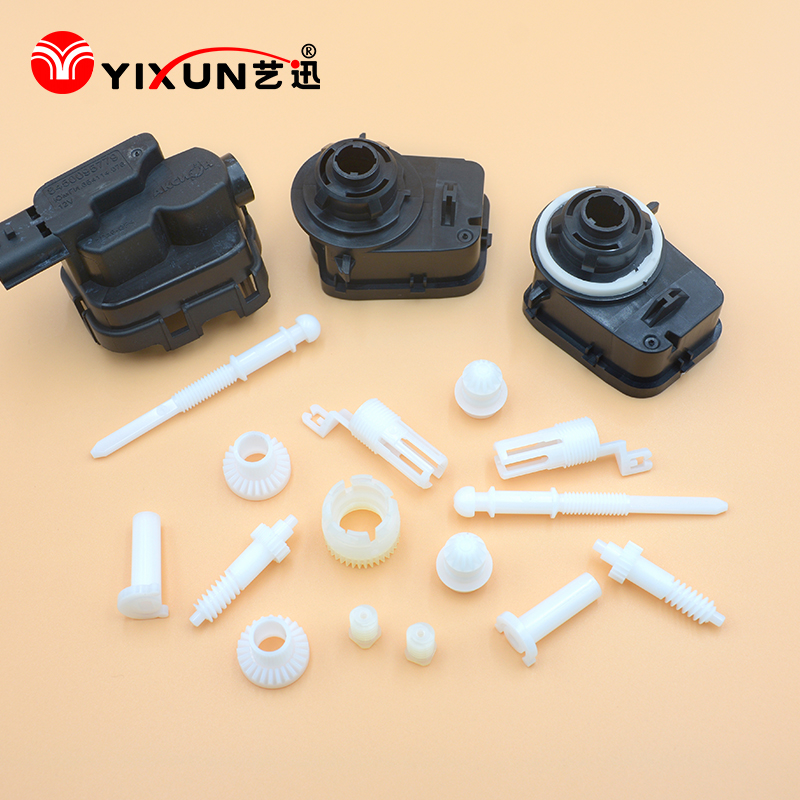

Plastic gears are everywhere—from the quiet hum of a printer and the smooth adjustment of a car seat to the intricate movements of medical devices. Their lightweight, corrosion-resistant, and low-noise properties make them ideal for countless applications. But how are these precisely shaped, durable components mass-produced? The answer overwhelmingly lies in one sophisticated process: Injection Molding.
This blog post walks you through the fascinating journey of how plastic pellets transform into high-precision gears, highlighting the critical considerations that separate a successful run from a failed batch.
Injection molding is the dominant method for producing plastic gears, especially in high volumes. It's a cycle of precision, repeatability, and engineering prowess.
It all starts with a perfect 3D model of the gear, specifying every detail: module, number of teeth, pressure angle, helix angle, and tolerances. Concurrently, the right engineering plastic is chosen based on the gear's final duty:
POM (Acetal / "Delrin"): The go-to for its excellent stiffness, low friction, and dimensional stability.
PA (Nylon): Prized for its toughness, wear resistance, and self-lubrication, though it absorbs moisture.
PBT & PC: Used for higher heat or impact resistance.
Reinforced Grades: Materials like PA66-GF30 (30% glass fiber) are selected for high strength, stiffness, and reduced thermal expansion.
The mold is a high-precision, hardened steel (or aluminum) masterpiece that defines the gear's quality. This is where the biggest investment and expertise lie.
Mold Flow Analysis: Before cutting steel, software simulates plastic flow, cooling, and shrinkage to optimize the design.
Precision Machining: The gear teeth cavity is typically created using Slow Wire EDM or Fine-Cavity EDM, achieving micron-level accuracy and superb surface finishes.
Critical Systems Within the Mold:
The Cooling System: A network of channels circulates water to ensure uniform, rapid cooling.
The Gating System: This is the entry point for molten plastic. For gears, a center gate is often used to ensure symmetrical, weld-line-free filling.
Venting: Tiny channels allow air to escape, preventing burns or incomplete filling.
Drying: Plastic pellets are meticulously dried in ovens to remove all moisture.
Injection: The dried material is fed into the injection molding machine, melted, and then injected under high pressure into the closed mold cavity.
Packing & Cooling: Intense holding pressure is applied to pack more material into the cavity, compensating for shrinkage as the part cools and solidifies.
Ejection: After a set cooling time, the mold opens, and ejector pins carefully push the finished gear out.
Gears are degated (sprue removed). Materials like nylon often undergo conditioning (hot water or oil bath) to relieve stress and stabilize dimensions. Each batch is then rigorously checked for dimensions (using gear testers or CMMs), appearance, and function.
Making a plastic gear isn't like making a simple cup. Here are the major hurdles and how engineers leap over them.
Challenge: Plastic shrinks as it cools, and uneven shrinkage can warp the gear, distort tooth profiles, and ruin precision.
Solutions:
The mold is intentionally made larger than the final part, scaled by a precise shrinkage factor determined through testing.
Maintaining extremely consistent mold temperature, hold pressure, and cooling time is non-negotiable for batch-to-batch consistency.
Challenge: Weld lines (knit lines) form where molten plastic flows meet. If a weld line crosses the root of a tooth, it creates a severe weak point.
Solutions:
Gate strategically: A single, central gate forces plastic to flow radially outward, eliminating weld lines on the teeth.
Optimize temperatures: Higher melt and mold temperatures improve polymer fusion at the flow front.
Use mold flow analysis to predict and reposition weld lines to non-critical areas if multiple gates are unavoidable.
Challenge: Uneven cooling or high injection speed can lock in stresses, causing the gear to warp after ejection.
Solutions:
Design a balanced, efficient cooling system around the gear cavity.
Use a multi-stage injection profile: fast fill, then switch to lower pack/hold pressure.
Adequate cooling time before ejection is critical.
Challenge: The gear teeth must be perfectly concentric with its bore or mounting hub.
The Golden Rule: The gear teeth cavity and the bore cavity must be machined on the same side of the mold (either all on the core or all on the cavity side). Splitting them across mold halves guarantees misalignment.
Successful plastic gear manufacturing is a trifecta of precision:
A perfectly engineered and machined mold.
A suitable, well-prepared material.
A fine-tuned, stable, and repeatable molding process.
