Optical injection molding has become a critical manufacturing route for high-precision plastic optical components used in lighting, sensing, imaging, medical devices, and electronic systems. Compared with traditional glass optics, plastic optics can offer lighter weight, greater design freedom, improved impact resistance, and efficient mass production when the process is supported by a precision optical lens mould. A well-engineered optical lens mould determines the accuracy of the optical surface, the stability of the part geometry, and the repeatability of lens plastic injection moulding across production batches.
● Optical injection molding enables scalable production of precision plastic optics.
● A high-quality optical lens mould is essential for optical accuracy.
● Material selection affects clarity, heat resistance, shrinkage, and stress.
● Optical lens mould tooling requires precision machining and polishing.
● Process control reduces warpage, haze, bubbles, and birefringence.
● A qualified lens mould supplier should understand both molding and optics.
An optical lens mould is a precision mold used to form plastic lenses and optical components through controlled injection molding. Unlike general plastic molds, an optical lens mould must reproduce optical surfaces with extremely high dimensional consistency and very low surface defects. The cavity geometry, gate position, cooling design, venting, and polishing quality all affect the optical performance of the final component.

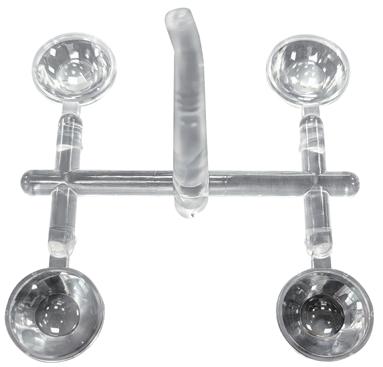

Lens plastic injection moulding begins with optical-grade resin being dried, melted, injected into the optical lens mould, packed under pressure, cooled, and ejected with minimal mechanical stress. The process requires stable melt temperature, mold temperature, injection speed, holding pressure, and cooling time because small variations can change optical clarity or dimensional accuracy. For precision lens mold manufacture, the molding process is designed around the optical function of the part rather than only the external shape.
Plastic optics are increasingly selected where weight reduction, design integration, and high-volume production are important. A precision optical lens mould can create complex lens surfaces, mounting structures, clips, ribs, and alignment features in one molded part. This ability allows optical components to combine optical performance and mechanical function in a way that is difficult or expensive with traditional glass processing.

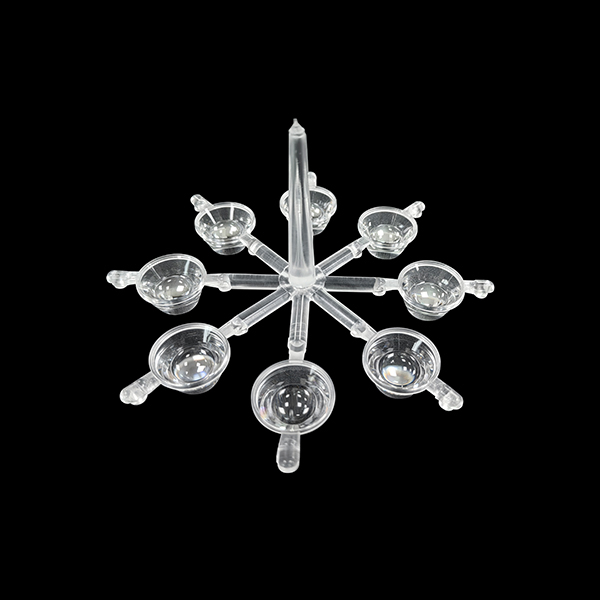

Once an optical lens mould is completed and validated, injection molding can produce large quantities of optical components with consistent geometry. The cycle-based nature of lens plastic injection moulding makes it suitable for applications requiring stable volume production. Although optical lens mould tooling has a higher initial cost, the unit cost becomes more competitive as production quantity increases.
An optical lens mould can be designed for aspheric lenses, Fresnel lenses, light guides, LED lenses, collimators, and other complex optical surfaces. Plastic injection molding allows different functional details to be integrated directly into the lens body, reducing secondary assembly steps. This design flexibility is especially valuable when optical performance, part thickness, mounting accuracy, and space limitations must be considered together.
Plastic optical parts produced from a precision optical lens mould are generally lighter than glass parts with similar optical functions. Materials such as PMMA and PC can provide high transparency while reducing the risk of breakage in portable, automotive, and medical equipment. The combination of low weight and impact resistance makes injection molded optics suitable for demanding industrial and consumer environments.
A well-designed optical lens mould can combine optical surfaces with mechanical locating features, sealing areas, fastening points, and alignment structures. This integration reduces the number of separate parts required in the final product assembly. In lens mold manufacture, early design coordination between optical requirements and molding feasibility is essential to avoid deformation, sink marks, and assembly tolerance problems.
The quality of an optical lens mould directly affects light transmission, beam control, image clarity, and dimensional repeatability. Optical lens mould tooling usually requires high-precision CNC machining, EDM, grinding, mirror polishing, and careful cavity inspection. Even small tool marks, scratches, or polishing inconsistency can appear on the molded lens surface and reduce optical performance.
Plastic materials shrink during cooling, and an optical lens mould must be designed to compensate for this behavior. Uneven wall thickness, poor cooling balance, excessive packing pressure, or unsuitable gate placement can create warpage and internal stress. In optical components, internal stress may lead to birefringence, dimensional drift, cracking, or changes in light transmission.
Gate design is a critical part of every optical lens mould because it controls how molten resin enters and fills the cavity. Poor gate placement can generate weld lines, flow marks, jetting, air traps, or uneven molecular orientation in the optical area. In precision lens mold manufacture, the gate is usually positioned to protect the functional optical surface while maintaining balanced filling and stable packing.
Optical parts are sensitive to dust, black spots, oil contamination, moisture, and resin degradation. A precision optical lens mould should be operated in a controlled production environment with clean material handling and stable machine conditions. For medical lens mould and sensor lens applications, clean molding practice becomes especially important because small particles can affect optical measurement or device reliability.
Challenge | Possible Defect | Process Focus | Mould Focus |
Poor drying | Bubbles, silver streaks, haze | Resin drying and storage | Venting design |
Uneven cooling | Warpage, deformation | Cooling time and mold temperature | Balanced cooling channels |
Poor flow balance | Weld lines, stress marks | Injection speed and pressure | Gate and runner design |
Rough cavity surface | Optical distortion, surface marks | Stable demolding | Mirror polishing |
Contamination | Black spots, particles | Clean material handling | Clean cavity maintenance |
Automotive optical parts often require an optical lens mould capable of producing stable lens geometry under strict dimensional requirements. Applications include headlamp lenses, signal light lenses, interior light guides, sensor windows, and camera-related optical covers. These parts must balance optical clarity, impact strength, thermal resistance, weathering performance, and assembly accuracy.

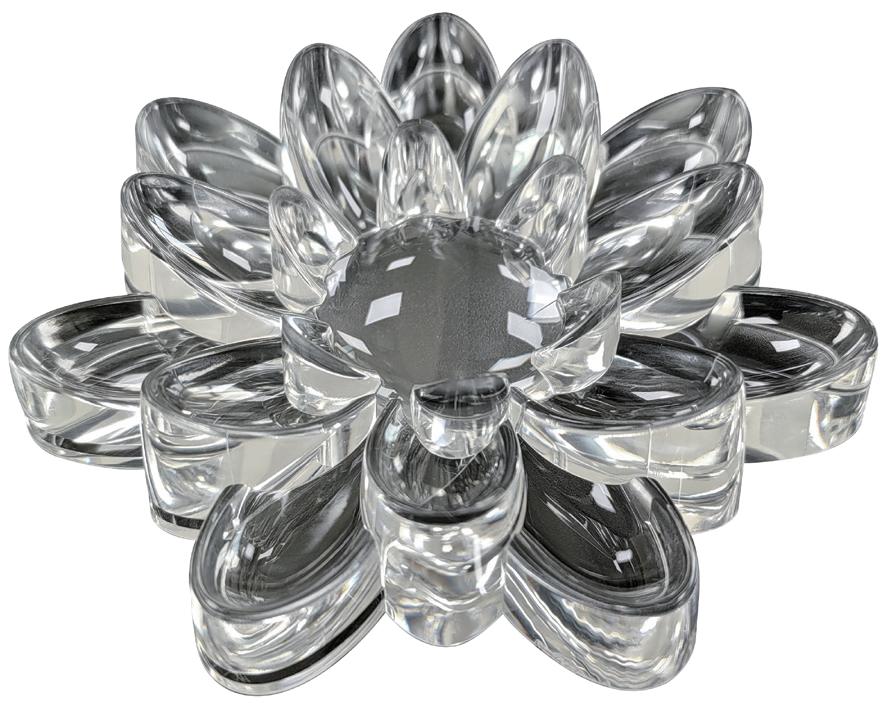

LED optical components depend heavily on the precision of the optical lens mould because small changes in surface geometry can alter beam angle, brightness distribution, or light uniformity. Injection molding is widely used for LED collimator lenses, diffuser lenses, light pipes, and guide plates. The mould surface finish, resin clarity, and filling stability must be controlled to avoid light loss, shadows, and visible defects.
Medical lens mould projects often involve small, precise, and transparent components used in diagnostics, fluid analysis, imaging, and disposable medical devices. The optical lens mould must support stable dimensions, smooth surfaces, low contamination risk, and repeatable optical behavior. Material selection is especially important because medical optical parts may require biocompatibility, sterilization resistance, or chemical stability.
Smart devices often use plastic optical components for cameras, sensors, light transmission, indicators, and compact optical modules. A precision optical lens mould can support miniature geometries, thin sections, micro features, and integrated mounting structures. In compact electronic products, dimensional control is critical because small deviations may affect alignment between the lens, sensor, housing, and light source.
A qualified lens mould supplier should understand how optical performance relates to mold structure, material flow, cooling, polishing, and ejection. An optical lens mould is not only a tool for shaping plastic but also a key element in controlling optical accuracy and production repeatability. Experience with lens plastic injection moulding reduces the risk of unstable dimensions, visible defects, and late-stage tool modifications.
Optical lens mould tooling requires machining accuracy, cavity surface control, and polishing standards beyond those of general plastic components. A capable lens mould supplier should have experience with mirror polishing, fine cavity finishing, accurate parting line control, and inspection of critical optical areas. Without these capabilities, an optical lens mould may produce parts with surface haze, distortion, or unacceptable light scattering.
Different optical resins behave differently inside an optical lens mould, especially in shrinkage, flow length, temperature sensitivity, and stress formation. A supplier familiar with PMMA, PC, COC, COP, and other optical-grade materials can design tooling and molding conditions around the selected resin. This knowledge is important for lens mold manufacture because a material that looks suitable on paper may still create defects if processing limits are ignored.
An optical lens mould project often requires design review, prototype validation, mold trial, optical inspection, and process optimization before stable production. A structured development process allows engineers to verify optical surfaces, dimensions, assembly fit, and molding repeatability. For complex optical parts, early communication between product design, mold design, and injection molding teams reduces avoidable engineering changes.
Dimensional inspection confirms whether the molded part from an optical lens mould meets the required geometry, thickness, diameter, assembly position, and tolerance range. Precision measurement may involve CMM, optical measuring equipment, profile projectors, or customized inspection fixtures. Stable dimensional data across multiple mold trials indicates that the tooling, material, and process are moving toward production readiness.
An optical lens mould must produce surfaces that are free from scratches, flow marks, bubbles, haze, black spots, and visible sink marks. Appearance inspection is usually stricter for optical parts than for ordinary transparent plastic components because small defects may interfere with light transmission or image quality. Controlled lighting, magnification, and defect criteria should be established before mass production begins.
Process stability verification checks whether the optical lens mould can produce acceptable parts repeatedly under defined molding conditions. Key parameters include resin drying, melt temperature, mold temperature, injection speed, holding pressure, cooling time, and demolding behavior. A stable process window is important because optical parts often show performance changes before obvious visual defects appear.
Optical injection molding offers strong potential for producing lightweight, precise, and functionally integrated plastic optical components, but the success of each project depends heavily on the design, machining, polishing, and validation of the optical lens mould. From material selection and optical lens mould tooling to lens plastic injection moulding and mass production control, every stage must be managed with attention to clarity, dimensional stability, surface quality, and internal stress. For companies developing custom plastic optics, Dongguan YIXUN Industrial Co., Ltd. can provide engineering support for precision optical lens mould projects involving automotive, LED, medical, sensing, and electronic optical components.
An optical lens mould is a precision injection mold used to manufacture plastic lenses and optical components. It must reproduce optical surfaces with high accuracy, smoothness, and repeatable geometry. The quality of the optical lens mould directly influences clarity, beam control, dimensional consistency, and long-term production stability.
Common materials for optical lens mould projects include PMMA, PC, COC, and COP. PMMA is often selected for high transparency, while PC is chosen for impact strength and heat resistance. COC and COP are used in advanced optical and medical lens mould applications requiring low moisture absorption and stable optical properties.
Injection molding can achieve optical-grade quality when the optical lens mould, resin, process parameters, and production environment are properly controlled. Precision machining, mirror polishing, stable temperature control, and clean handling are necessary for high-quality optical surfaces. The final result also depends on correct gate design, cooling balance, stress management, and inspection standards.
