If you are an mechanical engineering student or a junior designer, you have probably heard this: “Injection mold design is the pinnacle of mechanical manufacturing.”
It sounds dramatic, but it’s true. A plastic spoon is easy. A car dashboard, a phone case, or a medical connector? Those require a blend of fluid dynamics, thermodynamics, material science, and precision machining.
After mentoring dozens of designers, I’ve noticed that the “Path” is always the same. You cannot skip these stages. You cannot Google a shortcut. Here is the 5-stage technical roadmap to becoming a competent injection mold designer.
Before you open NX, Creo, or SolidWorks, you must kill your ego and analyze the plastic part.
The DFM Report (Design for Manufacturing):
This is a contract between you and the customer. If you skip this, you will pay for it in tooling modifications later.
Draft Angle Check: Can the part actually come out? (Rule: 0.5° minimum for polished surfaces; 3°-5° for textured surfaces).
Undercut Detection: Where do we need sliders or lifters? Can we redesign the part to avoid them? (Sliders cost $2,000; a simple redesign costs $0).
Wall Thickness: Injection molds hate sudden thickness changes. If a wall goes from 2.5mm to 1.5mm instantly, you will get sink marks or voids. You must add gradual transitions.
Gate Location: Where will the plastic enter? If you put a gate near a thin rib, the plastic will freeze too early. If you put it near a pin, it will deflect.
Pro Tip: A great designer doesn't just accept the part geometry; they suggest changes to the part to make the mold cheaper and more reliable.

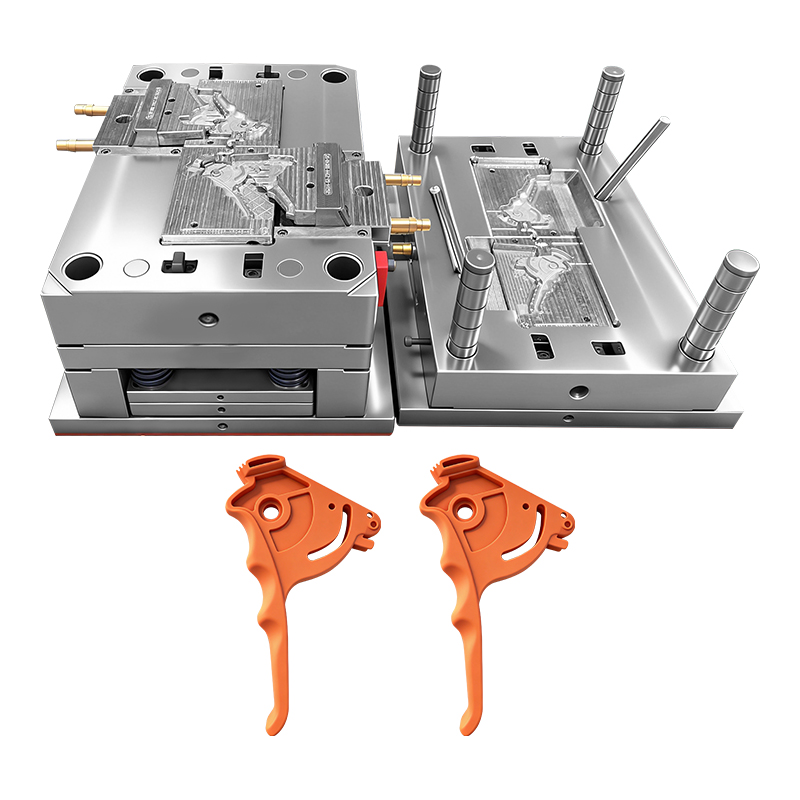

The Parting Line is where the A-side (cavity) and B-side (core) meet. Choosing this line is the single most critical decision.
The Golden Rules:
The Max Contour: The parting line must always fall on the largest outer perimeter of the part. Always.
Keep it Flat: A flat parting line is cheap to machine (just grind and polish). A 3D stepped parting line requires 5-axis CNC or EDM (Electrical Discharge Machining)—which is expensive.
Avoid Thin Steel: Never let the parting line create a sharp, thin "spear" of steel on the core or cavity. High injection pressure (1,000+ psi) will snap it off.
Why this matters: If you mess up the parting line, the mold will flash (leak plastic like a bad pancake batter), and the parts will have an ugly witness line where it matters most.
This is where theory meets brutal reality. You are designing moving parts that operate at 200°C under 1,500 tons of force.
A. The Runner & Gate System (The Plumbing)
Cold Runner: Simple, cheap, but wastes plastic. Requires a spruce puller to grab the frozen plastic.
Hot Runner: Complex, expensive, but no waste. Warning: Never run a hot runner without thermal expansion gaps. Steel grows 0.02mm per 100mm at 200°C. If you don't account for this, the manifold will buckle.
B. The Cooling System (The Cycle Time Killer)
The Mistake: Drilling straight holes through the core and calling it "cooling."
The Solution: Conformal cooling (water channels that follow the shape of the part). A bad cooling design increases cycle time by 30%. In mass production, saving 5 seconds per shot pays for the mold in 3 months.
Rule of thumb: Cooling lines should be 15-20mm from the cavity surface and spaced 3-4 diameters apart.
C. The Ejection System (Don't Break the Part)
Ejector Pins: Place them on strong ribs, not thin walls. Never put a pin on a cosmetic surface.
Sliders (for external undercuts): Angle of the guide pin? Usually 18°-23°. If you go above 25°, the slider moves so fast it will crash into the core.
Lifters (for internal undercuts): These are fragile. Lifter angle is usually 5°-12°. More than 12°? You need a hydraulic cylinder, not a lifter.
The industry is moving toward "3D-only" workflows, but the 2D drawing is still the legal contract between the designer and the machinist.
What you must master:
Tolerance Stacks: H7/g6 for sliding fits (ejector pins). H7/m6 for interference fits (dowel pins).
The "Benchmark Corner": Every drawing must indicate the "Zero point" (usually the lower right corner of the mold base). All machining coordinates start here.
Surface Finish Notation: You cannot write "Polish this." You must write Ra 0.4µm or VDI 3400 texture code. SPI A-2 means a high-gloss diamond polish. SPI C-1 means a stone finish.
Reality check: A designer who cannot produce a clear, dimensionally correct 2D drawing is a hobbyist, not an engineer.
You have finished the design. The steel is cut. The mold is assembled. Now you go to the injection molding machine.
The 4 things you will see on "T1" (First Trial):
Sticking to the wrong side: The part sticks to the A-side (cavity). Fix: Add more draft or texture to the B-side (core).
Short shots: The plastic doesn't fill the end of the cavity. Fix: Increase injection speed or add a vent (0.02mm deep) to let air escape.
Flash: Plastic squeezes out like a pancake. Fix: The clamping force is too low, or the parting line steel was machined out of flatness.
Warpage: The part looks like a Pringles chip. Fix: Your cooling is unbalanced. One side of the part cooled faster than the other.
The Rule of Debugging: "The mold is never wrong; the plastic is always right." If the part fails, the plastic is telling you that your geometry or process is wrong. Listen to it.
If you want to survive your first two years, avoid these at all costs:
Ignoring the Injection Machine Spec Sheet: You designed a mold that is 350mm thick, but the customer's machine only accepts 300mm. Fail. Always get the tie-bar spacing, max/min mold height, and ejector hole pattern before starting.
Over-Engineering: Adding tight tolerances to non-critical surfaces. A water pipe fitting doesn't need ±0.01mm. It needs ±0.1mm. Save the precision for the shut-offs and sliding surfaces.
The "CAD Hero" Syndrome: Thinking that if the model looks good on screen, it will work in steel. It won't. You need to mentally simulate the plastic flowing, the steel expanding, and the ejector pins moving.
How long does this path take?
2 years: You can copy an existing mold design.
5 years: You can design a new mold from scratch and predict 80% of the issues before the first trial.
10+ years: You can look at a plastic part and tell the customer, "Move this rib 2mm to the left, or your mold will cost $20,000 more."
