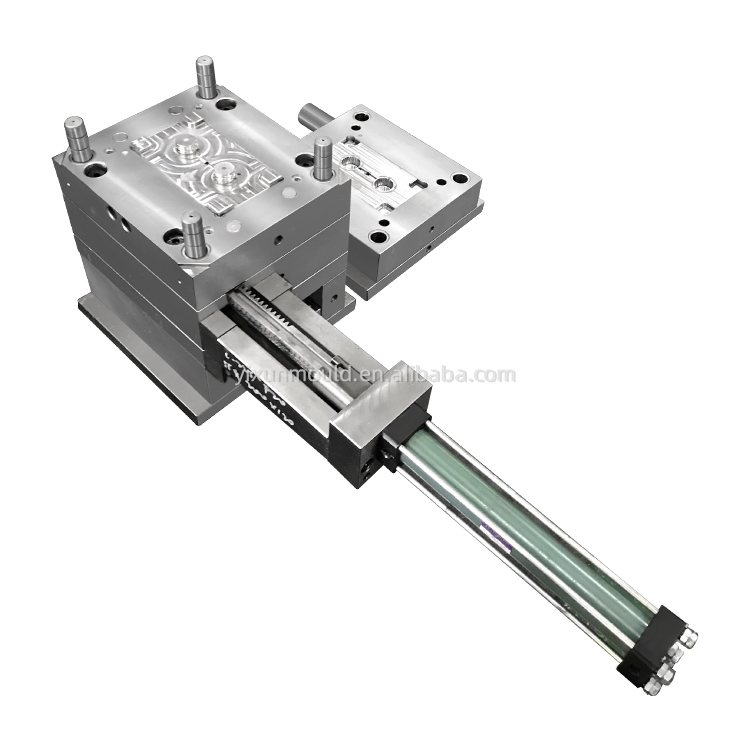

The Critical Link: How Injection Molding Machine Size and Mold Cavity Count Determine Your Success

The Core Concept: Demand vs. Supply

Think of it this way:

• The Cavity Count is the Demand. It dictates the total "load" placed on the molding machine.

• The Machine Size is the Supply. It must provide sufficient "capacity" to meet that demand.

If the supply cannot meet the demand, the project fails. If the supply vastly exceeds the demand, you waste money. Let's explore the three key areas where this demand-supply relationship plays out.

1. Clamping Force (The Most Critical Factor)

The primary role of the machine's clamp is to hold the mold shut against the immense pressure of molten plastic being injected. This required clamping force (in tons) is directly proportional to the total projected area of the plastic inside the mold.

The Formula:
Required Clamping Force > (Single Cavity Projected Area × Number of Cavities + Runner Area) × Cavity Pressure

The Impact of Cavity Count:
Adding cavities multiplies the total projected area. Therefore, the required clamping force increases linearly. A 4-cavity mold will require approximately four times the clamping force of a 1-cavity mold (plus the runner system).

• Machine Too Small: The clamp cannot hold the mold shut, causing flash (excess plastic at the parting line), mold damage, and safety risks.

• Machine Too Large: Unnecessarily high energy consumption and higher hourly machine rates, making your parts more expensive.

2. Injection Volume (Shot Capacity)

The machine must be able to inject enough plastic to fill all cavities and the runner system completely.

The Formula:
Machine Shot Capacity × Material Density × Safety Factor (0.7-0.8) > (Part Weight × Number of Cavities + Runner Weight)

The Impact of Cavity Count:
The total shot weight is the sum of the weights of all parts and the runners. More cavities mean a higher total shot weight.

• Machine Too Small: Results in short shots (incompletely filled parts), as the machine physically cannot inject enough material.

• Machine Too Large: A large screw diameter designed for big shots can cause material degradation (burning) in small shots. The plastic sits in the overheated barrel for too long, leading to weakened parts and defects.

3. Mold Dimensions (Physical Fit)

The mold must physically fit within the machine.

• Tie Bar Distance: The mold's width and height must pass through the space between the machine's tie bars.

• Mold Thickness: The mold must be within the machine's minimum and maximum mold thickness range.

• Platen Size: The mold should be securely mounted on the machine's platens.

The Impact of Cavity Count: Multi-cavity molds are typically larger and heavier. A 32-cavity mold will be much bigger than a 2-cavity mold for the same part, requiring a machine with a larger platen and wider tie bar spacing.

The Decision-Making Framework: Two Common Scenarios

Scenario 1: Designing a Mold for an Existing Machine

This is a constraint-based approach. You know your machine's limits (e.g., 300-ton clamp, 800g shot capacity).

• Goal: Maximize productivity within the machine's capabilities.

• Process:

1. Calculate the projected area and weight of one part.

2. Use the clamping force formula to calculate the maximum possible number of cavities.

3. Check if the total shot weight for that cavity count is within ~80% of the machine's capacity.

4. Ensure the resulting mold size will fit the machine.

• Outcome: You arrive at the optimal cavity count that fully utilizes your existing machine without exceeding its limits.

Scenario 2: Selecting a Machine and Mold for a New Product

This is an optimization approach. You are starting from scratch with a new part design.

• Goal: Find the most cost-effective solution over the product's lifetime.

• Process:

• Option A (Low Cavity Count): A 2-cavity mold on a small (150-ton) machine. Pros: Lower machine investment, lower energy cost. Cons: Lower output per cycle, may require more machines to meet volume.

• Option B (High Cavity Count): An 8-cavity mold on a large (600-ton) machine. Pros: High output per cycle, lower cost per part (labor and cycle time are amortized). Cons: High initial investment in machine and mold, higher energy cost.

1. Analyze Production Volume: What is the required annual output?

2. Evaluate Options:

3. Run a Cost Analysis: Compare the total cost per part for each scenario, including machine depreciation, energy, labor, and maintenance.

• Outcome: You select the cavity count and machine size that delivers the required volume at the lowest total cost per part.

Beyond Size: The Critical Issue of Quality

Matching size and cavity count is not just about production capacity; it's also about quality control. Multi-cavity molds demand a higher level of performance from the injection molding machine.

• Flow Balancing: Ensuring plastic flows evenly to all cavities is a major challenge in mold design. An imbalance can cause variations in part weight, size, and strength.

• Machine Precision: A larger machine must have precise injection control (multi-stage velocity/pressure profiling) to compensate for minor imbalances and ensure consistent filling and packing in every cavity. An old, poorly controlled large machine can produce a high scrap rate in a multi-cavity mold.

Conclusion: An Inseparable Partnership

The relationship between injection molding machine size and mold cavity count is not a sequential choice but a simultaneous equation. You cannot decide one without deciding the other.

Key Takeaways:

• Cavity count is a multiplier that directly determines the minimum machine size required.

• The clamping force calculation is the most critical step in the selection process.

• The goal is never just the biggest machine or the most cavities, but the most economical combination that reliably meets your quality and volume requirements.
