Molding transparent plastics is not simply manufacturing—it's a discipline of optical engineering. Every minute flaw becomes glaringly obvious under light. Achieving crystal-clear, stress-free parts requires a "cleanroom mentality" applied to the entire process chain. Here’s your comprehensive guide to mastering this demanding craft.
Your journey begins with selecting the right polymer, each with its own personality and challenges.
| Material | Full Name | Key Properties & Uses | Difficulty |
|---|---|---|---|
| PMMA | Polymethyl Methacrylate (Acrylic) | Highest clarity (92% light transmission), rigid, excellent weatherability. Brittle, scratches easily. For lenses, light guides, decorative items. | Medium |
| PC | Polycarbonate | Extremely tough, high heat resistance (>120°C). Prone to residual stress. For safety glasses, face shields, headlamps, water bottles. | High |
| PS (GPPS) | General Purpose Polystyrene | Low cost, rigid, very brittle. For disposable cups, packaging, cosmetic cases. | Low |
| PET / APET | Polyethylene Terephthalate | Excellent barrier properties, fast crystallization. For thin-walled food containers, preforms. | Very High |
| COC / COP | Cyclic Olefin Copolymer | Ultra-high purity, low birefringence, superior biocompatibility. For premium optics, medical microfluidics. | Extreme |
The Imperative: PC, PET, and PMMA are hygroscopic. Traces of moisture (>0.02%) cause:
Splay/Silver Streaks: Steam creates permanent cloud-like marks.
Molecular Degradation: Hydrolysis reduces strength and toughness.
The Rule: Use dehumidifying dryers. Follow data sheet guidelines rigorously (e.g., PC: 120°C for 4+ hours). Use hopper dryers to maintain temperature.

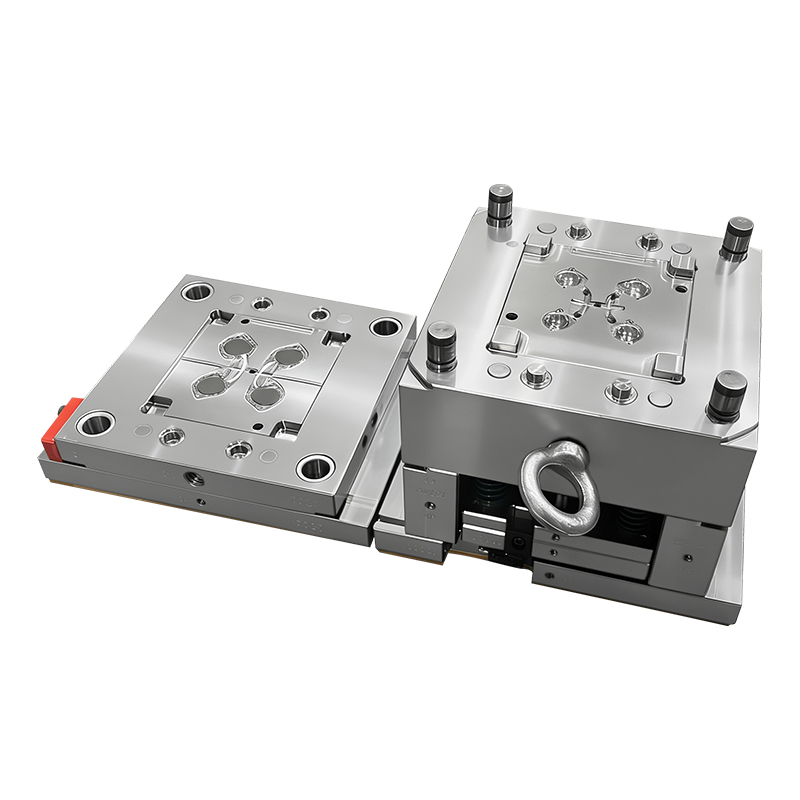

Mold Design:
Gating: Prefer hot runners to reduce shear and cold slugs. Use large, generous gates (fan, tab) to minimize shear-induced stress whitening.
Polishing: Cavities require optical-grade, diamond-polished finishes (#3000 grit+). Use hard, corrosion-resistant steels (e.g., S136H) often with chrome plating.
Cooling: Critical! Must be perfectly uniform to prevent refractive index variations (optical distortion). Use high-conductivity inserts (beryllium copper) and high-precision mold temperature controllers.
Machine Setup:
Dedication: Use machines reserved for clear materials to avoid contamination.
Screw: Use a low-compression screw (2.0-2.4) designed for clears to minimize shear heating.
Nozzle: Use an open-bore, streamlined nozzle without dead spots.
The core strategy is High Temperatures, High Pressure, and Slow, Controlled Speed.
The "Three Highs":
Why: Ensures perfect cavity replication and compensates for shrinkage.
Why: Ensures fluidity for complex features. Operate in the upper-middle range of the material spec to avoid degradation.
Why: Reduces cooling stress, allows molecular relaxation, improves surface replication.
Typical: PMMA: 60-80°C; PC: 80-110°C; APET: >120°C.
Tool: Water-based mold temp controllers with ±1°C accuracy are mandatory.
High Mold Temperature:
High Melt Temperature:
High Injection & Pack Pressure:
The "One Low & Slow":
Low/Controlled Injection Speed: High speed causes shear heating, leading to splay and burning. Use multi-stage profiling: slow at gate (to prevent jetting), fast in cavity, slow again before fill completion (for venting).
Stress Analysis:
Mandatory Step: Use a polarized light filter or polariscope. Dense rainbow patterns indicate high residual stress.
Annealing: For stress-prone materials like PC, perform thermal annealing (10-20°C below HDT for 1-4 hours) to relieve stress and prevent future cracking.
Packaging:
Handle in clean environments with gloves. Use anti-static, non-abrasive packaging to prevent scratches and dust contamination.
| Defect | Likely Cause | Corrective Action |
|---|---|---|
| Silver Streaks (Splay) | 1. Wet material. 2. Melt temp too high. 3. Excessive shear. | 1. DRY MATERIAL THOROUGHLY. 2. Lower rear-zone temps. 3. Reduce screw speed/back pressure. |
| Sink Marks | 1. Insufficient pack pressure/time. 2. Poor cooling. 3. Gate too small. | 1. Increase pack pressure & time. 2. Optimize cooling time/channels. 3. Enlarge gate or move to thicker section. |
| Internal Bubbles | 1. Under-packing in thick sections. 2. Melt temp too high. | 1. Increase pack pressure/speed. 2. Lower melt temperature. |
| Black Specks | 1. Contaminated resin. 2. Degraded material in machine. 3. Dust. | 1. Clean hopper, dryer, environment. 2. Purge machine completely. 3. Implement clean handling. |
| Scratches | 1. Imperfect mold polish. 2. Rough ejection/handling. | 1. Repolish mold cavity. 2. Optimize ejection, use soft gloves. |
| Stress Whitening | 1. High shear at gate. 2. Ejection strain. 3. Internal stress. | 1. Enlarge gate, use fan gate. 2. Balance ejection system. 3. Anneal the part. |
| Yellowing | 1. Thermal degradation. 2. High regrind use. 3. Poor venting (diesel effect). | 1. Lower melt temp, reduce cycle. 2. Limit regrind percentage. 3. Improve mold venting. |
Cleanliness is Godliness: Maintain impeccable hygiene from resin to packaging.
Dryness is Life: Perfectly dry material is the single most critical prerequisite.
Stress is the Enemy: Combat it with high mold temps, slow fill, proper gating, and annealing.
Temperature is a Double-Edged Sword: Use enough heat to flow, but not enough to degrade.
The Mold is a Mirror: The final part's clarity can never exceed the mold's surface finish.
Molding transparent plastics sits at the pinnacle of injection molding craftsmanship. It demands a deep understanding of polymer physics, thermodynamics, and fluid dynamics, translated into obsessive control over every variable. By embracing this disciplined approach, you transform from a molder into an optical component manufacturer, where the final product is judged not just by its form, but by its flawless clarity.
