Taming Two Common Injection Molding Demons: Color Streaking and Surface Scratches

Part 1: Conquering Color Streaking and Inconsistency

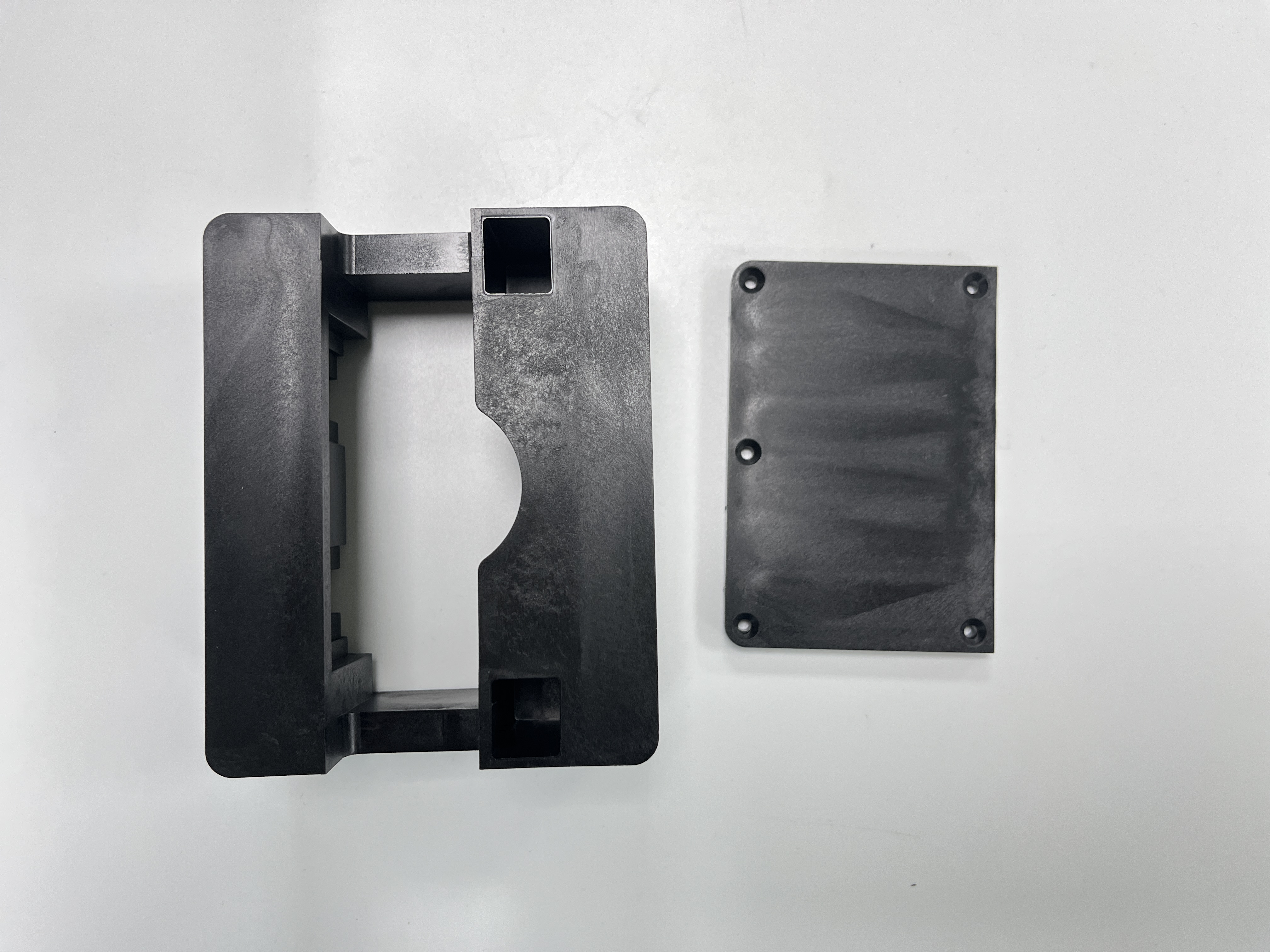

Color streaking is essentially a mixing problem. It occurs when pigments or colorants fail to disperse uniformly throughout the polymer melt.

Key Strategies to Achieve Perfect Color:

1. Master Your Raw Materials:

• Use High-Quality Colorants: Ensure your color masterbatch or pigments are compatible with the base resin. Low-quality colorants with poor dispersion are a primary culprit.

• Mix, Mix, and Mix Again: Never rely on hand-mixing. Always use a mechanical mixer to ensure the colorant and resin are blended homogeneously. If using a gravimetric or volumetric feeder, ensure the ratio is consistent and stable.

• Dry Your Resin Properly: Moisture is the enemy. For hygroscopic resins like ABS, PC, or Nylon, improper drying can cause hydrolysis, leading to color degradation (like yellowing) and splay. Always follow the material supplier's drying guidelines meticulously.

• Purge Thoroughly: Contamination from a previous material or color is a common cause. Use purging compounds effectively when changing colors or materials.

2. Optimize Your Process Parameters:

• Apply the Right Back Pressure: Adequate back pressure (typically between 5-20 bar) compacts the melt, removes entrapped air, and improves pigment dispersion by increasing shear. Too little, and dispersion suffers; too much, and you risk degrading the material.

• Control Screw RPM: A very high screw rotation speed generates excessive shear heat, which can cause localized overheating and degradation of the polymer or pigment. Use a moderate screw speed that ensures a consistent melt without burning.

• Fine-Tune Temperature Profiles: The barrel temperature must be set correctly. If it's too low, the melt viscosity is high, and pigments won't disperse. If it's too high, the material can degrade. Stick to the manufacturer's recommended temperature range and verify that all heater bands and thermocouples are functioning correctly.

3. Inspect Your Hardware:

• Check the Screw and Non-Return Valve: A worn screw or a faulty check ring (non-return valve) leads to inconsistent plastication, pressure loss, and material hang-up—all of which can cause color variations. Regular maintenance is key.

• Review Mold Design: Gates and runners that are too small can cause high shear stress, leading to material burning (black specs) or degradation, which directly impacts color.

Part 2: Preventing Surface Scratches for a Flawless Finish

A scratch-prone surface indicates that the surface layer is either too soft or lacks sufficient hardness. The goal is to create a harder, more durable surface from the start.

Key Strategies for a Scratch-Resistant Surface:

1. Material Selection (The Fundamental Solution):

• Choose a Harder Resin: Not all plastics are created equal. PMMA (Acrylic) has an exceptionally hard surface, while PC is also very good. Standard ABS and PP are more susceptible.

• Leverage Scratch-Resistant Grades: Many material suppliers offer specialty grades with built-in anti-scratch additives (like silicones). These additives migrate to the surface, creating a lubricating layer that reduces friction and makes scratches less visible.

2. Mold Design & Finish (Your Most Powerful Tool):

• Achieve a High-Polish Mold Surface: The plastic part is a literal replica of the mold cavity. A high-gloss, mirror-finish polish will produce a super-smooth part that is inherently more resistant to showing fine scratches.

• Upgrade Your Mold Steel: Use high-quality, hardened mold steels (e.g., S136, 420 Stainless Steel). A hard mold surface resists wear and tear over long production runs, maintaining its pristine finish.

• Apply Advanced Surface Treatments: Consider techniques like PVD (Physical Vapor Deposition) or hard chrome plating on the mold cavity. These coatings create an extremely hard, low-friction surface that not only prevents scratching on the mold itself but also improves part release.

3. Process Optimization for a Denser Skin:

• Increase Mold Temperature: This is critical. A higher mold temperature allows the melt to remain fluid longer upon contact, enabling it to perfectly replicate the smooth mold surface. This results in a dense, high-gloss "skin" that is much more scratch-resistant.

• Use Fast Injection Speed: A fast fill ensures the melt front doesn't cool down before it fully contacts the mold wall. This prevents a rough, matte "orange peel" finish, which is far more susceptible to visible scratching.

• Ensure Adequate Packing and Cooling: Proper packing pressure pushes material against the mold surface, perfecting the replication. Uniform cooling minimizes internal stresses that can make the surface more vulnerable.

4. Post-Molding Handling and Protection:

• Apply a Protective Coating: For the ultimate protection, apply a clear hard coat (like UV-curable coating). This adds a separate, sacrificial layer of extreme hardness.

• Implement Careful Packaging: Protect your finished parts immediately. Use soft, non-abrasive separators like PE foam, bubble wrap, or tissue paper to prevent parts from scratching each other during storage and transport.

Conclusion: A Systematic Approach is Key

Solving these issues requires a methodical approach:

1. Start with the basics: Ensure your material is dry, well-mixed, and of high quality.

2. Optimize your process: Focus on back pressure, mold temperature, and injection speed.

3. Invest in your tooling: A high-polish, well-maintained mold is the ultimate defense against scratches and many other defects.

By understanding the science behind these defects and implementing these strategic solutions, you can significantly elevate your product quality, reduce scrap rates, and deliver parts that look and feel superior.
