YIXUN mold
8480419090

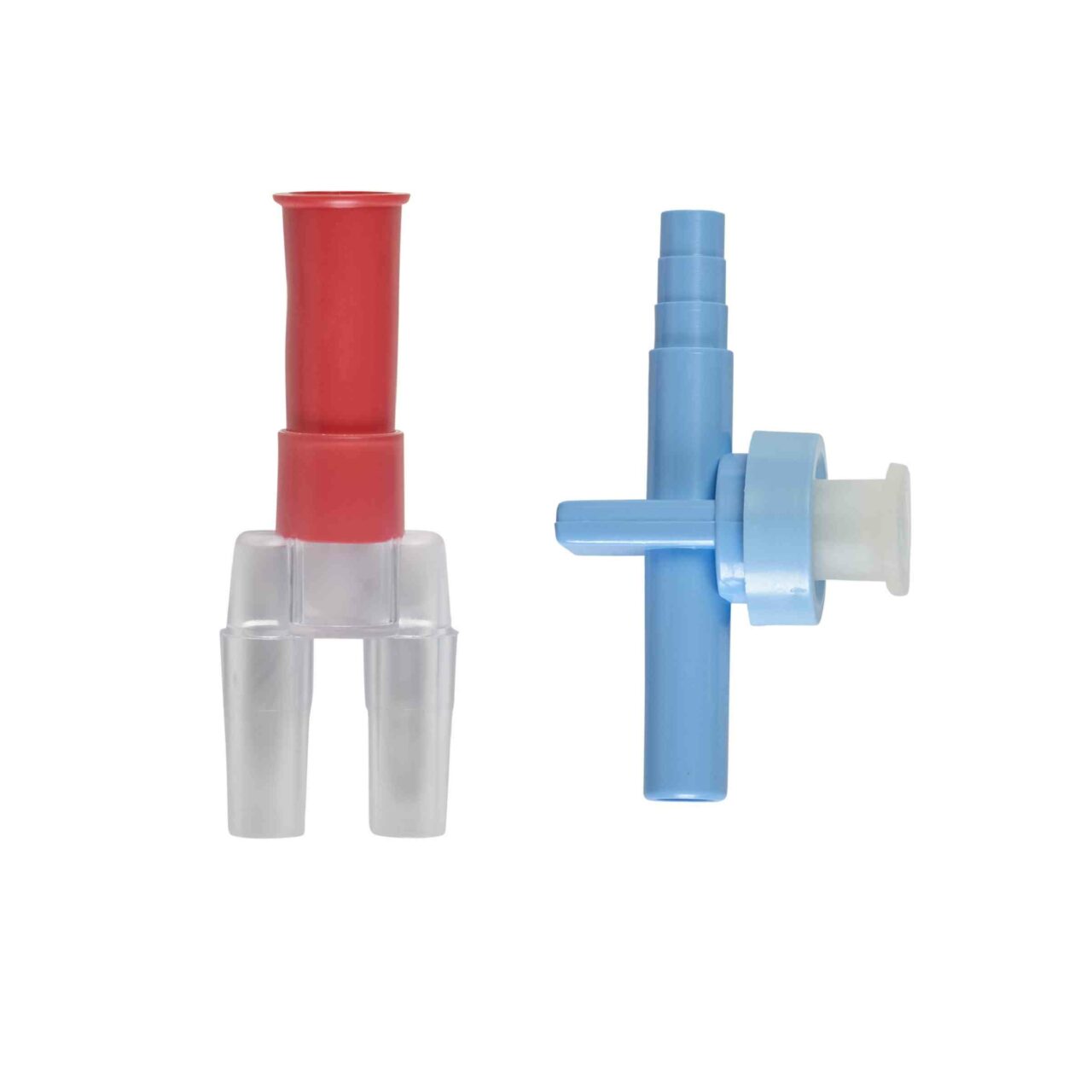

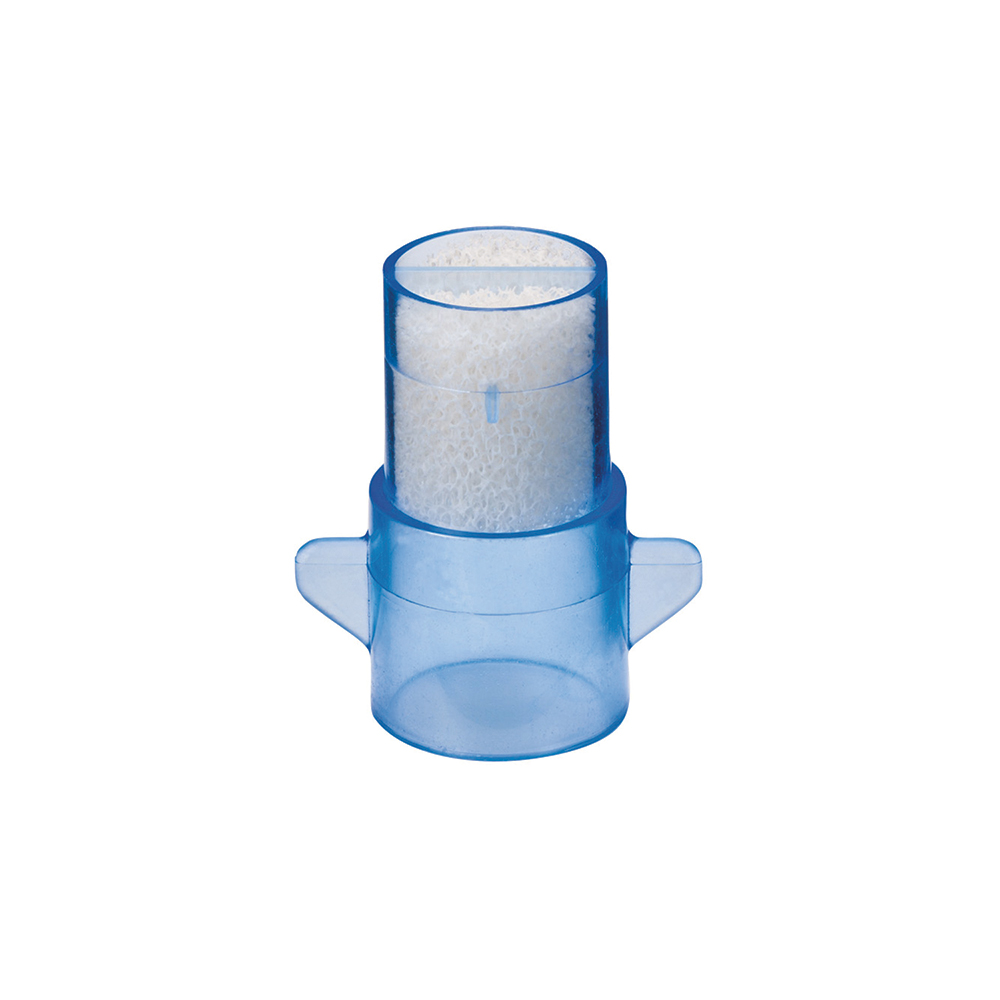

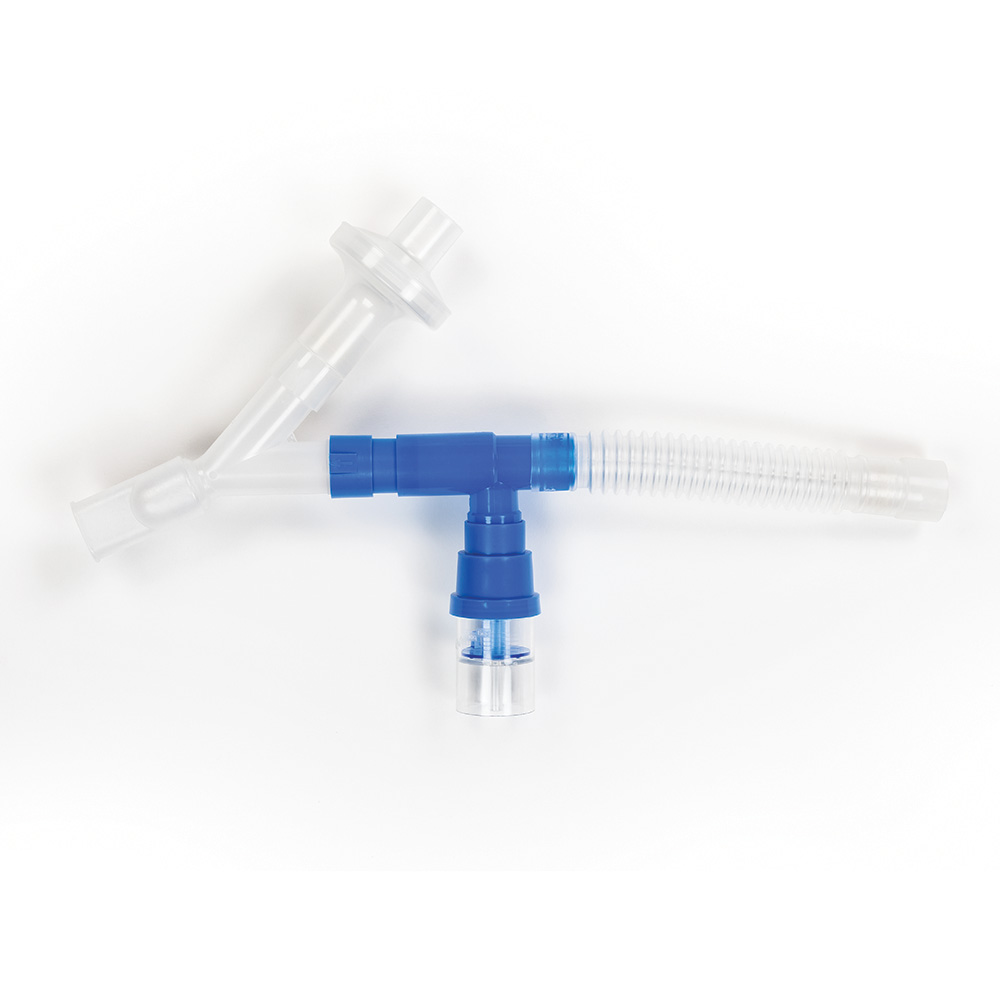

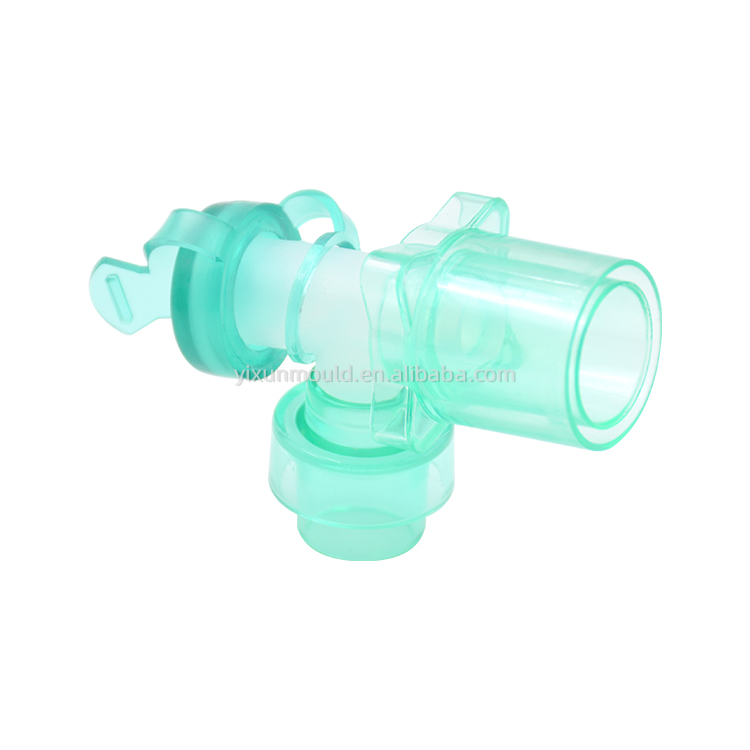

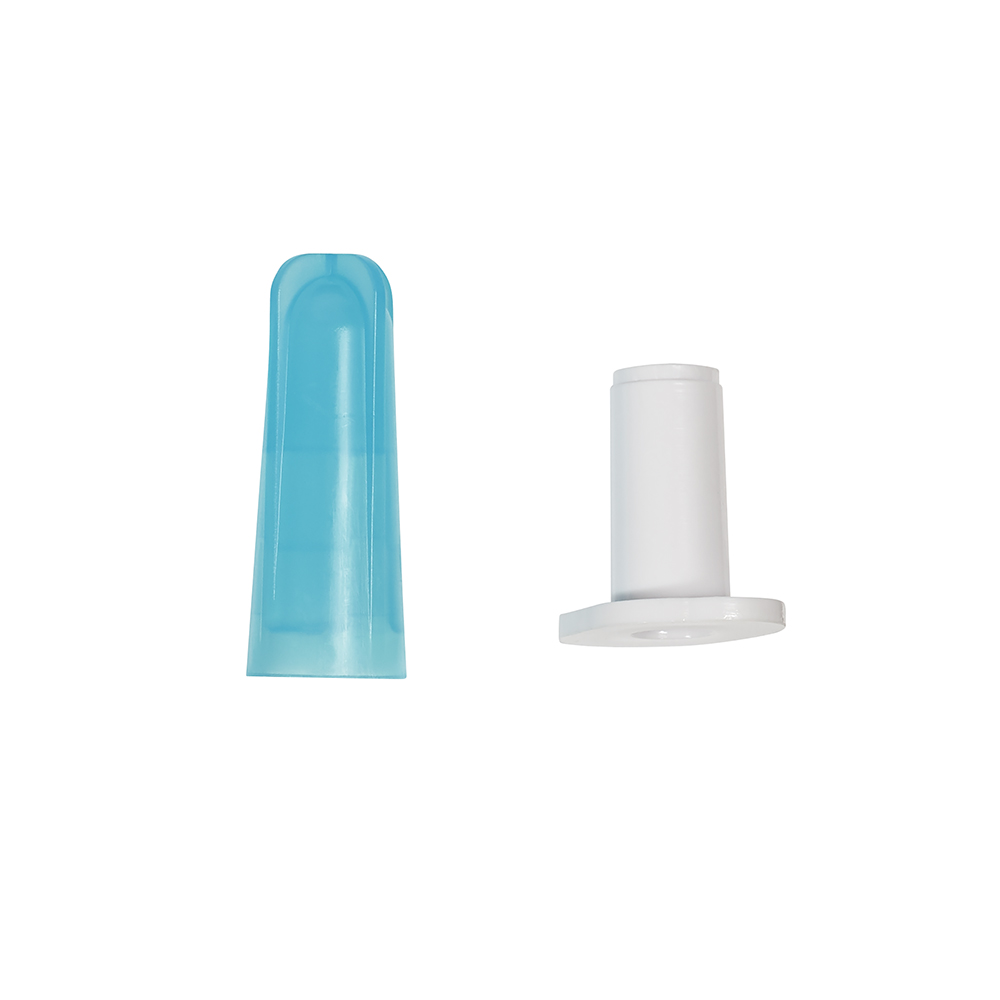

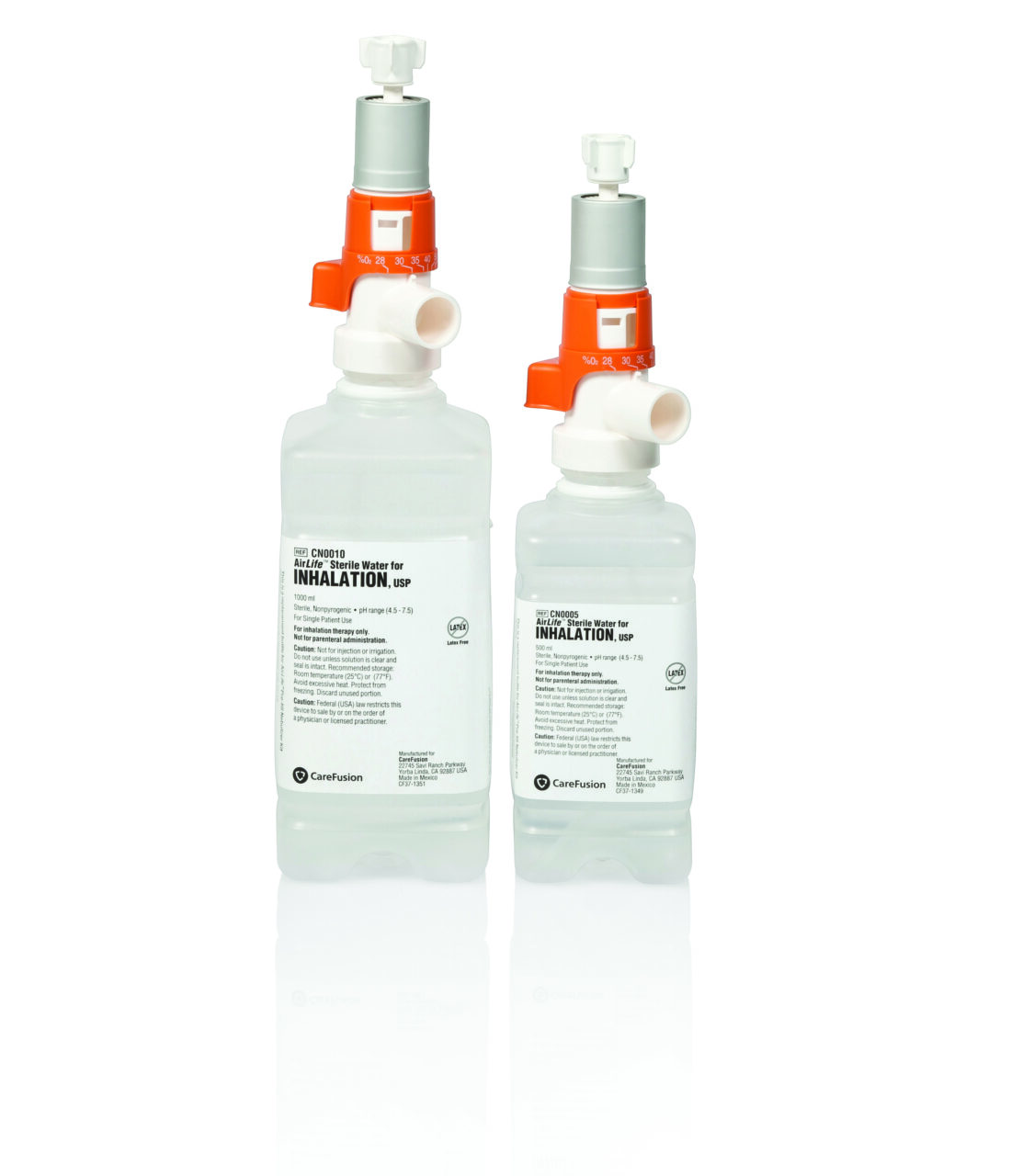

Product: Surgical Large Volume Adapter
Application: Medical/Surgical. This immediately dictates the highest standards for quality, consistency, and documentation.
Function: Likely a component for IV sets, irrigation systems, or drug delivery. It may feature luer locks, threads, valves, or connection ports.
Critical Needs: Dimensional accuracy, leak-proof integrity, smooth surfaces to prevent bacterial adhesion, and biocompatibility (material-dependent).
Key Mold Specification: Large Volume
Robust Construction: Hardened mold steels (e.g., Stainless Steel 420, 420SS, or H13 for corrosion resistance and long life).
High-Performance Cooling: To achieve fast cycle times for "large volume," an optimized cooling circuit is essential.
Automation Ready: Features for automated part ejection, robotic pickers, and conveyor systems.
Reliable Ejection System: To handle thousands of cycles without failure.
This implies the mold must be designed for high-production efficiency and durability. It's not a prototype mold. It will need:
Key Mold Specification: Multiple Cavity
Part Size & Mold Size: Larger part = fewer cavities in a given mold size.
Plastic Flow (Filling Balance): The runner system must be perfectly balanced (preferably a hot runner system) so all cavities fill simultaneously and uniformly.
Tolerances: Multi-cavity molds require exceptional machining accuracy to ensure every cavity is identical.
Goal: To produce several identical parts per injection cycle, maximizing output.
Consideration: The number of cavities (e.g., 4, 8, 16, 32+) is a critical cost and performance driver. It must be balanced against:
Key Material Specification: PC, ABS, PP
The gate design must suit all three (a submarine or pinpoint gate might work for all).
Cooling system must be effective across the temperature range.
Shrinkage rates differ, so cavity dimensions must be calculated for a target material (likely the most critical one, e.g., PC), with the understanding that parts from other materials will have slight dimensional variations.
This mold must be versatile enough to process three different engineering and commodity plastics with different flow and thermal properties.
Polycarbonate (PC): High temperature (~280-320°C), transparent/amber, requires dry processing. Prone to stress marks.
Acrylonitrile Butadiene Styrene (ABS): Mid-temperature (~210-250°C), good impact strength, good surface finish.
Polypropylene (PP): Lower temperature (~200-230°C), semi-crystalline, high shrinkage, flexible.
Mold Design Impact:
| Feature | Recommendation & Rationale |
|---|---|
| Mold Base | Standard LKM or DME, high precision, with support pillars and interlocks for stability. |
| Cavity & Core Steel | Pre-hardened Stainless Steel (e.g., 420SS) or H13 with nickel plating. Mandatory for medical-grade corrosion resistance, polishability, and durability. |
| Runner System | Hot Runner System (Valve Gated preferred). Essential for multi-cavity, large volume. Reduces waste (no cold runners), allows independent gate control, improves filling balance, and is crucial for processing PC without material degradation. |
| Gating | Valve Gates for gate-quality control and to handle the viscosity range. Location is critical for part strength and cosmetics. |
| Cooling System | Baffles, Bubblers, and Conformal Cooling channels where possible (especially around cores) to ensure fast, uniform cooling for all three materials. |
| Ejection System | Ejector Pins + Sleeves (for any surrounding cores). All components hardened and polished. Air poppets may be needed for part release from the cavity. |
| Venting | Strategic venting at weld lines and end-of-fill areas to prevent burns, crucial for aesthetic parts. |
| Corrosion Protection | All coolant lines and exposed surfaces must be resistant to corrosion from cooling water and possible sterilants. |
Design for Manufacturing (DFM): A formal DFM report from the mold maker is essential before machining begins.
Mold Flow Analysis (MFA): Non-negotiable. Software simulation (using Moldflow or similar) to predict filling patterns, weld lines, air traps, shrinkage, and cooling efficiency for all three materials. This optimizes gate location, cooling, and prevents costly mold rework.
Quality Documentation: Full Dimensional Report (FAI - First Article Inspection) using CMM on mold cavities and first shot parts. Material certificates (C of C) for all steels and components.
Part Validation: The mold must produce parts that meet:
Dimensional Specs: Per the product drawing.
Visual & Functional Criteria: No flash, short shots, sink marks, or burn marks.
Material-Specific Testing: May include clarity (for PC), impact tests, leak tests, and biocompatibility tests as required by the device's classification.
Detailed Part Design & Drawing: Complete with critical dimensions, tolerances, and material selection (which is the primary material?).
Supplier Selection: Choose a mold maker with proven experience in medical multi-cavity molds and hot runner systems. ISO 13485 certification is a significant advantage.
DFM & MFA: Collaborate with the mold maker on these analyses.
Mold Design Approval: Sign off on the final mold layout, cavity count, and system design.
Mold Manufacturing & T1 Sampling: Machining, polishing, assembly, and first trial shots.
Mold Qualification & Sampling: Extensive sampling to prove consistency across all cavities and with all three materials (if required).
Approval & Delivery: Upon successful qualification and documentation review.
You are describing a high-end, production-ready injection mold for a critical medical component. The combination of surgical application, large volume, multiple cavities, and multi-material compatibility makes this a technically challenging and capital-intensive project.
Primary Cost & Success Drivers:
Hot Runner System quality and complexity.
Number of cavities.
Choice of high-grade stainless mold steel.
Mold Flow Analysis and precision machining.
The mold maker's medical industry expertise.
Investing in proper design, analysis, and a qualified supplier from the start is crucial to avoid production delays, quality issues, and mold failures, ensuring a reliable return on investment for your high-volume surgical adapter production.
