In a traditional cold runner mold, the sprue is the primary channel that delivers molten plastic from the injection molding machine's nozzle into the mold cavity. It's the first part of the runner system, which also includes:
Runners: Distributive channels that guide the plastic from the sprue to the gates.
Gates: The small, precise openings where plastic enters the part cavity.
The term "sprue" is often used colloquially to refer to the entire solidified runner system waste material that is ejected with the finished parts.
Analyzing the weight of the sprue and runner system isn't an academic exercise—it's a critical practice for profitability and efficiency. Here’s why:
Cost Control: The sprue is waste. Every gram of plastic in the sprue is a gram of purchased material that does not end up in your sold product. By calculating the sprue weight, you can accurately determine the material utilization efficiency and the true material cost per part.
Process Feasibility: The size and weight of the sprue impact the injection pressure required to fill the mold and the cooling time needed for the entire shot to solidify. An overly large sprue wastes not just material, but also time and energy.
Mold Design Evaluation: Sprue weight analysis helps identify if a runner system is over-designed. It provides a key data point for deciding between a cold runner and a hot runner system. If the sprue-to-part weight ratio is high, the investment in a hot runner becomes much more attractive.
Environmental Impact: Reducing sprue waste means reducing plastic scrap, supporting sustainability goals. Even if sprue is reground and recycled, each recycle cycle can degrade material properties.
Theoretical Estimation: A sprue can be approximated as a conical cylinder. Its volume can be calculated using the formula for a conical frustum: V = (1/3) * π * h * (R² + R*r + r²), where h is the height, and R and r are the major and minor radii. The weight is then found by multiplying this volume by the material's density.
CAD Software (The Modern Standard): Today, 3D CAD software (like Siemens NX, Creo, or SolidWorks) can instantly and accurately calculate the volume and mass of the sprue and entire runner system once the material is specified.
Physical Measurement: For an existing mold, simply shooting a full shot, separating the sprue/runner from the parts, and weighing it on a scale provides the most direct answer.
A key metric derived from this is the Sprue Ratio: (Sprue Weight / Total Part Weight) x 100%. A lower ratio indicates higher efficiency.
So, how does a hot runner system achieve the remarkable feat of having virtually no sprue? The answer lies in one word: heat.
1. The Core Principle: Maintaining a Molten State

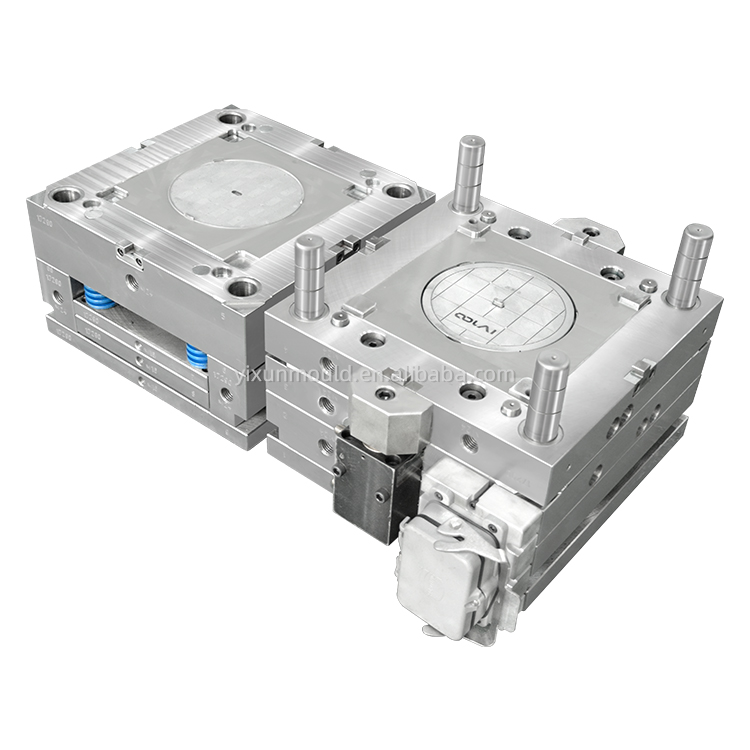

A cold runner mold cools the entire runner system, solidifying the plastic inside it. A hot runner mold, in contrast, is equipped with an independent heating and temperature control system that keeps the entire runner network—from the machine nozzle to the gate—at a precise temperature above the material's melting point.
2. Key Components at Work:
Heated Manifold: A block of metal with internal channels that distributes the melt to various nozzles. It is encased in heaters to keep the plastic molten.
Hot Nozzles: These are heated tips that deliver the plastic from the manifold to the part cavity.
Precision Temperature Controllers: These are the "brains" of the system, maintaining each heating zone within a very tight temperature range (±1°C is common) to prevent the plastic from either solidifying or degrading.
3. The Magic at the Gate:
The most ingenious part is the gate—the interface between the hot nozzle and the cold mold cavity. Through clever thermal design (like air gaps and insulating materials), heat transfer is minimized. A tiny skin of plastic may freeze at the gate tip, but it is so thin that the next injection shot easily pushes through it into the cavity. This tiny bit is incorporated into the part itself, leaving no separate sprue or runner to be ejected.
| Feature | Cold Runner | Hot Runner |
|---|---|---|
| Temperature | Same as the mold (Cold) | Independently heated (Hot) |
| Material State | Cools and solidifies | Stays molten |
| Ejection | Part + Solidified Sprue/Runner | Part only |
| Sprue Waste | Yes, must be handled | Virtually None |
| Material Efficiency | Lower | Near 100% |
Understanding and analyzing sprue weight is a fundamental aspect of injection molding that directly impacts your bottom line and environmental footprint. While cold runner molds are simpler and cheaper for some applications, their inherent waste generation is a significant drawback.
Hot runner technology elegantly solves this problem by maintaining the plastic in a molten state throughout the runner system. By eliminating the sprue, hot runners save material, reduce cycle times, lower energy consumption, and enable full automation—making them an indispensable technology for high-volume, efficient, and sustainable manufacturing.
