When designing injection tooling for multiple product versions, two concepts are often mixed up: shared mold base with interchangeable inserts and family mold (family injection mould). Although both use one mold base, their internal mold structures, production logic and suitable scenarios are completely different. Understanding the structural gap helps you pick the right tooling plan and avoid costly misunderstandings.
This tooling consists of one fixed common mold base (including A plate, B plate, guide pins, ejection system and related auxiliary parts) plus multiple independent, removable cavity and core insert sets. The A and B plates are pre-machined with a unified insert pocket. The pocket size is defined by the maximum outer outline of your product variants. All product forming surfaces are fully built into separate inserts. Inserts are locked into the plate pocket via locating pins, locking blocks and screws. At any production run, only one set of inserts is installed inside the mold base, so only one product cavity exists in the mold. To switch to another product variant, operators stop the injection machine, disassemble the existing inserts, mount another insert set and reset molding parameters. The hot runner or gate module can be replaced together with inserts.
It works best for large-sized products with similar outer dimensions and only minor local changes, such as different holes, bosses or ribs.
You produce variants in staggered batches, no need to mold all versions in one shot.
Different variants may use different engineering materials.
You want to cut tooling investment by avoiding buying multiple expensive large mold bases.
You cannot manufacture all variants at the same time. Changing models brings machine downtime for insert replacement and re-tuning. Frequent swapping is not recommended, especially for heavy large inserts that require crane handling. Repeated assembly may gradually reduce positioning accuracy.
A family mold also uses one mold base. However, multiple product cavities are permanently fitted on the A plate and B plate after mold assembly, and these cavities are not removed during normal production. Cavities can be machined directly on the A/B plates or fitted with fixed inserts. These inserts are only for convenient repair, not for disassembly and product switching. One unified runner or hot runner system branches to feed all cavities. In a single injection shot, molten plastic fills all cavities simultaneously and produces all different product variants at once. Once the mold is assembled, all cavities stay inside the mold permanently.
Family molds fit small or medium parts, where multiple matching components use the same material, have similar wall thickness and require delivery together in one batch.
Family mold is not recommended for large components, even if variants look similar. Placing 3 large cavities inside one mold requires an oversized mold base and much higher injection machine tonnage. Long runners cause unbalanced filling and unstable process. Any defect in one cavity will halt the whole production run, and troubleshooting affects all parts. Tooling and machine costs rise sharply.

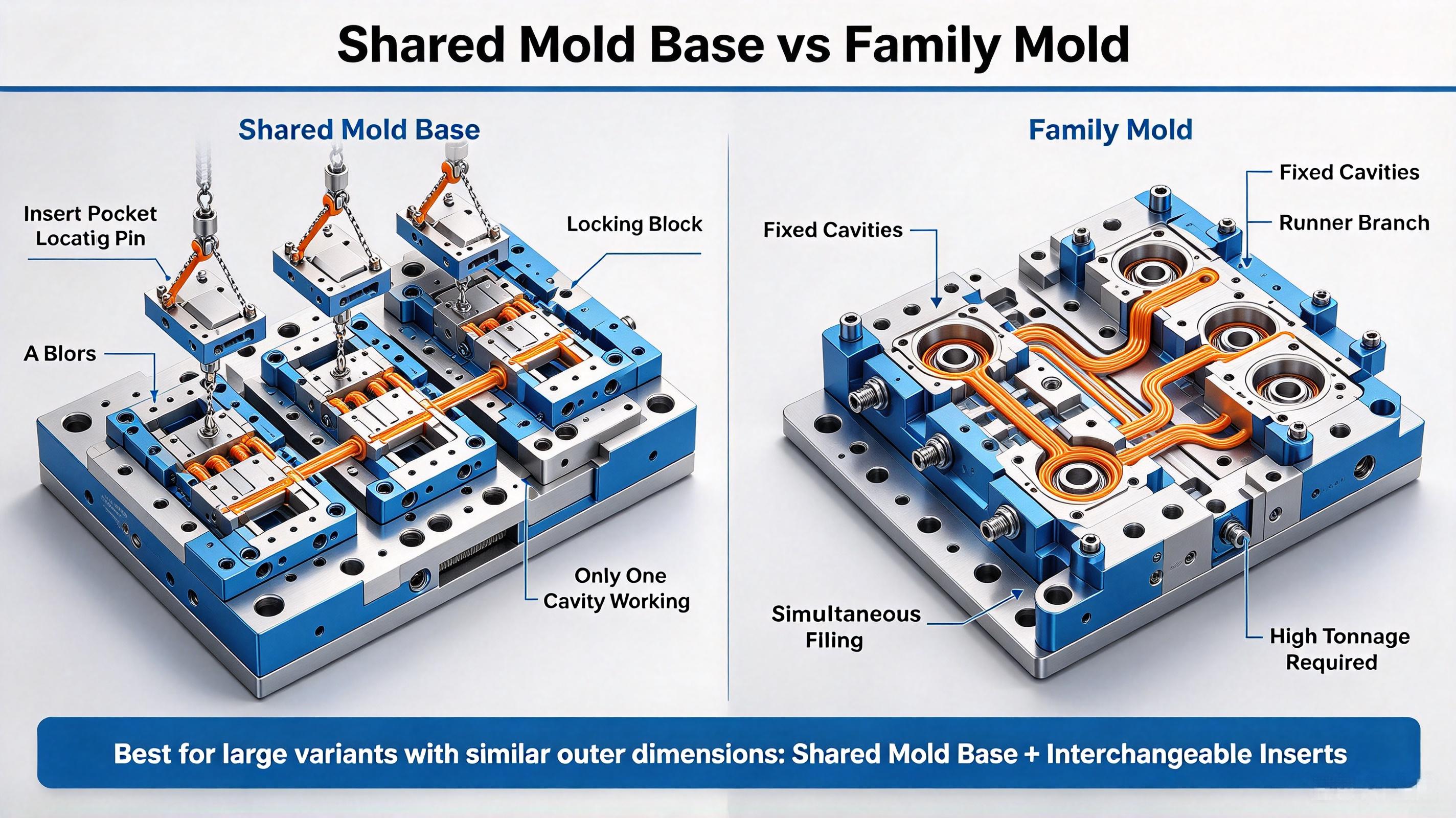

Item | Shared Mold Base + Interchangeable Inserts | Family Mold |
|---|---|---|
Cavity arrangement | Only one insert set (one cavity) mounted inside the mold at one time. Other inserts are stored separately. | Multiple cavities are permanently installed on A/B plates and remain assembled during normal production. |
A & B plate | A/B plates only have insert pockets, without product forming surfaces. | A/B plates carry multiple forming cavities permanently. |
Runner / Hot runner | Gates change together with inserts; feeds only one cavity per shot. | One main runner system feeding all cavities at the same time. |
Disassembly rule | Full insert removal and replacement required to change product models. | Cavities stay fixed; no regular disassembly for product change. |
Cavity quantity in use | Single cavity in operation. | All cavities work simultaneously in one shot. |
For three large product variants with similar outer outlines and minor local differences: ✅ Recommended: One shared mold base + 3 sets of interchangeable inserts ❌ Not recommended: Family mold ✅ Backup choice: Three separate molds, only if outer dimensions differ greatly
Selecting the correct mold structure at the early design stage balances tooling budget, production flexibility and manufacturing risk. Misunderstanding these two mold concepts often leads to unexpected tooling cost or production trouble.
