| Feature | Technical Details | Core Benefits |
|---|---|---|
| PA6+30GF Material | 30% glass fiber reinforced polyamide 6 (PA6) | Delivers high tensile strength, rigidity, and heat resistance; reduces shrinkage and warpage for consistent dimensional accuracy |
| Precision Molding | Tight tolerance control (±0.02mm for critical features) | Ensures perfect fit with mating components; eliminates assembly gaps and leak risks |
| Complex Geometry | Custom T-joint/Y-joint configurations with smooth internal flow paths | Optimizes fluid/gas dynamics; minimizes pressure drop and turbulence |
| Integrated Sealing Features | Precision-machined O-ring grooves and snap-fit interfaces | Enables tool-less, leak-proof assembly; reduces installation time |
| High Temperature Resistance | HDT (Heat Deflection Temperature) up to 200°C | Suitable for under-hood automotive and high-temperature industrial environments |
| Chemical Compatibility | Resistant to automotive fluids, oils, and common industrial chemicals | Ensures long-term performance in corrosive operating conditions |
| Parameter | Standard Configuration | Custom Options |
|---|---|---|

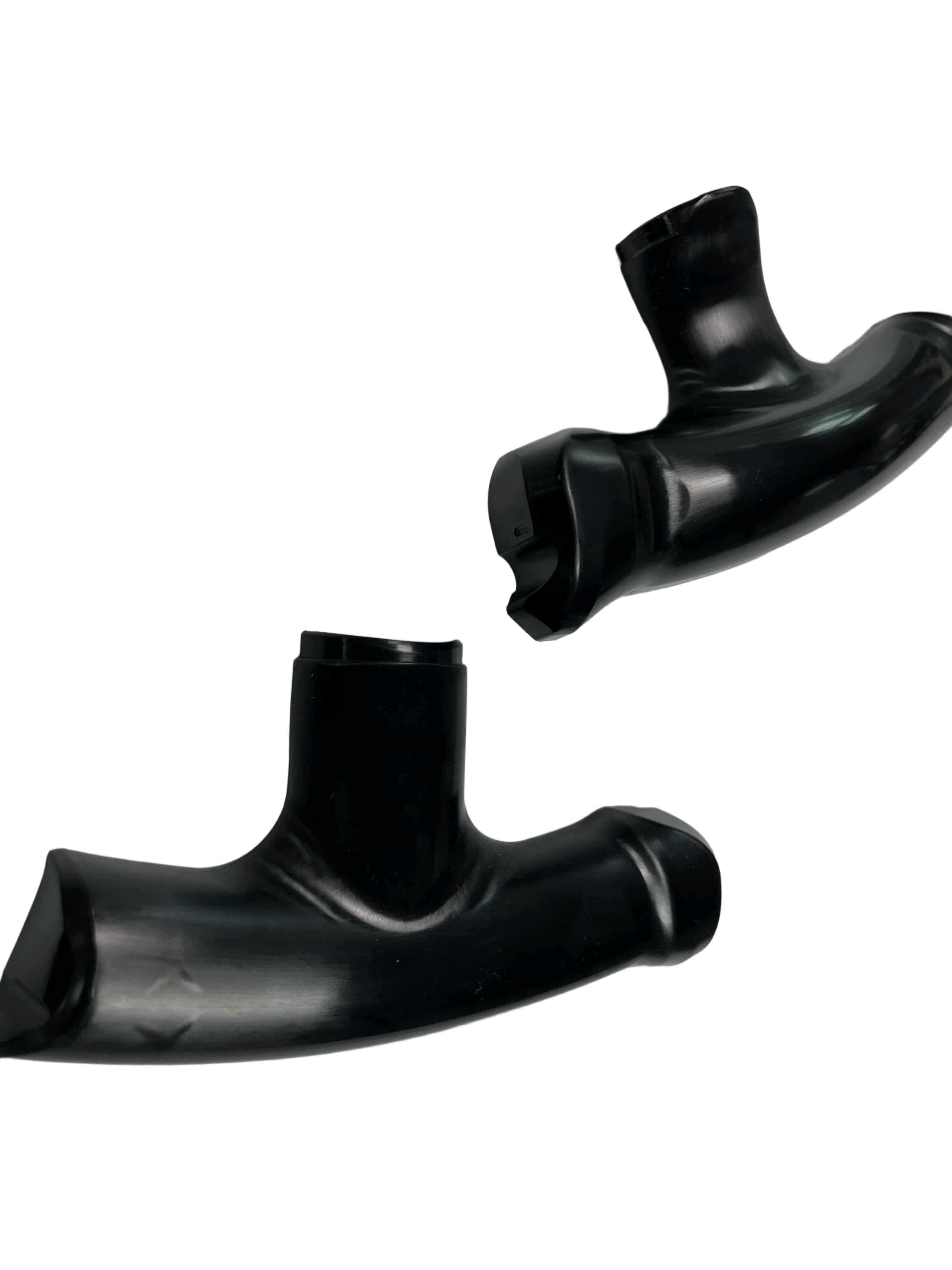

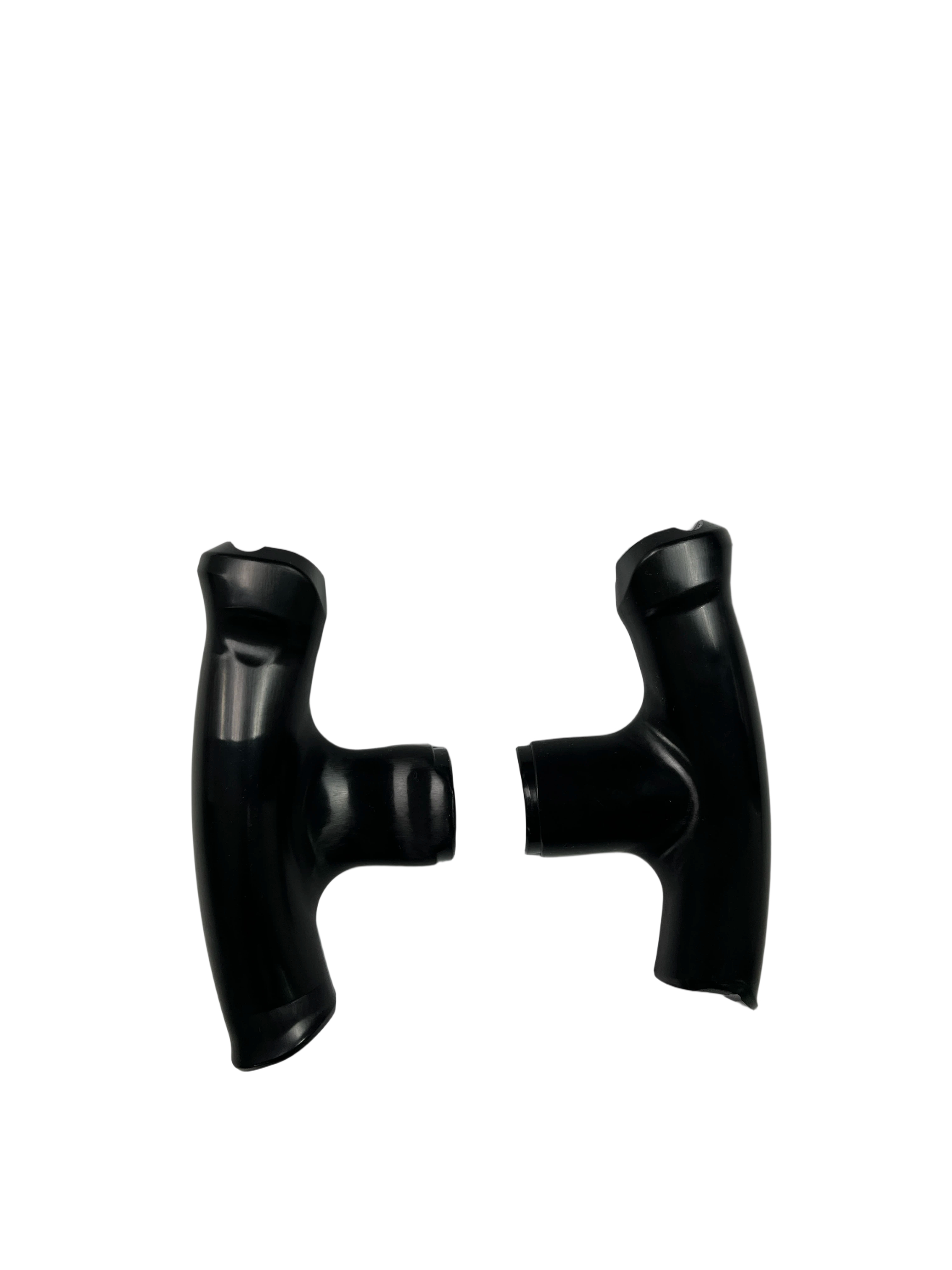

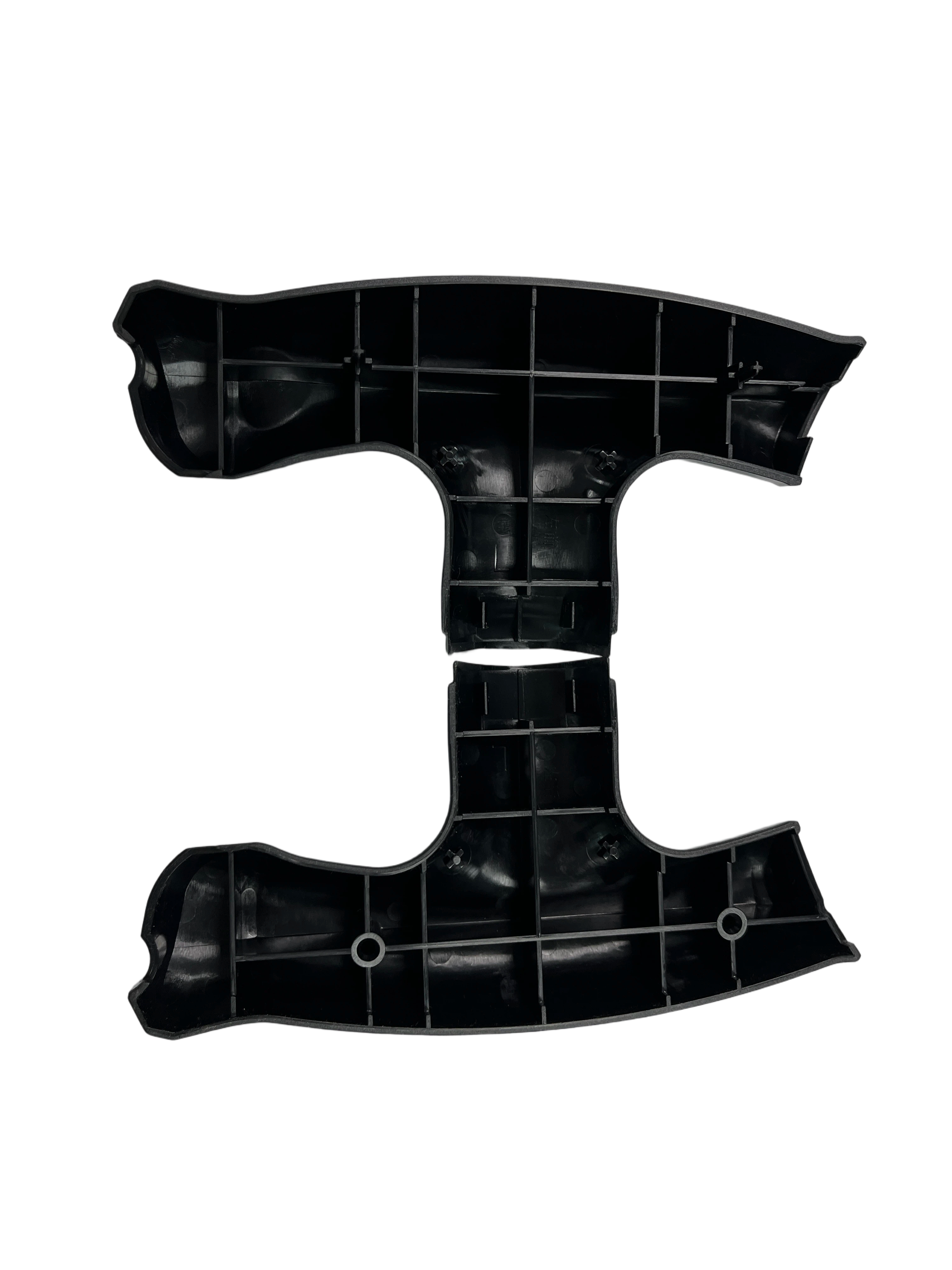

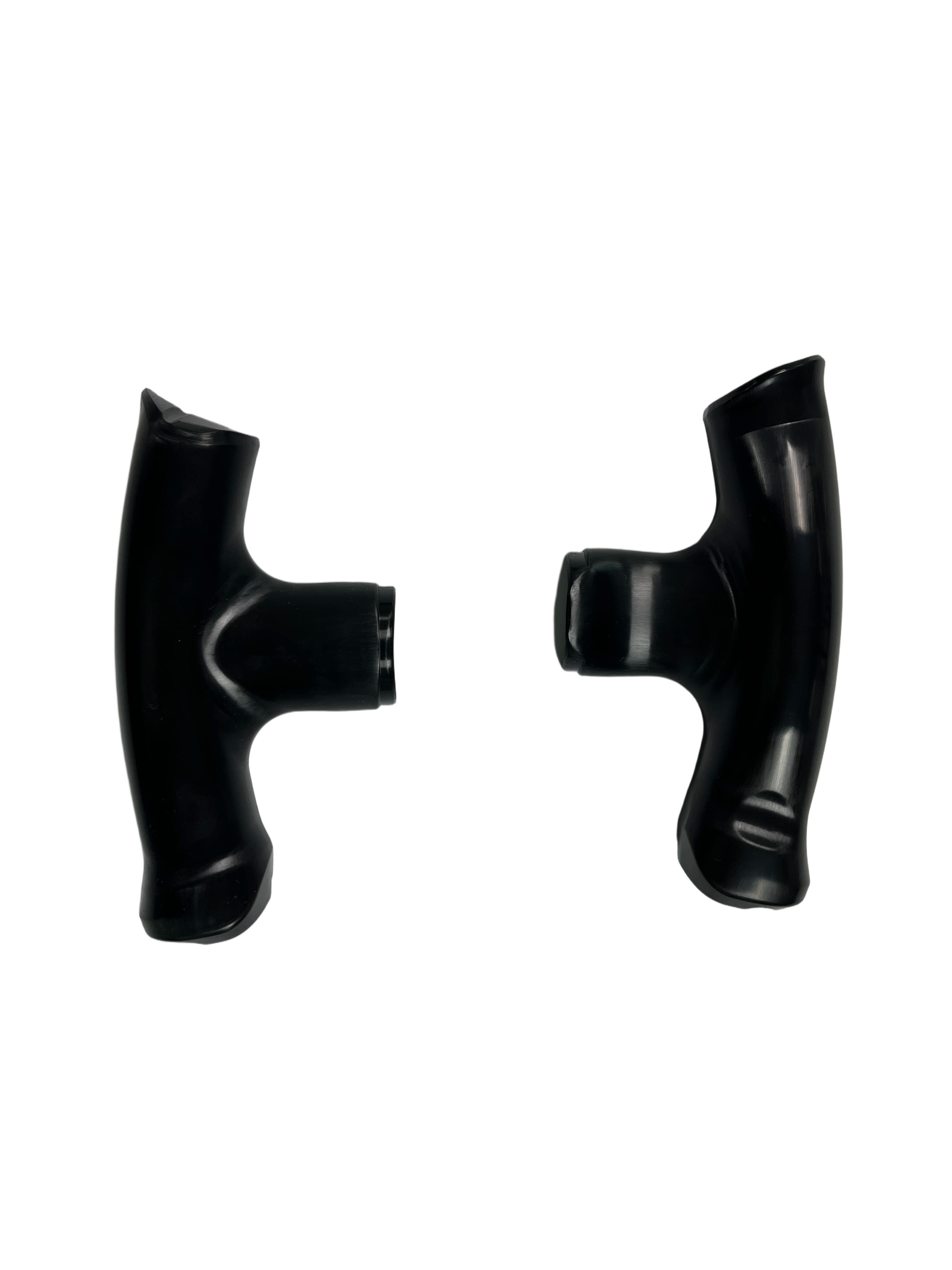

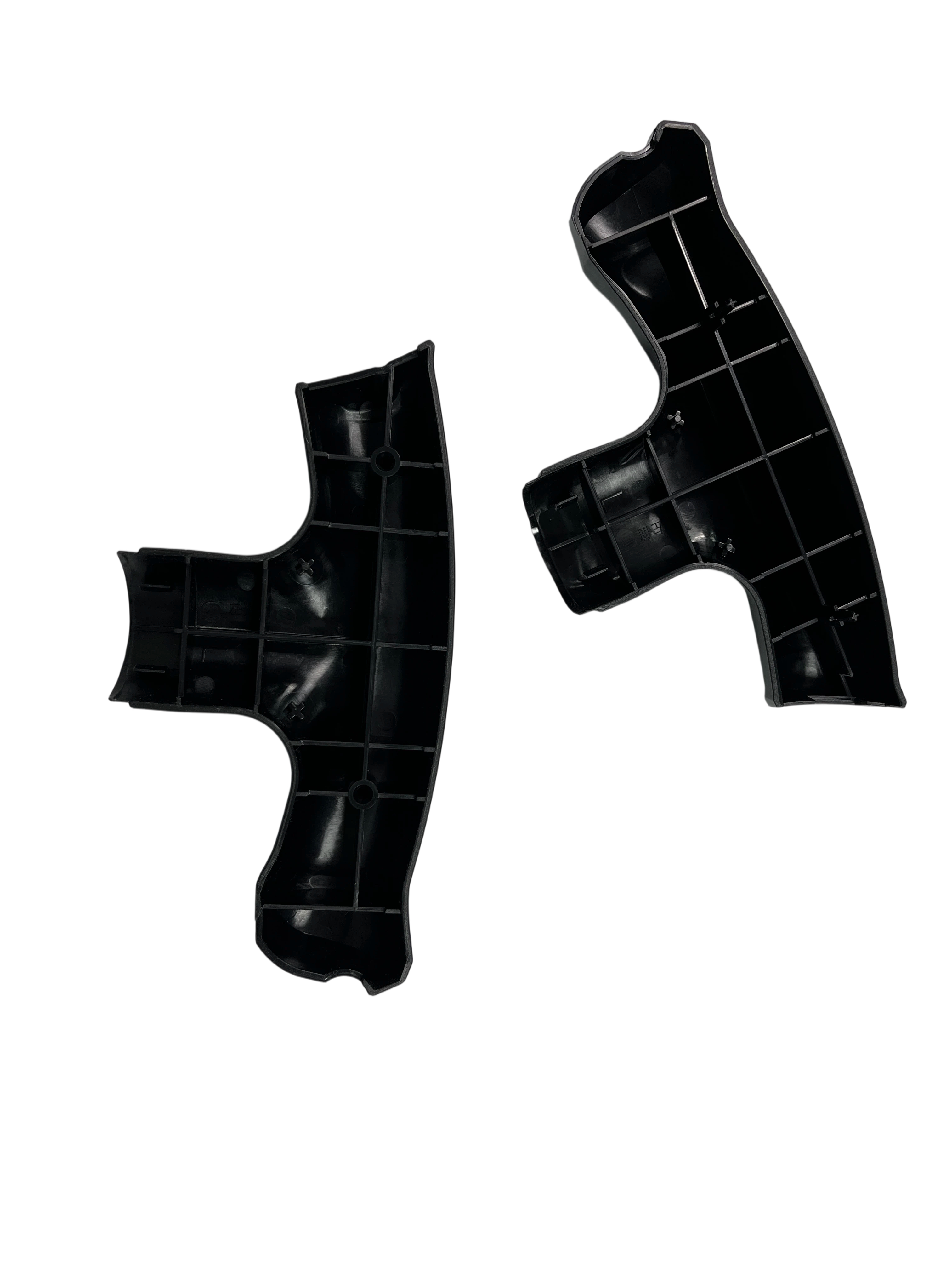

| Product Type | T-joint / Y-joint structural components | Custom multi-port configurations, angled joints, or integrated mounting brackets |
| Material | PA6+30GF (30% glass-filled nylon 6) | Flame-retardant PA6, UV-stabilized grades, or alternative engineering plastics (PP, PBT) |
| Color | Black (standard) | Custom color matching (RAL/Pantone) |
| Tolerance | ±0.02mm for critical sealing surfaces; ±0.05mm for non-critical features | Custom tolerance classes for ultra-precision applications |
| Wall Thickness | 2.0–3.0mm (optimized for strength and flow) | Custom thicknesses for specific load requirements |
| Sealing Interface | O-ring groove (standard); barbed or flanged connections available | Custom sealing solutions for specific fluid/gas systems |
| Certifications | ISO 9001, RoHS, REACH | IATF 16949 (automotive), FDA (food contact), UL 94 V-0 (flame retardancy) |
Engine cooling system water pipes and intake manifold ducts
Fuel system distribution lines and emission control components
HVAC air distribution ducts and defroster nozzle assemblies
Pneumatic and hydraulic system fluid distribution manifolds
Chemical processing plant pipe connectors and valve adapters
Agricultural machinery fluid transfer joints
Air conditioning and ventilation system duct connectors
Plumbing and water treatment system distribution joints
3D CAD/CAM design with DFM analysis and mold flow simulation (CAE) to optimize gate placement, cooling, and flow path geometry.
Precision-machined mold inserts with Ra ≤ 0.02μm surface finish to ensure smooth internal flow paths and flawless part surfaces.
Servo-driven injection molding machines with closed-loop control for material dosing and pressure; temperature-controlled mold surfaces to eliminate weld lines and warpage.
Automated feeding and ejection systems to minimize human error and ensure consistent part quality.
Post-molding deburring and cleaning to remove flash and contaminants; visual inspection under D65 standard lighting to verify surface finish.
Dimensional verification via CMM and optical scanners; leak testing to ensure sealing integrity under pressure.
Performance Testing: Pressure cycling, burst strength, and environmental cycling (temperature/humidity) to validate long-term durability.
Material Validation: FTIR and tensile testing to confirm material composition and mechanical properties; chemical resistance testing for fluid compatibility.
Design Optimization: Our engineering team refines your T-joint/Y-joint design for manufacturability, reducing mold cost and improving structural performance.
Material Selection: We help you choose the optimal plastic grade for your application, balancing strength, temperature resistance, and chemical compatibility.
Mold Customization: Multi-cavity molds, insert molding for metal components, and overmolding for sealing elements.
Surface Customization: Laser marking, pad printing, or texturing for branding and functional identification.
Unmatched Precision: Micron-level machining and strict quality control ensure every component meets tight tolerances for leak-proof, reliable performance.
Material Expertise: Decades of experience in molding PA6+30GF and other engineering plastics, with a proven track record of successful automotive and industrial partnerships.
Application Focus: Custom-engineered solutions for fluid/gas distribution, with optimized flow paths and sealing interfaces to meet your specific system requirements.
Cost Efficiency: High-volume production capabilities and optimized design reduce per-unit costs while maintaining uncompromising quality.
End-to-End Support: From initial design consultation to mass production and after-sales service, we are your trusted partner for precision plastic component solutions.
