Mold Material: Premium H13 tool steel with corrosion-resistant coating, supporting over 1.5 million production cycles.
Dimensional Accuracy: Tight tolerance of ±0.02mm ensures perfect alignment with pump bases and mounting surfaces.
Structural Integrity: Uniform wall thickness (3.0mm) and integrated rib design eliminate stress concentrations, preventing deformation under heavy loads.
Smooth Finish: SPI A2-grade surface polishing delivers a burr-free, scratch-resistant matte white appearance that resists discoloration and corrosion.

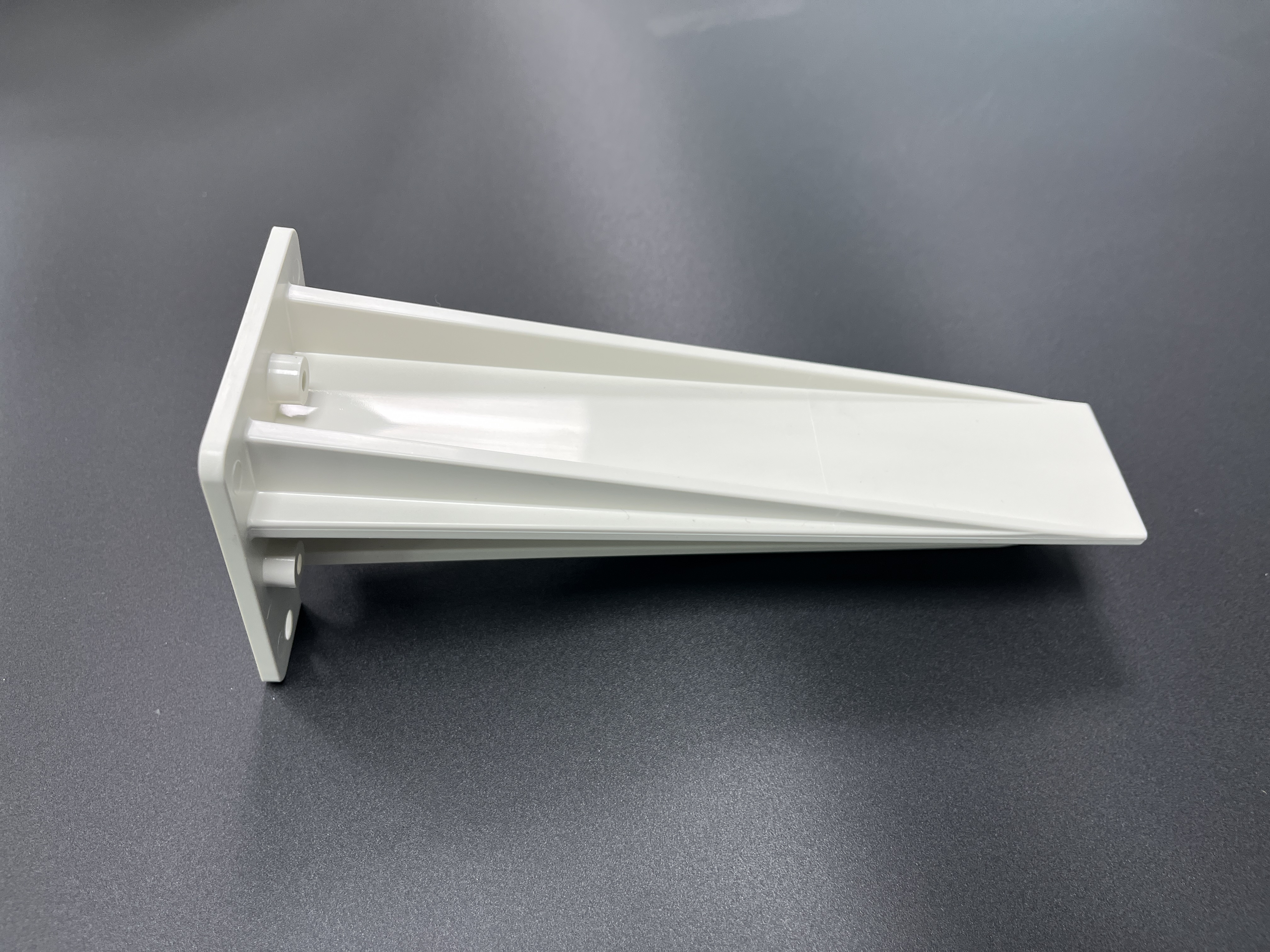

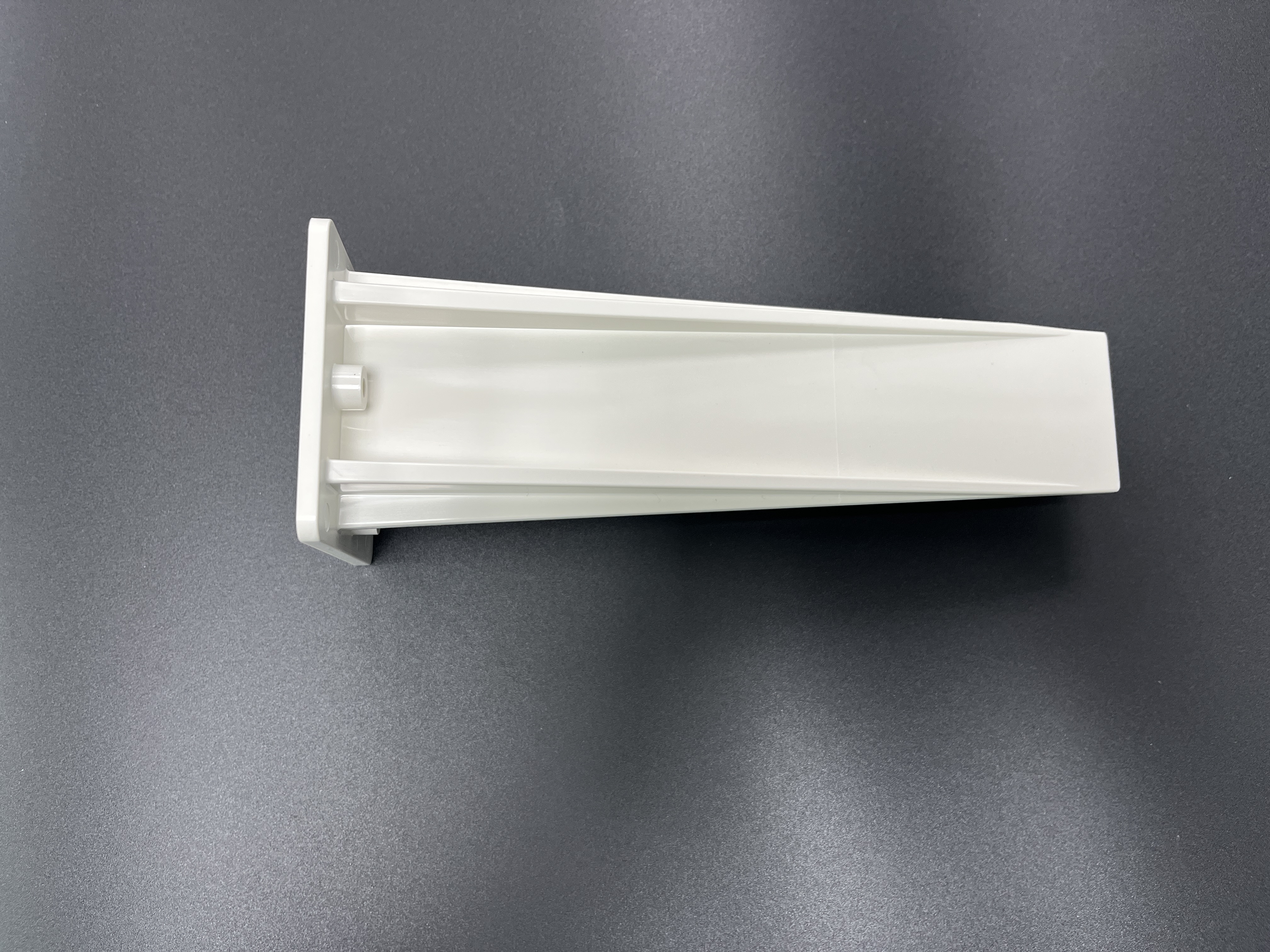

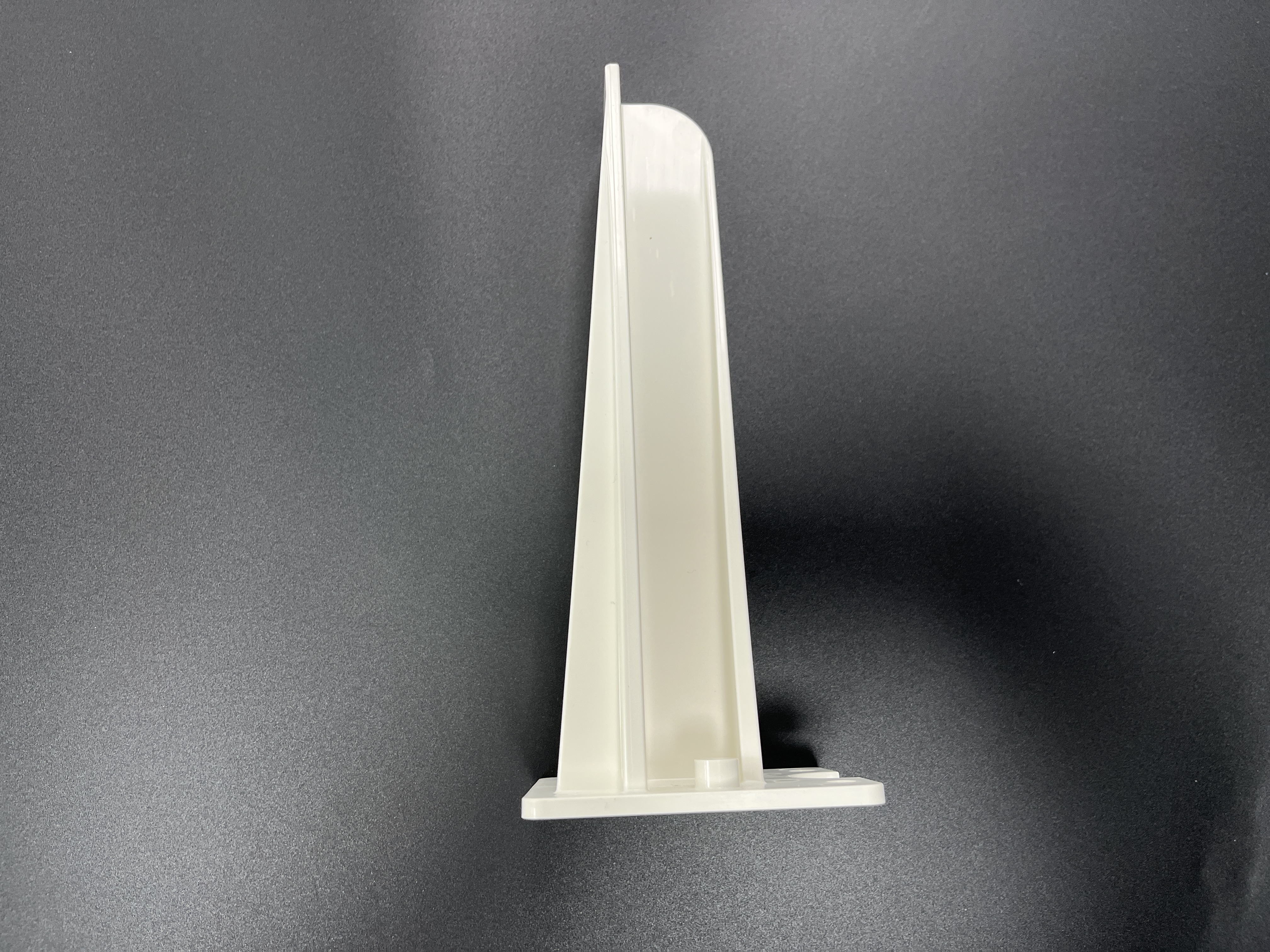

Reinforced Ribbed Frame: Multiple internal and external ribs distribute weight evenly, enabling the pump foot to support up to 50kg of static load while dampening operational vibrations.

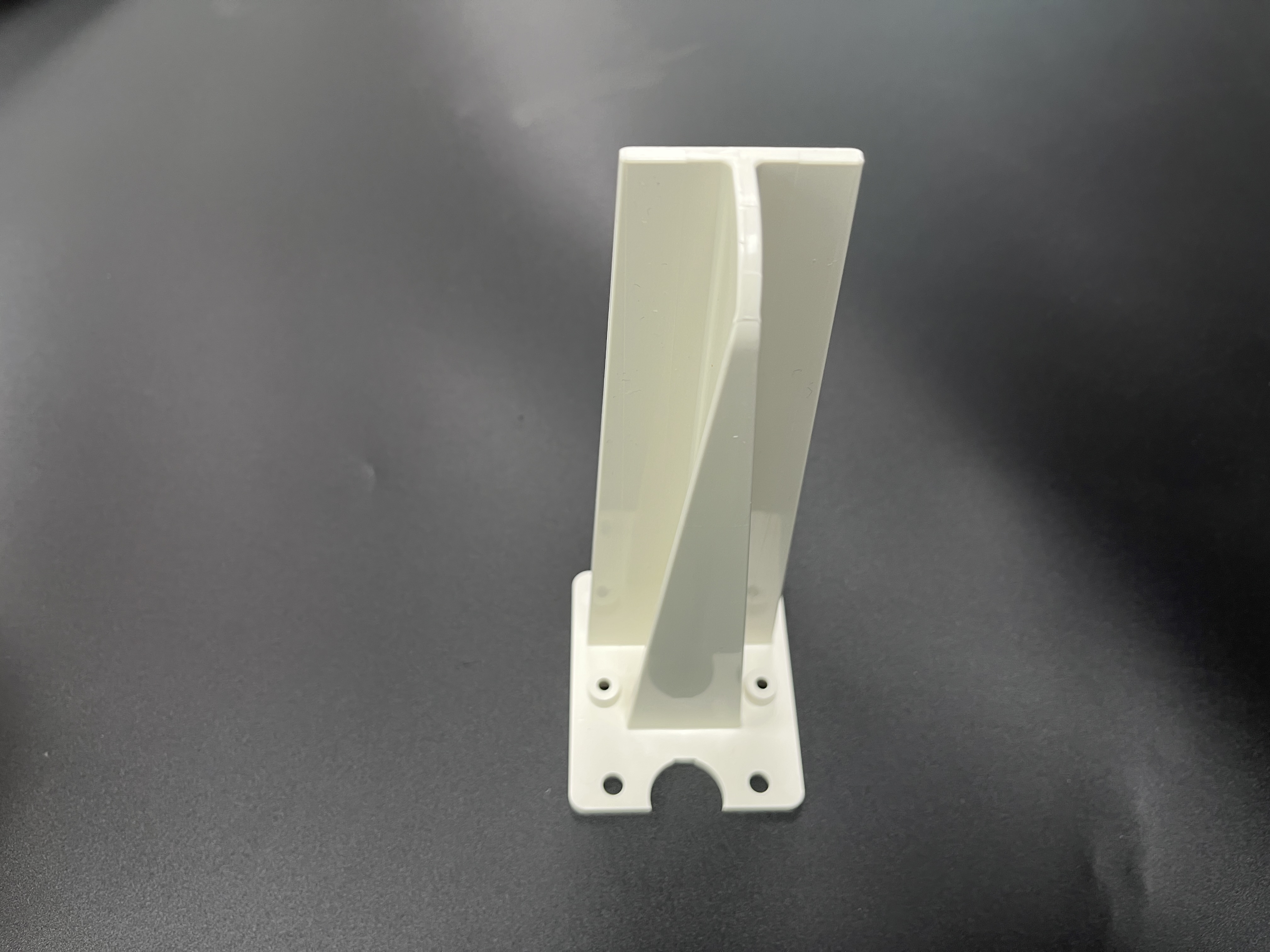

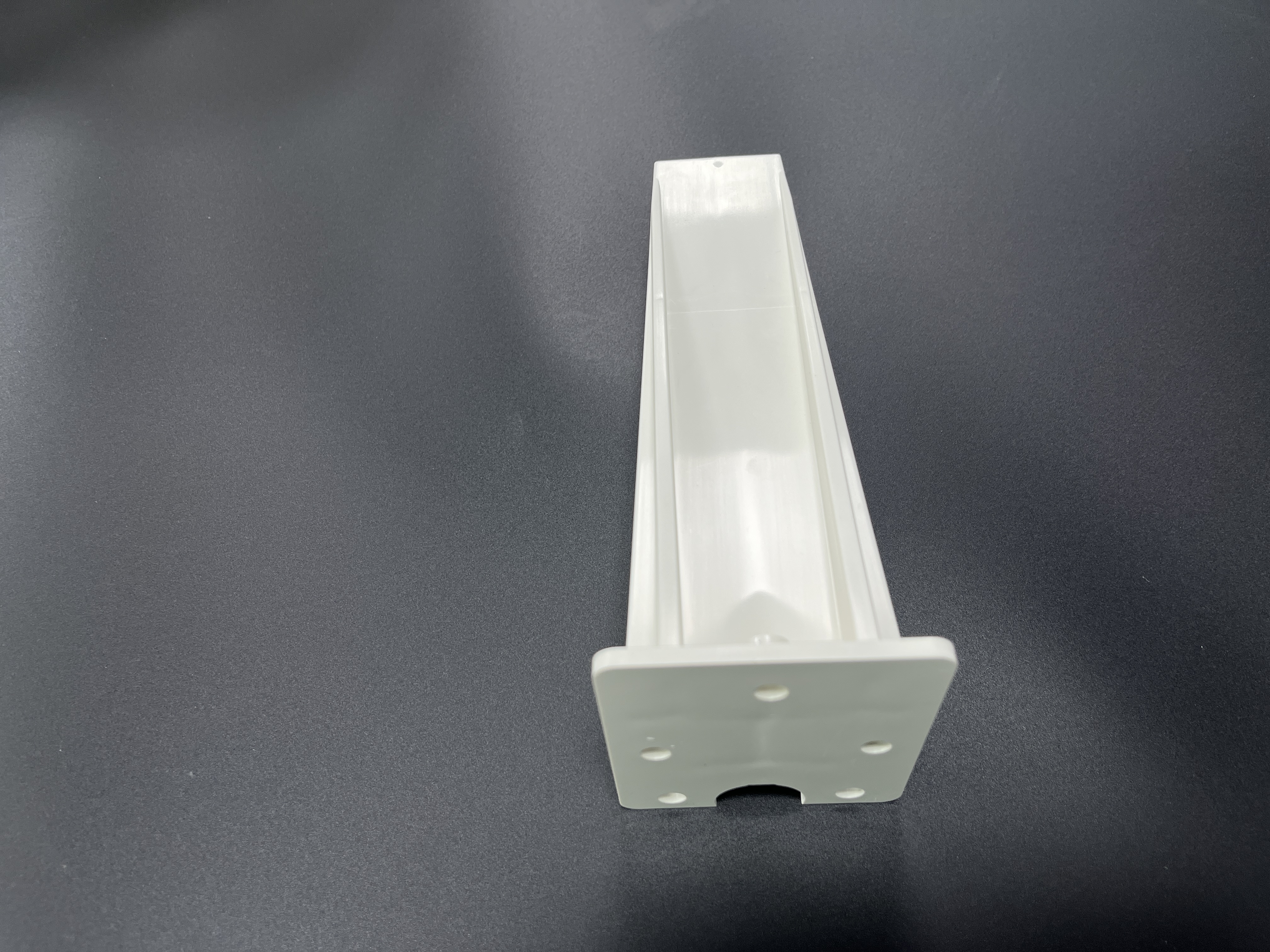

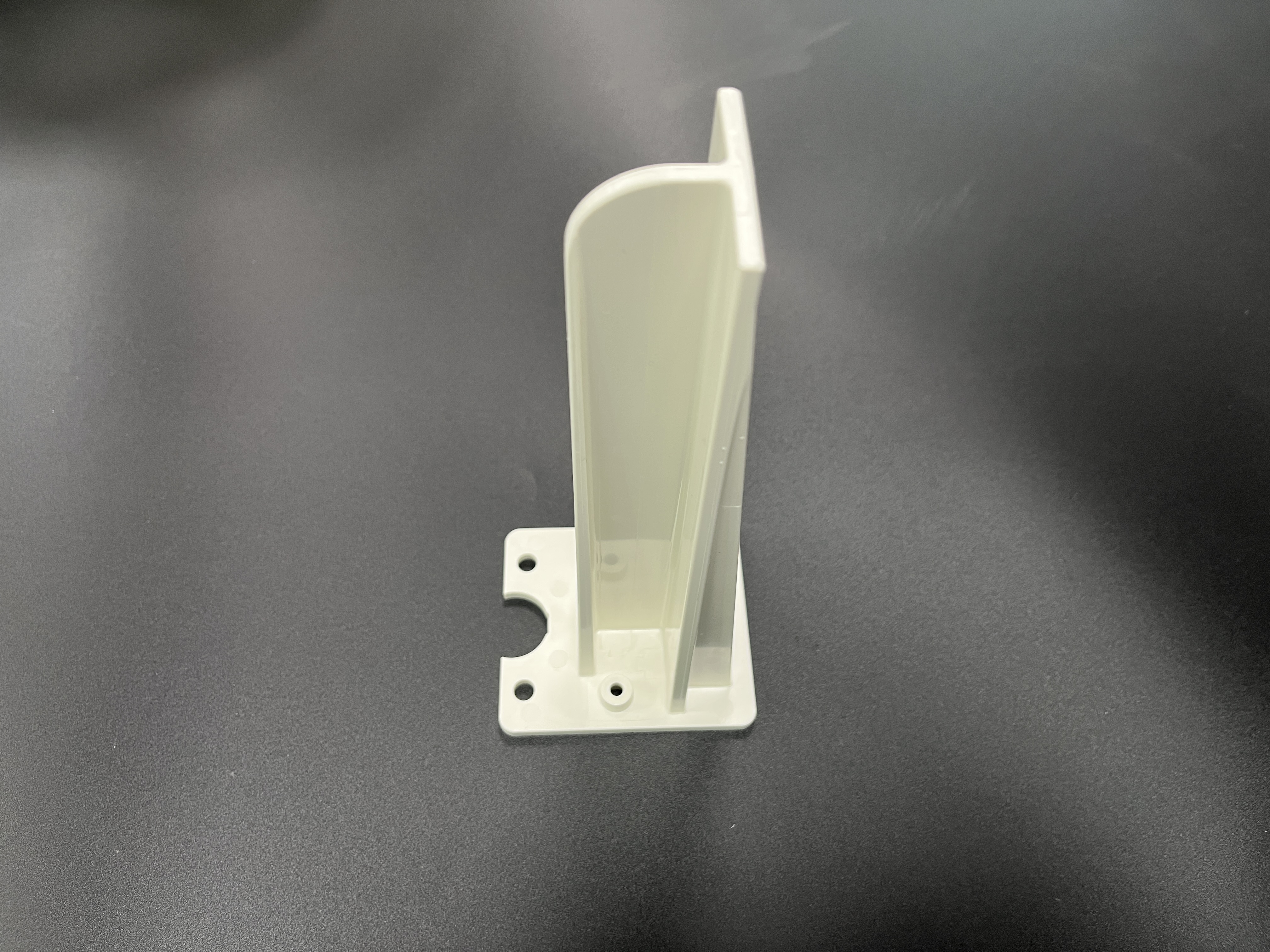

Flat Mounting Base: The wide, stable base with pre-drilled screw holes ensures secure attachment to pump bases or flooring.
Modular Compatibility: The slotted top profile is designed to fit standard pump base dimensions, ensuring universal compatibility with most industrial pump models.
High-Rigidity Plastic: Made from impact-resistant ABS (or customizable PP/POM), the pump foot offers a lightweight alternative to metal, reducing overall equipment weight without compromising strength.
Chemical Resistance: Resists corrosion from oils, solvents, and mild chemicals, suitable for use in industrial fluid-handling environments.
Temperature Stability: Performs reliably in temperatures from -25°C to 90°C, maintaining structural integrity even in harsh operating conditions.
Non-Conductive: Plastic construction eliminates electrical conductivity risks, making it safe for use near electronic control systems.
| Parameter | Details |
|---|---|
| Material | Impact-Resistant ABS (Standard) |
| Color | Matte White (Customizable) |
| Load Capacity | Up to 50kg (Static) |
| Tolerance | ±0.02mm |
| Wall Thickness | 3.0mm |
| Mounting Hole Size | Ø5.0mm |
| Operating Temperature | -25°C to 90°C |
Material: Choose from PP (enhanced chemical resistance), POM (low-friction), or fiberglass-reinforced plastics for increased load capacity.
Dimensions: Adjust length, width, and height to fit your exact pump model and installation requirements.
Finish: Select from gloss white, black, or custom Pantone colors.
Branding: Add embossed logos or part numbers directly into the mold for seamless integration.
