| Quantity: | |
|---|---|
YIXUN mold
8480419090

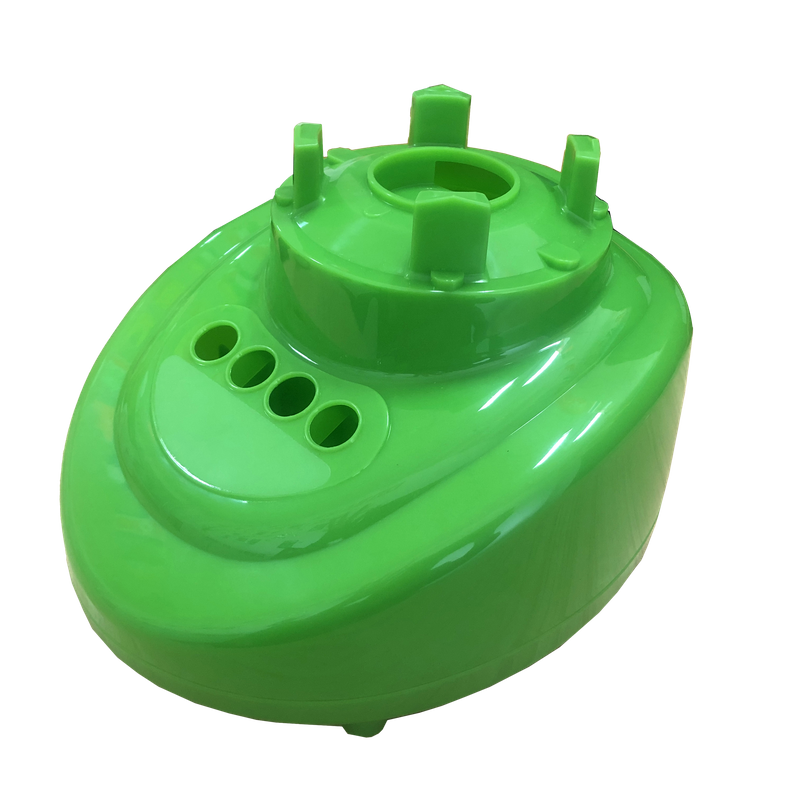

Crafted from food-grade PP plastic, non-toxic, heat-resistant (up to 120℃), and impact-resistant (passes 1.5m drop tests).
Smooth, glossy surface with scratch-resistant properties for long-term use.

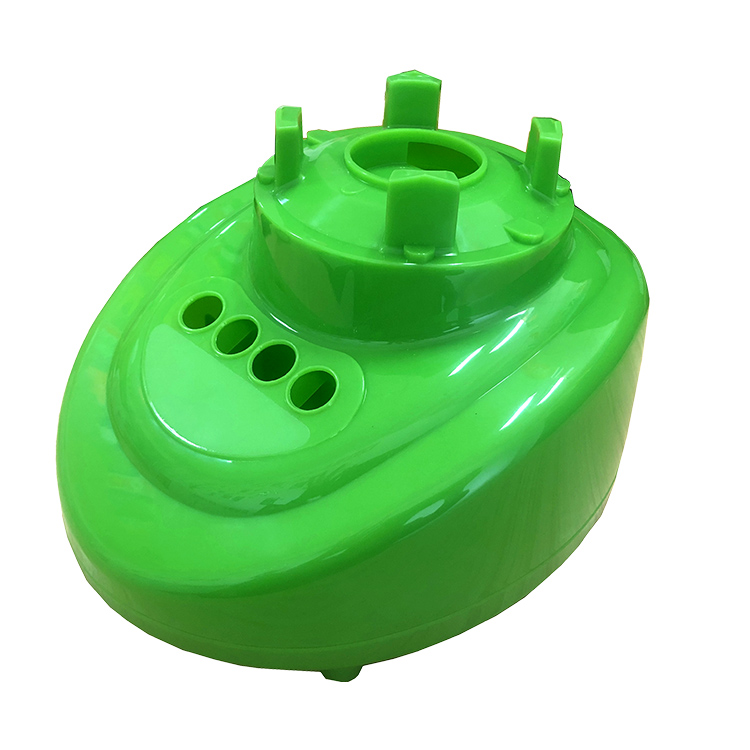

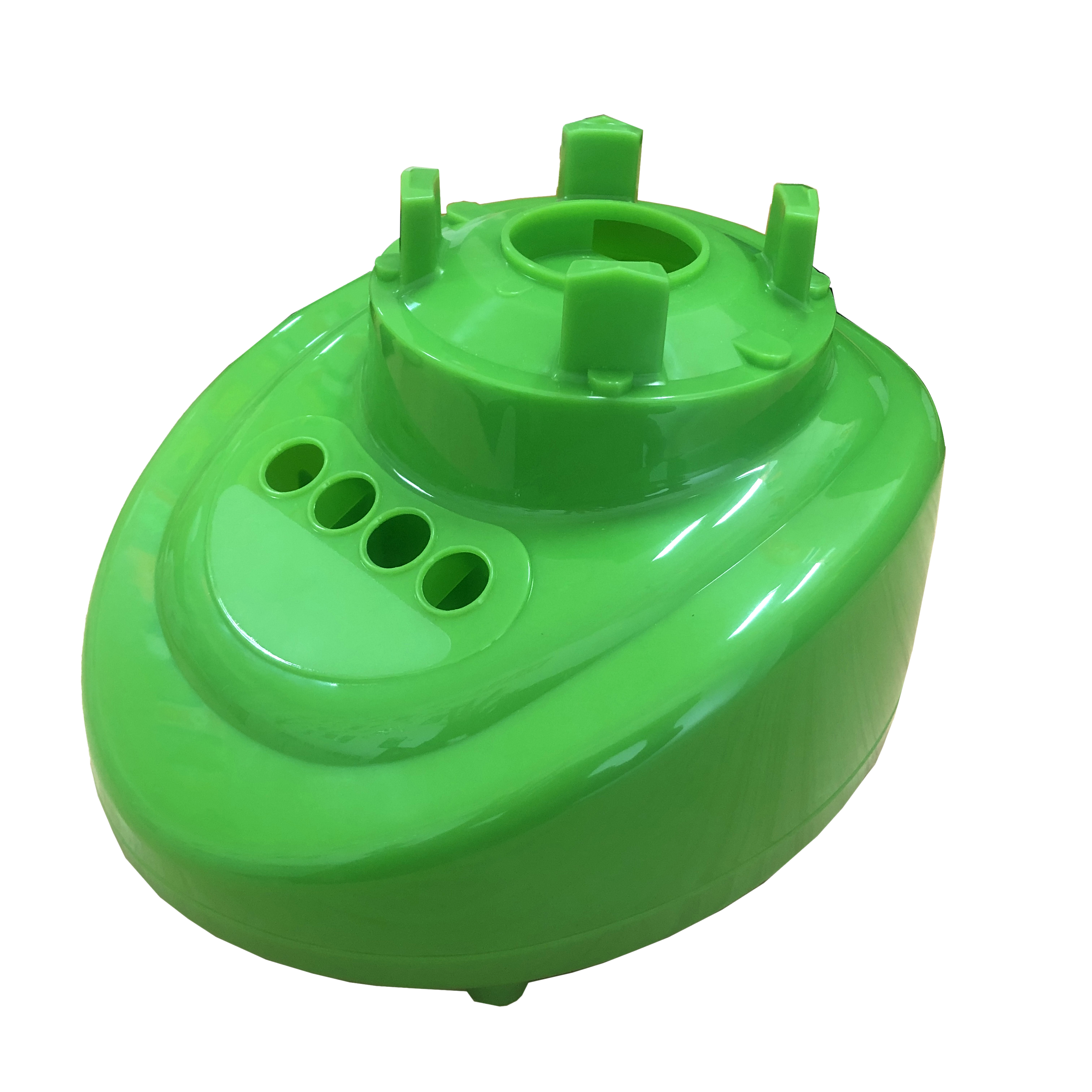

Rounded, compact shape for easy handling and countertop placement.
Top cylindrical groove: Precisely sized to fit juicer cups/stirring assemblies (tolerance ±0.1mm for tight, stable installation).

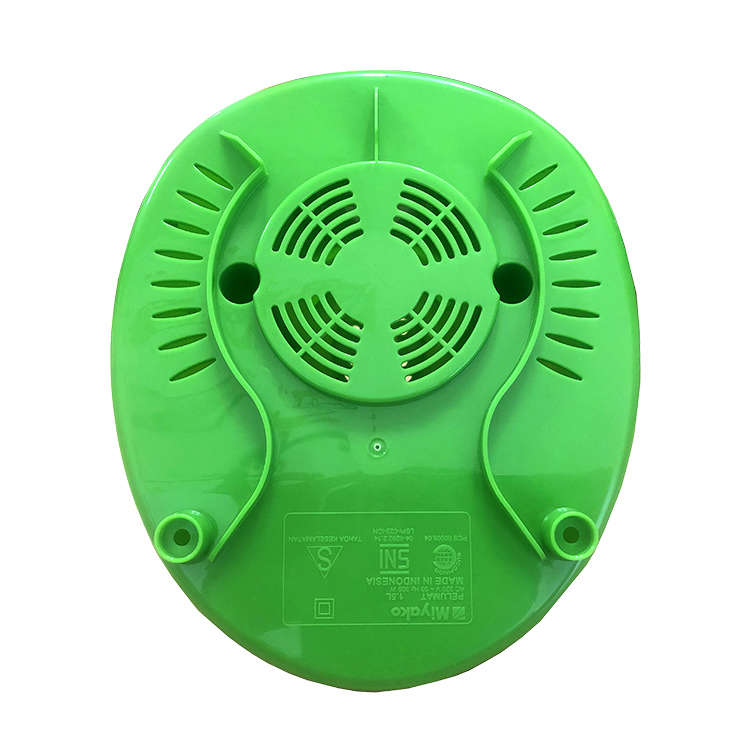

Side multi-hole layout: Reserved for control buttons, wiring, and heat dissipation—supports seamless functional integration.

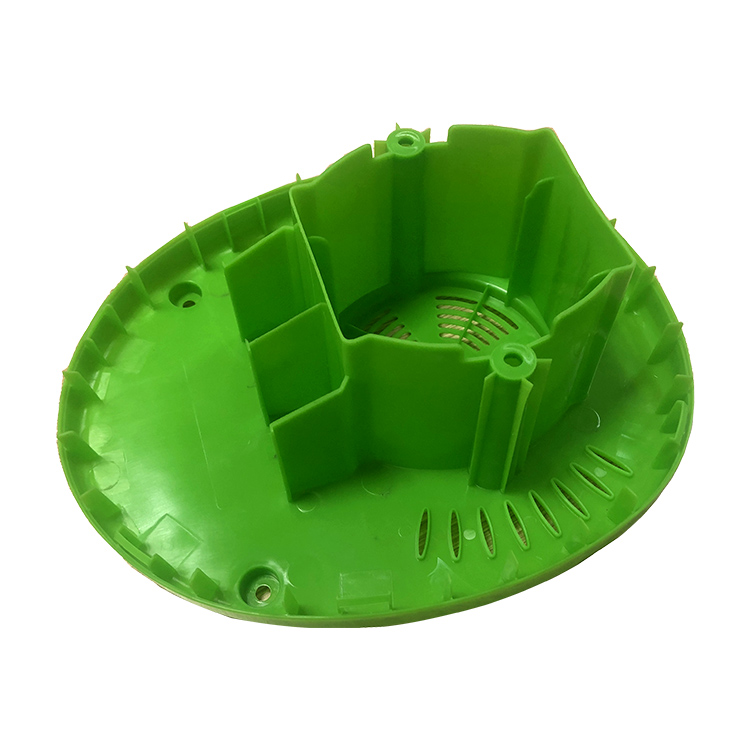

Built-in snap structures: Ensures secure assembly with other juicer components (no loose fit after repeated use).
Produced via high-precision injection molding (mold accuracy ±0.05mm), ensuring consistent dimensions across batches.
Uniform wall thickness (2.5-3mm) to avoid warping, shrinkage, or structural weak points.

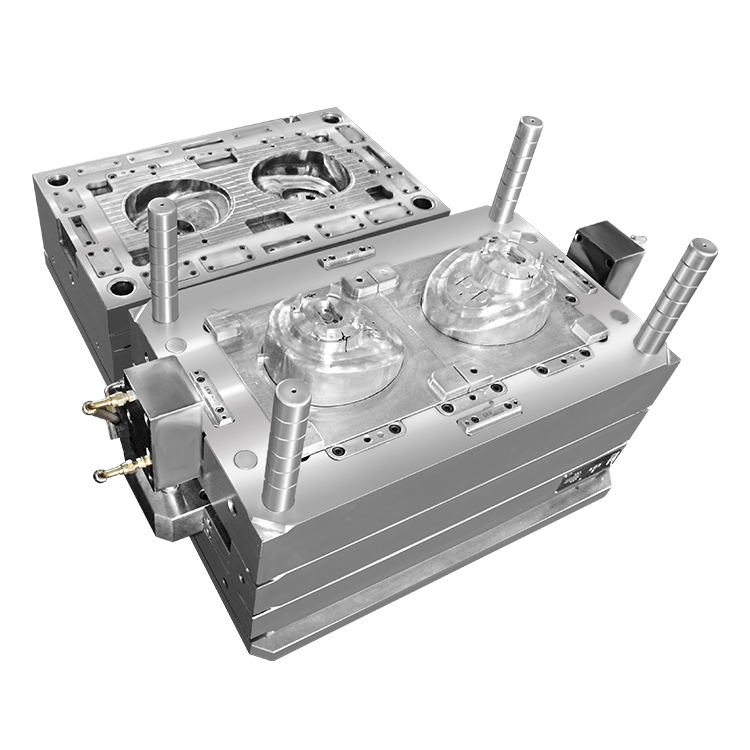

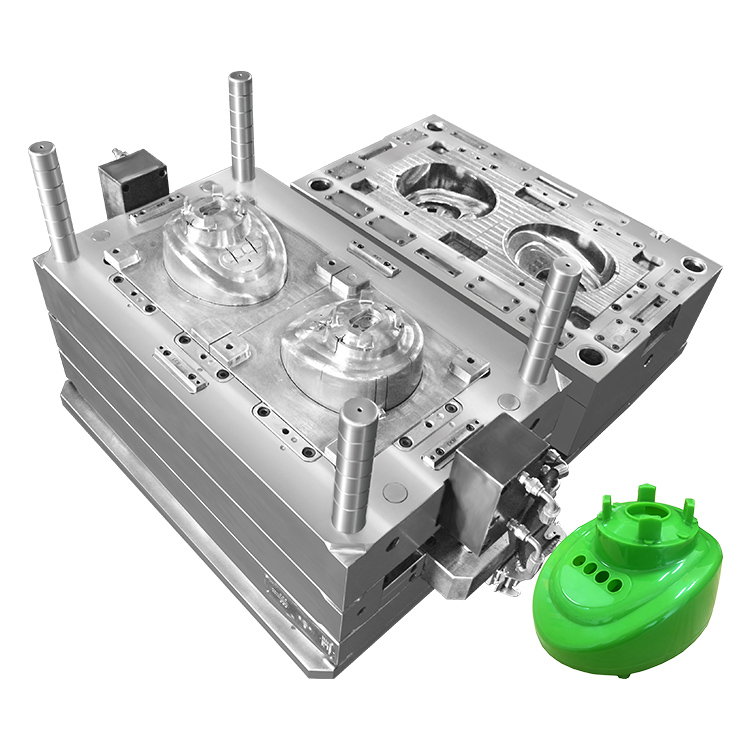

Mold Design: 1-cavity precision mold with latent gate (no visible marks on the shell surface) and 环绕式 cooling channels (uniform cooling to prevent defects).
Injection Parameters:
Material temperature: 200-220℃
Mold temperature: 60-70℃
Injection pressure: 90-100MPa
Cooling time: 15-20s
Quality Control: 100% inspection for dimensional accuracy, surface defects (no air lines, discoloration), and assembly compatibility.
