1. Product Overview
This is a high-precision medical-grade injection mold customized for medical device plastic shell production. It adopts 1*2 cavity layout, large sprue runner system and premium 1.2344 mold steel with HRC 48-52 hardness. Both core and cavity are fully mirror polished, specially optimized for medical compatible ABS + UV protection materials.
The mold strictly follows medical manufacturing standards, featuring no dead corners, no residue accumulation, stable molding performance and high repeatability. It is fully suitable for mass production of hygienic, safe and durable medical plastic housings and components.

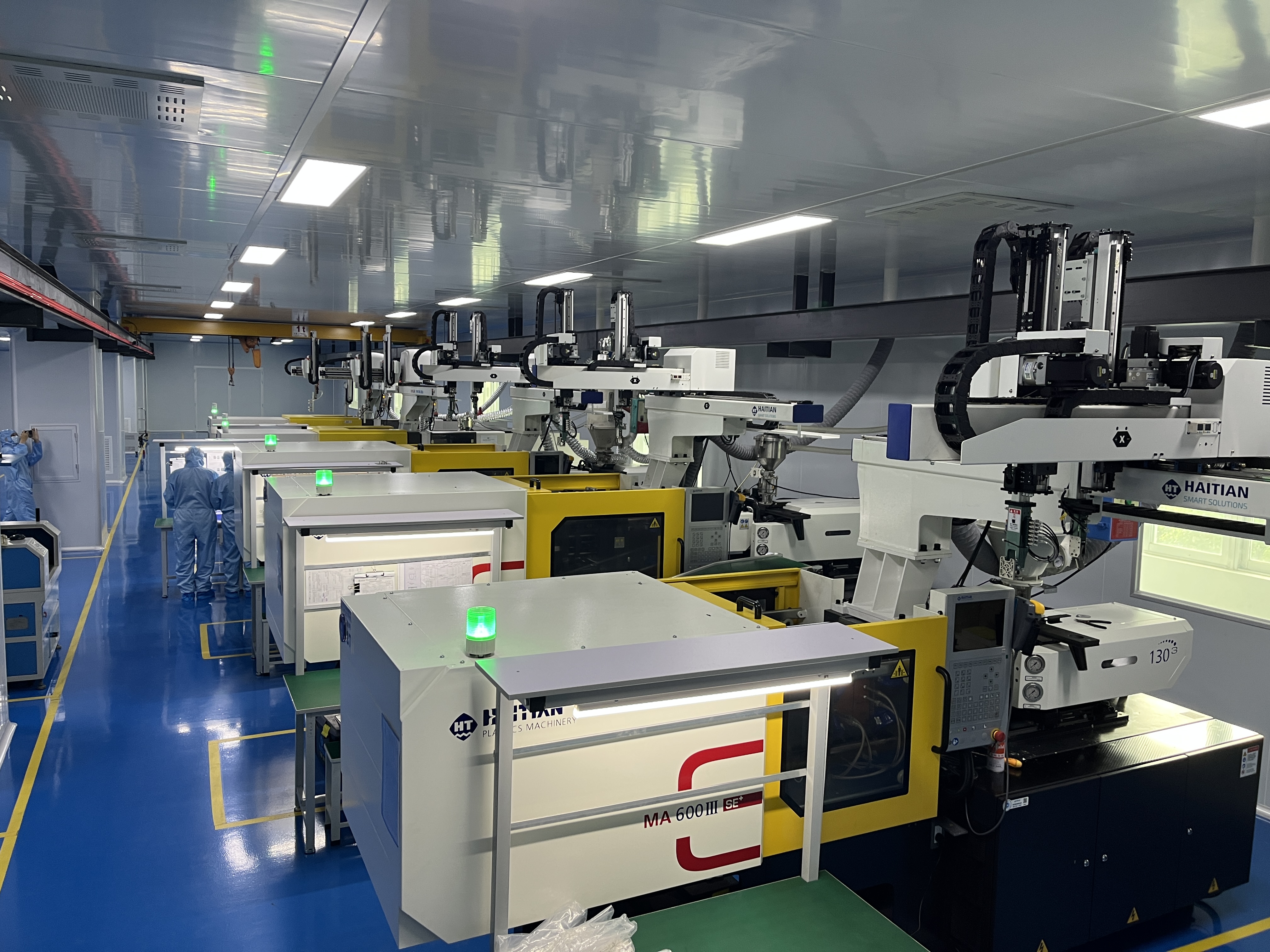

![Connector And Adapter Parts Medical Moulding]( "Connector And Adapter Parts Medical Moulding")
2. Mold Specification
Mold Cavity: 1*2 Cavity
Suitable Material: Medical Grade ABS, ABS + UV Protection Material, Biocompatible Plastic
Runner System: Large Sprue Mold Runner, smooth flow, no material degradation
Mold Steel: 1.2344 Hot Work Steel, HRC 48-52 Hardness
Surface Treatment: Full Polish on Core and Cavity
Mold Application: Medical equipment shells, healthcare device parts, disposable medical accessories
Production Feature: High precision, hygienic molding, stable long-run production
3. Core Advantages & Selling Points
Medical Biocompatible Molding Design
This mold is professionally designed for medical-grade compatible materials. The polished seamless surface avoids bacteria hiding and residue accumulation, effectively protecting the biocompatibility of medical plastic materials. It supports the production of parts that meet medical hygiene and safety requirements.
High Hardness 1.2344 Mold Steel
Adopts imported 1.2344 mold steel with HRC 48-52 high hardness. It features excellent high-temperature resistance, wear resistance and deformation resistance. It greatly extends mold service life and ensures stable dimensional accuracy during long-term mass medical production.
Full Polished Core & Cavity
Both core and cavity are finely mirror polished. The molded products obtain ultra-smooth surface without flow marks, scratches or burrs. The smooth surface is easy to clean and sterilize, perfectly meeting the strict appearance and hygiene standards of medical devices.
Optimized Large Sprue Runner System
Equipped with large sprue runner design, which ensures fast, uniform and stable filling of medical ABS and UV-resistant materials. It reduces material shear stress, avoids material deterioration, and guarantees consistent physical and medical properties of each finished part.
Stable 1*2 Cavity Mass Production
1*2 cavity reasonable layout balances production efficiency and mold cost. Dual-cavity simultaneous molding ensures high output and excellent consistency of medical parts, zero deviation in size and appearance for each batch.
UV Material Molding Adaptability
Specially optimized for ABS + UV protection modified materials. The professional runner and cooling system prevent UV additive precipitation and surface defects, ensuring medical parts with anti-aging and anti-ultraviolet performance for long-term medical environment use.
4. Application Scope
Widely used for producing various medical plastic components: medical device outer shells, diagnostic instrument parts, nursing equipment accessories, portable medical tool housings and other hygienic medical plastic products.
5. Why Choose Our Medical Mold
Medical standard hygienic mold design, no contamination risk
High hardness mold steel for long service life
Full polished surface for easy sterilization and cleaning
Compatible with biocompatible medical raw materials
Stable molding, low defect rate, high production efficiency
Support customized medical mold structure and size
