YIXUN mold
8480419090

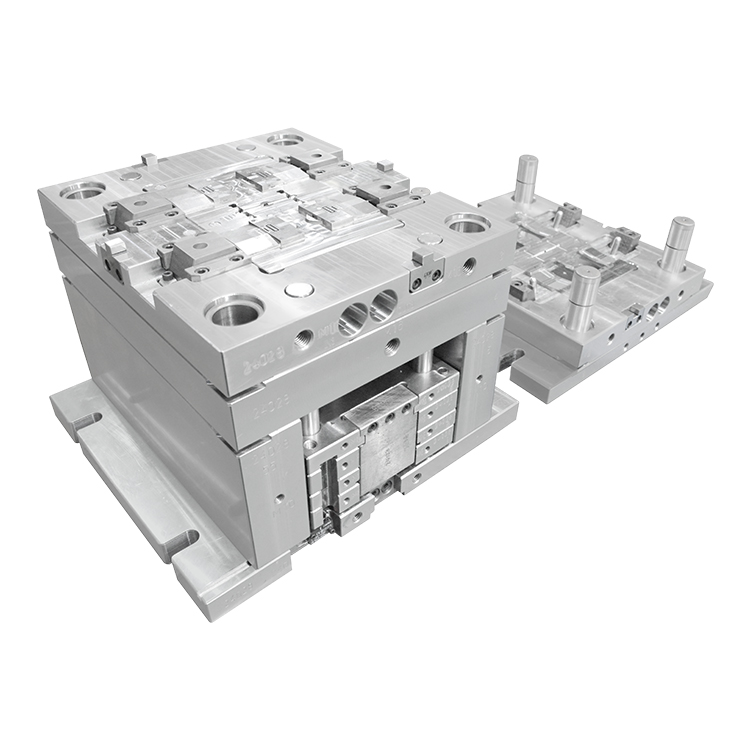

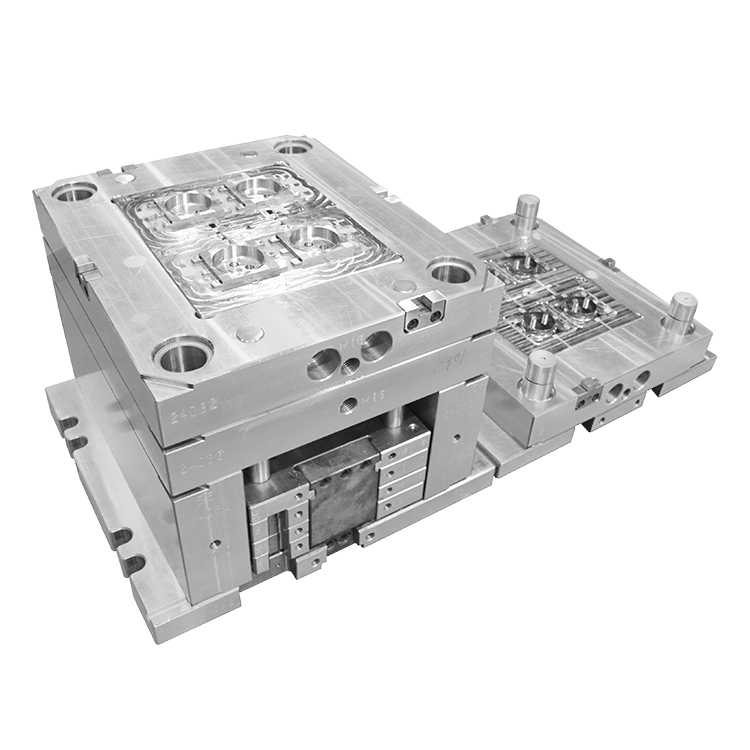

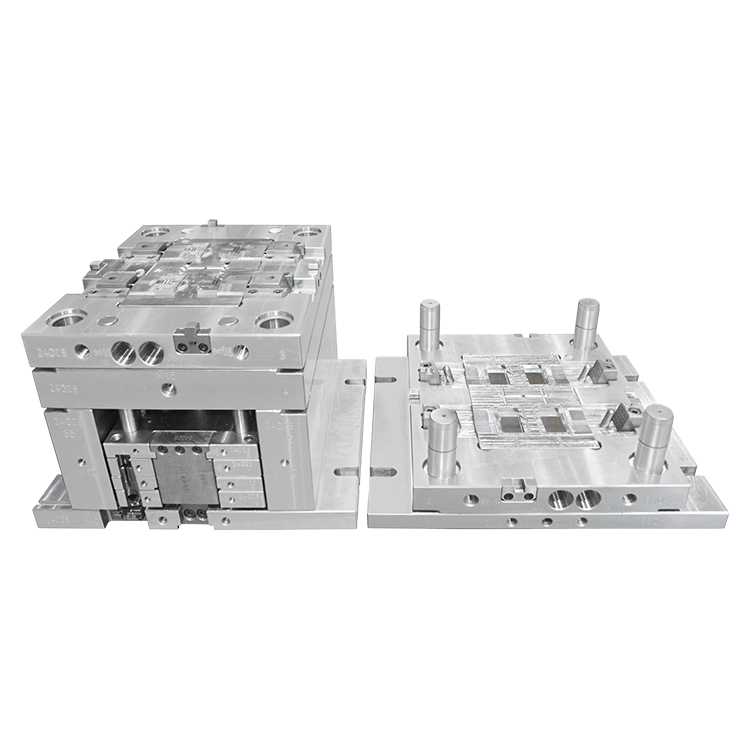

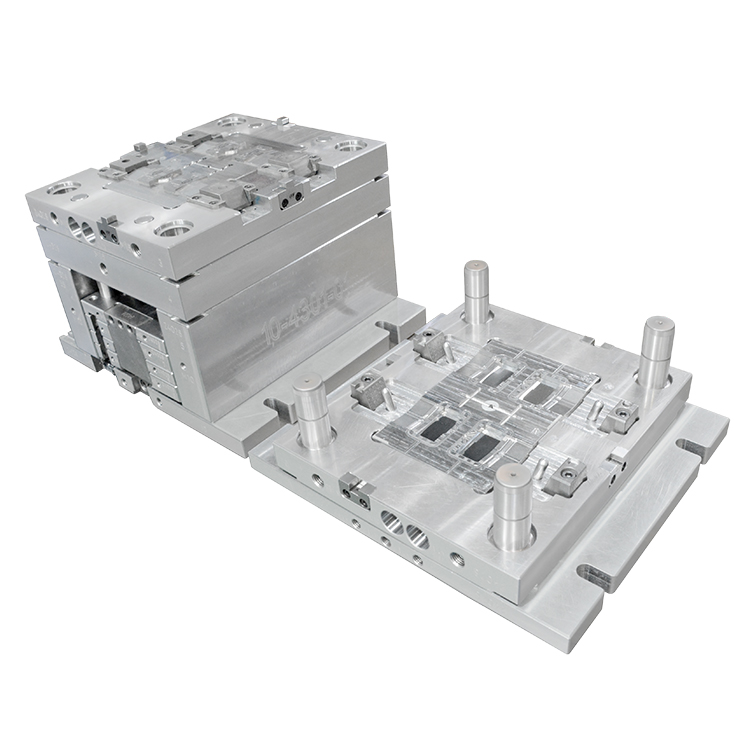

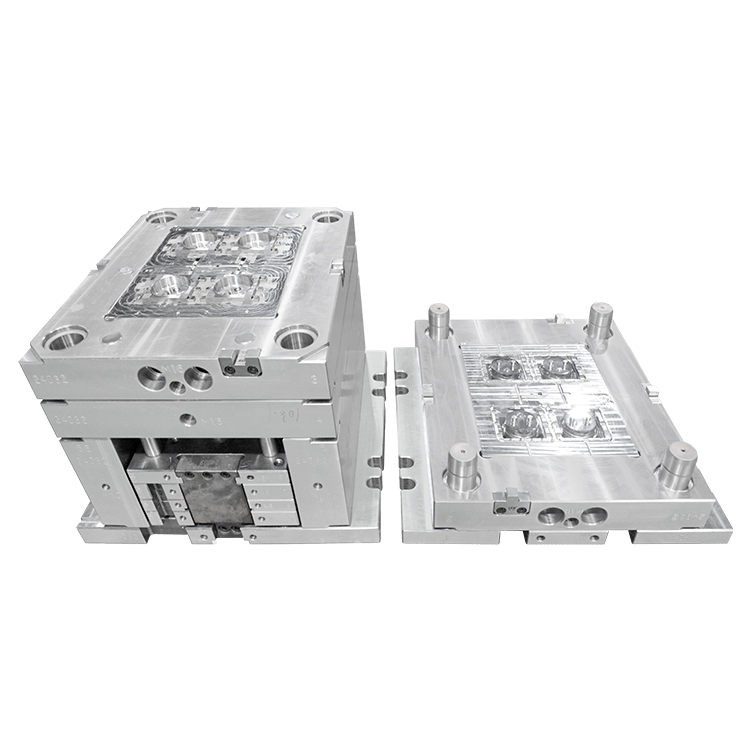

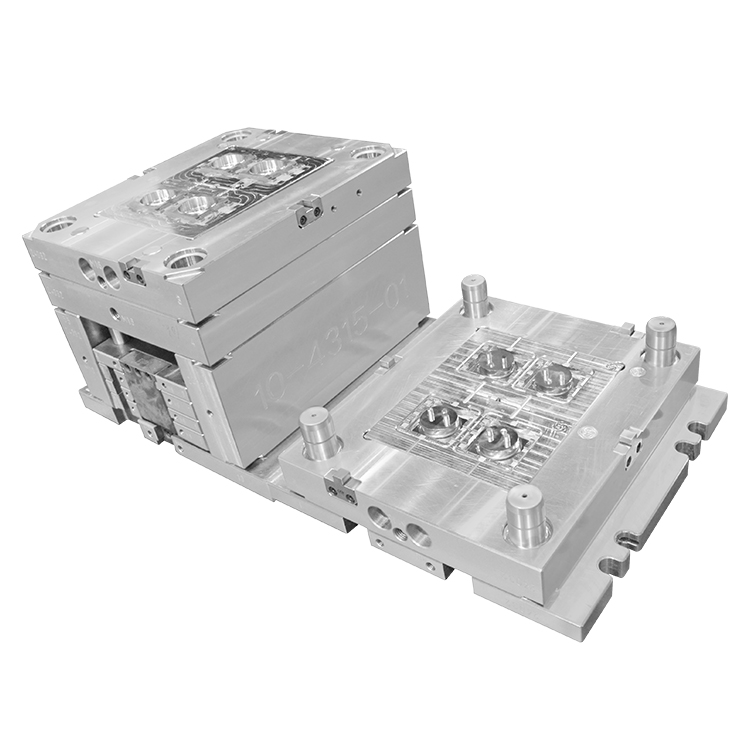

Small-Batch Custom Injection Molds: Fast, Flexible Tooling for Your Plastic Parts
We use aluminum alloy (6061/7075) for mold cores/cavities (or budget steel like P20 for longer life) — cutting material costs by 30-50% vs. full-production steel molds.
Aluminum molds still deliver smooth surfaces (Ra 0.4–1.6μm) and precise dimensions (±0.02mm), suitable for functional and cosmetic parts.
From design to mold trial: 2–3 weeks (vs. 4–6 weeks for standard steel molds).
Streamlined DFM (Design for Manufacturability) analysis: Our engineers will review your 3D model (STEP/IGES/STL) within 24 hours and suggest tweaks to speed up production.
Single-cavity or 2–4 cavity molds (adjust based on your volume needs).
Support for multiple material tests: Try PP, ABS, PC, or soft TPE—we’ll adjust mold parameters to match your chosen plastic.
Modifiable tooling: If you need to tweak your part design (e.g., adjust a hole size), we can modify the mold quickly (and affordably) mid-project.
We don’t just sell molds: We offer in-house injection molding services (using our molds) if you don’t have your own machine. Get finished parts delivered directly to your door.
Free sample run: We’ll produce 20–50 test parts with your target material, so you can validate fit, function, and appearance before full production.
| Feature | Specification |
|---|---|
| Mold Material | Aluminum 6061/7075 (standard) / P20 steel (upgrade) |
| Cavity Count | 1–4 cavities |
| Max Part Size | 200mm × 150mm × 100mm |
| Cycle Life | 5,000–50,000 cycles (aluminum) / 100,000+ (steel) |
| Compatible Plastics | PP, ABS, PC, TPE, PA, etc. |
| Lead Time (Mold Only) | 2–3 weeks |
| Lead Time (Mold + Parts) | 3–4 weeks |
Share Your Design: Send us your 3D model or 2D drawing (we accept all common formats).
Get a Free Quote: We’ll provide a detailed quote (including mold cost, material options, and lead time) within 48 hours.
DFM & Mold Design: Our team finalizes the mold design (with your approval) and starts machining.
Trial & Production: We run a sample batch, adjust as needed, then deliver the mold (and parts, if requested).
