Product Overview
This is a high-volume, precision-engineered 1*24 cavity injection mold, purpose-built for mass production of PS compact plastic components. Constructed with premium 1.2344 hot work mold steel, heat-treated to HRC 46-48, this tooling delivers exceptional wear resistance, thermal stability, and long service life for continuous industrial production. Featuring a direct submarine gate system and finished with standard VDI 24# texture, the mold ensures uniform, high-quality surface finishes across all 24 cavities, with hidden gates that eliminate visible marks on finished parts. Optimized specifically for polystyrene’s molding characteristics, this mold effectively addresses common challenges such as warpage, sink marks, and dimensional drift, making it the ideal solution for high-efficiency manufacturing of small, precision plastic components.
Core Product Specifications
| Specification Item | Detailed Parameters |
| Mold Cavity | 1*24 Multi-Cavity (24 parts per cycle), ultra-high efficiency for large-scale mass production |
| Applicable Material | PS (Polystyrene) plastic, ideal for rigid, low-cost compact plastic components |
| Gating System | Direct Submarine Gate, hidden feeding, balanced melt flow, no visible marks on part surfaces |
| Mold Steel Grade | 1.2344 Hot Work Die Steel, renowned for high toughness and thermal fatigue resistance |
| Steel Hardness | HRC 46-48, vacuum heat-treated for enhanced wear resistance and long-term stability |
| Surface Finish | VDI 24# Standard Texture, consistent matte finish across all 24 cavities |

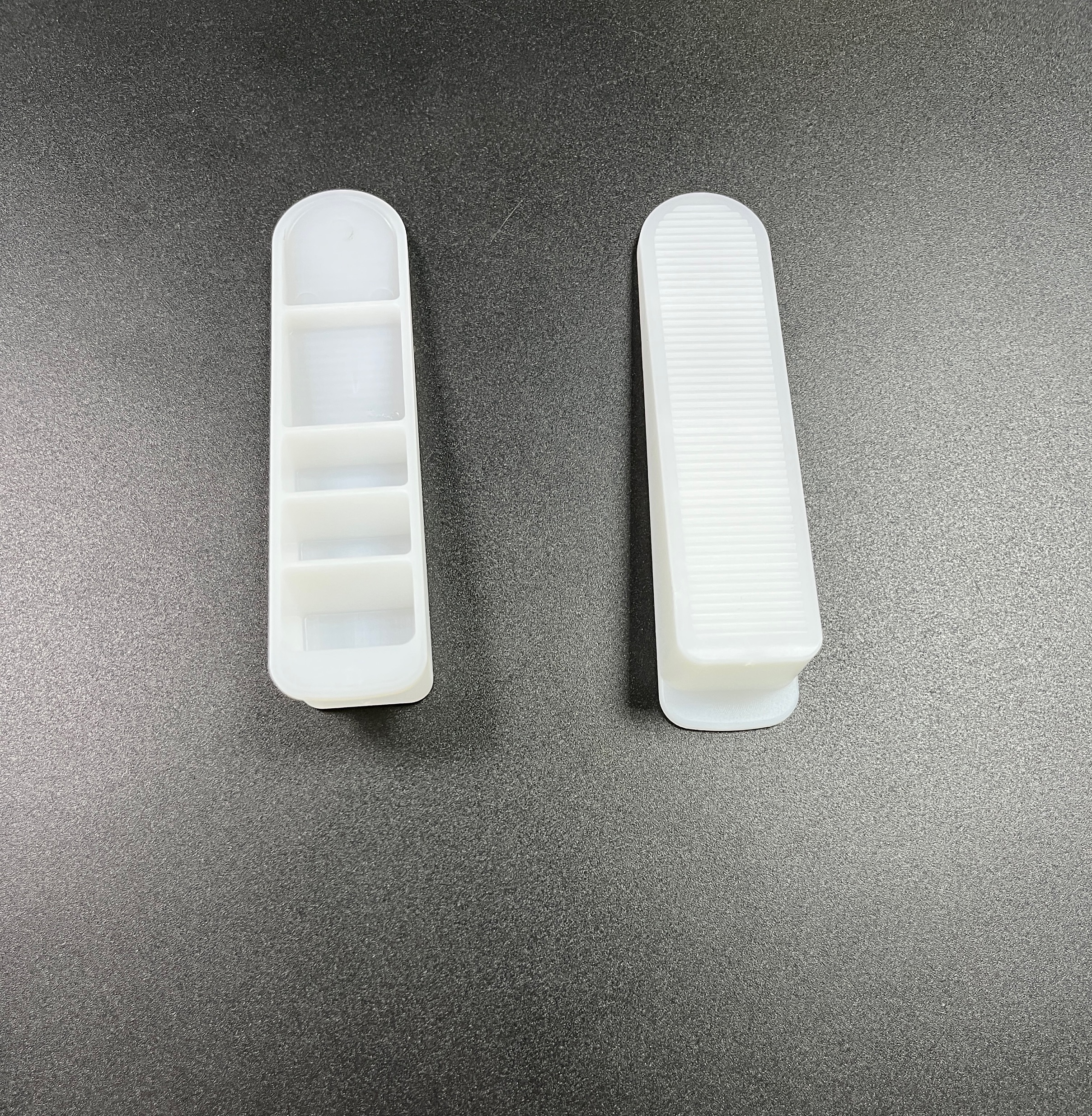

| Molded Application | Custom compact plastic components, structural inserts, and small industrial plastic parts |
| Production Compatibility | Standard injection molding machines, supporting high-speed automatic production |
| Production Feature | High output, low defect rate, uniform part quality, optimized for cost-effective mass production |
Advanced Mold Design & Manufacturing

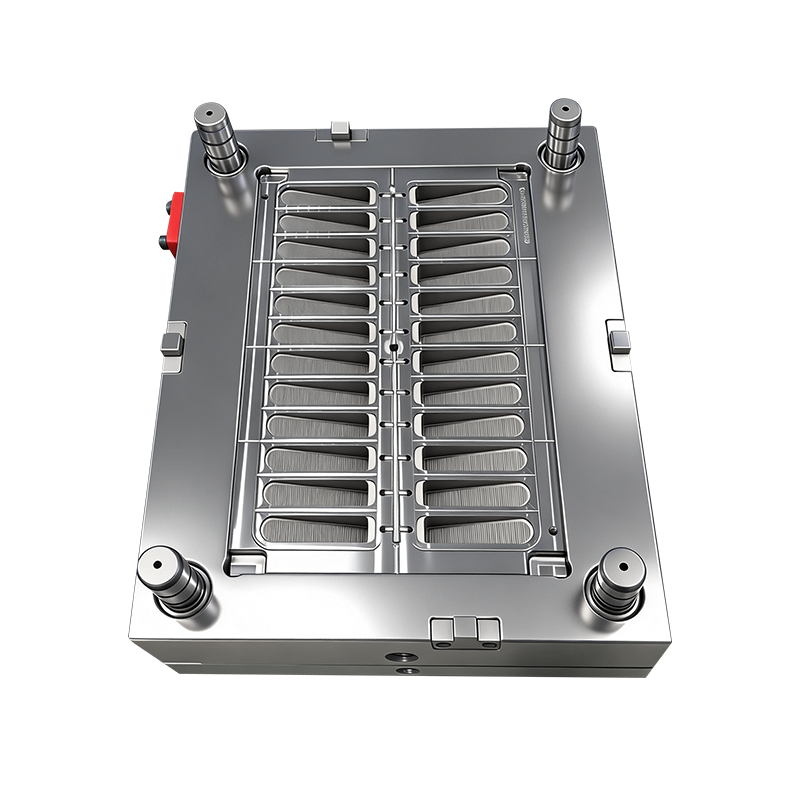

1. 1*24 Multi-Cavity Layout for Maximum Efficiency
The 1*24 cavity design is engineered to maximize production throughput, molding 24 identical components in a single cycle. The layout is meticulously balanced to ensure uniform melt flow, pressure distribution, and cooling across all cavities, eliminating the risk of imbalance, dimensional variation, or flash common in high-cavity molds. This configuration drastically reduces per-part costs, making it ideal for large-volume OEM production.
2. Premium 1.2344 Mold Steel Construction
Built with high-grade 1.2344 hot work mold steel and heat-treated to HRC 46-48, this tooling offers exceptional resistance to wear, heat, and deformation. The steel’s high toughness prevents cracking under repeated thermal cycling, while its excellent thermal conductivity ensures consistent cooling across all cavities. This results in a long mold service life and stable production performance, even after millions of cycles.
3. Direct Submarine Gate System for Clean Parts
The direct submarine gate system is strategically designed to feed material through hidden channels, leaving no visible marks on the exterior surface of the compact components. The balanced flow path ensures fast, uniform filling of all 24 cavities, minimizing internal stress and preventing warpage or sink marks in the small, thin-walled parts. The gate design also simplifies post-processing, reducing trimming and finishing requirements.
4. VDI 24# Standard Texture Finish
All 24 mold cavities are finished to a consistent VDI 24# texture, delivering a uniform matte appearance across every molded part. This texture hides minor molding imperfections, provides a subtle non-slip surface, and meets common industrial and consumer product aesthetic standards. The uniform finish ensures batch-to-batch consistency, critical for high-volume production runs.
5. Optimized Cooling for Cycle Efficiency
The mold is equipped with a precision-engineered cooling system, with strategically placed channels tailored to the compact geometry of the components. This design ensures rapid, uniform cooling across all 24 cavities, shortening cycle times and preventing uneven shrinkage or warpage. Combined with the high-cavity layout, this cooling system maximizes production efficiency without compromising part quality.
Material Adaptability & Core Advantages
PS (Polystyrene) is a widely used plastic material for compact components due to its low cost, rigidity, and ease of molding. This custom mold is purpose-built to leverage these properties:
Cost Efficiency: The 1*24 high-cavity design and optimized cycle times drastically reduce per-part costs, making mass production of PS components highly economical.
Durability: The 1.2344 steel construction and heat treatment ensure long mold life, even with continuous production of abrasive PS material.
Consistent Quality: The balanced gating system and VDI 24# texture ensure uniform part appearance and dimensional accuracy across all cavities.
Clean Parts: The submarine gate system eliminates visible marks, reducing post-processing and ensuring parts meet strict cosmetic requirements.
Key Applications
This high-precision multi-cavity injection mold is designed for manufacturing a wide range of compact PS plastic components, including:
Consumer product structural inserts and small plastic parts
Industrial equipment fasteners, clips, and spacers
Electronic device internal components and housing parts
Custom rigid plastic components requiring high-volume, low-cost production
Quality Assurance & After-Sales Support
Every injection mold undergoes a rigorous multi-stage quality control process, including:
Steel hardness and material verification
Dimensional accuracy checks of all 24 cavities and core features
Surface finish inspection of VDI 24# textured surfaces
Mold trial runs to validate cycle time, gate functionality, and part quality across all cavities
We provide comprehensive after-sales support, including mold maintenance guidance, technical troubleshooting, and modification services, to ensure your production runs smoothly for years to come.

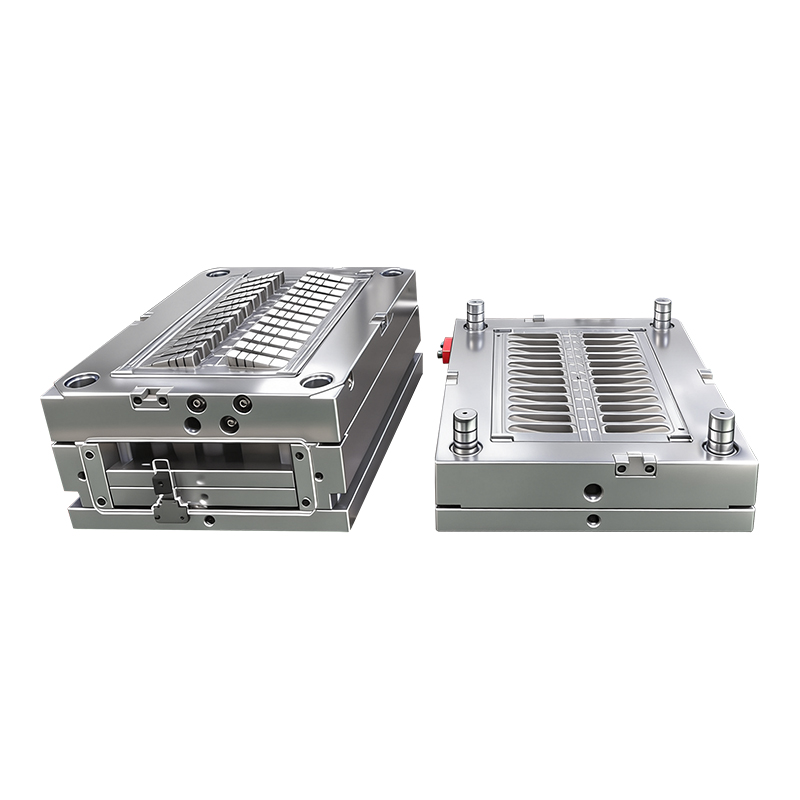

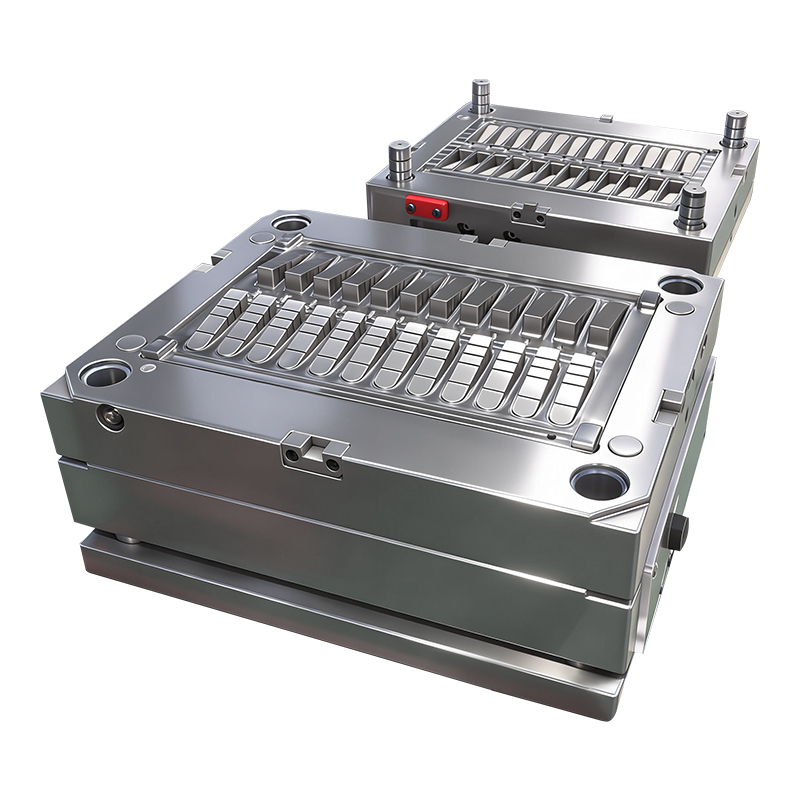

![HRC46-48 Steel VDI 24# Texture Plastic Component mold]( "HRC46-48 Steel VDI 24# Texture Plastic Component mold")
