VDI stands for Verein Deutscher Ingenieure (Association of German Engineers). This organization created a set of standards, and in the mold-making world, VDI 3400 is the key one. It's a standard that defines the quality and texture of molded plastic surfaces.
A VDI Surface is a textured steel surface on a mold (typically created by EDM - Electro Discharge Machining) that produces a consistent, matte, or grainy finish on the final plastic part. It is not a glossy, polished finish.
Think of the surface on a high-end blender housing, a dishwasher control panel, or the inside of a refrigerator. That soft-touch, non-reflective, slightly rough finish is very often a VDI texture.
VDI 3400 is a scale, usually from VDI 0 (smoothest) to VDI 45 (roughest).
VDI 0-15: Very fine, almost satin finish. Hard to distinguish from a high-grit polish.
VDI 18-27: The most common range for appliances. Provides a good balance of hiding fingerprints, minor scratches, and flow lines.
VDI 30-45: Coarser, more pronounced grain. Used for a more technical or "grippy" feel.
Appliance manufacturers choose VDI textures for several critical reasons:
Aesthetic Consistency: It provides a uniform, non-reflective matte finish that is considered high-quality and modern. It hides the "plastic" look.
Hides Manufacturing Defects: This is a huge advantage. VDI textures are excellent at concealing:
Flow Lines: Weld lines where molten plastic meets inside the mold.
Sink Marks: Dimples caused by uneven cooling.
Ejector Pin Marks: Small blemishes from the pins that push the part out.
Gate Vestige: The small mark where the plastic entered the part.
Hides In-Use Blemishes: It effectively masks fingerprints, minor scratches, and dust, which is crucial for products like refrigerators, microwaves, and washing machines that are touched frequently.
Improved Grip: A slightly textured surface is less slippery than a glossy one.
Brand Identity: Many appliance brands have a specific VDI grade (e.g., VDI 21 or VDI 24) as part of their design language to ensure a consistent look and feel across their product lines.

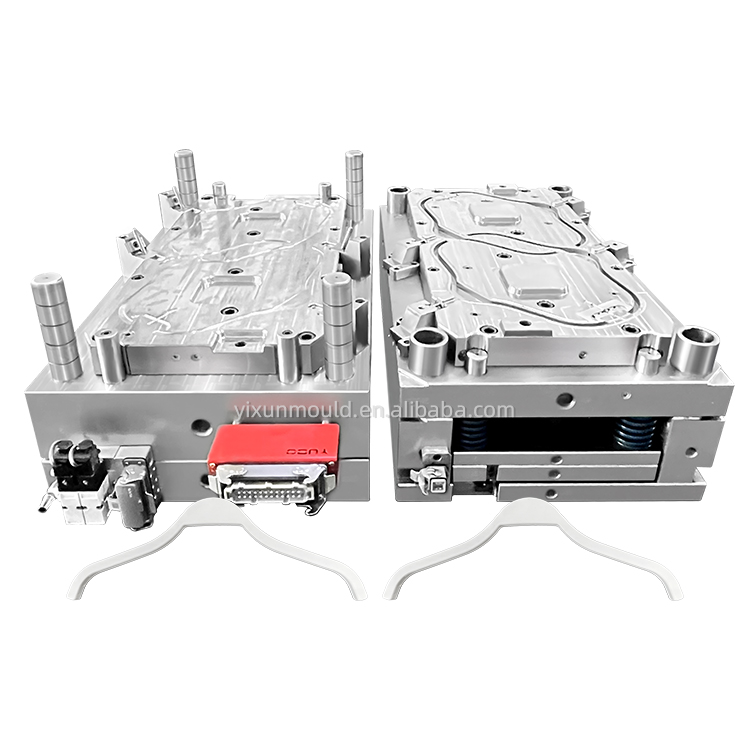

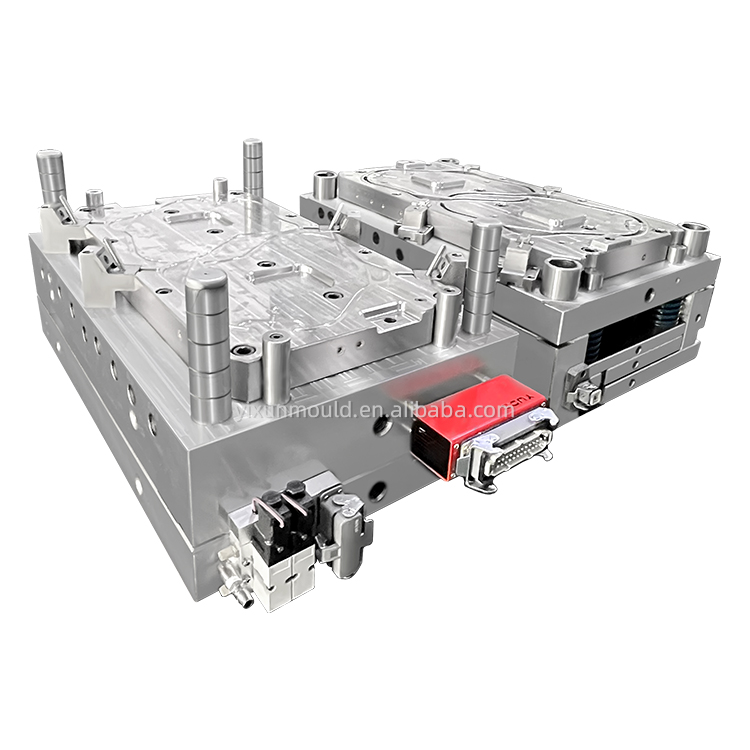

Creating a mold with a VDI surface is a specialized process. It does not involve manual polishing or sandblasting for the final texture.
The primary method is EDM Texturing (Spark Erosion):
Mold Base Preparation: The mold core and cavity are first machined to a very high-quality finish (often a fine polish).
EDM Electrode: A special electrode is created. The surface of this electrode has the inverse of the desired VDI texture.
Texturing Process: The electrode is pressed against the mold steel in an EDM machine. A controlled electrical discharge (spark) erodes the steel surface, perfectly transferring the texture from the electrode to the mold.
Finishing: After EDM, the mold may undergo light manual polishing to remove any microscopic "tails" left from the sparks, but this must be done carefully to not alter the texture.
When an engineer designs a mold intended for a VDI surface, they must account for the following:
Draft Angles: This is critical. Textured surfaces create more friction, making it harder to eject the part from the mold. Therefore, significantly larger draft angles (1.5° to 3° or more per side) are required compared to a polished mold (which might only need 0.5°). Insufficient draft will cause the part to "gall" or scratch during ejection, ruining the texture and potentially damaging the mold.
Parting Lines: The texture will make any misalignment at the parting line (where the two halves of the mold meet) very visible. Extreme precision in mold manufacturing is required.
Material Selection: The plastic material matters. Materials like ABS, ABS/PC blend, and PP are very common and take VDI textures well. The texture can also affect the perceived color of the plastic.
Cost: VDI texturing adds significant cost to the mold. EDM electrodes and the machine time are expensive. However, it often saves money in the long run by reducing the reject rate from visible defects.
| Feature | Description |
|---|---|
| What it is | A standardized, matte, textured finish on a plastic part, created by a corresponding texture in the mold steel. |
| Governing Standard | VDI 3400 (typically grades VDI 18 - VDI 27 for appliances). |
| Primary Purpose | Aesthetic appeal, hiding fingerprints, and concealing injection molding defects. |
| Key Advantage | Dramatically improves the perceived quality and consistency of high-volume plastic parts. |
| Critical Design Rule | Increased draft angles on textured surfaces to allow for part ejection. |
In short, a VDI surface mold for appliances is a precision tool designed to produce plastic parts with a specific, high-quality, non-glossy finish that is durable, attractive, and functionally superior for everyday household products.
