This is a high-efficiency 1*8 cavity plastic injection mold, professionally designed for mass production of PP plastic handles for textile tools. Constructed with premium 2083 mold steel and heat-treated for enhanced durability, this tooling delivers consistent surface quality, long service life, and stable production performance for industrial textile components. Equipped with a direct side gate system, the mold ensures fast, balanced melt flow across all eight cavities, supporting high-volume manufacturing of ergonomic plastic handles. Optimized specifically for PP material’s molding characteristics, it effectively addresses common challenges such as warpage, shrinkage, and
surface blemishes, making it an ideal solution for textile tool production.
Core Product Specifications
| Specification Item | Detailed Parameters |
| Mold Cavity | 1*8 Multi-Cavity, 8 parts per cycle for high-efficiency mass production |
| Applicable Material | PP (Polypropylene) plastic, ideal for lightweight, durable textile tool handles |
| Gating System | Direct Side Gate, fast filling, balanced melt flow, easy trimming for clean parts |
| Mold Steel Grade | 2083 Mold Steel, with professional heat treatment for wear & corrosion resistance |
| Surface Finish | Standard polished finish, smooth ergonomic surface for comfortable handling |
| Molded Application | Custom plastic handles for textile tools, knitting accessories, and industrial implements |
| Production Compatibility | Standard injection molding machines, supporting high-speed automatic production |
| Production Feature | High output, low defect rate, consistent quality, suitable for large-scale OEM orders |

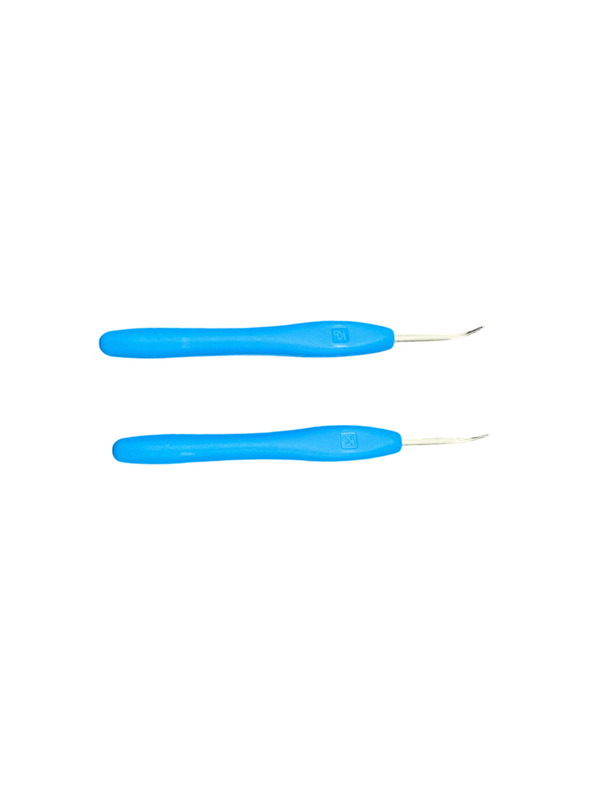

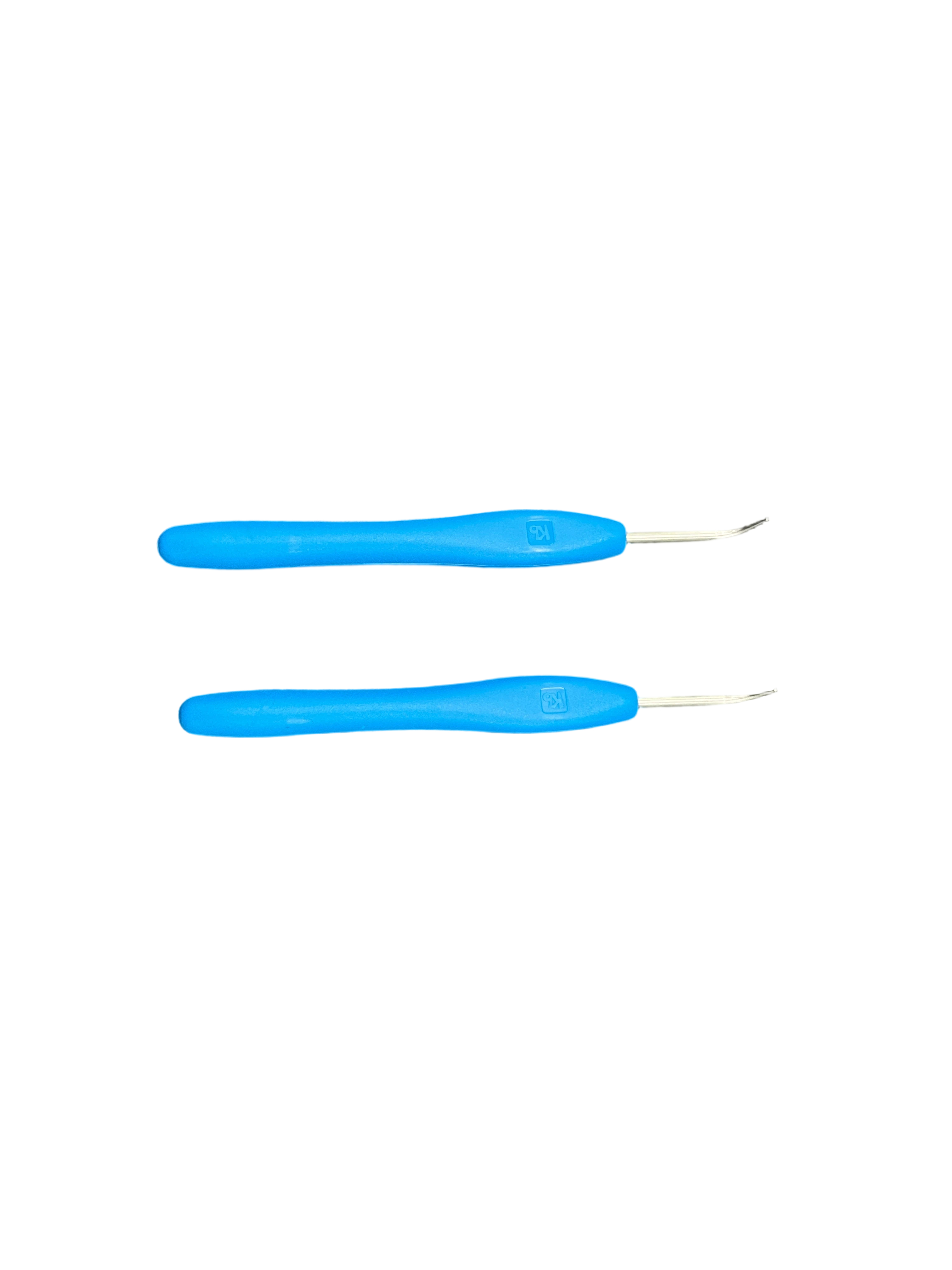

![PP 1*8 Mold Maker Direct Side Gate Injection Mold]( "PP 1*8 Mold Maker Direct Side Gate Injection Mold")
Advanced Mold Design & Manufacturing
1. 1*8 Multi-Cavity Layout for High Efficiency
The 1*8 cavity design maximizes production output by molding 8 identical textile tool handles in a single cycle. The layout ensures uniform melt flow and cooling across all cavities, eliminating common multi-cavity issues like imbalance or dimensional deviation. This configuration significantly reduces per-part costs, making it ideal for high-volume textile accessory manufacturing.
2. Premium 2083 Mold Steel Construction
Built with high-grade 2083 mold steel and undergoing professional heat treatment, this tooling offers excellent toughness, wear resistance, and corrosion resistance. The steel’s uniform hardness ensures the mold maintains its precision and surface quality even after millions of shots, making it ideal for continuous industrial production runs.
3. Direct Side Gate System for Ergonomic Handles
The direct side gate design is strategically placed to feed material into the handle’s thick-walled section, ensuring complete filling of the slender, ergonomic geometry. This system delivers fast, balanced melt flow, minimizes internal stress, and prevents warpage or sink marks in the handle’s curved profile. The gate is easily trimmed, leaving a clean finish suitable for textile tool applications.
4. Precision Ergonomic Surface Finish

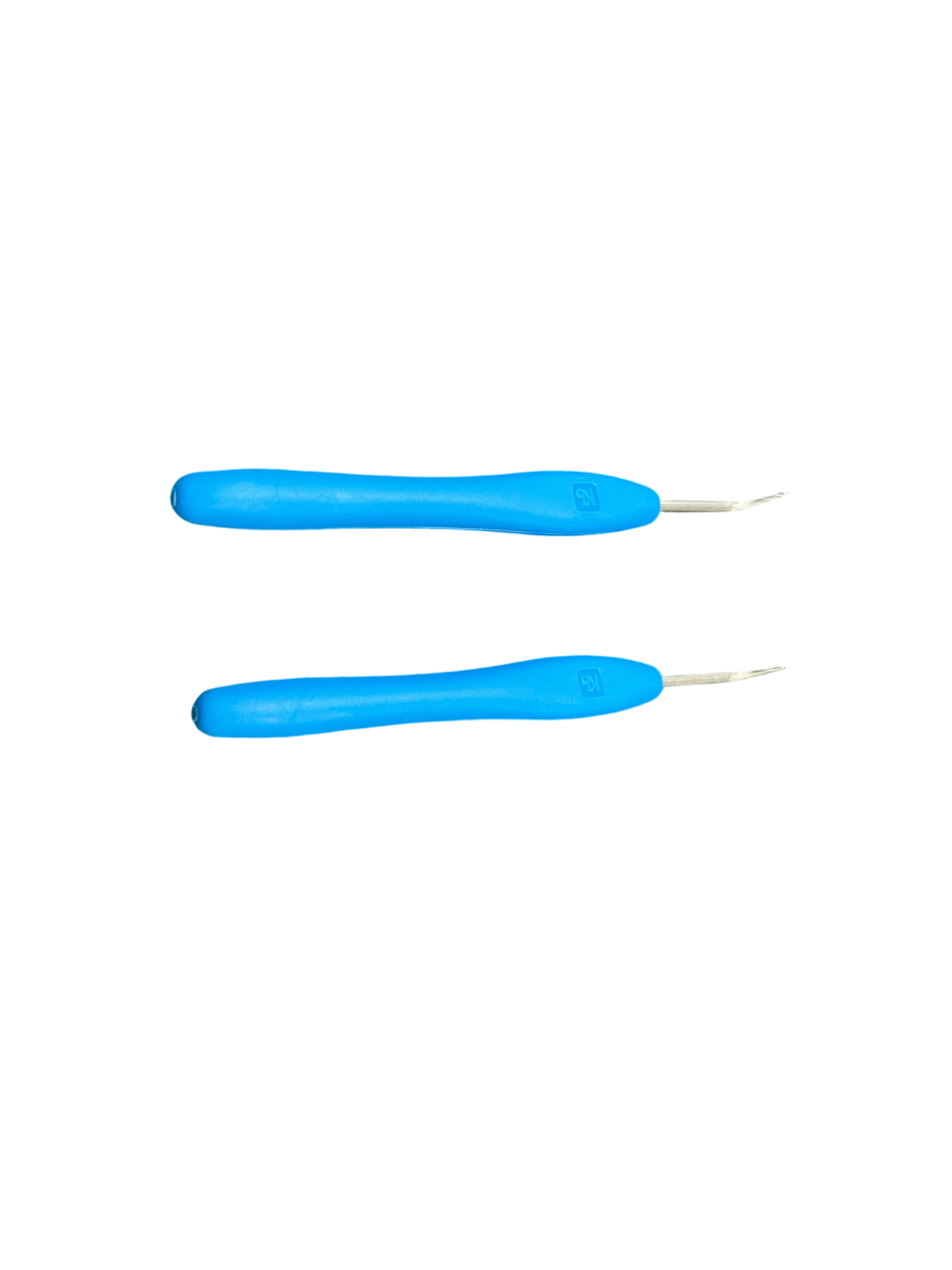

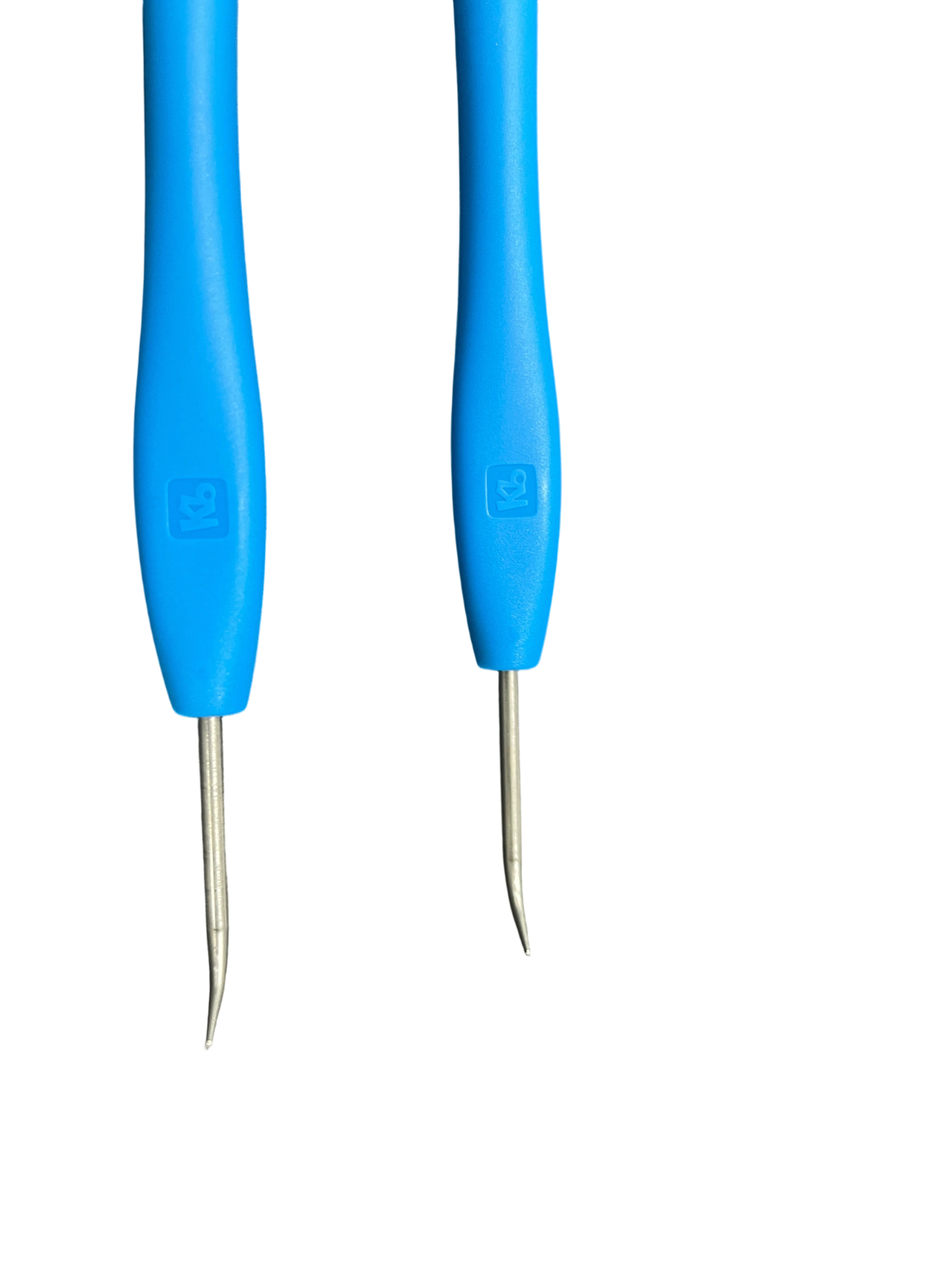

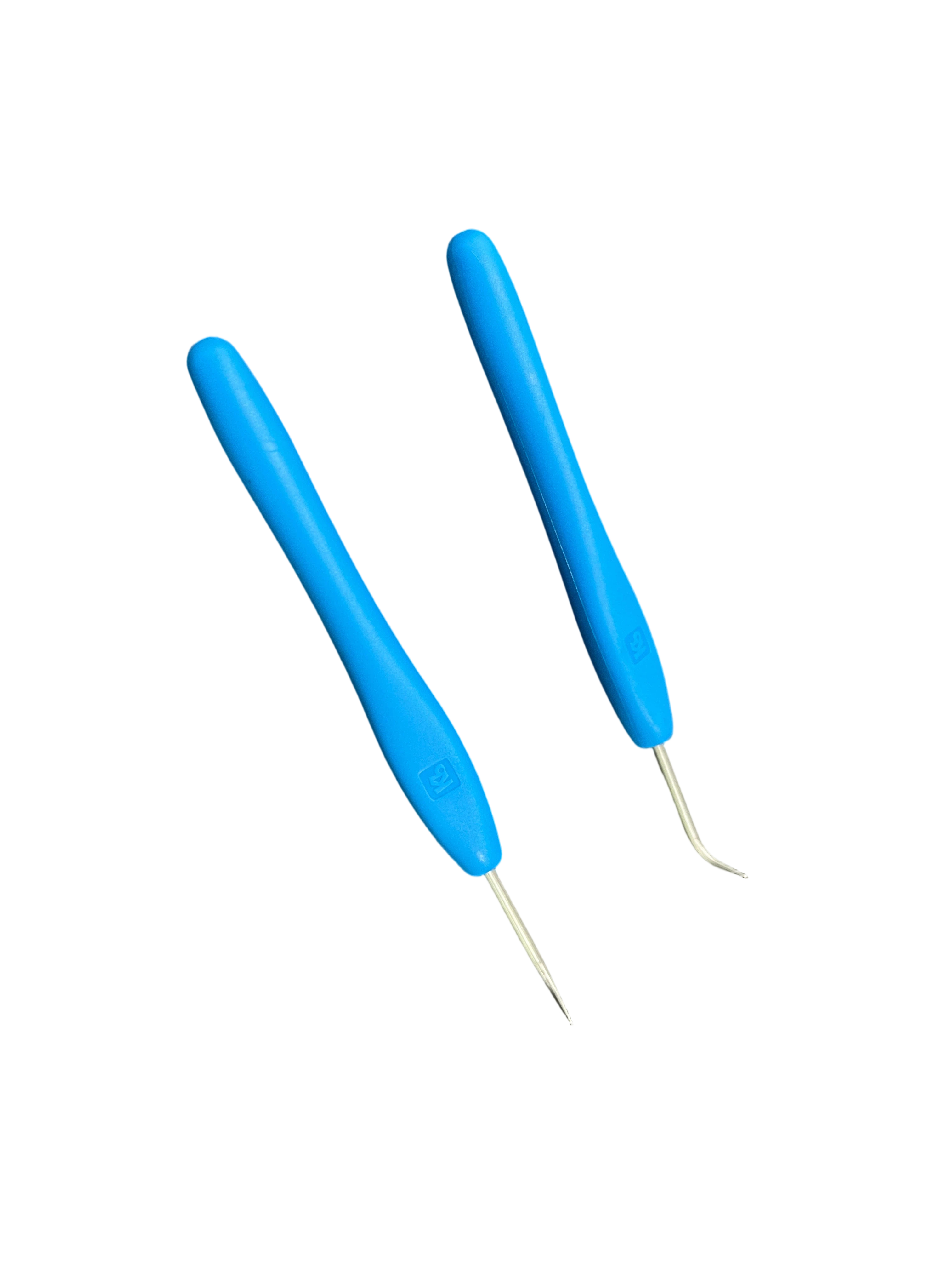

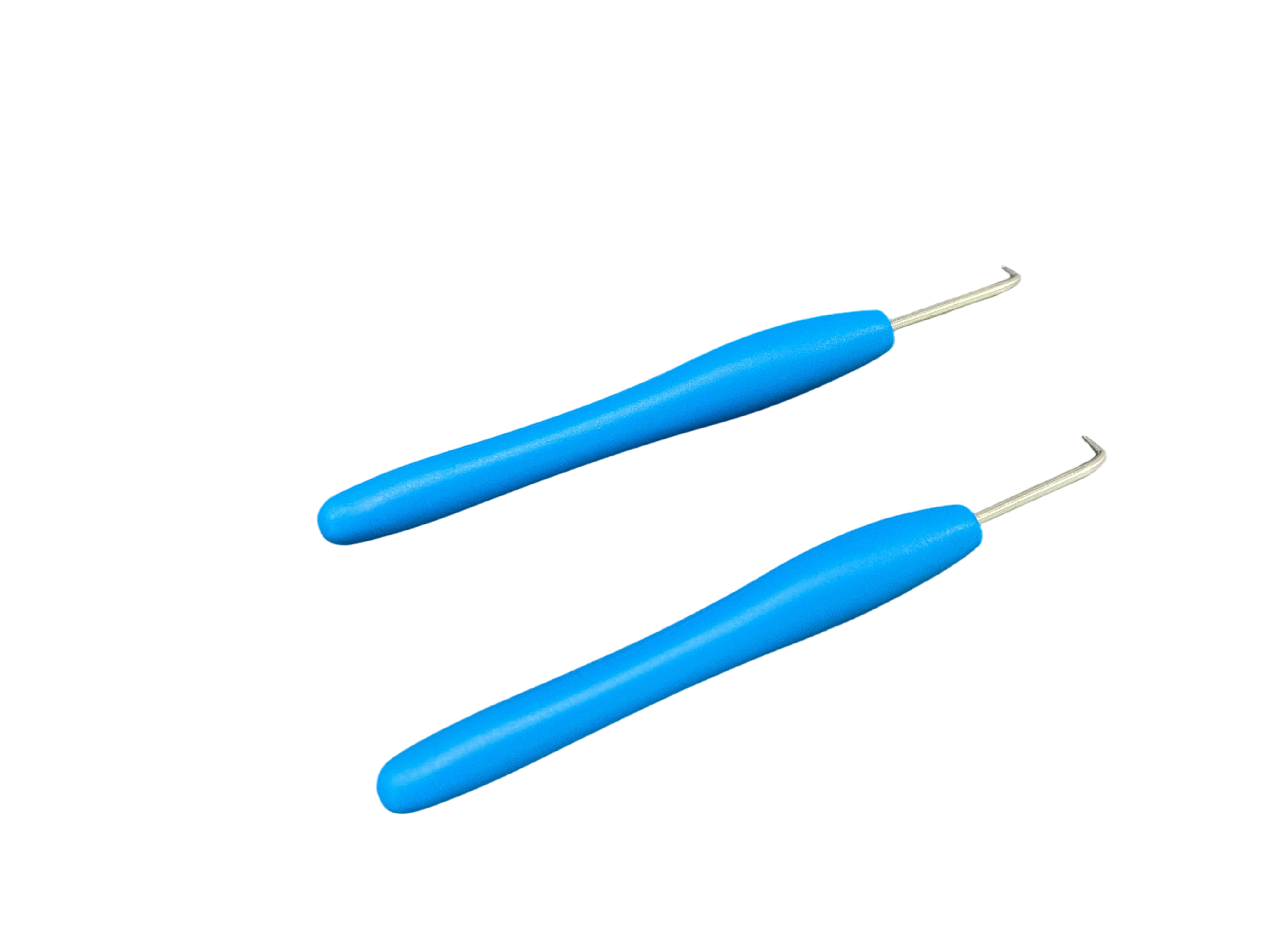

The mold cavity is polished to a smooth finish, producing handles with comfortable, non-slip surfaces ideal for extended use in textile work. The ergonomic design of the handle, with its curved grip, is perfectly replicated in the mold, ensuring every part meets the required dimensional tolerances for functionality and comfort.
5. Optimized Cooling for Cycle Efficiency
The mold is equipped with strategically placed cooling channels tailored to the handle’s long, slender geometry. This design ensures uniform and rapid cooling across all cavities, shortening cycle times and preventing uneven shrinkage or warpage. Combined with the 1*8 multi-cavity layout, this cooling system maximizes production efficiency without compromising part quality.
Material Adaptability & Core Advantages
PP plastic is widely used in textile tool handles due to its lightweight nature, excellent impact resistance, and low cost. This custom mold is purpose-built to leverage these properties:
Durability: The 2083 steel construction and heat treatment ensure long mold life, even with continuous production.
Ergonomic Quality: The polished surface and precision mold design produce handles with consistent shape and comfortable grip.
Cost Efficiency: The high-efficiency 1*8 cavity layout reduces per-part costs, making mass production of textile tools more economical.
Consistency: The direct side gate system ensures uniform filling across all cavities, resulting in identical handles every cycle.
Key Applications
This high-precision multi-cavity injection mold is designed for manufacturing a wide range of PP plastic handles for textile tools, including:
Crochet hooks, knitting needles, and sewing tool handles
Weaving looms, embroidery hoops, and textile equipment components
Custom plastic handles for industrial implements requiring ergonomic design
Lightweight, durable plastic parts for handcraft and textile accessories
Quality Assurance & After-Sales Support
Every injection mold undergoes a rigorous multi-stage quality control process, including:
Steel hardness and heat treatment verification
Dimensional accuracy checks of all critical mold features
Surface finish inspection of the polished cavity surfaces
Mold trial runs to validate cycle time, gate functionality, and part quality
We provide comprehensive after-sales support, including mold maintenance guidance, technical troubleshooting, and modification services, to ensure your production runs smoothly for years to come.
