The base substrate provides the structural backbone of your product. The key rule here is that the hard material must have a higher melting point than the soft material to prevent deformation during the second shot.
Common choices include:
ABS (Acrylonitrile Butadiene Styrene): A popular, cost-effective all-rounder with good strength and processability. Excellent for consumer goods and electronic housings.
PC (Polycarbonate): Known for its high impact strength, toughness, and transparency. Ideal for applications like medical devices and protective gear.
PC/ABS Alloy: Offers the best of both worlds—the heat resistance and strength of PC with the processability of ABS. A top choice for automotive interiors and high-end electronics.
PA (Nylon): Provides exceptional wear resistance and strength. Often used in mechanical parts and power tool housings.
PP (Polypropylene): Lightweight and chemical-resistant, but its non-polar nature makes it notoriously difficult to bond to. Requires specific solutions (see below).

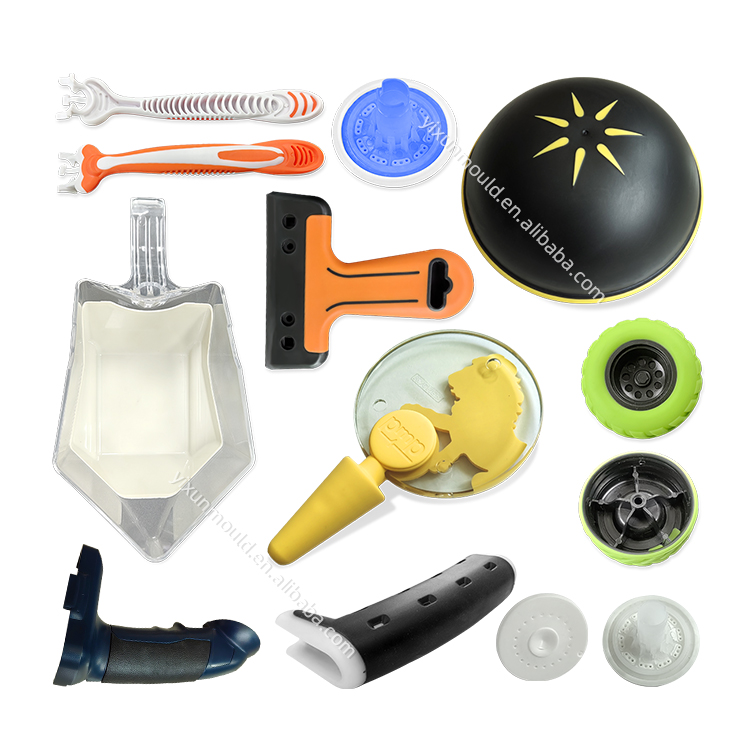

Metal & Ceramics: Used for high-end applications like razor handles or kitchenware, where overmolding adds grip and insulation.
This is the layer the user touches and feels. Selection depends on the desired softness, grip, and chemical resistance.
TPE/TPR (Thermoplastic Elastomer/Rubber): This is the most common family of overmolding materials.
SBS/SEBS-based TPEs: Offer a great soft touch, high friction, and, most importantly, excellent adhesion to polar plastics like ABS, PC, and PA. This is your go-to for many applications.
TPU (Thermoplastic Polyurethane): The king of performance. If you need superior abrasion resistance, high mechanical strength, and a more "robust" feel, TPU is the answer. It bonds very well to ABS, PC, and Nylon.
Silicone (especially LSR - Liquid Silicone Rubber): The premium choice for biocompatibility, extreme temperature resistance, and a uniquely soft, high-quality feel. It's a thermoset and requires a different processing setup, but it's unbeatable for medical, baby care, and high-end consumer products.
Special "Bonding" Grades: For bonding to tricky materials like PP, you must use specially formulated TPEs or TPUs designed to "overmold onto PP."
Adhesion is where science and engineering meet. Here are the primary methods, from strongest to supplemental.
1. Chemical Bonding (Molecular-Level Fusion)
This is the strongest and most desirable type of adhesion. It occurs when the molten soft material diffuses into the surface of the hard substrate, and their polymer chains entangle.
The Golden Rule: "Like Bonds with Like."
Polar materials bond with polar materials. This is why TPU and TPE bond so well to ABS, PC, and PA. Their molecular structures are compatible.
Non-polar materials bond with non-polar materials. This is why standard TPE won't stick to PP, but a special PP-compatible TPE will.
Key Enabler: Temperature! The surface of the hard substrate must be warm (close to its glass transition temperature) during the second shot. This "activates" the surface, allowing the polymer chains to interdiffuse. Using a mold temperature controller is essential.
2. Mechanical Interlocking (Physical Anchoring)
When chemical bonding is weak or impossible, we design the part to lock itself together physically.
Undercuts, Holes, and Grooves: Designing deliberate gaps, slots, or dovetails into the hard part allows the soft material to flow in and around them, creating a powerful physical lock that is nearly impossible to separate.
Surface Texturing (Mold Etching): A micro-level form of interlocking. By etching a rough texture onto the mold cavity for the hard part, you create a vast surface area for the soft material to grip onto. This is a highly effective and highly recommended practice for almost every overmolding project.
3. Process & Ancillary Methods
Surface Cleanliness: Any trace of release agent, oil, or dust on the substrate will act as a barrier and kill adhesion. The bonding surface must be impeccably clean.
Adhesion Promoters (Primers): In some challenging cases, a special chemical primer can be applied to the hard part before overmolding. This primer acts as a "bridge" between the two otherwise incompatible materials.
Start with Chemistry: Select a chemically compatible pair. TPU/TPE with ABS/PC/PA is the most reliable path to success.
Reinforce with Mechanics: No matter what, always design a textured (etched) bonding surface on your hard part. If the chemical bond is uncertain or the part is under high stress, add undercuts or through-holes.
Control the Process: Use a high mold temperature and ensure the substrate is clean and warm when the soft material is injected.
By thoughtfully selecting your materials and designing for adhesion, you can leverage the full potential of overmolding to create products that are not only functional and durable but also a pleasure to hold and use.
