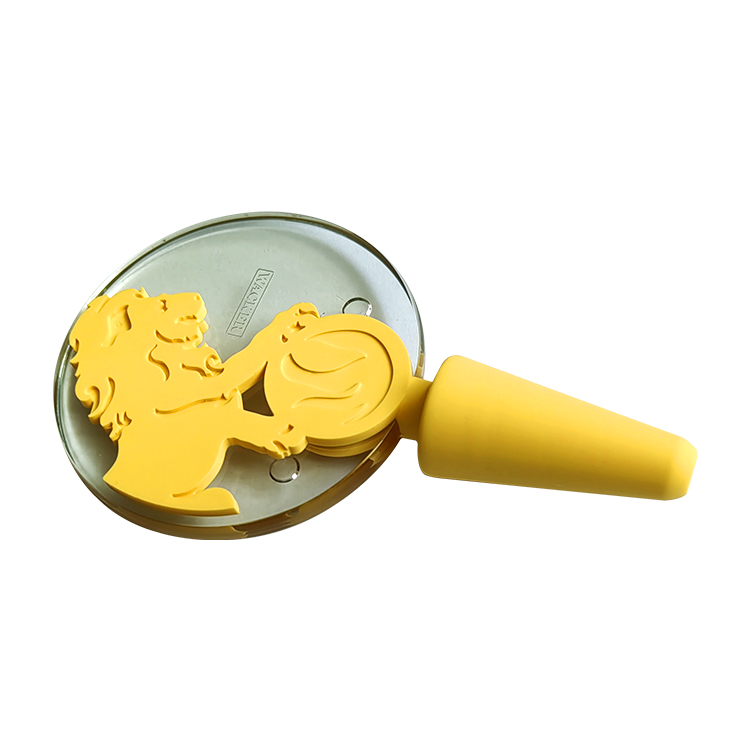

For the vast majority of overmolding applications, the ideal wall thickness for the soft material falls within a specific range:
General Recommended Range: 0.8 mm – 2.0 mm
Optimal Sweet Spot: 1.2 mm – 1.5 mm
This range represents the best compromise between functionality, manufacturability, and cost. Let's break down why venturing outside this zone is risky.
Designing an overly thin overmold section might seem cost-effective, but it introduces significant challenges:
Filling Issues: Soft thermoplastic elastomers (TPEs) have high viscosity. Ultra-thin walls can act as a barrier, leading to short shots (incomplete filling) as the material cannot flow to the end of the cavity before cooling.
Poor Adhesion: A thin layer provides minimal contact area with the substrate, drastically reducing the mechanical and chemical bond. This can result in delamination or peeling during use.
Compromised Feel: The primary purpose of a soft-touch overmold is often ergonomics. A thin, "skin-like" layer fails to provide the satisfying, cushioned feel users expect.
Mold Damage: Thin walls require higher injection pressure and can be more susceptible to wear, potentially shortening the mold's lifespan.
While a thick overmold might promise a luxuriously soft grip, it brings a different set of problems, with sink marks being the most notorious.
Sink Marks and Voids: Soft materials have a high shrinkage rate. As a thick section cools, the outer skin solidifies first. When the core later cools and shrinks, it pulls the surface inward, creating visible sinks or depressions. This is unacceptable for aesthetic surfaces.
Longer Cycle Times: Cooling time increases exponentially with wall thickness. A part that is 3mm thick takes significantly longer to cool than one that is 1.5mm thick, crippling production efficiency and increasing cost.
Adhesion Stress: The significant volumetric shrinkage of a thick overmold layer generates high internal stress. This stress can overcome the bond to the substrate, causing the overmold to curl away or detach.
Increased Material Cost: Using more material than necessary directly increases the part cost.
Beyond a single number, several principles are key to a successful design:
Maintain Uniform Wall Thickness: This is the most crucial rule. Aim for consistent thickness throughout the overmolded area to ensure uniform flow, cooling, and shrinkage. This is the most effective way to prevent sink marks and warpage.
Use Gradual Transitions: If a change in thickness is unavoidable, use gentle tapers or radii to transition between sections. Avoid abrupt changes, which cause flow lines, stress concentration, and potential failure points.
Leverage Mechanical Interlocks: The bond isn't just chemical. Design the substrate with features that create a strong physical lock:
Through-holes or blind holes: Allow the overmold to flow through, creating "anchors."
Undercuts and grooves: Provide a larger surface area for bonding and mechanical retention.
Surface texturing (e.g., EDM texture): A textured substrate dramatically increases the bonding surface area and can sometimes allow for slightly thinner wall designs.
Grip Patterns & Ribs: Small, isolated features like bumps or ribs can be thinner (e.g., 0.5 mm - 1.0 mm) because their small volume allows them to cool almost instantly, minimizing sink risk.
Sealing Gaskets: If the overmold serves as a seal, its thickness and shape are driven by the required compression and seal force, which may fall outside the standard guidelines.
| Scenario | Recommended Thickness | Rationale |
|---|---|---|
| Standard Grip Area | 1.2 mm - 1.5 mm | The ideal balance of feel, strength, and manufacturability. |
| Minimum Feasible | Do not go below 0.8 mm | Requires high-flow materials and excellent mold design. |
| Maximum (Risk Zone) | Avoid exceeding 2.5 mm | High risk of sink marks, long cycle times, and delamination. |
| Grip Patterns/Textures | 0.5 mm - 1.0 mm | Small cross-section cools quickly, preventing sinks. |
Final Pro Tip: Never finalize your design without a Mold Flow Analysis (CAE). This powerful simulation software predicts how the material will fill, pack, and cool in your specific mold. It will visually highlight potential sink marks, air traps, and weld lines, allowing you to optimize the wall thickness and gate location before cutting steel, saving you time, money, and headaches.
By adhering to these guidelines and collaborating closely with your material supplier and mold maker, you can confidently design overmolded parts that are reliable, beautiful, and efficient to produce.
