Medical Plastic Molding: Key Processes for Healthcare Products

1. Top Molding Processes for Medical Plastics

Precision Injection Molding (Most Common)

• Accuracy: 5-10 μm

• Materials: PP, PC, PE, PS

• Applications: Syringes, IV connectors, surgical tools

• Key Features:

• High-volume production

• Mirror-finish polishing (Ra <0.05μm)

• Validated under ISO 13485 & FDA standards

Micro Injection Molding (For Miniature Parts)

• Accuracy: 1-5 μm

• Materials: PEEK, LCP, PMMA

• Applications: Microfluidic chips, catheter tips, hearing aid components

• Key Features:

• Ultra-high pressure (up to 3,000 bar)

• Micro-cavity molds (Swiss CNC machining)

• Used in minimally invasive devices

Liquid Silicone Rubber (LSR) Molding (Flexible & Biocompatible)

• Accuracy: 10-20 μm

• Materials: Medical-grade silicone (USP Class VI certified)

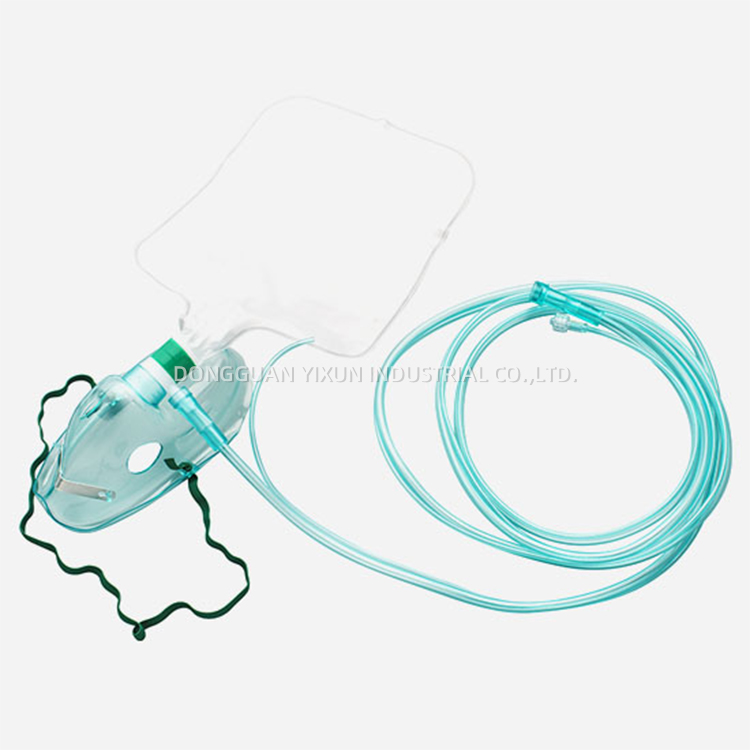

• Applications: Respiratory masks, seals, implantable components

• Key Features:

• Cold-runner systems (minimal waste)

• Self-sealing gates for flash-free parts

• High-temperature vulcanization

Two-Shot / Overmolding (Multi-Material Parts)

• Accuracy: 15-30 μm

• Materials: TPE + rigid plastics (e.g., PC, ABS)

• Applications: Ergonomic grips, drug delivery devices

• Key Features:

• Eliminates assembly steps

• Soft-touch surfaces for patient comfort

Gas-Assisted Injection Molding (Lightweight & Strong)

• Accuracy: 20-50 μm

• Materials: ABS, PC, Nylon

• Applications: Hollow-handle surgical instruments, enclosures

• Key Features:

• Reduces material usage by 30%+

• Prevents sink marks in thick sections

Insert Molding (Metal-Plastic Hybrids)

• Accuracy: 10-15 μm

• Materials: Stainless steel + medical plastics

• Applications: Orthopedic implants, endoscopic tools

• Key Features:

• Enhanced structural integrity

• Eliminates secondary bonding

2. Critical Mold Requirements for Medical Devices

✅ Surface Finishing & Coatings

• Mirror polishing (Ra <0.1μm for bacterial resistance)

• DLC (Diamond-Like Carbon) coating (wear resistance)

• Antimicrobial coatings (silver-ion infused)

✅ Cleanroom Molding Standards

• ISO Class 7/8 cleanrooms (for Class II/III devices)

• Ultrasonic + plasma cleaning (removes sub-micron particles)

• VCI (Vapor Corrosion Inhibitor) packaging (prevents oxidation)

✅ Validation & Compliance

*(FDA/ISO 13485 required for production molds)*

3. Emerging Trends in Medical Molding

3D-Printed Conformal Cooling Molds

• Benefits: 30% faster cycle time, better part consistency

• Example: Johnson & Johnson uses EOS metal 3D printing for spinal implant molds

AI-Driven Process Optimization

• Siemens’ AI software predicts ideal injection parameters

• Reduces trial runs by 50%

Sustainable Molding Solutions

• Bio-based resins (PLA, PHA for disposable products)

• Recyclable silicone (experimental grades from Dow & Momentive)

4. How to Choose the Right Process?

Final Thoughts

Medical plastic molding is evolving with smarter, cleaner, and more precise technologies. Manufacturers must balance regulatory compliance, material science, and advanced tooling to succeed in this demanding field.
