Transitioning a medical device from initial design concepts to commercial-scale production requires much more than a standard manufacturing setup. For critical applications like implantables, fluid delivery systems, and surgical tools, the production environment directly dictates regulatory compliance. It also guarantees patient safety in life-or-death scenarios. Engineers face immense pressure to accelerate time-to-market. However, rushing the vendor selection phase introduces unacceptable risks.
A major reality check exists in this highly regulated industry. An accredited cleanroom alone cannot compensate for a poorly engineered tool. True quality stems from a comprehensive, holistic approach. You must align precision-built tooling with strict environmental controls and highly verifiable quality management systems.
This article provides a transparent, criteria-driven framework for your success. We will explore how to evaluate facility requirements, engineering standards, and essential quality validation processes. You will learn actionable strategies to streamline your workflows. These insights help procurement and engineering teams shortlist truly capable manufacturing partners.
Design for Environment: A true medical mold is engineered specifically for cleanroom use—utilizing specialized metallurgy and oil-free mechanisms to prevent particulate generation.
Class Selection Matters: Over-specifying cleanroom classes (e.g., demanding ISO 7 when ISO 8 suffices) unnecessarily inflates unit economics; specification should align strictly with device risk classifications.
Validation is Proof: Consistent quality relies on rigorous IQ/OQ/PQ validation protocols, ensuring the mold performs predictably within the controlled environment.
Baseline Compliance: An ISO 13485-certified Quality Management System (QMS) is a non-negotiable baseline for full material and process traceability.
Procuring tooling from a facility lacking a medical-specific Quality Management System (QMS) introduces severe regulatory risks. During FDA or European MDR audits, inspectors scrutinize every single production layer. Missing documentation can halt your product launch entirely. Regulatory bodies expect you to control your entire supply chain. If your supplier fails an audit, your product carries the consequences. To prevent these costly delays, you need a manufacturing partner adhering to stringent international standards.
An ISO13485 mold manufacturing environment ensures absolute end-to-end traceability. This rigorous tracking spans from the initial raw steel certification to the final dimensional part inspection. You always know exactly where materials originated because suppliers maintain detailed Certificates of Analysis (COA). You also know exactly how specific operators processed them on any given day.
Proper risk mitigation physically and procedurally separates consumer-grade manufacturing from true medical-grade execution. Standard manufacturing often relies on verbal instructions, generic guidelines, and loose tolerances. Medical manufacturing demands comprehensive Device Master Records (DMR). It also requires rigid Corrective and Preventive Action (CAPA) processes. If a defect occurs on the floor, CAPA systems isolate the root cause immediately. Quality teams document the fix and prevent recurrences systematically.
Compliance represents much more than just filing paperwork. It acts as a powerful trust signal for your stakeholders, investors, and regulatory bodies. It proves the supplier embraces a demonstrated culture of risk management and defect prevention. When engineers build your tooling under these conditions, they proactively anticipate failure modes. This foresight protects your supply chain integrity. It ultimately protects your end users from critical device failures.
Navigating airborne classification standards can feel overwhelming during the planning phase. Understanding the practical differences between ISO Class 7 (Class 10,000) and ISO Class 8 (Class 100,000) environments is crucial. Making the wrong choice directly impacts your unit economics and project feasibility over the long term.
Consider a simple decision framework balancing project cost against patient risk. ISO 8 environments perfectly suit non-invasive devices, diagnostic housings, and secondary packaging elements. They control contamination effectively without demanding extreme operational overhead. Conversely, ISO 7 environments remain strictly mandatory for surgical instruments, implantables, and fluid-pathway components. These critical applications demand tighter particle restrictions to ensure absolute safety.
Airborne particulate counts only tell part of the story. Successful cleanroom molding also requires rigorous bioburden testing schedules. Bioburden testing measures the actual viable microorganisms present on surfaces. Controlling non-viable particles does not automatically guarantee sterility. Therefore, you must implement dual-monitoring strategies. Airflow dynamics play an equally critical role in facility design. Laminar airflow systems push contaminants straight down and out of the room efficiently. Turbulent airflow can accidentally circulate dangerous particles around the injection press.
Avoid the common industry mistake of over-specifying your production requirements. Demanding an ISO 7 environment when ISO 8 suffices unnecessarily inflates your tooling and piece-part costs. You must carefully map your specific medical plastic parts to the correct ISO tier. This strategic alignment optimizes your budget while maintaining full regulatory compliance.
Cleanroom Classification Comparison
ISO Class | Max Particles (≥ 0.5µm per m³) | Air Changes Per Hour | Typical Medical Applications |
|---|---|---|---|
ISO 7 (Class 10,000) | 352,000 | 60 - 90 | Implantables, surgical instruments, fluid pathways |
ISO 8 (Class 100,000) | 3,520,000 | 10 - 25 | Diagnostic housings, non-invasive tools, secondary packaging |

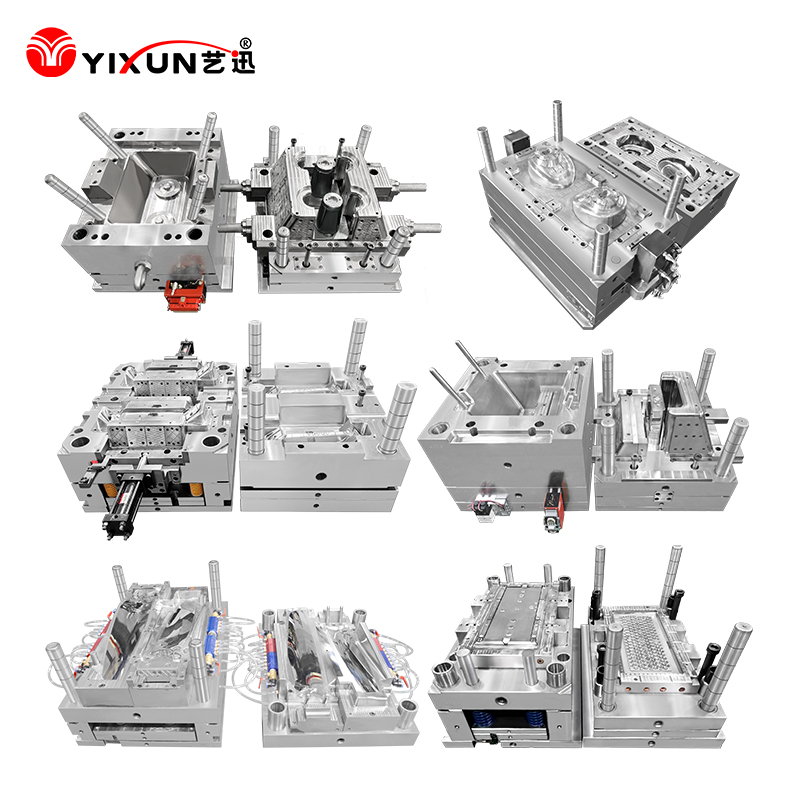

Operating a standard tooling setup inside a pristine environment guarantees failure. A conventional design will quickly contaminate the surrounding air through mechanical friction and polymer outgassing. The medical injection mold itself must be purpose-built from the ground up for superior particulate control.
We must address several key design requirements to protect these specialized rooms. First, engineers must eliminate standard greases entirely. Conventional lubricants attract dust and off-gas heavily under high operational heat. Instead, we use self-lubricating bronze components or specialized dry-film lubricants for all pins, lifters, and slides. This keeps the moving mechanisms actuating freely without shedding microscopic particles onto the sterile products.
Metallurgy represents another critical engineering pillar. A true medical mold utilizes premium high-grade stainless steels, such as 420 SS or H13. These specific materials strongly resist oxidation over time. Regulated facilities require frequent sanitization using harsh, alcohol-based cleaning agents. Inferior steels will rust, pit, and ultimately fail under these aggressive cleaning regimens, causing massive production delays.
Actuation and venting also demand highly specialized attention. You should specify fully electric presses over traditional hydraulic machines. Hydraulic fluid leaks and oil-mist generation introduce severe contamination risks that can shut down a facility. Additionally, designers must create optimized venting pathways. Venting depths must fall within strict micron tolerances. If vents are too shallow, they cause short shots and gas burns. If they are too deep, plastic flashes into the vent, creating dangerous microscopic flakes during part ejection.
Expertly engineered design directly impacts your long-term success. It determines how easily your facility maintains its certified ISO rating over time. Precision engineering prevents the hardware from becoming a primary source of contamination itself.
An evidence-oriented evaluation process separates elite manufacturers from average job shops. A supplier must mathematically prove their equipment is capable of repeatable, defect-free production. They achieve this through rigorous validation protocols rather than operational guesswork.
The framework involves three distinct, mandatory validation stages:
Installation Qualification (IQ): This initial phase verifies the equipment and the injection press are installed exactly to specification. Engineers rigorously check power supplies, chiller flow rates, alarms, and safety mechanisms to ensure baseline functionality.
Operational Qualification (OQ): During this highly analytical stage, technicians establish the upper and lower processing windows. They execute Design of Experiments (DOE) to test temperature extremes, holding pressures, and injection speeds. This helps them find the safest operational boundaries and ideal parameters.
Performance Qualification (PQ): Finally, the engineering team runs the equipment at nominal conditions over extended periods. This stage proves long-term stability across different material lots and operator shifts. You will typically review Cpk and Ppk metrics. A Cpk score above 1.33 confirms strong statistical reliability.
Passing initial validation is only the beginning of the journey. True quality assurance requires continuous vigilance during daily production runs. Top-tier facilities deploy automated vision inspection systems right at the press. These high-speed cameras catch microscopic surface defects human operators might easily miss. Inline dimensional checks ensure every batch meets strict print tolerances before leaving the floor.
Finally, rigorous batch-record retention guarantees you can trace any future field issues back to the exact hour of production. Operators must document every single material lot change. Quality engineers review these logs weekly to identify subtle process drifts before they cause out-of-spec failures.
Marketing claims look impressive on a website, but they rarely tell the whole story. You need solid, objective criteria for auditing a potential manufacturing partner. The shortlisting logic must focus on verifiable data rather than glossy corporate brochures.
When evaluating suppliers, use this essential audit checklist:
Do they maintain dedicated facility maintenance protocols and undergo frequent third-party certification audits?
Can they provide sanitized examples of past IQ/OQ/PQ documentation to prove their actual validation expertise?
Is their tooling manufactured completely in-house, or do they outsource critical steps overseas?
Do they utilize advanced metrology equipment like coordinate measuring machines (CMM) for precise verification?
How do they manage raw material traceability and sub-tier supplier qualifications?
In-house manufacturing offers a distinct, measurable advantage. It allows for much faster troubleshooting and adjustments during the rigorous qualification phases. If a dimensional issue arises during OQ testing, an in-house machine shop can correct the tool steel immediately. Outsourced setups often cause weeks of unnecessary delays.
Your procurement team must take decisive next-step actions. Advise your lead engineers to request a comprehensive on-site audit before signing contracts. Review the supplier's QMS manual in granular detail. Furthermore, carefully evaluate the vendor's disaster recovery plans and formal change-control procedures. When operators alter a parameter, they must document the justification. A stringent QMS locks out unauthorized users from the machine controller entirely. This strict governance protects the validated state from human error.
Successful medical component production relies on a powerful, multifaceted synthesis. It requires highly compliant environments, precision-engineered, oil-free tooling, and rigorous validation frameworks working in perfect harmony. You cannot isolate one single element and expect outstanding commercial results.
Procurement teams often face intense pressure to choose the cheapest initial quote. However, this short-sighted approach frequently results in massive hidden compliance costs downstream. A delayed regulatory approval costs exponentially more than premium engineering up front. Always select a partner based on their verifiable process stability and deep quality culture.
Take proactive action today to secure your upcoming product launch. Schedule an intensive engineering review of your CAD files with a specialized manufacturing team. You can also request an ISO 13485 capability audit to ensure your next project confidently meets all regulatory demands while protecting patient safety.
A: No. ISO 7 is typically reserved for implantables and fluid-contact devices. Many external components and diagnostic housings can be safely and compliantly manufactured in an ISO 8 or controlled white-room environment, reducing costs.
A: Medical molds prioritize particulate control. They utilize stainless steel to resist harsh sanitizers, employ self-lubricating moving parts to eliminate grease, and are built to tighter tolerances to pass strict IQ/OQ/PQ validation.
A: Look for an active ISO 13485 certification, robust change-control procedures, documented traceability of raw materials, and a proven track record of rigorous mold validation (IQ/OQ/PQ).
