Medical Grade Compatibility PP+ 0.3% Antibacterial 718H Steel Nebulizing Tube Injection Mold

Medical Grade Compatibility PP+ 0.3% Antibacterial 718H Steel Nebulizing Tube Injection Mold

This is a high-precision injection mold specially designed for manufacturing medical-grade antibacterial nebulizing tube components. Built with 718H mold steel and optimized for medical-grade PP with 0.3% antibacterial additives, this mold delivers consistent, hygienic, and dimensionally stable plastic parts for respiratory therapy devices. It features a precision threaded interface molding design, ensuring leak-proof connections and meeting the strict hygiene requirements of the medical industry.

Quantity:
Availability:





Inquire Add to Basket

Model:
21246
Brand:
YIXUN mold
Code:
8480419090

Product Description

1. Product Overview

This is a high-precision injection mold specially designed for manufacturing medical-grade antibacterial nebulizing tube components. Built with 718H mold steel and optimized for medical-grade PP with 0.3% antibacterial additives, this mold delivers consistent, hygienic, and dimensionally stable plastic parts for respiratory therapy devices. It features a precision threaded interface molding design, ensuring leak-proof connections and meeting the strict hygiene requirements of the medical industry.

2. Core Features

✅ Medical-Grade Material Compatibility

Engineered for medical-grade PP with 0.3% antibacterial additives, the mold’s cavity surface is polished to medical-grade standards to avoid residue buildup and ensure the antibacterial properties of the material remain intact after molding.

✅ 718H Steel Construction for Medical Applications

Using premium 718H pre-hardened mold steel (28-32 HRC), the mold offers excellent wear resistance, dimensional stability, and corrosion resistance. It supports repeated EO sterilization cycles of the molded parts without mold degradation, ensuring long-term production consistency.

✅ Precision Threaded Interface Molding

The mold is equipped with a high-precision rotational unscrewing mechanism for the threaded connector section, ensuring thread pitch accuracy ≤ ±0.02 mm. This eliminates visible parting lines on the thread surface, guaranteeing airtight, leak-proof connections between the nebulizing tube and device.

✅ Cleanroom-Quality Mold Surface Treatment

All mold cavities are polished to Ra ≤ 0.4 μm to meet medical-grade cleanliness requirements. The smooth inner surface prevents bacterial adhesion, reduces drug residue on molded parts, and supports easy cleaning and sterilization.

✅ High-Cavity Efficiency for Mass Production

Available in multi-cavity configurations (customizable 2/4/8 cavities), the mold is optimized for short cycle times while maintaining consistent part quality. The balanced runner system ensures uniform melt flow, preventing material degradation and preserving the antibacterial additive efficacy.

✅ Strict Tolerance Control for Medical Parts

All critical dimensions (thread diameter, wall thickness, connector fit) are controlled to ±0.03 mm tolerance. The mold undergoes rigorous dimensional inspection to ensure every nebulizing tube component meets ISO 13485 medical device standards.

3. Mold Specifications

Item	Specification
Mold Name	Antibacterial Nebulizing Tube Component Injection Mold
Mold Base	Standard LKM or HASCO mold base (customizable)
Mold Steel	718H (Cavity & Core)
Mold Hardness	28-32 HRC (as delivered)
Cavity Number	2/4/8 cavities (customizable)
Suitable Material	Medical Grade PP + 0.3% Antibacterial Additive
Mold Life	≥ 500,000 shots
Demolding System	Rotational unscrewing mechanism + ejector pins
Cooling System	Optimized water channel design for uniform cooling
Surface Treatment	Medical-grade mirror polishing (Ra ≤ 0.4 μm)
Applicable Machine	80-160 ton injection molding machine
Mold Certification	ISO 9001, compatible with medical device production requirements

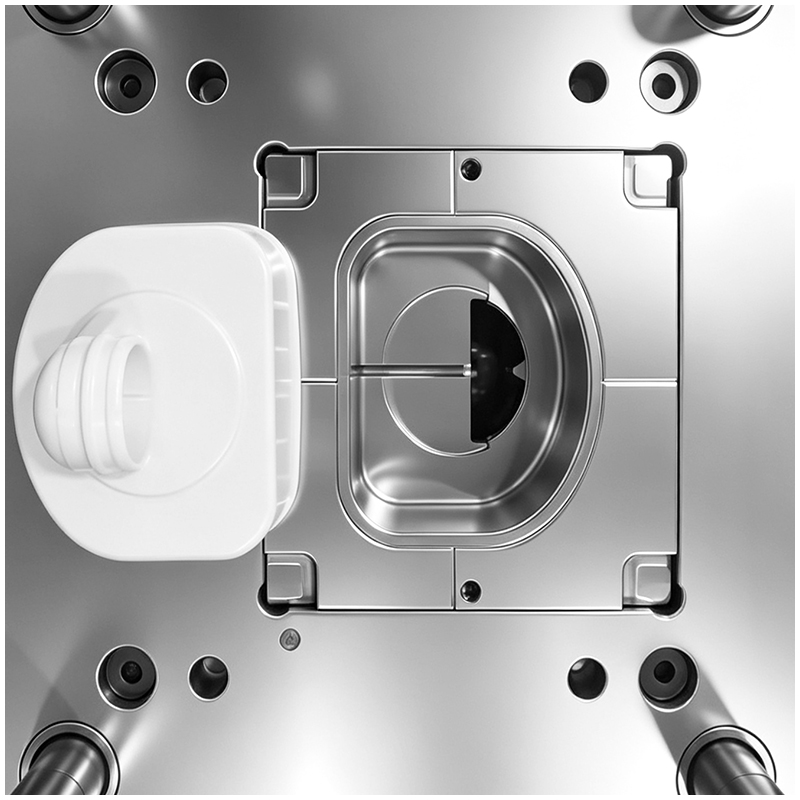

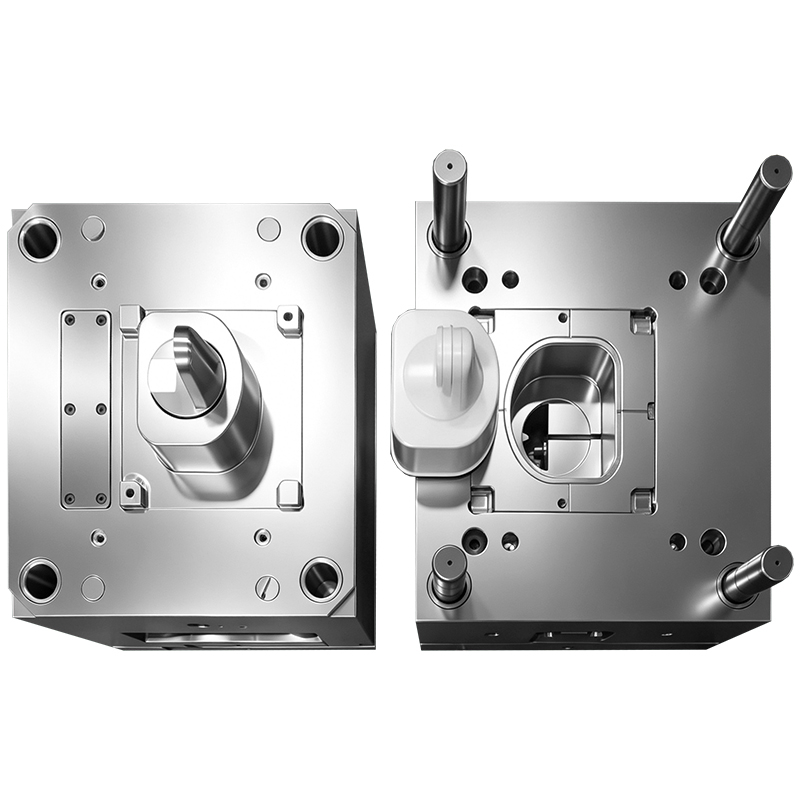

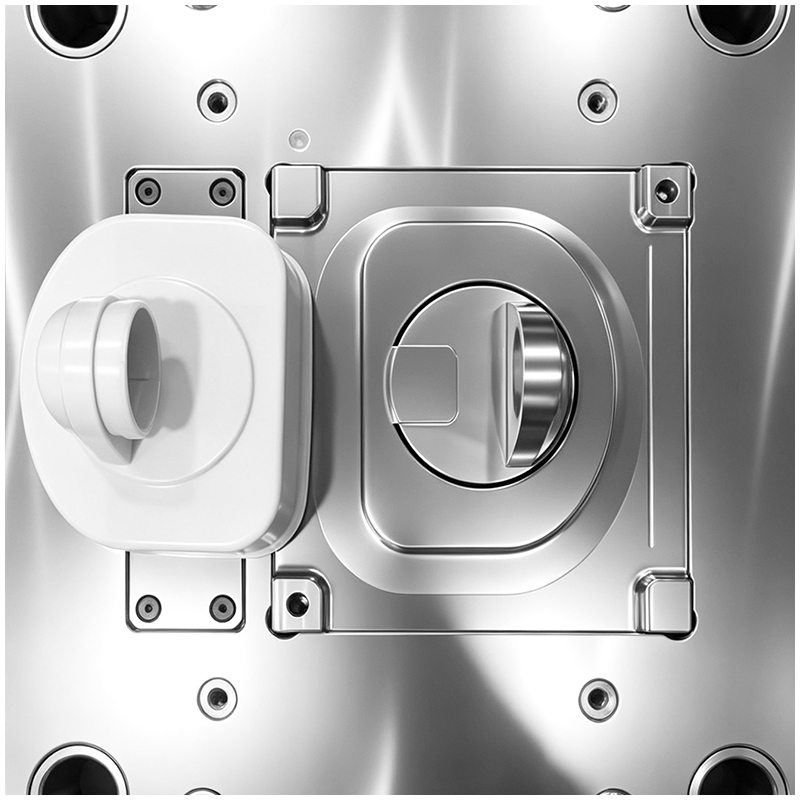

Nebulizing Tube connector Injection Mold

4. Application & Benefits

Primary Application: Manufacturing threaded nebulizer tube connectors, bases, and adapter components for medical inhalation therapy devices.
Key Benefits:

Produces parts that retain 99% of the antibacterial efficacy of the raw material, meeting hygiene requirements for disposable medical devices.
The 718H steel mold resists wear and corrosion, ensuring consistent thread quality over long production runs.
Precision molding eliminates leaks and connection failures, reducing product returns and improving patient safety.
The high-efficiency mold design supports mass production, lowering per-unit costs without compromising medical-grade quality.

5. Quality Assurance

All molds undergo the following quality checks before delivery:

Dimensional verification of all mold components and cavities
Mold trial run with medical-grade PP + 0.3% antibacterial additive to confirm material compatibility
Thread fit testing of molded parts to ensure leak-proof connection
Surface cleanliness inspection to meet medical hygiene standards
Mold cycle test to verify production stability and consistency

FAQ

Q1: Can this mold process other medical-grade plastics besides antibacterial PP?

A1: Yes, it can be adjusted to process medical-grade PE, EVA, and TPE materials, with minor modifications to the runner and cooling system.

Q2: How does the mold ensure the antibacterial properties of the material are not affected?

A2: The mold is designed with a low-shear runner system and controlled melt flow path to avoid overheating the material, which preserves the activity of the antibacterial additive.

Q3: What is the lead time for this mold?

A3: Standard lead time is 4-6 weeks for 2/4 cavity molds, with expedited options available for urgent orders.

Q4: Can the mold be modified for different thread specifications?

A4: Yes, we offer customization for different thread pitches, diameters, and connection standards to match your nebulizer device requirements.

Nebulizing Tube connector plastic mold Nebulizing Tube connector Injection Mold Medical Grade Compatibility mould
