Medical Breathing Circuits Moulds

Over the decades, Yixun have offer mold and moulding soluton to global customers from 100 countries.

Customer send us the drawing or sample, and the forecast, we propose customer the comprehensive solutions including

the mold steel option

The mold cavity

The parts QTY layout in mold

reliable mold structure

plastic resin selection if customer want us to suggest

mold dimensions and weight

mold injection machine tonage

moulding fixture if needed

moulding automation

shiping package method and package dimensions

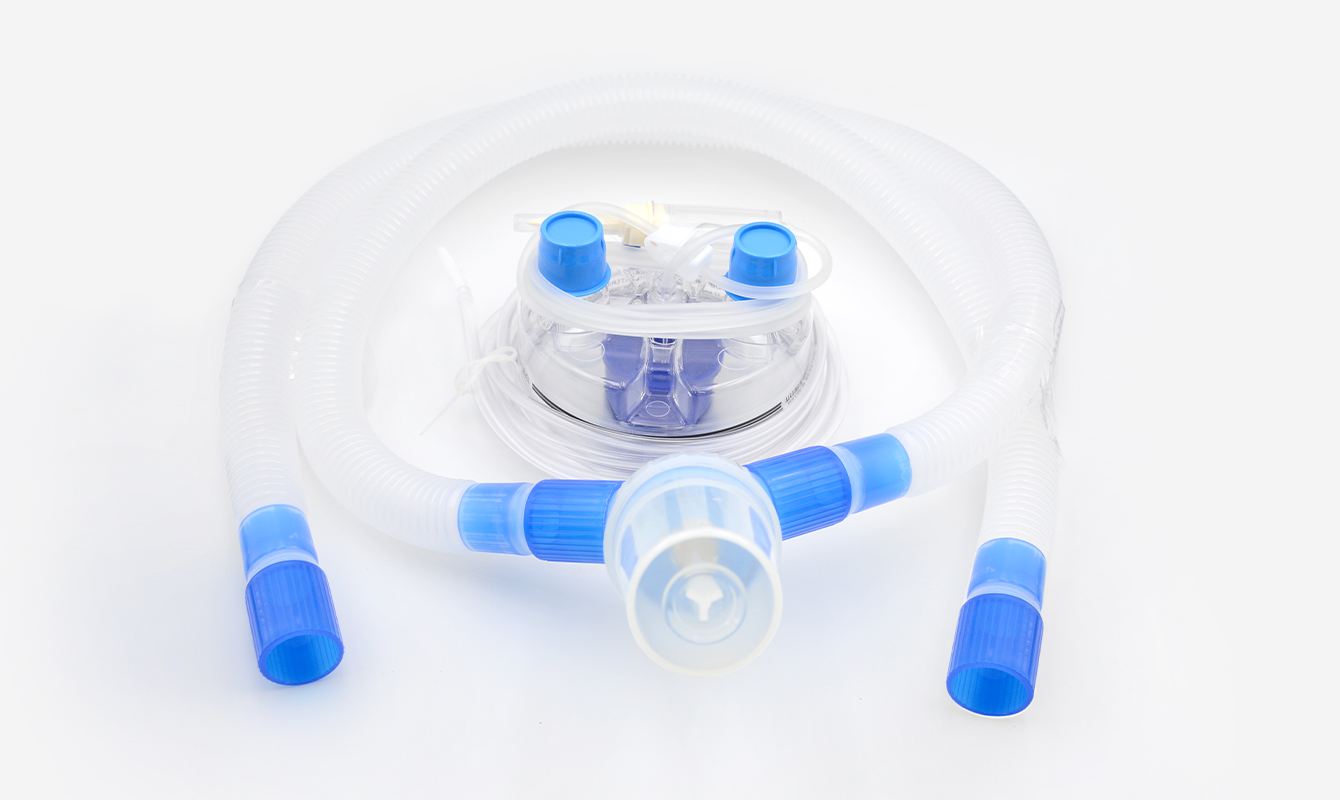

Project: Breathing circuits

This project is a medical product, with mainly the plastic injection part, some rubber parts,

And one aluminum part and soft tubes .

Customer have one 120T and one 130T of Haitian injection machine, extrusion machines.

So we propose customer the injection molds solutions:

Mold cavity number : 4 cavity .

the gate: sub gate , the part and runner can separate by itself.

The mold steel : STAVAX Stainess steel ( the Sweden S136)

Mold base and mold componets : LKM

The surface finshed : Polished , A1

The thread released by automatic rotating system

The aluminum part is proposed by stamping mold solution:

Mold type: progressive mold

Mold steps: 4 steps engineerings

Mold steel: SKD11

The Rubber parts made by heating press mold:

Material : NBR

Pls contact us with your part drawings to inquiry solution and price !!!
