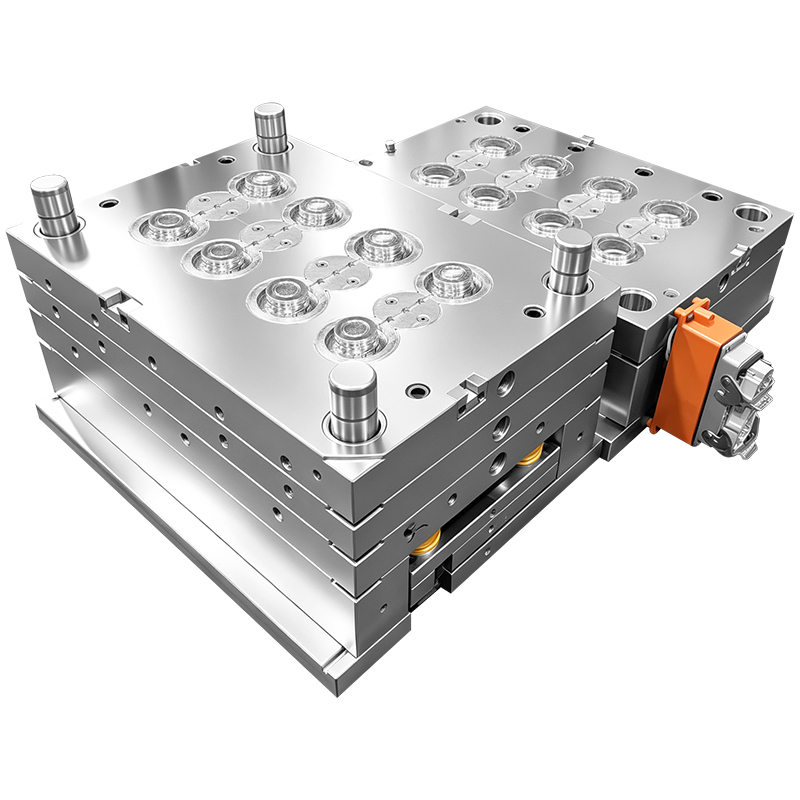

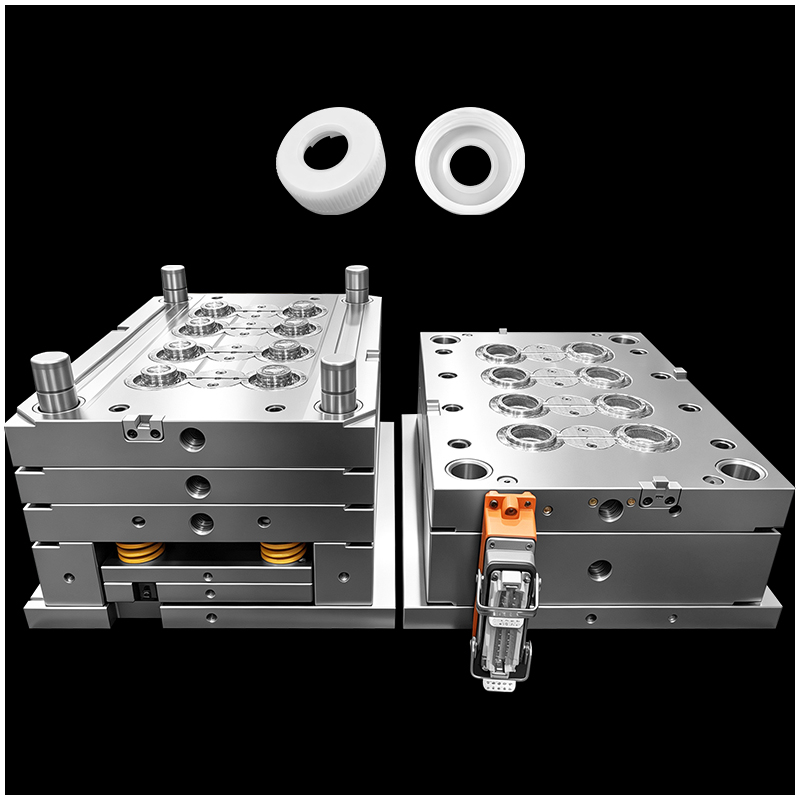

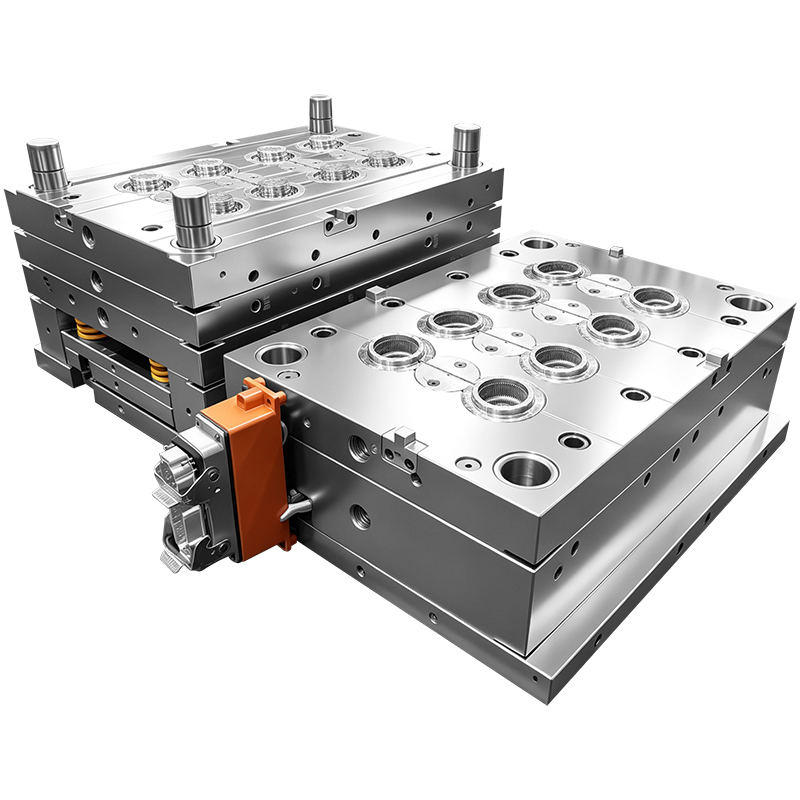

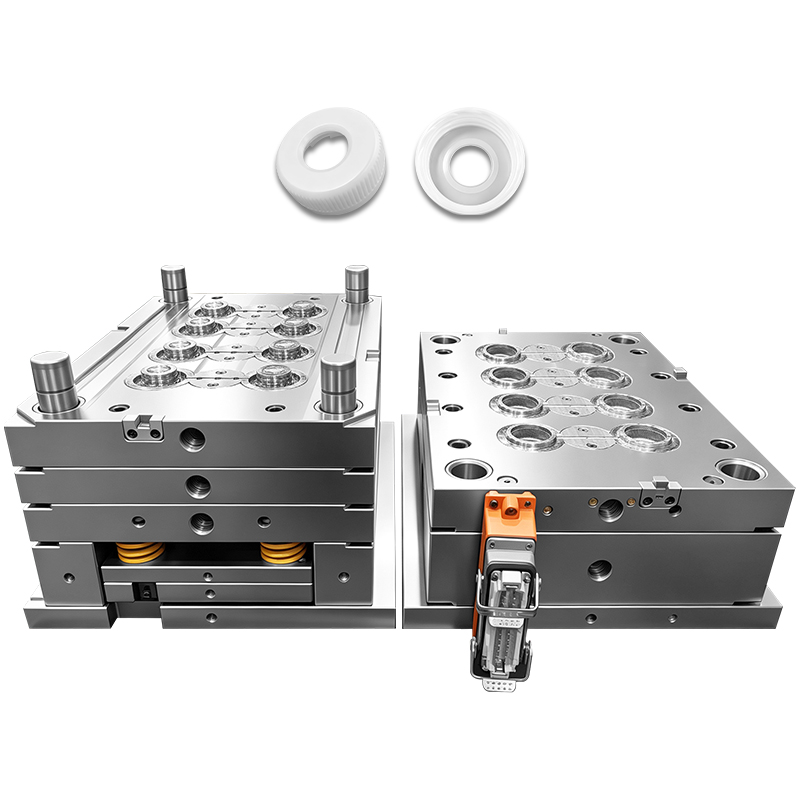

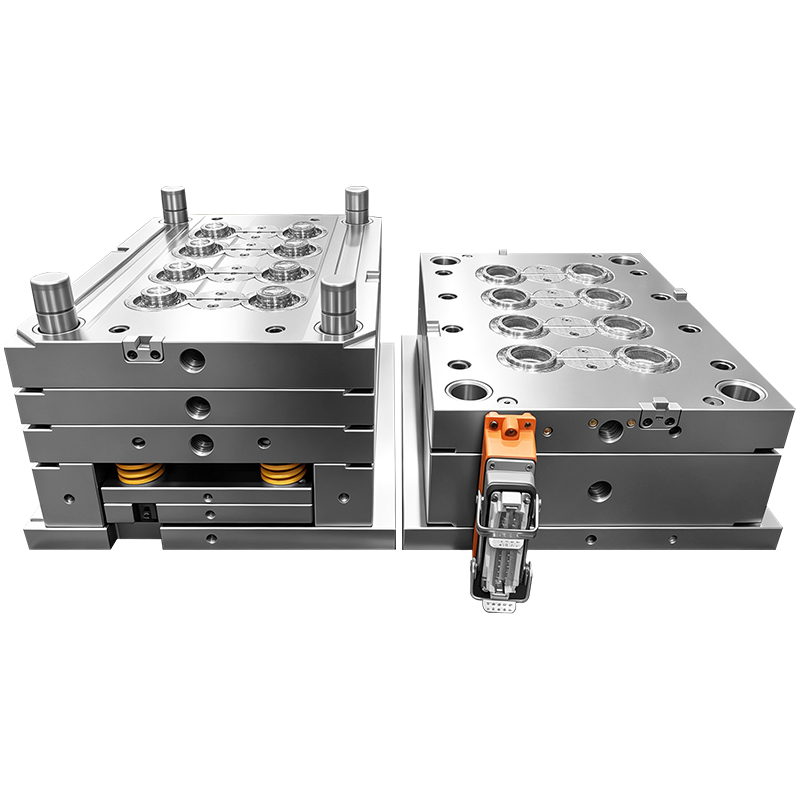

This precision multi-cavity injection mold is custom-built for mass production of white plastic knurled threaded rings, widely used in water treatment fittings, cosmetic bottle caps, household appliance connecting nuts and filter assembly accessories. Designed with an evenly distributed 8-cavity layout and integrated hot runner system, the mold ensures uniform filling, stable dimensional tolerance and high surface finish for continuous large-volume manufacturing.
Parameter Item | Detailed Information |
|---|---|
Mold Name | Light Weight Anti-Slip 8 Cavity Multi Part HDPE Screw Cap Without Sink Mark Injection Mold |
Cavity Quantity | 8 cavities (balanced symmetric layout) |
Feeding System | Full hot runner system with individual gate control per cavity |
Mold Base Material | S50C pre-hardened steel, standard mold base with guide pin & sleeve |
Cavity & Core Steel | 718H / P20; optional S136 for food-grade & corrosion-resistant molding |
Surface Treatment | High-gloss mirror polishing + precise knurling texture machining |
Cooling Structure | Independent circulating water channel surrounding each cavity for fast cooling |
Ejection System | Spring-assisted automatic ejection, fully compatible with automatic injection molding machines |
Compatible Raw Materials | PP, PE, ABS, food-grade plastic, white modified plastic |
Mold Lifespan | 500,000 – 1,000,000 production shots |
Matching Equipment | Universal horizontal injection molding machine |
Balanced 8-Cavity High-Yield Design
One molding cycle produces 8 complete threaded rings, effectively cutting down single-piece production cost and lifting daily output for bulk order demands. Symmetric cavity layout eliminates unbalanced melt flow to guarantee identical appearance and size for all parts.
Full Hot Runner Feeding System
Eliminates cold runner waste to save 15%~22% raw material consumption. Separate temperature adjustment for each gate prevents short shot, weld line and uneven gloss on knurled and threaded surfaces.
Precision Thread & Knurling Forming
Internal thread inserts are precision CNC machined for smooth screw assembly without burrs. External knurling texture is finely etched to deliver comfortable anti-slip grip, consistent texture depth across all molded products.
High-Efficiency Uniform Cooling Circuit
Dense, evenly arranged cooling channels wrap every mold cavity to accelerate cooling and shorten molding cycle time, while stabilizing plastic shrinkage rate to maintain tight tolerance for threaded fit.
Stable & Long-Lasting Mold Structure
Hardened guide pins and precise interlock positioning avoid mold shifting during long-term high-speed cycling. Built-in yellow compression springs support automatic ejection, no manual demolding required to realize unmanned production.

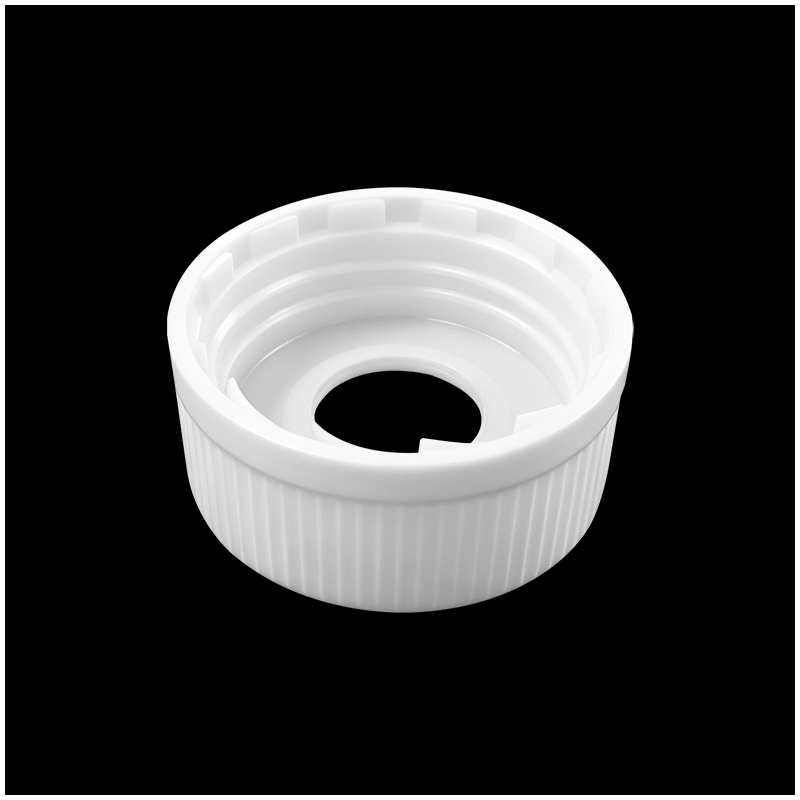

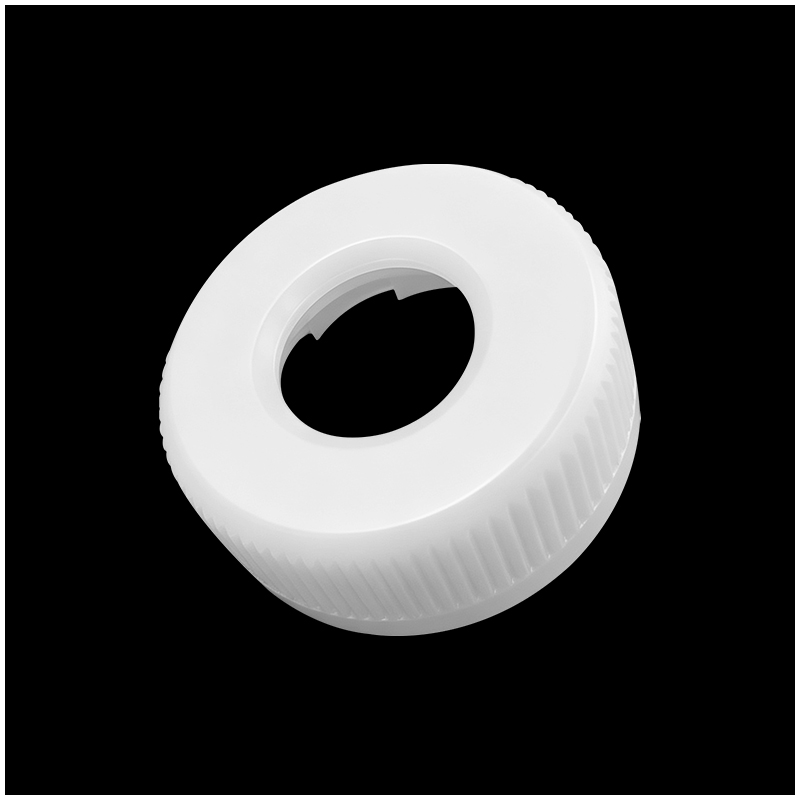

The white knurled threaded rings produced by this mold serve multiple mainstream industries:
Water purifier, filter & water pipe connecting fittings
Cosmetic, skincare bottle lock caps and sealing nuts
Small household appliance plastic connecting fasteners
Medical equipment plastic sealing ring components
Sanitary ware, shower and faucet plastic accessories
We provide full one-stop custom mold solutions tailored to your requirements:
Adjustable cavity count: 4/8/16 cavities available based on your monthly production capacity
Mold steel upgrade: S136 stainless steel for food contact and anti-rust molding scenarios
Optional hot runner brands: domestic reliable hot runner or international well-known hot runner systems
Customize thread pitch, knurl depth, outer diameter and inner hole size according to your 2D/3D drawings
Support mold trial sample delivery, on-site mold testing and lifelong technical after-sales guidance
A: Yes. We can upgrade cavity core steel to S136 stainless steel and optimize mold polishing to meet food contact plastic molding standards for PP/PE raw materials.
A: The standard manufacturing cycle is 22–32 working days after confirming your product 3D drawing and technical specifications.
A: We offer a 12-month warranty for core mold components, free mold test samples, detailed operation manuals and 24/7 remote technical troubleshooting.
A: The mold base adopts international standard dimensions. We can customize the mold height, width and mounting hole positions to match your specific injection machine model for seamless installation.
