Many medical R&D engineers confuse insert molding and overmolding. Both technologies combine multiple materials into one integrated part and eliminate manual assembly. However, they follow different manufacturing logic and fit different medical design requirements. Wrong selection may cause low yield, leakage risk and extended validation cycle for disposable medical consumables.
Insert molding loads prefabricated inserts into the mold cavity before injection, then inject molten plastic in one single shot. The inserts can be metal pins, medical filter cloth, pre-extruded tubing or ceramic components. Bonding relies on mechanical interlock through holes, undercuts or texture instead of chemical adhesion.

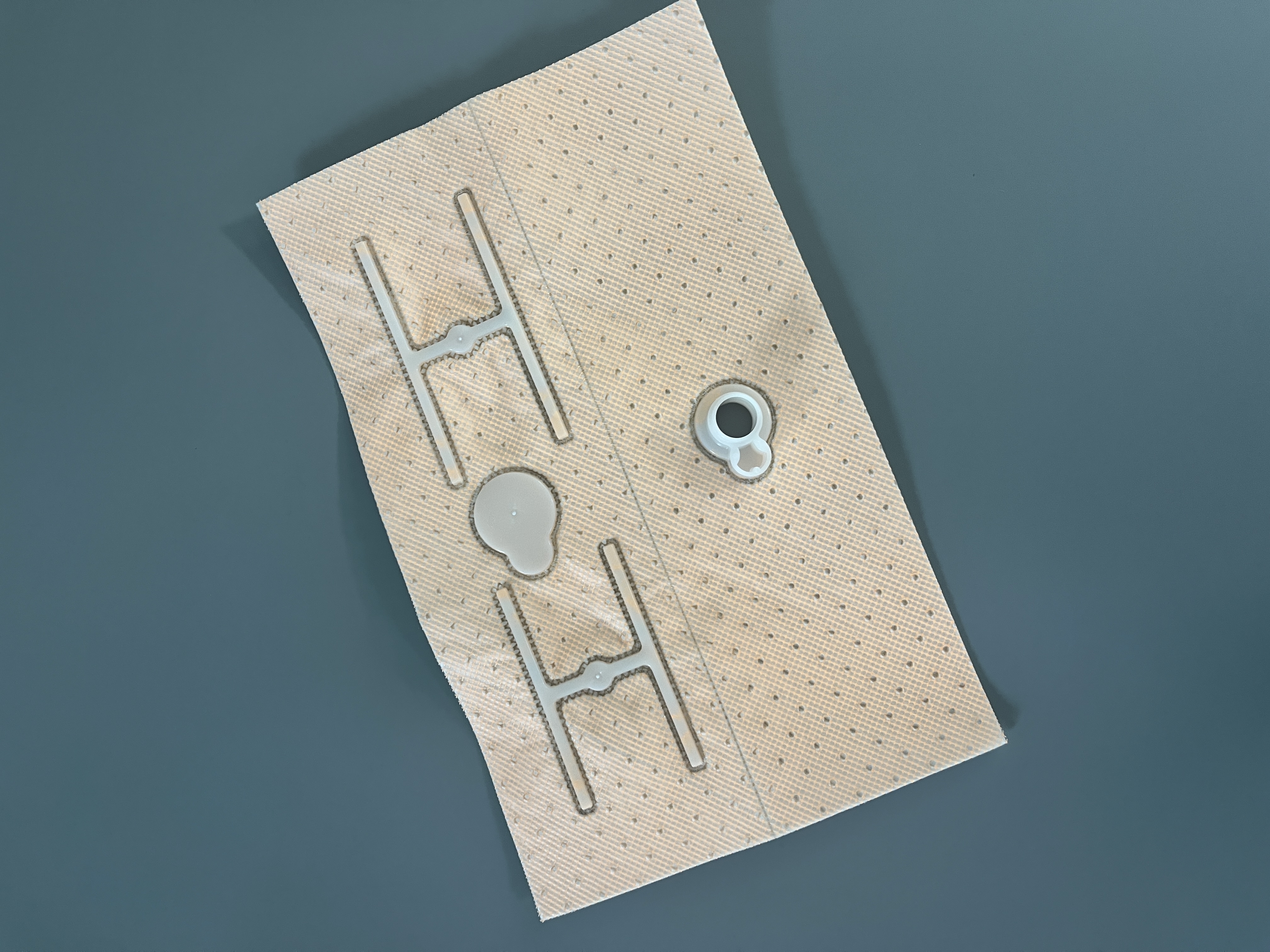

Typical single-use medical case: NPWT negative pressure wound therapy dressing. We load medical filter cloth into mold first, then inject POM to form integrated flow channels and suction ports.
Advantages
Lower tooling cost compared with 2-shot overmold tool
Compatible with flexible substrates like medical filter fabric
No adhesive required, avoids biocompatibility risk from glue
Key Risks High precision for insert positioning. Thin fabric inserts may shift, flash or tear under injection pressure.
Overmolding is a two-step molding process. Step 1: Inject rigid plastic substrate. Step 2: Transfer the molded substrate to the second cavity, inject secondary material (usually TPE / TPU soft elastomer) over the surface.
The substrate must be an already molded plastic part. The bonding depends on chemical compatibility + mechanical lock. If materials mismatch, delamination will happen.
Typical medical applications: soft grip for syringes, integrated sealing gaskets for disposable instruments.
Advantages Stable bonding between hard and soft plastic, good sealing & ergonomic touch, high consistency for mass production.
Key Risks Strict material compatibility requirement; 2-shot rotary mold is more expensive and longer lead time.
Item | Insert Molding | Overmolding |
|---|---|---|
Process | Single shot, preload inserts | Two sequential injection shots |
Substrate | Medical filter cloth, metal, pre-made tube | Molded rigid plastic substrate |
Bonding | Mechanical interlock | Chemical adhesion + mechanical lock |
Typical medical parts | NPWT dressing, catheter with embedded metal pin | Syringe soft grip, medical handle |
Tooling cost | Medium | Higher (2 rotary mold) |
Main concern | Insert shifting & tearing | Material delamination |
✅ Choose Insert Molding, when you need to embed medical filter cloth, nonwoven fabric, metal pins or preformed tube into plastic, such as NPWT wound dressing. ✅ Choose Overmolding, when you need a soft TPE sealing / anti-slip layer on rigid plastic housing.
For disposable medical devices, sterilization and biocompatibility must be considered. Insert molding avoids glue, which simplifies validation for sterile single-use consumables.
