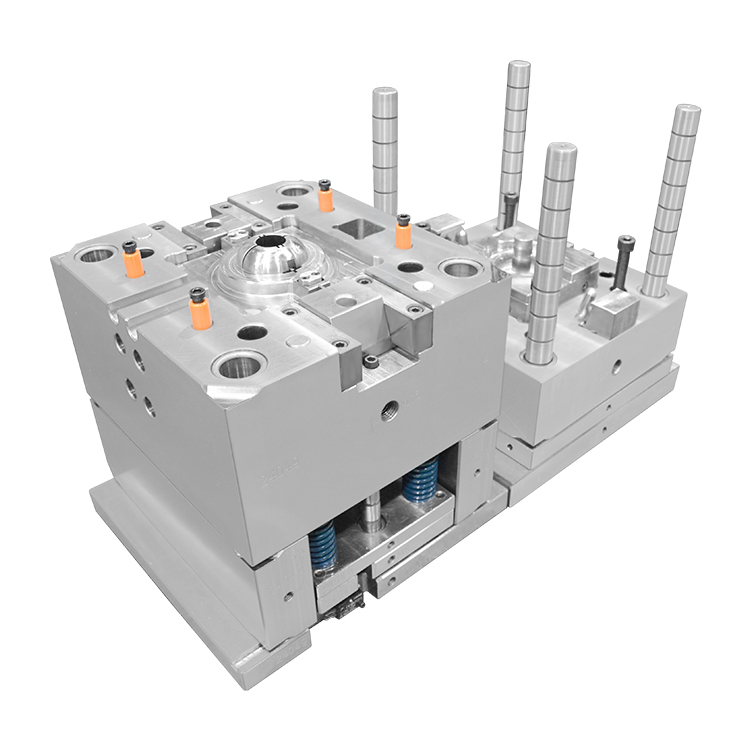

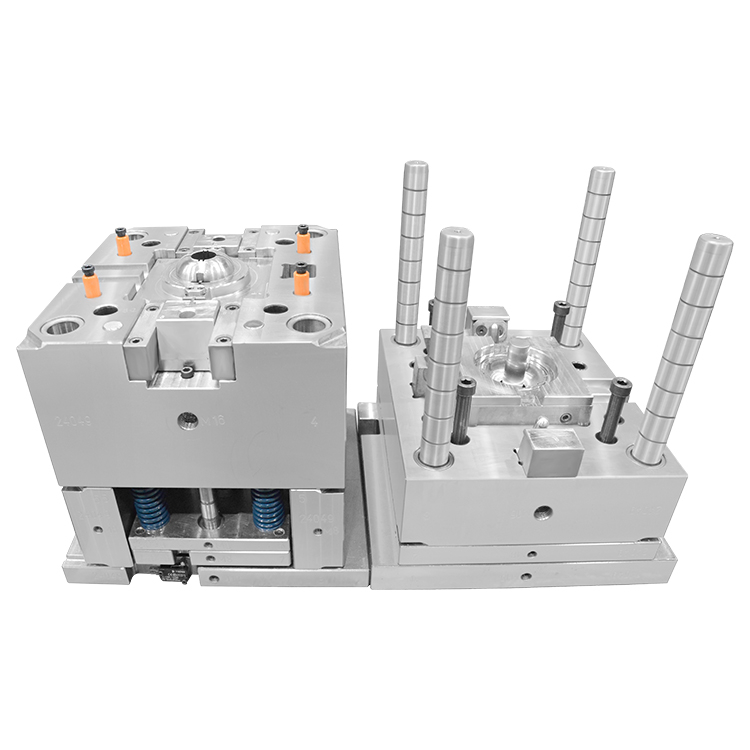

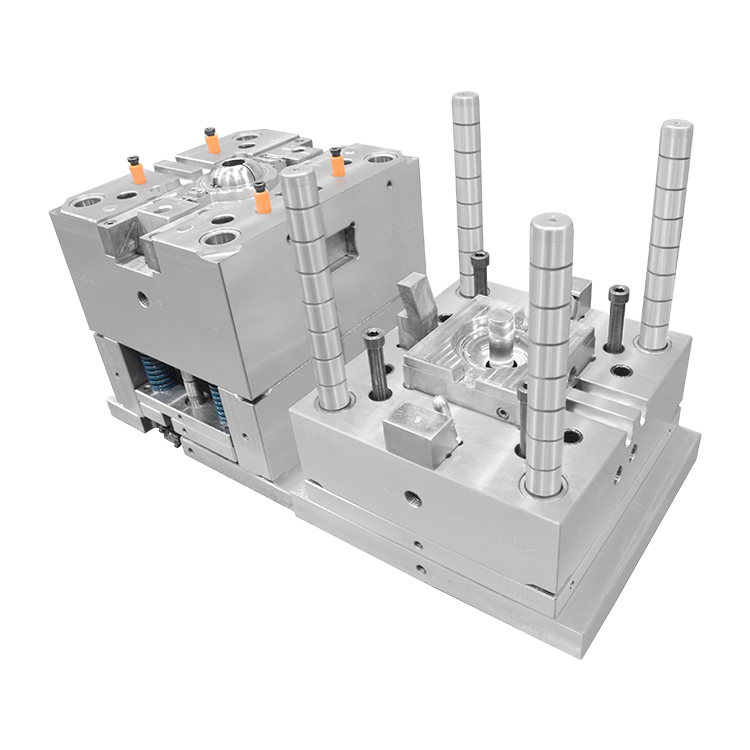

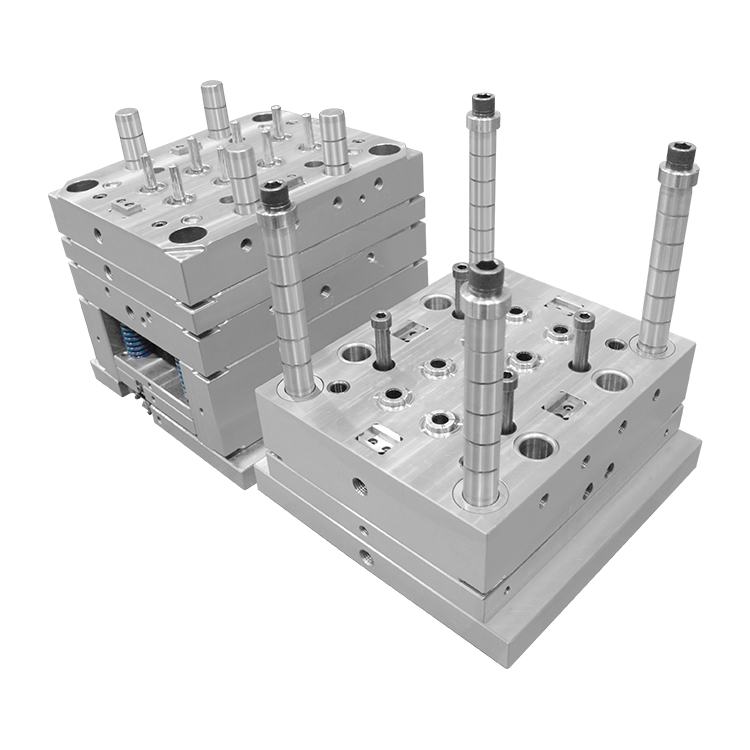

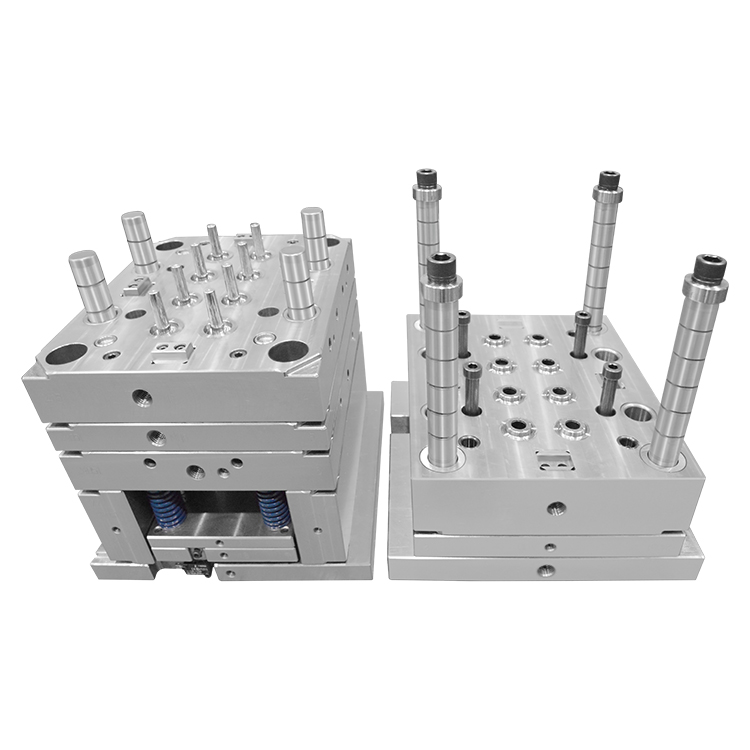

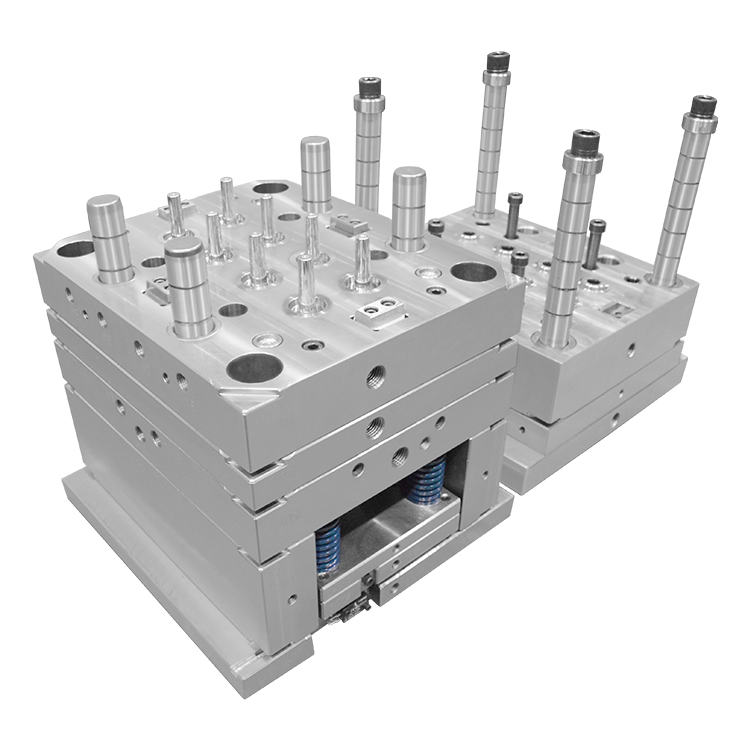

Injection Plastic Mold for Lens ABS/PC/PP Cold Runner Hot Runner Mold Maker

Lens Mold Specialization

Precision molds designed specifically for optical and transparent lens applications, suitable for ABS, PC, and PP materials with both cold runner and hot runner configurations.

Material Selection for Lenses

Lens-Specific Mold Requirements

Critical Design Features

1. High-Polish Cavities

• SPI-A1 (Mirror finish) or better

• Diamond polishing for optical surfaces

• Zero defects on optical areas

2. Precision Cooling System

• Balanced cooling for uniform shrinkage

• Beryllium copper inserts for critical areas

• Temperature control ±1°C

3. Venting System

• Micro-venting on parting lines

• Vacuum venting options for clarity

• Proper positioning to avoid weld lines

Runner System Selection for Lenses

Hot Runner Systems (Recommended for most lens applications):

• Advantages:

• No cold slug issues affecting clarity

• Better control over shear heating

• Reduced pressure loss

• Ideal for multi-cavity lens molds

• Types: Valve gate for gate vestige control

Cold Runner Systems:

• Advantages:

• Lower initial cost

• Simpler maintenance

• Suitable for prototype development

• Considerations: Tab gates preferred to minimize gate marks on optical surfaces

Technical Specifications

Optical Surface Requirements

• Surface Roughness: Ra ≤ 0.012 μm for optical areas

• Polish: Hard chrome plating or nickel plating for durability

• Flatness: ≤ 0.01mm across optical surface

• Parting Line Management: Critical for flash prevention

Gate Design for Lenses

• Location: Non-optical areas when possible

• Types:

• Pinpoint gates (hot runner)

• Tab gates (cold runner)

• Edge gates for larger lenses

• Gate vestige: ≤ 0.05mm for visible areas

Ejection System

• Methods:

• Air ejection for delicate lenses

• Blade ejectors for thin walls

• Stripper plates for round lenses

• Ejector marks: Positioned in non-optical areas

Mold Maker Capabilities

Essential Expertise

1. Optical Mold Design

• Experience with light transmission requirements

• Knowledge of refractive index considerations

• Birefringence minimization techniques

2. Precision Manufacturing

• CNC machining with micron accuracy

• EDM capabilities for complex geometries

• High-precision grinding

3. Polishing Expertise

• Diamond polishing technicians

• Clean room assembly capability

• Surface measurement equipment (profilometers)

Quality Assurance

• Measurement Tools:

• CMM for dimensional accuracy

• Optical comparators

• Surface roughness testers

• Interferometers for flatness

• Testing Protocols:

• Mold flow analysis for filling optimization

• Cooling analysis for uniform shrinkage

• First article inspection reports

• Sample production validation

Industry Applications

Common Lens Products

1. Lighting: LED lenses, diffusers, reflectors

2. Automotive: Interior lighting, signal lenses

3. Consumer Electronics: Camera lenses, light guides

4. Medical: Instrument windows, light covers

5. Safety Equipment: Goggles, protective shields

Material-Specific Processing Guidelines

For PC Lenses:

• Drying: 120°C for 3-4 hours

• Melt temperature: 280-320°C

• Mold temperature: 80-100°C

For ABS Lenses:

• Drying: 80-85°C for 2-4 hours

• Melt temperature: 230-260°C

• Mold temperature: 40-60°C

For PP Lenses:

• Drying: Optional (3 hours at 80°C if needed)

• Melt temperature: 200-250°C

• Mold temperature: 40-80°C

Selection Recommendation

For High-Quality Optical Lenses:

• Material: PC (highest clarity and durability)

• Runner System: Hot runner with valve gates

• Polish: SPI-A1 or better with chrome plating

For Cost-Sensitive Applications:

• Material: PP (good clarity at lower cost)

• Runner System: Cold runner with tab gates

• Polish: High polish without plating

Finding a Qualified Mold Maker

When selecting a mold maker for lens applications:

1. Request samples of previous lens projects

2. Verify polishing capabilities and equipment

3. Check experience with your specific material

4. Review quality control procedures

5. Evaluate mold flow analysis capabilities
