Injection moulding is a manufacturing process used to produce precise plastic moulded parts by injecting molten resin into a shaped mould cavity. It is widely used for medical components, automotive plastic structures, electronic housings, appliance parts, connectors, clips, brackets, caps, and many other moulded plastic parts that require repeatable dimensions and stable quality. A successful injection moulding project depends on part design, material behavior, mould structure, cooling balance, gate position, ejection method, process control, and inspection standards.
● Injection moulding produces repeatable plastic moulded parts at scale.
● Mould quality strongly affects final moulded parts performance.
● ABS, PP, PC, PA, POM, TPE, and PMMA are common choices.
● Wall thickness, draft, ribs, bosses, and gates must be reviewed early.
● Poor design can cause sink marks, warpage, flash, and weld lines.

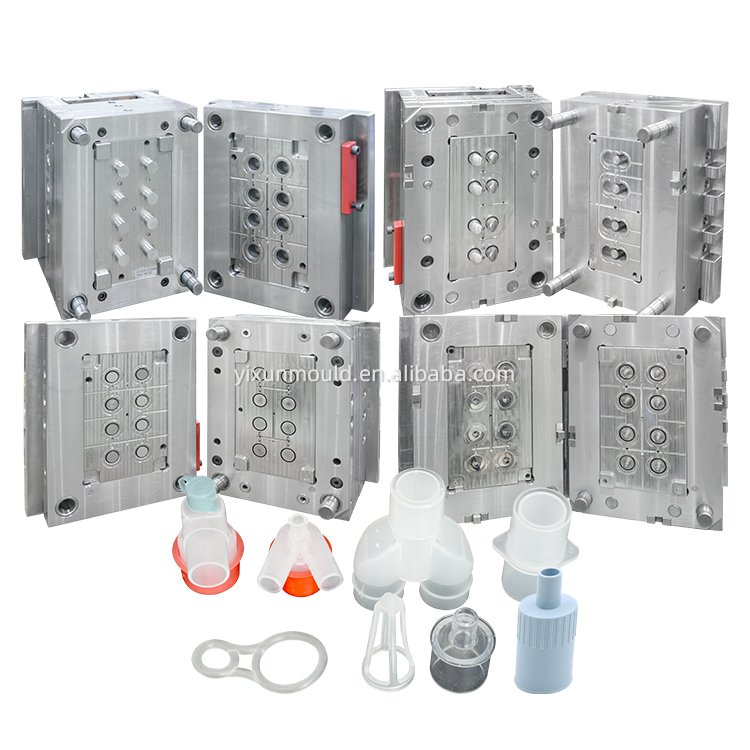

● Multi-cavity moulds require balanced filling, cooling, and ejection.
● Stable process control improves dimensional consistency.
● Custom moulded parts require clear inspection standards before production.
Injection moulding is a process where plastic pellets are melted, injected into a mould cavity, cooled, and ejected as finished moulded parts. The mould cavity determines the external shape, internal details, surface finish, ribs, bosses, holes, clips, and assembly features of the moulded component. Because the process can repeat the same cycle thousands or millions of times, it is suitable for producing consistent custom moulded parts with controlled dimensions.
Moulded parts are plastic components formed inside a mould rather than cut from solid material. These moulded parts may be simple covers or complex structures with snap fits, sealing edges, screw bosses, transparent windows, clips, and precision positioning features. In industrial production, moulded parts often need to meet requirements for strength, appearance, assembly, chemical resistance, tolerance, and long-term reliability.
Compared with CNC machining, injection moulding usually provides lower cost per part once tooling is completed. Compared with 3D printing, injection moulding generally offers better material consistency, stronger production repeatability, and smoother surface quality for moulded parts. Compared with extrusion or thermoforming, injection moulding is more suitable for complex three-dimensional moulded plastic parts with detailed geometry.
The injection unit melts plastic resin and pushes it into the mould cavity under pressure. It includes the hopper, heated barrel, screw, nozzle, and temperature control zones that influence melt stability and flow behavior. If the injection unit is not properly controlled, moulded parts may show short shots, burn marks, bubbles, color variation, or unstable weight.
The mould is the precision tool that forms the shape of the final moulded parts. It normally includes the cavity, core, parting line, runner, gate, vents, inserts, sliders, lifters, cooling channels, and ejection system. Mould design directly affects filling, shrinkage, surface finish, flash, weld lines, and dimensional accuracy of custom injection moulded parts.
The clamping system keeps the mould closed while molten plastic fills the cavity under high pressure. If clamping force is insufficient, moulded parts may develop flash along parting lines, shutoffs, inserts, or weak sealing areas. The ejection system then pushes the cooled moulded parts out of the mould, so ejector layout must avoid cosmetic surfaces and fragile structures.
Cooling channels remove heat from the mould and control how the plastic solidifies. Uneven cooling can create warpage, shrinkage variation, internal stress, and inconsistent dimensions in moulded parts. For complex custom plastic moulded parts, cooling design must consider wall thickness, gate position, cavity layout, material shrinkage, and cycle time.
System Component | Main Function | Effect on Moulded Parts |
Injection unit | Melts and injects resin | Filling stability, weight, surface quality |
Mould cavity and core | Forms part geometry | Shape, tolerance, surface finish |
Clamping system | Holds mould closed | Flash control and sealing accuracy |
Cooling system | Removes heat | Warpage, shrinkage, cycle time |
Ejection system | Releases finished parts | Ejector marks, deformation, part safety |
Plastic pellets must be selected, dried, colored, and prepared according to material requirements before moulding begins. Materials such as PA, PC, and PMMA often require careful drying because moisture can cause bubbles, streaks, weak surfaces, or brittle moulded parts. Material preparation also affects shrinkage, flow length, strength, appearance, and consistency of custom moulded parts.
The screw rotates and heats the resin until it becomes a uniform melt suitable for injection. The molten plastic then flows through the nozzle, runner, and gate into the mould cavity to form moulded parts. Injection speed, melt temperature, pressure, and gate design influence weld lines, burn marks, flow marks, and complete filling.
After the cavity is filled, packing pressure compensates for shrinkage while the resin cools and solidifies. Cooling time must be long enough to keep moulded parts dimensionally stable but not so long that production efficiency is reduced unnecessarily. Once solidified, the mould opens and ejectors release the moulded parts for trimming, inspection, assembly, or packaging.
Consistent wall thickness reduces uneven cooling, sink marks, voids, warpage, and dimensional drift in moulded parts. Thick plastic sections should be avoided because they cool slowly and may create internal stress or surface depressions. Draft angles allow moulded parts to release smoothly from the mould without scraping, whitening, drag marks, or deformation.
Ribs add stiffness to moulded parts without increasing the entire wall thickness. Bosses and screw posts should use controlled thickness, support ribs, rounded transitions, and proper hole depth to reduce shrinkage and cracking. Clips and snap fits in custom plastic moulded parts must match the selected resin’s flexibility, fatigue strength, shrinkage, and assembly load.
Gate location controls how plastic enters the cavity and how pressure is transferred during packing. Poor gate position may create weld lines, jetting, flow marks, sink, and uneven shrinkage in moulded parts. Parting lines should avoid sealing faces, visible surfaces, sliding contact areas, and tight datum locations whenever the design allows.
Injection moulding can produce large quantities of consistent moulded parts after the mould and process are stabilized. The same mould cavity, material, cycle time, and machine settings allow repeated production with controlled dimensions and appearance. This repeatability is important for assemblies where each moulded component must fit with metal parts, electronics, seals, fasteners, or other plastic components.
The process supports many engineering plastics, commodity resins, transparent materials, flexible materials, reinforced materials, and flame-retardant grades. Injection moulding also supports complex moulded parts with ribs, bosses, clips, holes, undercuts, textured surfaces, and integrated assembly features. Proper mould structure can reduce secondary operations by forming many functional details directly inside the cavity.
Although mould manufacturing requires upfront investment, the unit cost of moulded parts can become efficient when production volume increases. Automated cycles reduce manual work, and optimized runner, gate, and cooling design can improve production efficiency. Material waste can also be controlled through runner selection, regrind policy, hot runner systems, and stable process settings.
Injection moulding requires a precision mould before production can begin, and this creates higher initial cost than simple prototyping processes. Mould cost depends on part size, cavity number, steel choice, tolerance, sliders, lifters, inserts, surface finish, and expected production life. Design changes after mould steel cutting can be expensive because changes may require welding, machining, inserts, or complete mould modification.
Mould design, machining, assembly, polishing, trial moulding, adjustment, and sample approval require time. Complex custom moulded parts may need several trial rounds before dimensions, flash, gate vestige, surface quality, and assembly performance are acceptable. The process also requires skilled control of material drying, machine settings, mould temperature, injection speed, packing pressure, cooling time, and inspection.
Injection moulding is mainly used for plastic and elastomeric materials, not most metal components. Very large moulded parts may require special machines, large mould bases, strong clamping force, longer cooling time, and higher handling cost. Metal injection moulding exists as a separate specialized process, but it should not be confused with standard plastic injection moulding.
Sink marks appear when thick areas shrink more than nearby thin areas during cooling. Voids may form inside heavy bosses, ribs, or thick walls when packing pressure cannot compensate for material shrinkage. These defects reduce appearance, strength, sealing quality, and dimensional reliability of moulded parts.
Warpage occurs when moulded parts cool unevenly or shrink differently across the geometry. It is common in wide flat areas, thin walls, unbalanced ribs, poor gate locations, and materials with higher shrinkage. Flash appears when molten plastic escapes through parting lines or shutoffs, often due to poor fit, excessive pressure, low clamping force, or mould wear.
Weld lines form where two melt fronts meet after flowing around holes, bosses, inserts, or thick features. These lines may weaken moulded parts if they appear near clips, sealing areas, pressure zones, or load-bearing structures. Short shots occur when the cavity is not fully filled, often due to insufficient pressure, poor venting, low melt temperature, restricted gates, or long flow length.
Injection moulding is usually most practical when production volume can justify the mould investment. Low-volume custom moulded parts may still use prototype tooling, single-cavity moulds, simplified mould structures, or aluminum tooling depending on requirements. For repeated production, hardened steel moulds and multi-cavity layouts can provide longer mould life and better output.
Tight tolerances require stable material shrinkage, accurate mould machining, balanced cooling, controlled packing, and reliable measurement methods. Cosmetic moulded parts need early decisions on texture, gloss, gate vestige, ejector marks, parting line visibility, and acceptable surface defects. Functional surfaces such as sealing edges, datum faces, optical windows, and sliding areas should be protected during mould design.
The production plan should confirm mould design capability, machining accuracy, trial moulding experience, material handling, process control, and inspection methods. Custom injection moulded parts require drawings, 3D files, critical dimensions, material specifications, appearance standards, packaging requirements, and approval samples. A clear inspection plan reduces disputes by defining flash limits, dimensional tolerances, color range, weight range, and surface acceptance standards.
Medical and laboratory moulded parts may include diagnostic housings, sample containers, caps, connectors, cartridges, covers, transparent windows, clips, brackets, and fluid-related structures. These moulded parts often require strict control of flash, burrs, cleanliness, surface finish, dimensional consistency, and material suitability. Material selection may consider chemical exposure, sterilization, reagent contact, skin contact, or assembly with electronic and optical systems.
Automotive moulded parts include clips, brackets, housings, connectors, interior trim, sensor covers, and functional plastic structures. Electronic products use moulded plastic parts for enclosures, button frames, cable interfaces, protective covers, and internal supports. These applications often require heat resistance, impact performance, flame retardance, dimensional stability, and controlled appearance.
Household appliance moulded parts include handles, covers, panels, brackets, frames, knobs, and internal supports. Industrial moulded parts may need higher mechanical strength, wear resistance, chemical resistance, or long-term dimensional stability. For these applications, mould design must balance product durability, assembly accuracy, surface quality, and production efficiency.
Injection moulding is a practical process for producing precise plastic moulded parts with repeatable quality, complex geometry, and efficient production performance. The final quality of custom moulded parts, custom plastic moulded parts, and custom injection moulded parts depends on early design review, correct material selection, stable mould structure, balanced cooling, proper gate position, controlled shrinkage, and clear inspection standards. Dongguan YIXUN Industrial Co., Ltd. can support injection moulding projects through engineering evaluation, mould design, precision mould manufacturing, trial moulding, and preparation for stable moulded parts production.
Injection moulding is a process that melts plastic resin and injects it into a mould cavity to form finished moulded parts. After cooling, the mould opens and the part is ejected for inspection, trimming, assembly, or packaging. It is widely used when plastic components require repeatable dimensions, complex details, and stable production.
Moulded parts are plastic components produced inside a mould through injection moulding or another moulding process. They can include housings, covers, caps, clips, connectors, brackets, windows, handles, and precision internal structures. Their quality depends on material behavior, mould design, cooling, gate position, process settings, and inspection control.
Common materials for injection moulded parts include ABS, PP, PC, PA, POM, PMMA, PE, and TPE. Each material has different strength, flexibility, shrinkage, chemical resistance, heat resistance, and appearance performance. The best choice depends on the function, tolerance, environment, surface requirement, and production plan.
