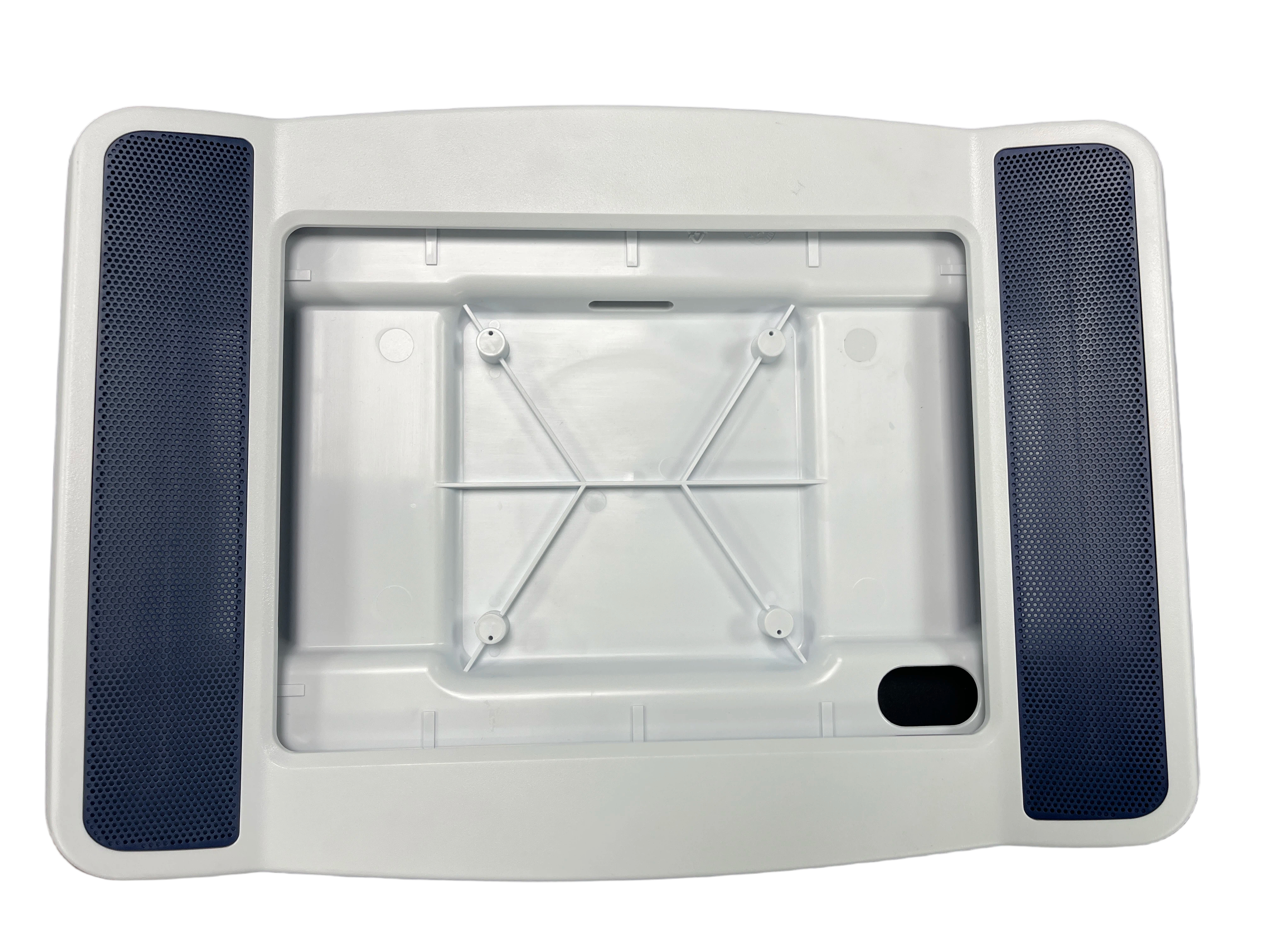

Precision micro-perforated plastic grilles, like the microphone grille shown in the image, are common in consumer electronics, audio equipment, and household appliances. While they appear simple at first glance, the injection molding of these components involves highly specialized techniques and significant challenges that test the limits of mold design, process control, and manufacturing expertise.
These grilles feature thousands of tiny, evenly spaced holes combined with a thin, large-area structure—creating a unique set of obstacles that make them far more complex to produce than standard plastic parts. In this article, we break down the key injection molding challenges for such precision micro-perforated grilles.
The biggest challenges for these grilles start with the mold itself, as the micro-perforations impose extreme requirements on tooling precision and durability.
The grille’s thousands of tiny holes (typically 0.5–1.5 mm in diameter) are formed by precision micro-core pins inserted into the mold cavity. These pins are extremely thin and fragile, making them prone to:
Bending or breaking during high-pressure injection molding, as the plastic flow exerts significant lateral force on the pins.
Ejection issues: As the plastic cools and shrinks, it grips the pins tightly. Improper ejection can tear the part, leave burrs on the hole edges, or even snap the pins inside the mold.
To solve this, mold makers use hardened steels (e.g., S136, NAK80) for the pins, add guide structures for stability, and design balanced ejection systems (including ejector pins and, in some cases, lifters or slides) to minimize friction during demolding.
The dense grid of micro-pins creates a labyrinthine path for the molten plastic, making it difficult for trapped air to escape the mold cavity. Poor ventilation leads to:
Burn marks on the part surface, caused by trapped air compressing and igniting under high injection pressure.
Short shots, where the plastic fails to fill all the tiny holes due to flow resistance.
Uneven material flow, resulting in inconsistent hole size or shape across the grille.
Mold designers must use mold flow analysis to optimize gate placement and add micro-vent slots between the core pins, ensuring even material distribution and effective air escape.
The grille’s large, thin structure combined with uniform perforations makes it highly susceptible to warping during cooling. Uneven shrinkage between the thick border and the perforated center causes the part to bend or twist, which can:
Ruin the fit with the final assembly (e.g., misaligned mounting holes).
Distort the acoustic performance of the grille.
Mold makers address this with symmetrical cooling circuits, mold temperature control (using mold temperature controllers), and pre-deformation compensation in the mold design to counteract expected warpage.
Even with a well-designed mold, the molding process itself requires extreme precision to achieve high yields.
The choice of resin directly impacts the molding outcome:
High flowability resins (e.g., high-flow ABS, PC/ABS blends) are preferred, as they can navigate the narrow gaps between micro-pins without freezing prematurely.
The resin must also have low shrinkage and good impact resistance to prevent cracking during ejection and ensure dimensional stability.
A narrow process window means even small variations in melt temperature, injection pressure, or cooling time can lead to defects like incomplete filling, burn marks, or excessive burrs.
To fill all micro-holes, the process requires high injection speeds and pressures. However, this introduces risks:
Excessive pressure can cause flash (extra plastic) on the part edges or bend the delicate core pins.
High shear rates can degrade the resin, leading to discoloration or brittleness.
Process engineers must fine-tune the injection profile (e.g., multi-stage injection speeds) to balance filling speed with pin protection and material integrity.
The large, thin grille must be ejected evenly to avoid stress concentrations. Improper ejection can cause:
Ejection marks (white spots) on the part surface.
Hidden internal stresses that lead to warping or cracking over time.
For this reason, many manufacturers use annealing processes after molding to relieve residual stress, which also helps maintain the grille’s acoustic properties.
Even after molding, these grilles present unique challenges for finishing and inspection:
Deburring: Tiny burrs on the hole edges can block airflow or distort sound. Manual deburring is too slow and risky, so manufacturers often use cryogenic deburring or ultrasonic cleaning to remove excess material without damaging the micro-holes.
Dimensional and Acoustic Testing: The grille’s flatness, hole diameter, and hole-to-hole spacing must be precisely checked using coordinate measuring machines (CMMs) or automated vision systems. Acoustic testing is also required to ensure the grille meets sound transmission requirements, as even minor variations in hole size can affect performance.
Injection molding precision micro-perforated grilles is far more complex than it appears. Every step—from mold design and pin stability to process control and post-processing—requires specialized expertise to overcome challenges like pin breakage, flow issues, warpage, and stress.
These grilles are a perfect example of how “simple-looking” plastic parts can push the boundaries of injection molding technology. Success depends on a combination of advanced mold engineering, strict process control, and material expertise. For manufacturers, mastering these challenges is key to producing high-quality, reliable grilles for audio and electronic applications.
