Medical moulded parts require careful engineering because their performance can affect device assembly, sealing, hygiene, dimensional stability, and long-term reliability. Unlike general industrial plastic components, medical moulded parts often need tighter control over material selection, mould cavity layout, gate position, flash, surface quality, and repeatable production. When 1-4 cavity injection molds are used for custom medical moulded parts, the part design, mould structure, PA6, ABS, PP, or other resin behavior, and inspection plan should be reviewed together before tooling begins.
● Medical moulded parts need both stable mouldability and reliable function.
● PA6, ABS, PP, PC, PMMA, POM, PE, and TPE each create different design risks.
● 1-4 cavity injection molds require balanced filling, cooling, and ejection.
● Consistent wall thickness reduces sink marks, voids, and warpage.
● Gate and parting line positions affect flash, weld lines, and appearance.
● Medical moulded parts need early DFM before mould steel cutting.
● Trial molding should verify dimensions, flash, assembly, and surface quality.
● Custom moulded parts require clear inspection standards before production.
Medical moulded parts are plastic components produced through injection molding for diagnostic devices, healthcare equipment, laboratory tools, medical housings, drug delivery parts, and disposable medical products. These moulded parts may include covers, caps, connectors, cartridges, transparent windows, handles, clips, brackets, and internal precision structures. A medical moulded component must be designed for function, mouldability, material behavior, cleanliness, and production repeatability.

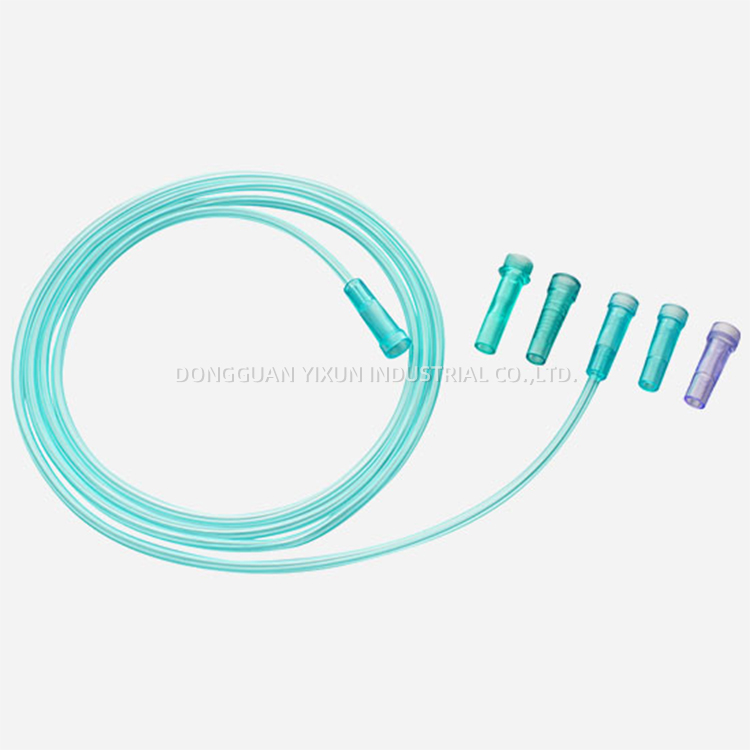

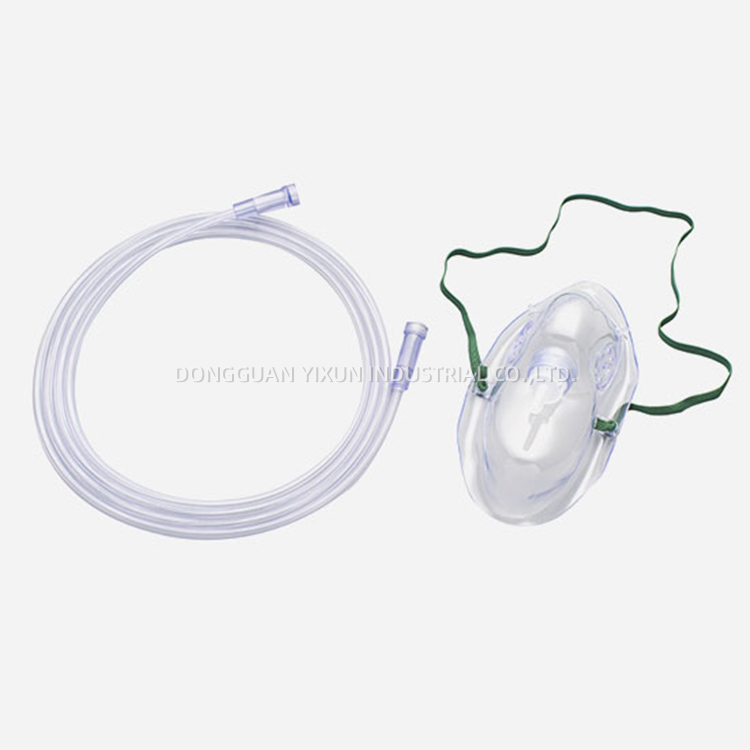

Medical moulded parts can be used in diagnostic test housings, sampling kits, laboratory consumables, medical device enclosures, fluid connectors, sensor covers, and equipment protection shells. Custom moulded parts may include snap fits, screw bosses, positioning ribs, sealing edges, transparent areas, and fluid-related features in one compact design. When these moulded parts are assembled with electronic, optical, or sealing systems, small deviations can affect final device performance.
General moulded plastic parts often focus on appearance, cost, and basic strength, while medical moulded parts require stricter control of flash, burrs, surface contamination, material stability, and dimensional consistency. Medical moulded parts may also need resin selection based on chemical exposure, sterilization method, skin contact, or diagnostic reagent contact. These requirements make early DFM and mould structure review more important for custom plastic moulded parts in medical applications.
Consistent wall thickness is essential for medical moulded parts because uneven plastic thickness creates uneven cooling and shrinkage. Thick sections in moulded parts can cause sink marks, internal voids, long cooling cycles, dimensional drift, and internal stress. For custom injection moulded parts, smooth transitions, rounded corners, and balanced wall design reduce production defects.
Draft angles allow moulded parts to release from the mould cavity without dragging, scratching, whitening, or deformation. Medical moulded parts with deep walls, ribs, textured surfaces, or transparent zones need carefully planned draft because ejection damage may affect appearance or function. When draft is insufficient, the moulded component may show ejector stress, surface marks, or dimensional distortion.
Ribs increase stiffness in moulded parts without creating excessive material thickness. For medical moulded parts, rib thickness should normally remain lower than the main wall to reduce sink marks on the opposite surface. Rib positions should also avoid sealing faces, optical windows, critical datum areas, and flow channels in custom moulded parts.
Bosses, clips, snap joints, and screw posts are common in medical moulded parts, but they can create shrinkage and stress if the geometry is too heavy. A strong boss design in moulded parts uses controlled wall thickness, proper hole depth, support ribs, and rounded transitions. Clip and snap-fit structures in custom plastic moulded parts should match the flexibility, fatigue resistance, and shrinkage behavior of the selected resin.
Design Area | Recommended Approach | Risk if Ignored |
Wall thickness | Keep sections uniform | Sink marks, voids, warpage |
Draft angle | Add draft based on depth and finish | Drag marks, deformation |
Ribs | Use ribs for stiffness | Thick-section shrinkage |
Bosses | Support with ribs and controlled thickness | Cracking, weak assembly |
Corners | Use smooth radii | Stress concentration |
PA6 can be selected for medical moulded parts that require toughness, wear resistance, and mechanical strength in non-implant structural applications. PA6 moulded parts require attention to moisture absorption because water uptake can affect dimensions and mechanical properties. For precision custom moulded parts, drying, shrinkage allowance, and post-molding conditioning should be reviewed before final mould design.
ABS is widely used for moulded parts that require good processability, impact resistance, and stable appearance. In medical moulded parts, ABS can be suitable for equipment housings, handles, covers, and non-fluid-contact components when the application requirements match the material grade. ABS custom plastic moulded parts should be evaluated for chemical resistance if they may contact disinfectants, alcohol, or cleaning agents.
PP is often used for medical moulded parts that need chemical resistance, low density, good fatigue performance, and cost-effective production. PP moulded parts are common in caps, containers, hinged features, sample-related components, and disposable medical plastic structures. Because PP has relatively high shrinkage, custom injection moulded parts using PP need careful tolerance, cooling, and gate planning.
PC, PMMA, POM, PE, and medical-grade TPE may also be used for medical moulded parts depending on transparency, stiffness, flexibility, sealing, chemical exposure, and dimensional needs. PC and PMMA are often considered for transparent moulded parts, while POM may suit precision moving components. TPE can be used in flexible custom moulded parts when sealing, soft touch, or compression behavior is required.
Material | Main Strength | Typical Medical Use | Design Concern |
PA6 | Strength and wear resistance | Structural parts, brackets | Moisture absorption |
ABS | Processability and impact strength | Housings, handles, covers | Chemical resistance |
PP | Chemical resistance and low weight | Caps, containers, disposable parts | Higher shrinkage |
PC | Impact strength and clarity | Transparent covers, connectors | Stress cracking |
PMMA | Optical clarity | Windows and display covers | Brittleness |
TPE | Flexibility and sealing | Soft-touch and sealing areas | Compression behavior |
Single-cavity moulds are often used for medical moulded parts during early production, lower-volume projects, larger components, or parts with very strict dimensional requirements. A single-cavity layout gives more process focus to one moulded component, which can simplify filling, cooling, and ejection analysis. This approach is suitable when custom moulded parts need validation before scaling to multi-cavity production.
Two-cavity and four-cavity moulds increase output for medical moulded parts while requiring stronger control of flow balance, cooling balance, and cavity-to-cavity consistency. If one cavity fills faster than another, the moulded parts may show different dimensions, weights, flash levels, or surface results. Multi-cavity custom injection moulded parts need balanced runner design, consistent venting, and accurate cavity machining.
Hot runner systems can reduce material waste and improve cycle efficiency for suitable medical moulded parts, especially in repeated production. Cold runner systems may be simpler and practical for lower volumes, material changes, or some custom moulded parts with flexible production needs. The runner decision should consider resin sensitivity, gate vestige, production volume, validation requirements, and acceptable waste.
Gate position affects how medical moulded parts fill, pack, cool, and shrink. Gates should avoid sealing areas, transparent surfaces, patient-contact edges, precision datum faces, and visible cosmetic surfaces whenever the mould design allows. For 1-4 cavity custom plastic moulded parts, gate balance is essential for consistent dimensions and stable part weight.
Sink marks form when thick areas of moulded parts cool and shrink more than surrounding thin sections. Voids may appear inside heavy walls, bosses, or rib intersections when packing pressure cannot compensate for material shrinkage. In medical moulded parts, sink and void defects can affect appearance, strength, sealing, and dimensional reliability.
Warpage occurs when moulded parts cool unevenly or shrink differently across the part geometry. Medical moulded parts with flat sealing surfaces, snap fits, assembly ribs, or wide thin walls are especially sensitive to distortion. Warpage control depends on uniform wall thickness, gate position, cooling layout, material shrinkage, and packing stability.
Flash appears when molten plastic escapes through parting lines, inserts, shutoffs, or worn mould surfaces during production of moulded parts. Medical moulded parts require strict flash control because burrs can affect sealing, assembly, handling, cleanliness, and user-contact edges. Accurate machining, suitable mould steel, proper clamp force, and stable molding parameters reduce flash risk.
Weld lines occur where two melt fronts meet inside moulded parts after flowing around holes, bosses, ribs, or inserts. In medical moulded parts, weld lines should be kept away from clips, pressure zones, sealing edges, and load-bearing features whenever possible. Surface marks from gates, ejectors, flow lines, or trapped gas should be defined and controlled during DFM and trial molding.
DFM review checks whether medical moulded parts can be molded consistently with the chosen material and cavity layout. It should evaluate wall thickness, draft, ribs, bosses, undercuts, radii, flow length, and critical tolerance areas. For custom moulded parts, geometry review reduces the risk of tooling changes after steel cutting.
Mould structure review evaluates parting line, sliders, lifters, inserts, runners, gates, vents, cooling channels, and ejector positions for medical moulded parts. The mould must protect critical surfaces while still allowing stable filling, cooling, and part release. For 1-4 cavity moulded parts, cavity balance and repeatable ejection should be reviewed before final mould machining.
Inspection review defines how medical moulded parts will be checked after trial molding and production. Critical dimensions, visual surfaces, flash limits, gate vestige, assembly features, and material traceability should be agreed before mass production. Custom plastic moulded parts become easier to control when inspection standards are linked to actual device function.
Trial molding confirms whether the mould, resin, process window, and part design can produce acceptable medical moulded parts. Trial samples should be checked for filling, shrinkage, sink marks, flash, warpage, gate vestige, ejector marks, dimensions, and assembly behavior. For custom injection moulded parts, trial results often guide fine adjustments to gates, vents, cooling, polishing, or local steel dimensions.
Process stabilization defines the molding parameters that keep medical moulded parts consistent across production batches. Melt temperature, mould temperature, injection speed, packing pressure, cooling time, and ejection timing all influence final part quality. Stable parameters are especially important for 2-cavity and 4-cavity moulded parts where cavity differences must remain controlled.
Quality control for medical moulded parts should include incoming material checks, first article inspection, dimensional measurement, visual inspection, and production monitoring. Inspection records may cover critical dimensions, surface defects, flash, weight, color, gate appearance, and packaging condition. Consistent custom moulded parts production depends on precise tooling, trained inspection, stable resin handling, and controlled molding conditions.
Medical moulded parts should be checked for wall thickness, draft, ribs, bosses, clips, undercuts, corner radii, and assembly interfaces. The design should avoid unnecessary thick sections, sharp internal corners, unsupported posts, and hidden areas that trap gas. Custom plastic moulded parts should also define which surfaces are cosmetic, functional, sealing, or non-critical.
Material review should confirm resin type, grade, shrinkage, drying condition, chemical exposure, sterilization exposure, and dimensional behavior for medical moulded parts. PA6, ABS, PP, PC, PMMA, POM, PE, and TPE all create different processing and performance considerations. Custom injection moulded parts require material selection that matches real use conditions rather than only moulding convenience.
Tooling review should confirm cavity number, mould steel, runner type, gate position, parting line, vents, ejectors, cooling, sliders, lifters, and polishing requirements. For 1-4 cavity medical moulded parts, cavity-to-cavity balance should be considered from the beginning. The tooling checklist should also define trial molding targets, spare insert needs, and expected mould maintenance points.
Production review should confirm inspection method, packaging method, batch identification, defect limits, and approved process settings for medical moulded parts. Trial reports and sample approvals should be completed before repeated production of custom moulded parts. A clear production checklist reduces variation when moulded parts move from sampling to stable manufacturing.
Medical moulded parts require close coordination between product design, material selection, 1-4 cavity mould structure, injection molding parameters, and quality inspection. PA6, ABS, PP, and other engineering resins can be used for different medical moulded parts, but each material must be matched with the correct wall thickness, gate design, cooling layout, shrinkage allowance, and inspection standard. For custom medical moulded parts, custom plastic moulded parts, and custom injection moulded parts, Dongguan YIXUN Industrial Co., Ltd. can support engineering evaluation, mould design, precision mould manufacturing, trial molding, and production preparation according to project requirements.
Medical moulded parts are plastic components produced by injection molding for medical devices, diagnostic tools, laboratory products, and healthcare equipment. These moulded parts can include housings, caps, connectors, cartridges, windows, handles, and internal precision structures. They usually require stricter control of material, flash, dimensions, cleanliness, and surface quality than general plastic parts.
Common materials for medical moulded parts include PA6, ABS, PP, PC, PMMA, POM, PE, and medical-grade TPE. PA6 may suit strong structural parts, ABS may suit housings, and PP may suit disposable or chemically resistant moulded parts. The final material choice should consider strength, shrinkage, sterilization, chemical exposure, flexibility, and application requirements.
1-4 cavity molds can be suitable for medical moulded parts when production volume, part size, tolerance, and validation needs are properly reviewed. Single-cavity moulds are often practical for early-stage or precision custom moulded parts, while 2-cavity and 4-cavity moulds improve output. Multi-cavity moulded parts require balanced filling, cooling, venting, and ejection.
