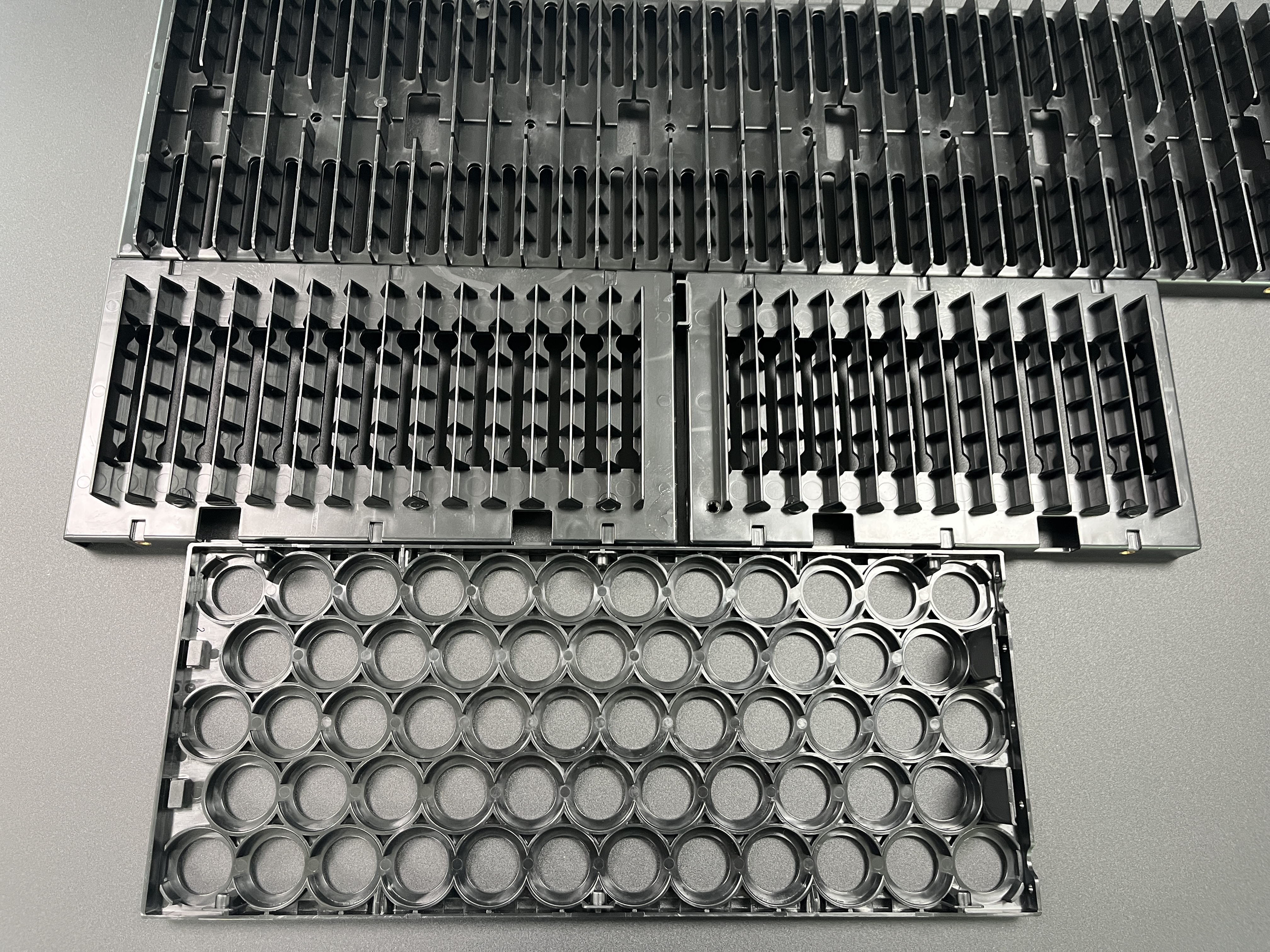

Battery Box & Electronic Accessories Injection Molding Process
| Product Category | Key Performance Requirements |
|---|---|
| Battery Boxes | - Structural rigidity (resist impact/vibration during use)- Flame retardancy (UL94 V-0 rating to prevent fire risks)- Chemical resistance (tolerate electrolyte corrosion)- Dimensional stability (±0.05mm for assembly with battery cells)- Heat dissipation (thermal conductivity for high-power battery packs) |
| Electronic Accessories (Connectors/PCB Brackets) | - High precision (±0.005mm for pin/socket alignment)- Electrical insulation (volume resistivity ≥10¹⁴ Ω·cm)- Temperature resistance (-40℃ to 125℃ for automotive/industrial use)- Low warpage (to avoid PCB deformation)- EMI shielding (optional for high-frequency components) |
| Material Type | Key Properties | Typical Applications | Molding Considerations |
|---|---|---|---|
| ABS (Acrylonitrile Butadiene Styrene) | Balanced rigidity/impact resistance, good processability, cost-effective | Low-power battery boxes, low-temperature electronic brackets | Easy to process but limited heat resistance (≤80℃); requires addition flame retardants for battery applications |
| PC (Polycarbonate) | High impact strength, flame retardancy (UL94 V-0), heat resistance (120℃), transparency | High-power battery enclosures, high-temperature sensor housings | High melt temperature (260-300℃); prone to stress cracking—need annealing post-molding |
| PC/ABS Alloy | Combines PC’s heat/flame resistance and ABS’s processability | EV battery module casings, automotive electronic connectors | Reduces warpage vs. pure PC; ideal for complex-shaped battery boxes |
| PA6/PA66 (Nylon) + GF (Glass Fiber) | High mechanical strength, chemical resistance, heat resistance (150℃+) | High-load battery brackets, industrial connector housings | GF reinforcement causes mold wear—use wear-resistant mold steel (H13); ensure uniform fiber distribution to avoid anisotropy |
| PBT (Polybutylene Terephthalate) | Excellent electrical insulation, low water absorption, dimensional stability | PCB brackets, low-voltage battery connectors | Low shrinkage (0.8-1.2%); compatible with overmolding (e.g., TPE seals for waterproofing) |
| LCP (Liquid Crystal Polymer) | Ultra-high precision, heat resistance (250℃+), low warpage | Micro-connectors, high-frequency electronic components | High melt viscosity—requires high injection pressure (150-200 MPa); narrow processing window |
Flame Retardants: Halogen-free FR additives (e.g., magnesium hydroxide) for battery boxes to meet RoHS/REACH standards.
Carbon Fiber/Graphite: Added to PC/ABS for battery boxes to enhance thermal conductivity (1-5 W/m·K) and EMI shielding.
UV Stabilizers: For outdoor electronic accessories (e.g., solar battery boxes) to resist UV degradation.
| Material | Melt Temperature (℃) | Mold Temperature (℃) | Injection Pressure (MPa) | Holding Pressure (MPa) | Cooling Time (s) | Cycle Time (s) |
|---|---|---|---|---|---|---|
| ABS | 200-240 | 40-60 | 80-120 | 40-60 | 15-25 | 30-45 |
| PC | 260-300 | 80-120 | 100-150 | 50-80 | 20-35 | 40-60 |
| PC/ABS Alloy | 230-270 | 60-90 | 90-130 | 45-70 | 18-30 | 35-50 |
| PA66+30% GF | 260-290 | 80-100 | 120-180 | 60-90 | 25-40 | 45-70 |
| PBT | 230-260 | 40-80 | 70-110 | 35-55 | 15-25 | 30-45 |
Drying: PC/PA/PBT absorb moisture easily—dry at 80-120℃ for 2-4 hours (moisture content ≤0.02%) to avoid hydrolysis, silver streaks, or bubble defects.
Pellet Mixing: Ensure uniform dispersion of additives (e.g., flame retardants/GF) via twin-screw mixing to prevent localized performance gaps.
Injection Speed: Use multi-stage speed control—slow speed for gate filling (avoid jetting) and fast speed for cavity filling (ensure full packing); reduce speed for GF-reinforced materials to minimize fiber breakage.
Holding Time: Extend holding time (10-15s) for thick-walled battery boxes to eliminate sink marks; shorten for thin-walled connectors (3-5s) to avoid over-packing/warpage.
Battery Boxes: Adopt conformal cooling channels (3D-printed) to match complex box geometries—ensure cooling uniformity (temperature difference ≤5℃) and reduce warpage by 30%.
Precision Accessories: Micro-cooling channels (diameter 2-3mm) near pin/socket cavities to maintain dimensional accuracy (±0.005mm).
| Component Type | Mold Design Focus | Material & Treatment |
|---|---|---|
| Battery Boxes | - Large cavity size (up to 1000×500mm for EV battery packs)- Reinforced mold base (45# steel + ribbing) to resist injection pressure- Ventilation slots (0.02-0.05mm) at corners to release trapped air | Core/Cavity: P20/H13 steel (HRC 50-55)Surface Treatment: Nitriding (wear resistance) + anti-corrosion coating (resist electrolyte) |
| Connectors/PCB Brackets | - Multi-cavity design (32/64 cavities) for high volume- Precision guide pins (±0.002mm) to ensure cavity alignment- Ejector pin layout to avoid marks on mating surfaces | Core/Cavity: S136 steel (HRC 52-58)Surface Treatment: Mirror polishing (Ra ≤0.02μm) + hard chrome plating |
EMI Shielding: Integrate conductive inserts (e.g., copper foil) into molds for overmolding with LCP/PC—eliminates post-molding shielding processes (e.g., spraying).
Waterproof Sealing: Mold integrated silicone/TPU gaskets via overmolding (2-shot molds) for battery boxes—IP67/IP68 rating without assembly.
Threaded Inserts: Use insert molding to embed metal threads in battery box lids—ensures torque resistance (≥5 N·m) for repeated assembly/disassembly.
| Defect Type | Root Cause | Solution |
|---|---|---|
| Warpage (Battery Boxes) | Uneven cooling, uneven GF distribution, excessive holding pressure | - Optimize conformal cooling channels- Reduce holding pressure by 10-15%- Use low-shrinkage PC/ABS alloy |
| Short Shots (Connector Pins) | Insufficient injection pressure, narrow gates, cold slug in melt | - Increase injection pressure by 10-20%- Enlarge gate size (0.8-1.2mm for micro-connectors)- Add cold slug wells to mold |
| Silver Streaks (PC Battery Boxes) | Moisture in material, high shear rate | - Extend drying time (4+ hours at 120℃)- Reduce injection speed by 15%- Increase melt temperature by 10-15℃ |
| Flash (Cavity Edges) | Mold misalignment, excessive injection pressure, worn mold parting lines | - Recalibrate mold alignment (tolerance ±0.003mm)- Reduce injection pressure- Repair worn parting lines via polishing |
| Poor Electrical Insulation | Contamination in material, voids in molded parts | - Use virgin (non-recycled) engineering plastics- Increase holding pressure to eliminate voids- Implement strict material filtration (100-mesh filter) |
Annealing: PC/PA parts are annealed at 80-100℃ for 1-2 hours to release internal stress (critical for battery boxes to avoid cracking under thermal cycling).
Deburring: Use robotic laser deburring for precision connectors (avoids manual damage to pin/socket alignment).
Surface Coating: Apply anti-static coating (surface resistance 10⁶-10⁹ Ω) to electronic accessories for ESD protection.
Dimensional Inspection: CMM (Coordinate Measuring Machine) for key dimensions (e.g., battery box cavity size, connector pin spacing) with tolerance ±0.005mm.
Mechanical Testing: Impact test (≥50 kJ/m² for battery boxes per ISO 179), tensile strength test (≥60 MPa for PA66+GF parts).
Flame Retardancy Test: UL94 V-0 certification (no flame spread for ≥10s) for battery boxes.
Electrical Testing: Insulation resistance test (≥10¹⁴ Ω·cm) for PCB brackets, voltage breakdown test (≥20 kV/mm).
Smart Molding: Integrate real-time monitoring (pressure/temperature sensors in molds) to adjust parameters dynamically—reduce defect rates by 40%.
Lightweight Design: Use microcellular injection molding (MuCell) for battery boxes to reduce weight by 15% while maintaining rigidity.
Sustainability: Adopt recycled engineering plastics (rPC/rABS) for non-critical battery box components (meet 30% recycled content targets) without compromising performance.
