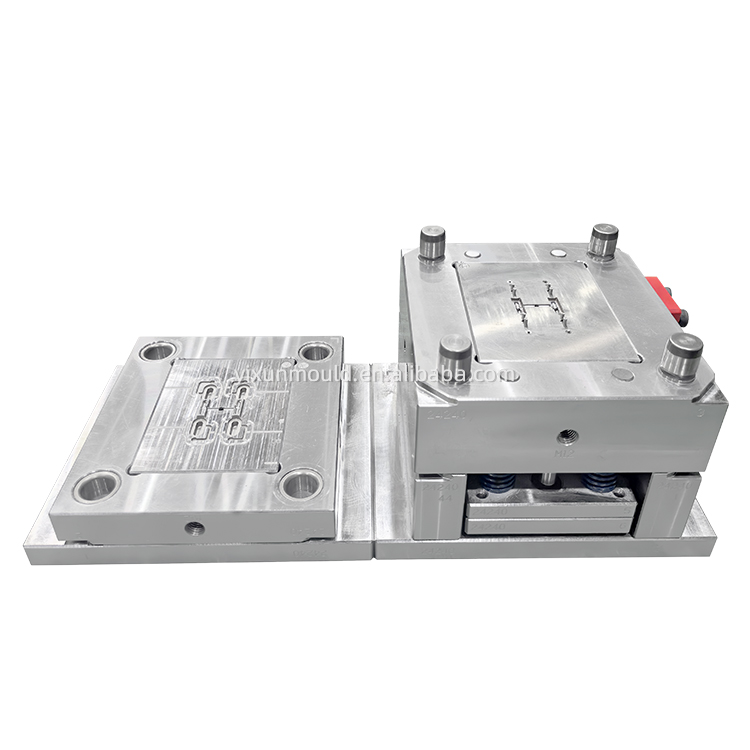

Smart Gas-Assisted Injection Molding Mold for Handles – Innovation & Sustainability
Precision Gas Regulation: Equipped with PLC-based smart gas controllers (accuracy ±0.1MPa) to adjust gas pressure, flow, and injection timing in real time, ensuring uniform hollowing of handle cores and eliminating surface defects (sink marks, weld lines).
Adaptive Molding Technology: Automatically optimizes gas parameters based on material type (PP/ABS/PC/PA) and handle design, reducing setup time by 30% and ensuring consistent quality across batches.
Data Monitoring & Traceability: Built-in sensors track gas pressure, mold temperature, and cycle time, with cloud connectivity for production data analysis and predictive maintenance.
Material Saving: Gas-assisted hollowing reduces plastic usage by 18-28% vs. traditional molding, cutting raw material costs and carbon footprint.
Energy Efficiency: Optimized cooling channels and low-pressure injection reduce energy consumption by 20% per cycle, aligning with green manufacturing standards.
Long-Lasting Sustainability: High-wear components (cavity, core, ejector pins) are made of corrosion-resistant S136H steel, ensuring ≥1.2 million cycles without replacement—minimizing mold waste.
Ergonomic Handle Optimization: Supports complex handle designs (curved, textured, multi-cavity) with precise gas channel engineering, adapting to handle lengths 80-600mm and wall thickness 1.5-5mm.
Material Versatility: Compatible with engineering plastics (PC/ABS blends, PA66+GF, PPS) and medical-grade materials (USP Class VI), meeting industry-specific requirements (e.g., automotive flame retardancy, medical biocompatibility).
Rapid Prototyping: Offers 3D-printed mold inserts for sample testing, reducing customization lead time from 45 days to 15 days for small-batch orders.
High-Strength Construction: Mold base adopts 40CrNiMoA alloy steel with quenching + tempering treatment (hardness HRC 32-35), while cavity/core feature deep cryogenic treatment (HRC 58-62) for wear resistance.
Micron-Level Precision: Machined via 5-axis CNC and EDM with ±0.003mm tolerance, ensuring handle dimensional accuracy ±0.08mm and surface roughness Ra ≤ 0.2μm.
Stable Demolding System: Hydraulic ejector pins with self-lubricating coating prevent sticking and damage, maintaining production stability even at 60 cycles/hour.
| Item | Details |
|---|---|
| Mold Type | Smart Gas-Assisted Injection Molding Mold |
| Application | High-end handles (automotive, medical, electronics, industrial) |
| Mold Material | Cavity/Core: S136H Alloy Steel; Mold Base: 40CrNiMoA |
| Hardness | Cavity/Core: HRC 58-62; Mold Base: HRC 32-35 |
| Service Life | ≥1,200,000 Cycles |
| Tolerance | Mold Machining: ±0.003mm; Finished Handle: ±0.08mm |
| Smart Gas Control | PLC-based, ±0.1MPa precision, cloud data monitoring |
| Gas Parameters | Pressure: 3-25MPa; Injection Time: 0.3-4s |
| Cooling System | Energy-saving water-cooling (cooling time reduced by 25%) |
| Cavity Number | 1-12 Cavities (Customizable) |
| Compatible Materials | PC, ABS, PA66+GF, PPS, Medical-grade PP, PC/ABS Blends |
| Surface Finish | Ra ≤ 0.2μm (mirror polishing optional) |
Automotive: Interior door handles, steering wheel controls, trunk handles (meets ISO/TS 16949)
Medical: Surgical instrument handles, hospital equipment grips (USP Class VI certified)
Consumer Electronics: Laptop hinges, smart device holders, power tool handles
Industrial: Heavy machinery controls, equipment safety handles, aerospace components
Certifications: ISO 9001, ISO 14001, CE, and automotive industry IATF 16949 certification.
Rigorous Testing: Each mold undergoes gas tightness testing (≤0.01MPa leakage), pressure testing (50MPa), and 50,000-cycle trial production with defect rate ≤0.1%.
Warranty & Support: 18-month warranty, free on-site technical training, and 24/7 remote troubleshooting.
Intelligent Efficiency: Smart gas control reduces production errors and optimizes process parameters automatically.
Sustainable Manufacturing: Material and energy savings lower environmental impact and operational costs.
Customization Expertise: Tailored solutions for complex handle designs and industry-specific requirements.
Reliable Performance: Premium materials and precision machining ensure long service life and consistent quality.
