Injection Mold Nightmares: 5 Ways Core Pins & Inserts Fail (And How to Fix Them)

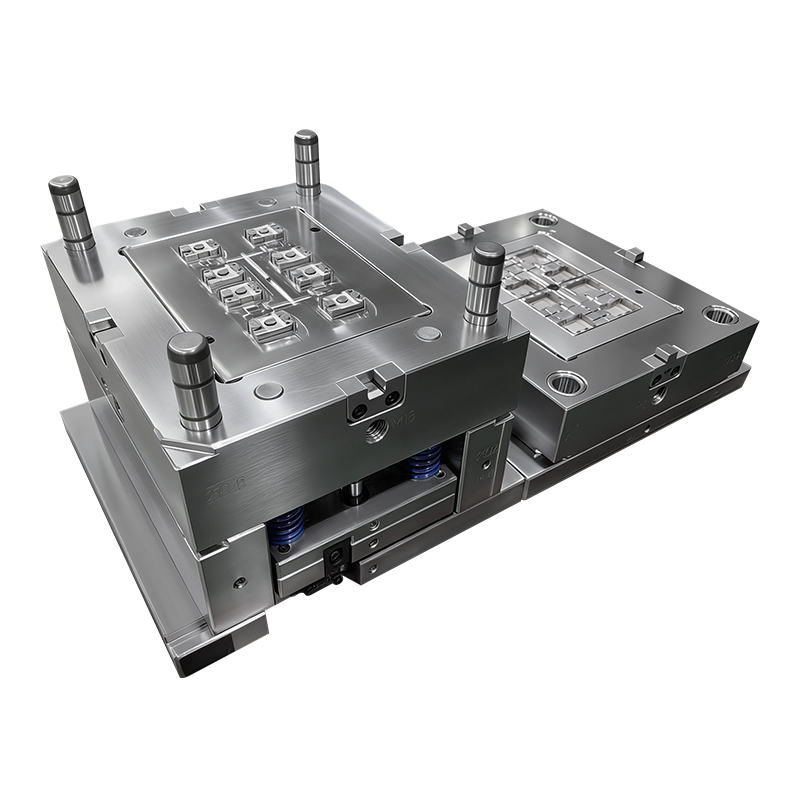

Introduction: The Smallest Parts Cause the Biggest Headaches

You can have a perfect mold base, flawless runner balance, and a state-of-the-art injection machine. But when production stops, it is usually because of a tiny component—a core pin snapped, an insert shifted, or a flash appeared where nothing should exist.

Core pins and inserts are the "consumables" of the injection molding world. They are designed to be replaceable, but if you are replacing them every shift, you have a design flaw.

Let’s look at the 5 most common failure modes for mold inserts, the root cause, and the engineering fix.

Failure #1: The "Banana" Core Pin (Bending & Deformation)

The Symptom: Your ejected parts have holes that are no longer straight. The core pin looks like a banana when removed.

The Root Cause: Lateral (side) injection pressure. When plastic flows into the cavity, it doesn't press evenly on the pin. If the pin is long and unsupported, the flow hits it from the side and bends it like a flag in the wind.

The Fix:

• Support Pillars: Add a support rib or a bushing near the tip of the pin (if geometry allows).

• Flow Redirection: Move the gate location so plastic doesn't hit the pin perpendicularly.

• Material Upgrade: Switch from standard tool steel (e.g., H13) to a high-modulus material like Powder Metallurgy (PM) steel (e.g., ASP23) which has higher bending resistance at the same diameter.

Failure #2: The "Feather" Flash (Intermittent Flashing)

The Symptom: Sometimes the part has a thin feather of plastic at the parting line of the insert; sometimes it doesn't. Quality control is going crazy.

The Root Cause: Thermal expansion mismatch. You made the insert from S136 (stainless) and the mold plate from P20 (carbon). At room temperature, the fit is H7/m6 (perfect). At 80°C operating temperature, they expand differently, creating a gap during injection.

The Fix:

• Pre-heat calculation: Calculate the fit at the operating temperature, not room temperature.

• The "Step" design: Machine a 5mm high "land" (tight fit) at the top of the insert, and relieve the rest of the body by 0.05mm per side. This ensures sealing at the surface without binding down below.

Failure #3: The "Missing" Pin (Root Fracture)

The Symptom: The pin is gone. You find it stuck inside the plastic part. The mold base has a flat bottom where the pin used to be.

The Root Cause: No corner radius. Look at the broken pin. Is the fracture surface completely flat? Does it look like a "chalk" break? That is a stress fracture.

• A sharp 90° corner at the pin head acts as a stress concentrator.

• Every injection cycle applies pressure (like a hydraulic hammer) pushing the pin backward.

• Crack -> Crack grows -> Snap.

The Fix:

• Mandatory Radius: Add a minimum R0.2mm (0.008 inches) radius at the junction of the pin body and the retaining head.

• Head Thickness: Increase the head thickness from 2mm to 3mm to distribute the load over a larger shear area.

Failure #4: The "Spinning" Round Pin (Orientation Loss)

The Symptom: The part looks fine, but the flat feature at the bottom of a hole is rotated by 5 degrees.

The Root Cause: The plastic flow has torque. Even a "straight" flow can swirl around a round pin. If the pin is perfectly round and held only by friction, it will slowly rotate over thousands of cycles.

The Fix:

• The "D-Cut": Grind a flat surface on the mounting shank of the pin.

• The Dowel: Use a separate dowel pin to lock the insert against the plate.

• The Square shoulder: Design the non-forming section of the insert as a square block, not a round cylinder.

Failure #5: The "Glued" Insert (Can't Remove for Maintenance)

The Symptom: You tried to replace a broken insert, but it won't budge. You heat it, hammer it, and eventually ruin the mold plate trying to get it out.

The Root Cause: Rust, galling, or plastic creep. Plastic molecules (especially Nylon/PA) have crept into microscopic scratches and bonded, or dissimilar metals have galvanically corroded together.

The Fix:

• Design for removal: Every insert must have a removal feature.

  • Option A: A threaded hole (M3 or M4) in the bottom. Screw in a bolt, pull it out.

  • Option B: A "pry slot" on the side underneath the head.

  • Option C: An ejector pin hole in the mold plate behind the insert.

• Coating: Apply a DLC (Diamond-Like Carbon) or TiN (Titanium Nitride) coating to the insert body. It prevents galling and plastic adhesion.

The "No-Insert" Rule (When to avoid them)

While inserts are great, don't use them for:

1. High-cosmetic surfaces (Glossy finish. The seam line of an insert will always be visible as a witness line).

2. Ultra-high cavitation molds (32+ cavities). Managing 32 tiny inserts is a logistical mess. Machine directly if possible.

3. Low-volume prototypes (< 1000 shots). The cost of making the insert fixture isn't worth it.

Summary Cheat Sheet (Save this)

Final Thought: Think Like a Mechanic

When you design a core pin or insert, don't ask yourself, "Does this fit?" Ask yourself, "If this breaks at 2 AM on a Friday, can the night shift technician replace it in 15 minutes without calling me?"

If the answer is "No," go back and add a puller hole, a radius, or a flat spot. Your future self will thank you.
