Overmolding is an advanced injection molding process that creates a single integrated product by combining two or more different materials. Typically, it involves molding a soft, flexible material (like TPE or TPU) over a rigid substrate (like ABS, PC, or PP). This process enhances product functionality, ergonomics, and aesthetics, eliminating the need for adhesives or secondary assembly operations.
Overmolding is a multi-step manufacturing process where a second material is molded directly onto a pre-formed primary component (called the "substrate"). The result is a single, composite part where the materials are permanently bonded, either chemically, mechanically, or both.
Core Concept: It transforms a rigid part into a multi-functional component with soft-touch surfaces, improved grip, seals, dampers, or shock absorption.
There are two main methods, distinguished by the timing and integration of the molding cycles.

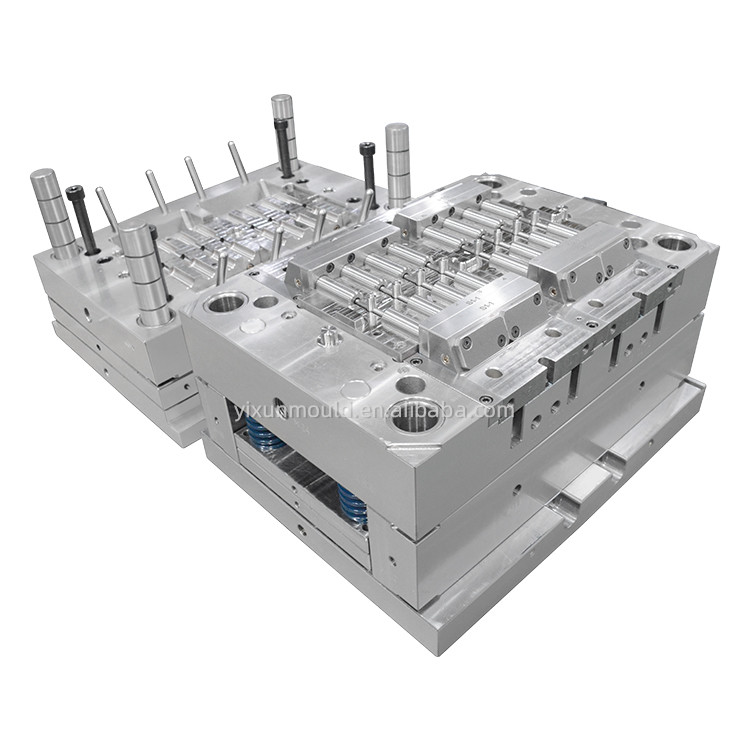

Process: This is a fully automated, sequential process performed in a single cycle on a specialized multi-material injection molding machine.
The rigid substrate is injected into the first mold cavity.
The mold opens, and the robotic arm rotates or shifts the substrate into a second mold cavity.
The soft material is injected directly onto or around the substrate in this second cavity.
The final, complete part is ejected.
Advantages:
Highest Bond Strength: The substrate remains hot, creating an excellent chemical bond.
Full Automation: No manual handling, leading to high consistency and lower labor costs.
High Production Speed: Ideal for large volumes.
Disadvantages:
Higher machine and mold cost.
Requires a specialized molding machine.
Process: This is a two-stage process.
The rigid substrates are produced separately (via injection molding, CNC, or other methods) in a previous, unrelated cycle.
These pre-made substrates are then manually or robotically placed as inserts into a second, simpler mold.
The soft material is injected over them to form the final part.
Advantages:
Flexibility: Can overmold onto non-plastic inserts (e.g., metal, circuit boards).
Lower Tooling Cost: Uses standard, single-material injection molding machines.
Ideal for Low/Medium Volumes: Perfect for prototypes and shorter production runs.
Disadvantages:
Lower automation (if manual).
Cycle time can be longer.
Bond strength may be slightly lower if the substrate is cold.
Enhanced Ergonomics: Creates soft, comfortable, and non-slip grips for tools, medical devices, and consumer electronics.
Improved Functionality: Allows for integrated seals, gaskets, hinges, and liquid-proof seals.
Durability & Protection: Adds shock absorption, impact resistance, and vibration damping. Protects the rigid core from wear and tear.
Aesthetic Appeal: Enables multi-color designs, brand differentiation, and a high-quality, seamless appearance.
Cost Reduction: Eliminates the need for secondary assembly steps like gluing, press-fitting, or assembling separate soft-grip components.
Part Consolidation: Combines multiple components into one, simplifying the Bill of Materials (BOM).
Successful overmolding requires careful design.
Material Compatibility: This is the most critical factor. The two materials must bond permanently.
Chemical Bond: Requires compatible molecular structures (e.g., TPE to PP, TPU to ABS/PC). The materials must be able to fuse at the interface.
Mechanical Interlock: Essential for incompatible materials (e.g., TPE to metal or nylon). Design undercuts, through-holes, and grooves into the substrate to allow the overmold to flow through and lock itself in place.
Wall Thickness: The overmold layer should be uniform.
Typical Range: 1.0mm - 2.5mm.
Sweet Spot: 1.5mm is often ideal, providing good feel, bond strength, and minimizing sink marks.
Draft Angles: Include sufficient draft (≥ 1°) on both the substrate and overmold features for easy ejection from the mold.
Gate Location: Position gates where flow lines and witness marks will be least visible and to ensure complete filling of the overmold section.
Texture: A light texture on the mold can help hide any minor surface variations at the material interface.
| Rigid Substrate | Soft Overmold | Bonding Mechanism | Common Applications |
|---|---|---|---|
| ABS | TPE, TPU | Excellent Chemical Bond | Power tool grips, appliance handles |
| Polypropylene (PP) | TPE/TPV | Good Chemical Bond (specially formulated TPEs) | Seals, soft-touch grips for consumer products |
| Polycarbonate (PC) | TPU | Excellent Chemical Bond | Phone cases, protective covers, transparent parts |
| Nylon (PA6, PA66) | TPU | Good Chemical Bond | Industrial grips, automotive components |
| Metal (Stainless Steel, Aluminum) | TPE, TPU, Silicone | Purely Mechanical Interlock | Surgical instruments, toothbrush handles, kitchen tools |
Consumer Electronics: Smartphone cases, game controllers, headphone pads, charger cables.
Medical Devices: Soft-grip handles for surgical tools, ergonomic masks, comfortable housings for diagnostic equipment.
Automotive: Steering wheel wraps, gear knobs, button pads, seals, and interior trim.
Tools & Industrial: Power tool grips, hand tools, protective equipment handles.
Consumer Goods: Toothbrushes, razor handles, kitchen utensils, appliance buttons.
Overmolding is a powerful and versatile manufacturing technique that elevates product design by seamlessly integrating multiple materials. By understanding the processes, design principles, and material science involved, engineers and designers can create products that are more functional, durable, and user-friendly.
